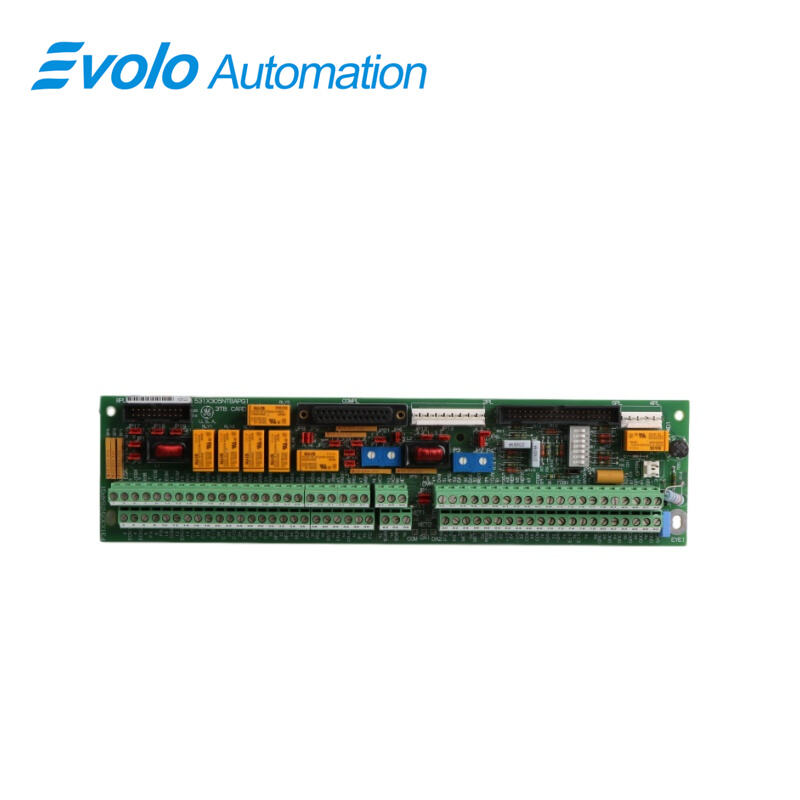

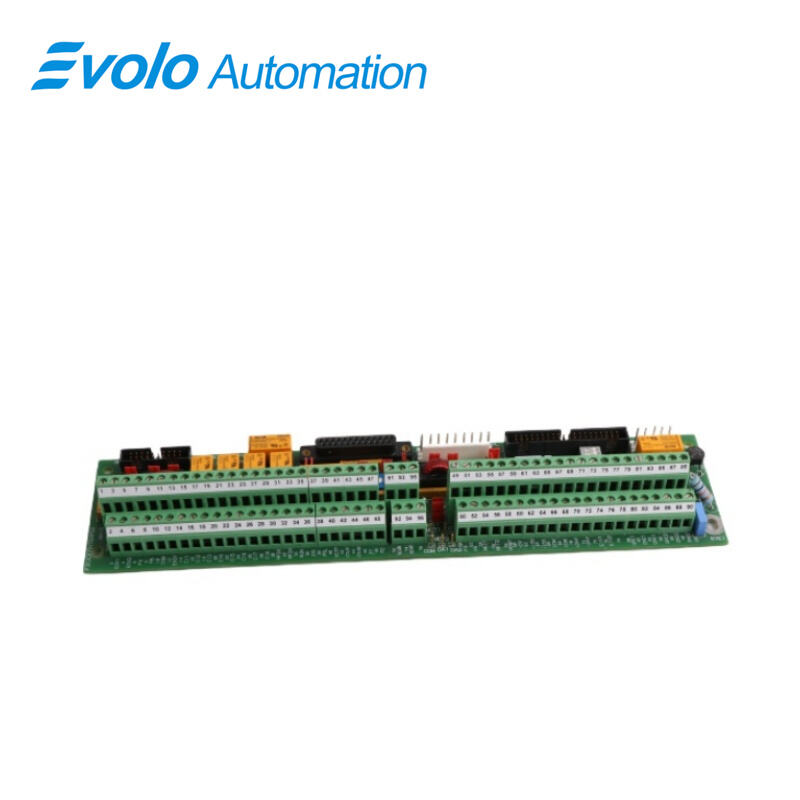

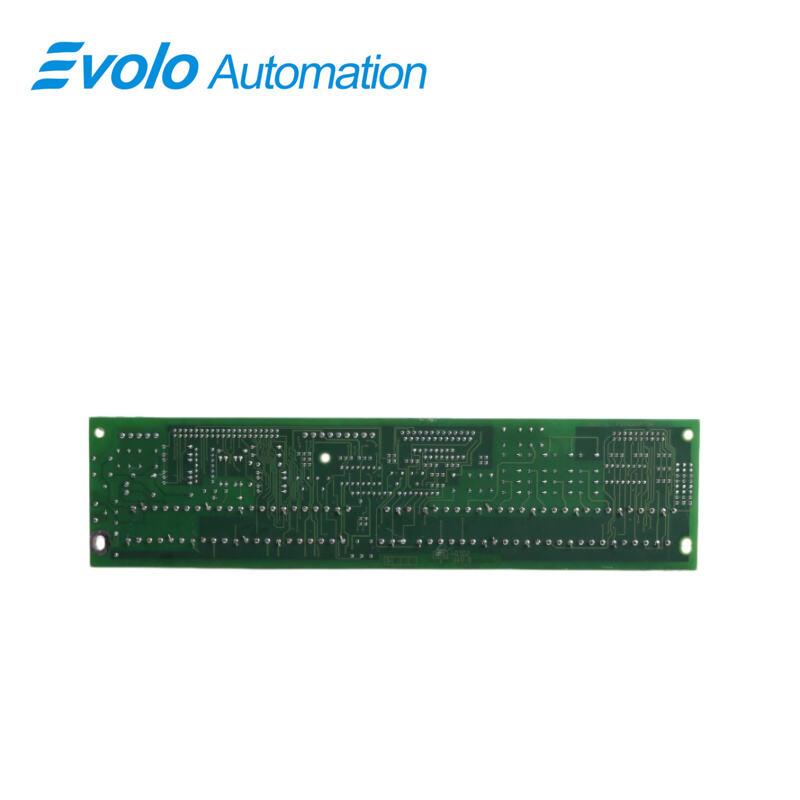

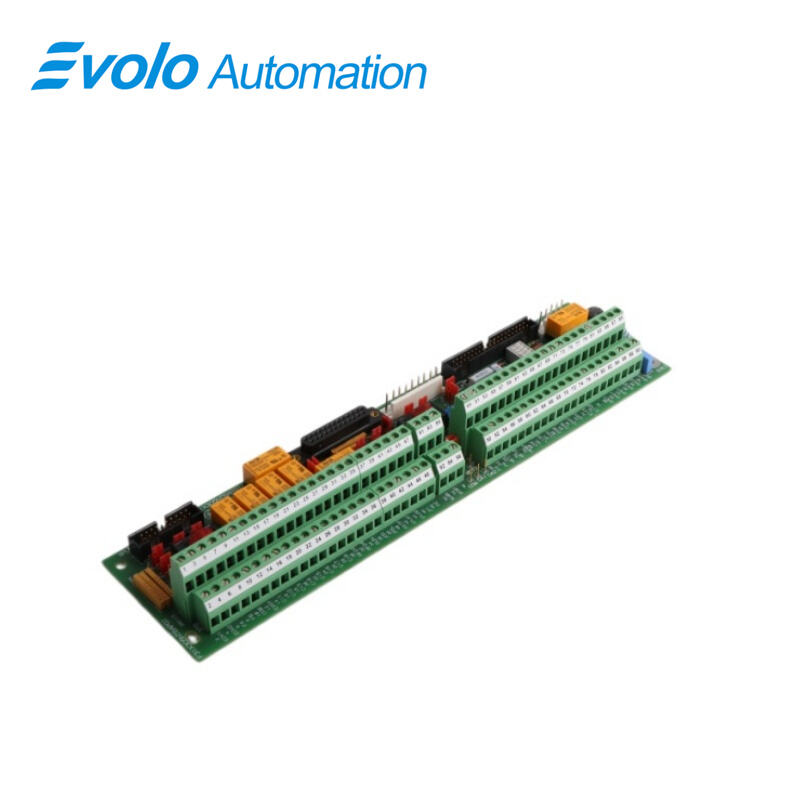

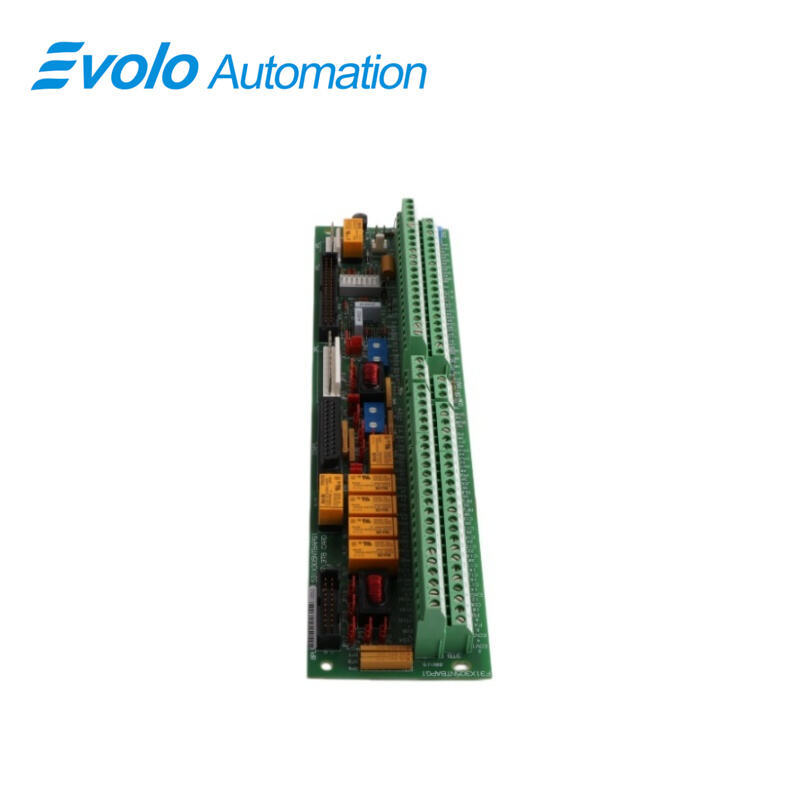

531X305NTBAPG1 NTB/3TB Terminal Board

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	531X305NTBAPG1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 531X305NTBAPG1 card was developed by General Electric as a NTB/3TB terminal board. This card was originally developed for the 531X series of replacement drive boards. Members of this board family are suited for installation into a number of drives across the GE brand. When installed, this card provides access to a number of interfacing tools not found in the drive. Applications include serial and relay outputs, low level analog I/O, encoders, and power supplies.

Installing the NTB/3TB terminal board provides both regulated and unregulated power sources. The host drive can draw from regulated supplies rated at 5 VDC and 15 VDC or from unregulated supplies rated at 24 VDC or 120 VAC. Users can configure a number of board settings to conform to specific load requirements. 5V and 15V encoders can be adjusted with the jumpers found on the board. A combination of seven form A and form C relay outputs are also provided by the board. All integrated relays include contacts rated at 120 VAC. The card also contains four potentiometers that allow for scaling of low level analog I/O.

Features

Power Supply

For external use, the NTB/3TB provides the following power outputs:

Regulated voltages of +5 Vdc and 15 V dc,each with a 300 mA current capacity；

Unregulated dc 24 V,500 mA current capacity；

120 Vac,0.5 A of current capacity.

Encoder Interface

A differential A-quad-B encoder interface with a marker channel is included in the NTB/3TB and can be used to connect to the drive；

On the drive control board, this circuit is optically isolated；

Jumpers are included in the NTB/3TB to allow the interface to be set up for +5 V or 15 V encoders.

531X305NTBAPG1 Digital ControlInputs

The NTB/3TB transmits a variety of control inputs to the drive control board.There are 12 general-purpose control inputs (up to 24 V dc) and special-purpose digital inputs (such as RESET and CONTROL ON)；

Depending on whether positive or negative logic is employed, hardware jumpers are used to bias disconnected inputs to +24 or -24 V dc.

Other Features

When installed, this card gives you access to a variety of interfacing tools that aren't included with the drive. Serial and relay outputs, low-level analog I/O, encoders, and power supply are examples of applications. When the NTB/3TB terminal board is installed, it supplies both regulated and unregulated power sources

The host drive can be powered by regulated sources rated at 5 VDC and 15 VDC, as well as uncontrolled supplies rated at 24 VDC or 120 VAC. A variety of board settings can be configured by users to meet individual load needs. The jumpers on the board can be used to alter the 5V and 15V encoders

The board also includes a total of seven form A and form C relay outputs. Contacts rated at 120 VAC are included in all integrated relays.The card also includes four potentiometers for scaling low-level analog l/O.

A detailed wiring diagram may be found in both the series handbook and the device datasheet.General Electric was the initial provider of technical support for this terminal board

Frequently Asked Questions

What is 531X305NTBAPG1?

531X305NTBAPG1 is a NTB/3TB Terminal Board developed by GE under EX2000 Excitation system.

How to Obtain 531X305NTBAPG1?

EVOLO provides the 531X305NTBAPG1 as well as other turbine control products. Contact EVOLO.

Is 531X305NTBAPG1 brand new or refurbished?

531X305NTBAPG1 is brand new and come with a one-year warranty.

How long will it take for the 531X305NTBAPG1 to arrive after I place an order?

Once payment is confirmed, we ship immediately. Delivery typically takes 3-5 days from China to your location.

Do you offer any discounts?

Yes! For discounts on 531X305NTBAPG1, please contact John for the best offer.
