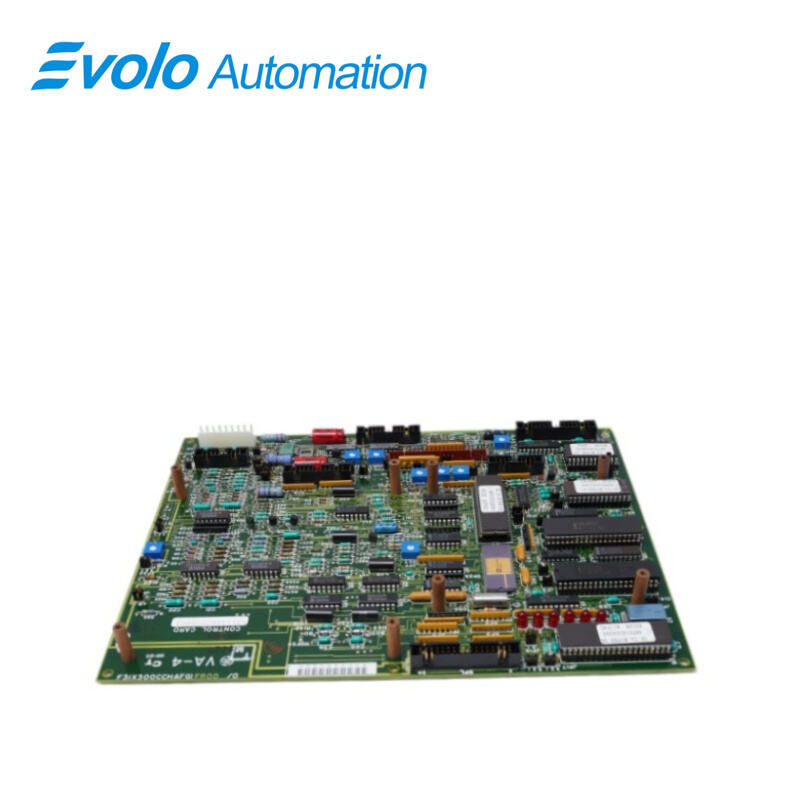

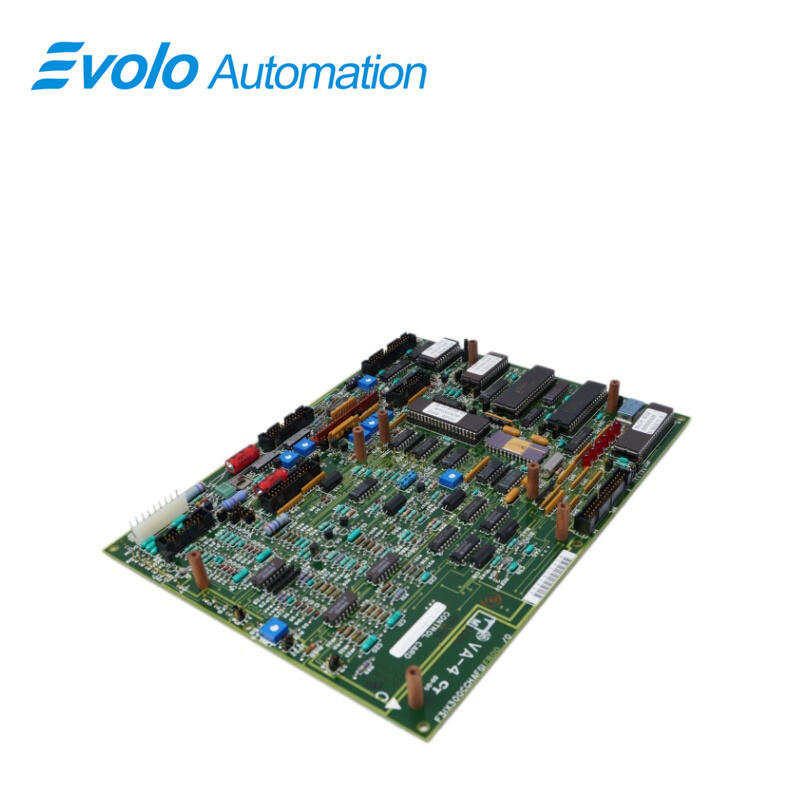

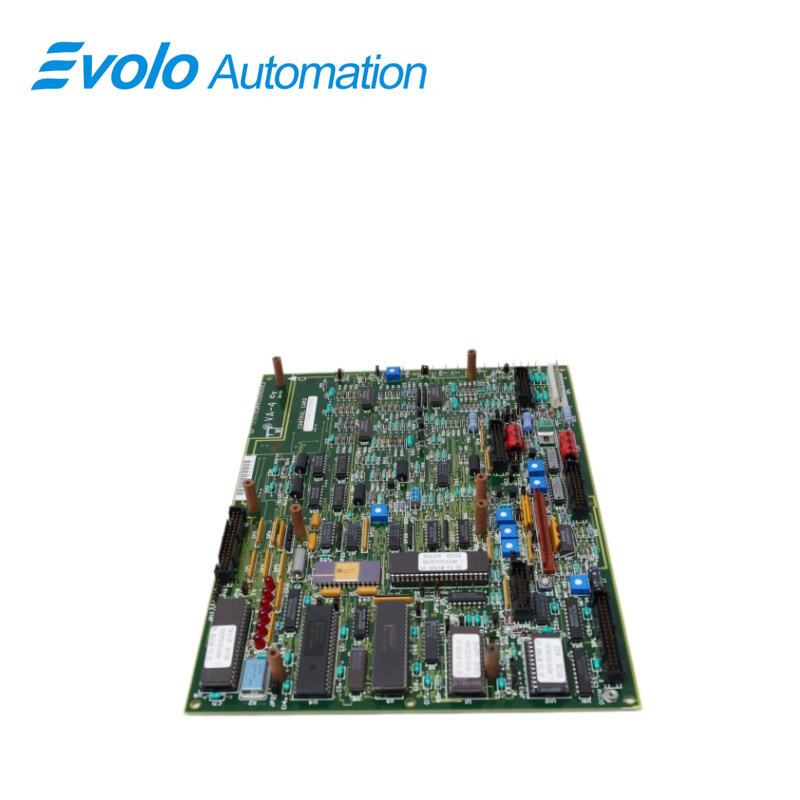

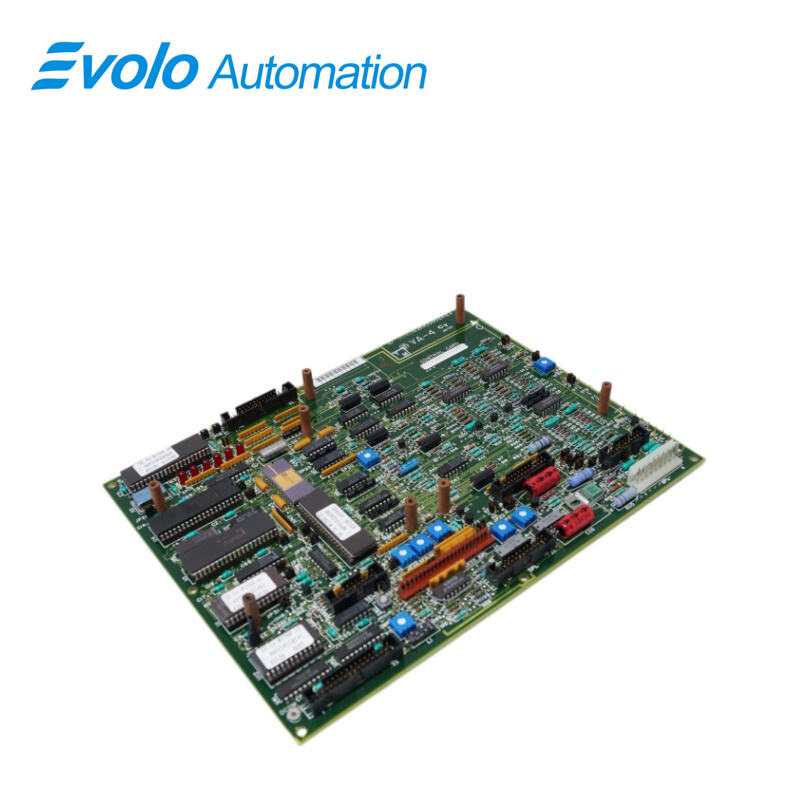

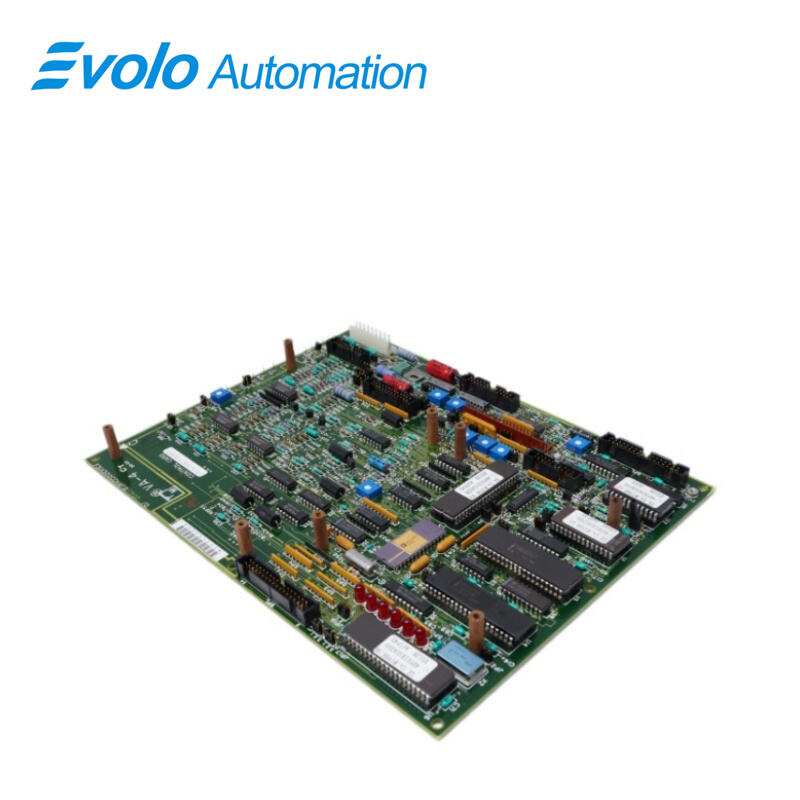

531X300CCHBDM3 Control Board , China 531X300CCHBDM3 Control Board Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	531X300CCHBDM3
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Product Name	531X300CCHBDM3
Type	Control Board
Dimensions	28x21.4x2.4 cm
Weight	0.48 kg
Power Supply	+15V; +24V; -24V; +5V terminals
Status Indicator	STATUS LED
Application	DC300 drives; VA-4 system
Connectivity	5 vertical male pin connectors; 2 header connectors (bottom edge); 1 additional male connector (top edge)

Description

The 531X300CCHBDM3 is a high-quality control board developed by GE FANUC, designed to enhance the performance of various industrial applications. It serves as an integral part of GE’s 531X series of boards, offering reliable and efficient control solutions.

Applications

Steel rolling mill: Acts as the control center in high-speed continuous rolling production lines, coordinating dynamic synchronization and load balancing between units.

Heavy machinery processing plant: Integrated into the power distribution cabinet of large machine tools, achieving complex motion trajectory control through auxiliary expansion boards.

Automated assembly plant: Manages the communication logic of the production line drive chain, ensuring the consistency of action of multi-station actuators.

Paper and printing plant: Utilizes onboard precision adjustment components to optimize the feedback parameters of the tension control system in real time, improving yield.

Mining material processing plant: Used in the control system of large hoists, leveraging its robust mounting architecture to withstand severe physical vibrations and environmental challenges.

Maintenance and Troubleshooting

Troubleshooting: If the control link is interrupted, first determine the error type using the onboard diagnostic LEDs, and check the core logic levels using the TP test points. If a daughterboard has been added, verify the contact stability of the vertical connectors.

Maintenance Recommendations: Regularly clean dust around the support pillars to prevent moisture-induced degradation of interlayer insulation. When replacing boards, always record the positions of all jumpers against the original board.

FAQ

Q: Does the 531X300CCHBDM3 require simultaneous access to +15V/+24V/-24V/+5V to operate?
A: Yes. These voltages power logic, amplifiers, and communication circuits; missing one may prevent startup.

Q: What does a red or off STATUS LED indicate on the 531X300CCHBDM3?
A: Green means normal operation; red or flashing indicates faults or undervoltage per DC300 diagnostics.

Q: Are the 5 vertical pin connectors on the 531X300CCHBDM3 vibration resistant?
A: Yes. Reinforced design with proper cable fastening resists industrial vibration.

Q: What are the differences between top and bottom interfaces on the 531X300CCHBDM3?
A: Bottom connects to main bus; top and vertical pins support expansion and feedback signals.

Q: What precautions are needed when replacing the 531X300CCHBDM3 in DC300 systems?
A: Ensure exact model match and verify power polarity to avoid -24V/+24V wiring damage.
