330104-00-25-10-12-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-25-10-12-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

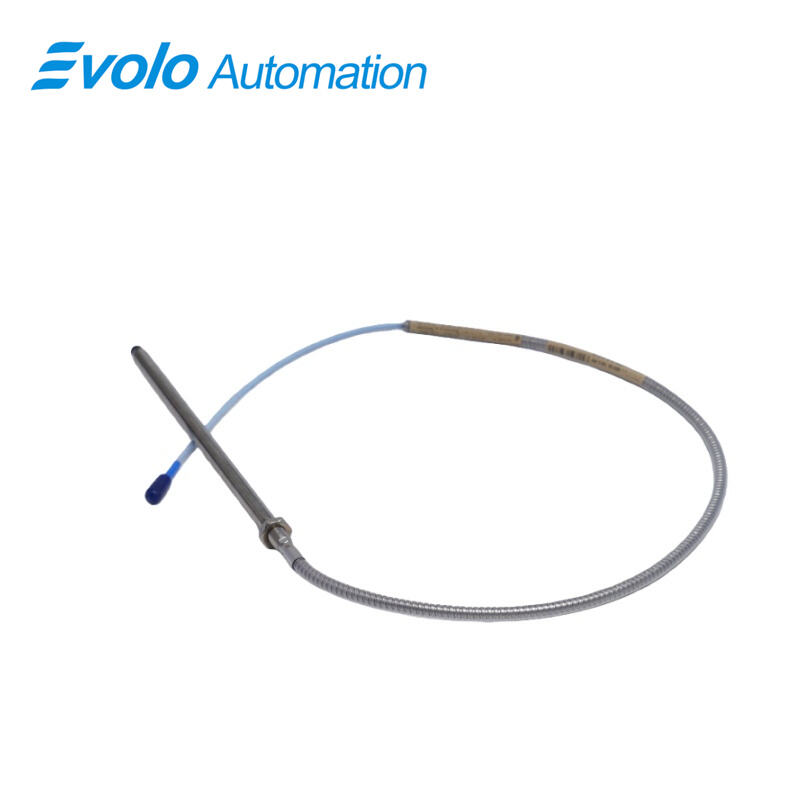

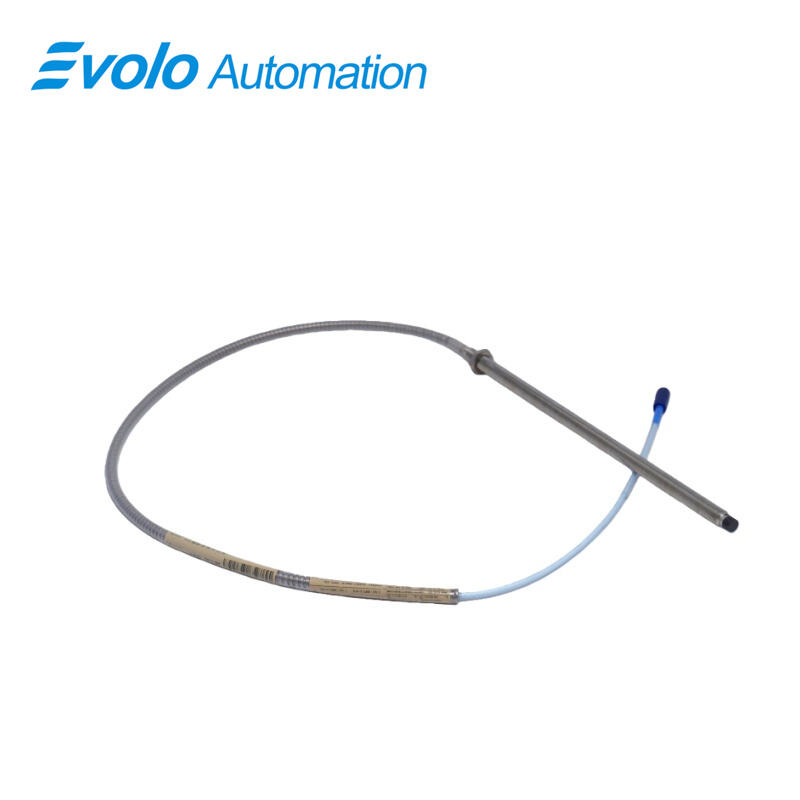

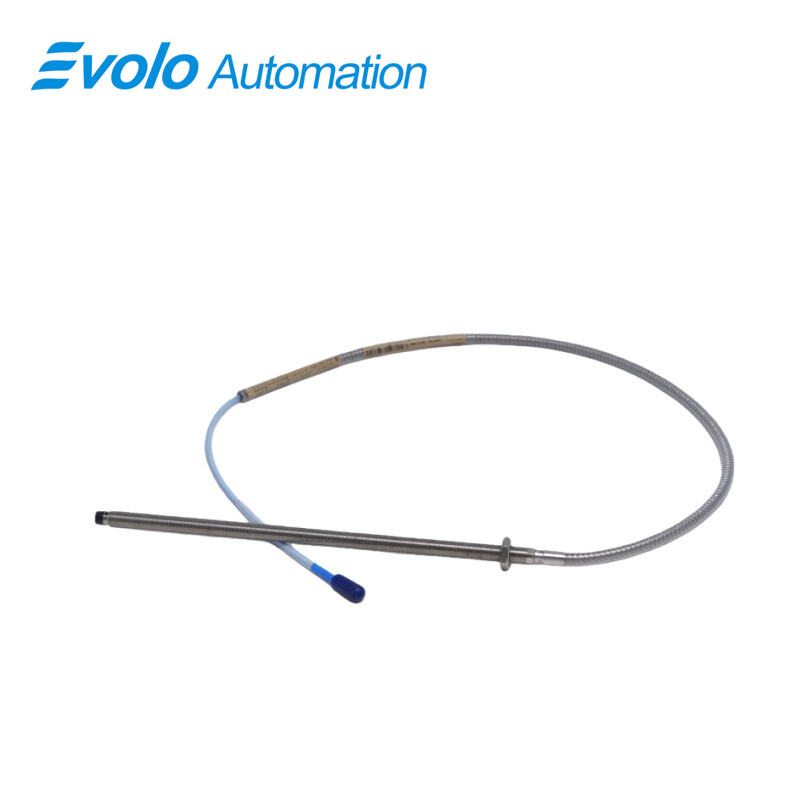

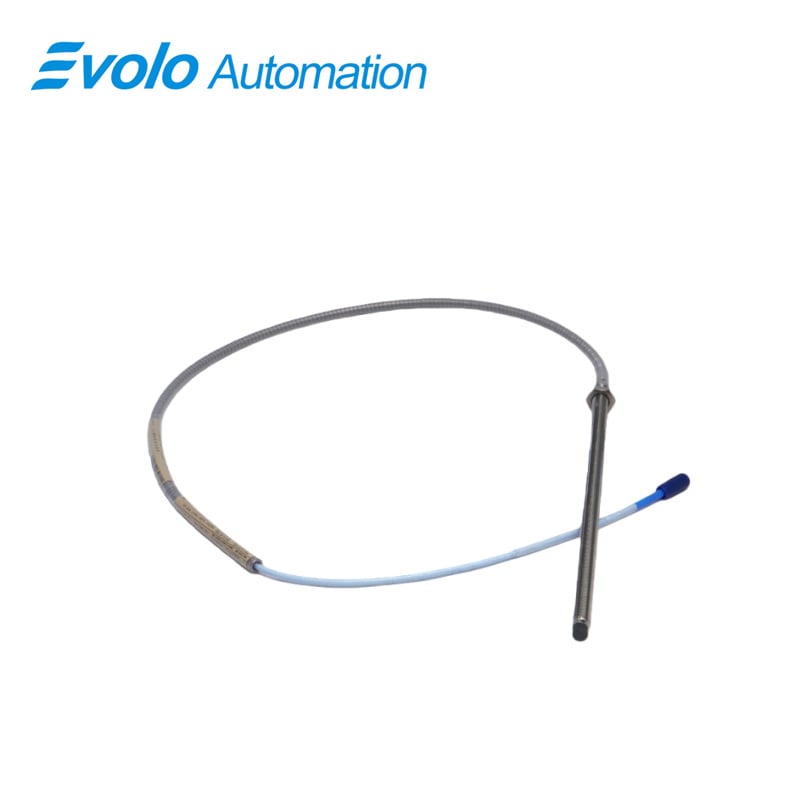

The 330104-00-25-10-12-00 3300 XL 8 mm Proximity Probe is a precision eddy-current sensor engineered for high-performance automation and condition monitoring of fluid-film bearing machinery. With an M10x1 threaded stainless steel case and a robust polyphenylene sulfide (PPS) probe tip, it measures both static positions and dynamic vibrations with exceptional accuracy. This probe offers a 2 mm (80 mils) linear range and operates reliably in temperatures ranging from -52°C to +177°C (-62°F to +350°F), maintaining less than 2 mV change per volt of supply. The miniature ClickLoc connector and optional FluidLoc cable ensure 330 N (75 lbf) pull strength while preventing oil or liquid leakage from the machine interior. At 250 mm overall case length and 1.0 meter total cable length, this probe is ideal for applications where longer reach or larger mounting spacing is required. Fully compatible with 3300 XL extension cables and Proximitor Sensors, it meets API 670 standards for linearity, accuracy, and mechanical configuration, delivering reliable and precise measurements in industrial automation, turbine, compressor, and pump monitoring systems.

Applications

Vibration Monitoring of Rotating Machinery
The 3300 XL 8 mm probe captures high-resolution dynamic vibration data on fluid-film bearings, allowing predictive maintenance and automated alerts for imbalance or misalignment.

Axial and Radial Position Measurement
Provides precise measurement of axial displacement and radial shaft position, supporting automation of alignment checks and machine performance optimization.

High-Temperature Process Monitoring
Operating reliably up to +177°C, it is suitable for monitoring compressors, turbines, and pumps in high-temperature industrial processes without degradation of signal accuracy.

Keyphasor and Speed Signal Generation
Delivers accurate Keyphasor reference and zero-speed signals, enabling precise speed control and synchronization in automated monitoring systems.

Extended Reach Installations
With 1.0-meter cable length and optional FluidLoc design, the probe allows flexible placement in machines with larger installation spacing while maintaining signal integrity.

Specifications

Competitive Advantage

High-Precision Linear Response
2 mm (80 mils) linear range and low supply sensitivity (<2 mV/V) ensure stable, accurate measurements for position and vibration monitoring in critical automation systems.

Robust Mechanical Design
TipLoc molding and CableLoc cable attachment provide 330 N (75 lbf) pull strength, preventing cable or probe detachment in high-vibration industrial environments.

Fluid and Oil Resistance
Optional FluidLoc cable prevents oil ingress into the cable interior, ensuring consistent signal performance and reducing maintenance risks in lubricated equipment.

Compatibility and Interchangeability
Fully backward-compatible with non-XL 3300 series 5 mm and 8 mm probes, extension cables, and Proximitor Sensors, facilitating easy upgrades and system expansions.

API 670 Compliant Performance
Meets API 670 standards for linearity, mechanical configuration, and temperature stability, guaranteeing reliable operation in high-performance industrial automation and monitoring systems.
