51402592-100 I/O File Backplane

Overview

Place of Origin	USA
Brand Name	HONEYWELL
Model Number	51402592-100
Packaging Details	Original new Factory Sealed
Delivery Time	5-7 days
Payment Terms	T/T
Supply Ability	In stock

Specifications

Description

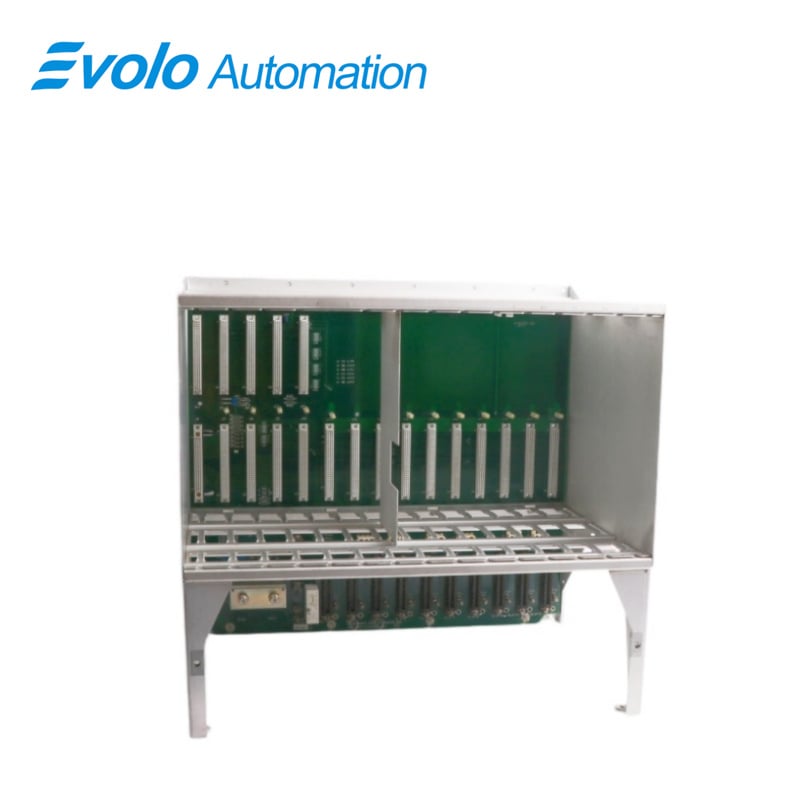

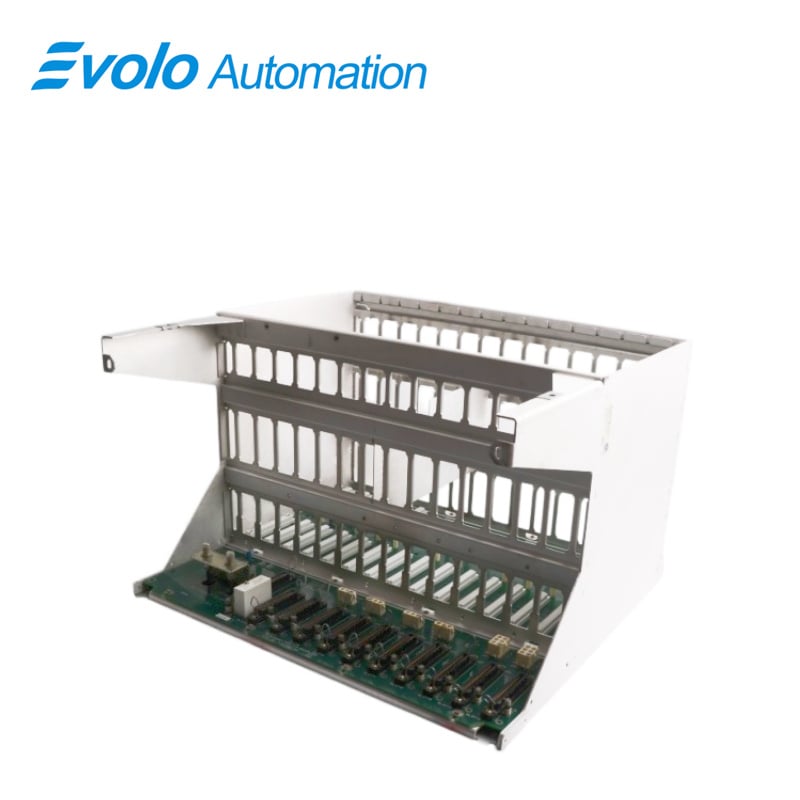

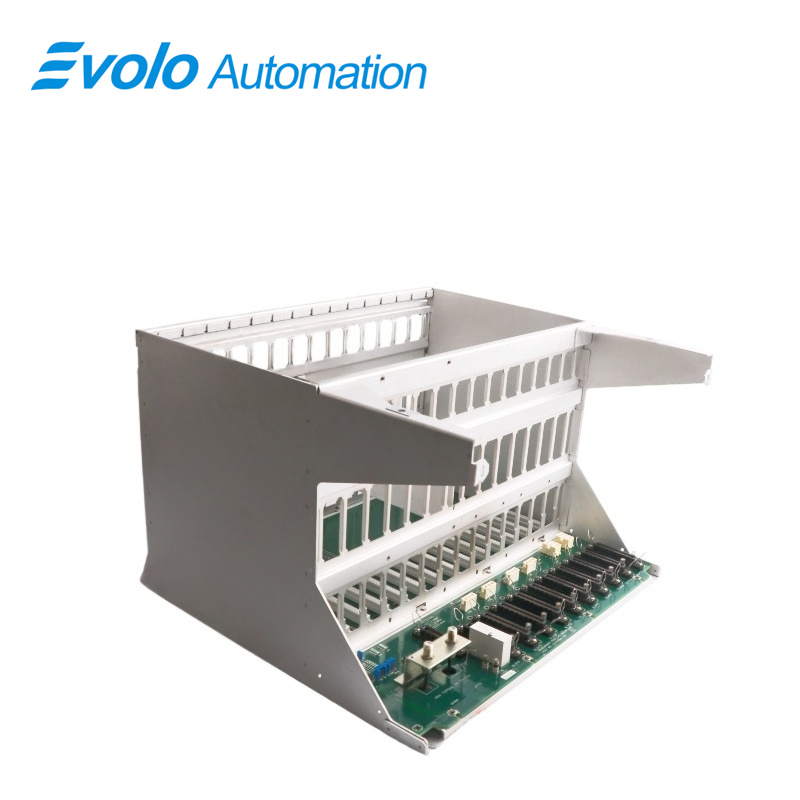

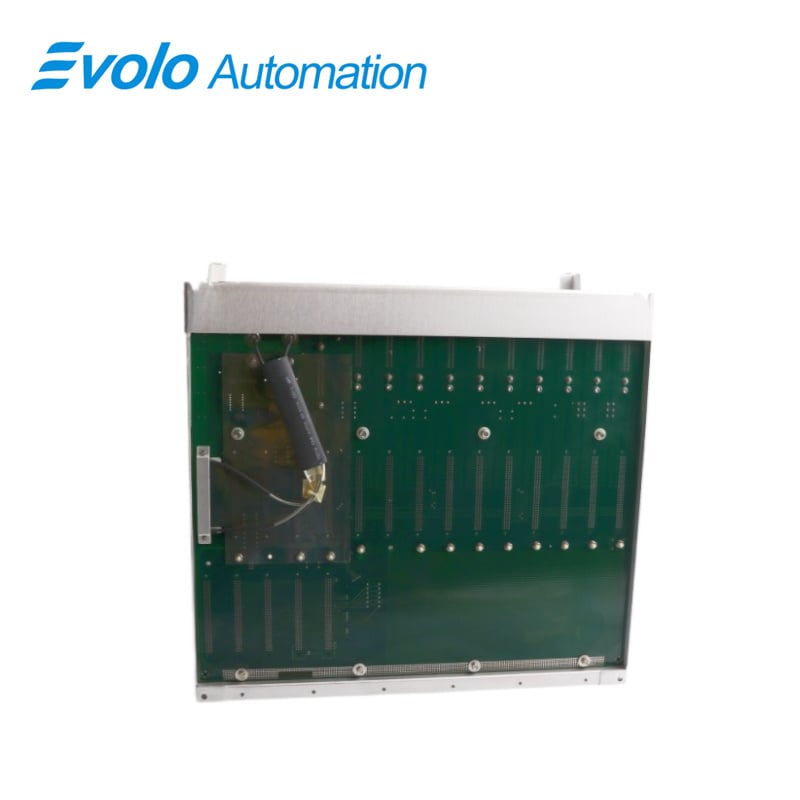

The 51402592-100 is an I/O File Backplane manufactured by Honeywell for industrial automation control systems. It is primarily used in Honeywell's Distributed Control Systems (DCS) to connect, mount, and provide communication buses and power distribution for various input/output (I/O) boards and control modules.

Applications

Chemical plants: Used for controlling the operation of high-temperature, high-pressure chemical reactors and long-distance pipelines.

Oil refineries: Used for the automated regulation of crude oil catalytic cracking and distillation tower processes.

Power plants: Used for boiler combustion control and turbine operation data monitoring.

Pharmaceutical plants: Used for aseptic production lines in bio-fermentation and drug formulation.

Paper mills: Used for pulp cooking and high-speed paper machine drive control.

Comparison of Derivative Models in the Same Series

51402592-100: Standard I/O interface backplane card.

51402592-150: High-reliability redundant PMM-I/O backplane for dual-safety systems requiring dual-machine hot standby.

51402592-175: Specific interface board typically used for HPM (High-Performance Manager) or UCN (Universal Control Network).

Main Functions

Serves as the physical carrier rack for hardware slots (File Backplane).

Provides electrical connections and signal routing for various industrial PLC modules, Series 8 interface cards, or PMM (Programmable Master Module) modules.

Features a robust industrial-grade error-proof and pressure-resistant design, supporting standard torque (such as channel screw fixing) to ensure contact stability in harsh industrial environments.

FAQ

Q: Does the 51402592-100 I/O File Backplane belong to a standalone or redundant system?
A: The -100 model is typically configured as a non-redundant (standalone) system. Redundant configurations are generally available as -150 and similar models.

Q: Which High-Performance Process Manager (HPM) boards can the 51402592-100 I/O File Backplane be used with?
A: It can be used with a UCN Communication Interface Board (such as 51402592-175) for network connectivity.

Q: How does the 51402592-100 I/O File Backplane connect to I/O modules?
A: It uses a direct plug-in backplane bus slot, enabling fast alignment and secure installation of I/O modules.

Q: What flammability standard does the 51402592-100 I/O File Backplane circuit board comply with?
A: The circuit board complies with the UL 94V-0 flammability standard.

Q: How many card slots does the 51402592-100 I/O File Backplane support?
A: The standard I/O File typically provides 8 standard card slots.
