Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51402573-250 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
51402573-250 |
|
Product Type |
HPM UCN Interface |
|
Dimensions |
2.9 x 21 x 14 cm |
|
Weight |
0.34 kg |
|
Mounting Location |
Slot directly below the HPM Comm/Control module |
|
Mounting Type |
Rack mount |
|
Connector Type |
50-pin cable socket |
|
Coating |
Non-conformal coated variant |
|
Color |
Gray |
|
Contact Resistance |
< 10 mΩ |
|
Data Rate |
Up to 100 Mbps |
|
Network Speed |
Up to 100 Mbps |
|
Operating Temperature Range |
0 °C to +50 °C |
|
Depth |
60 mm |
Description

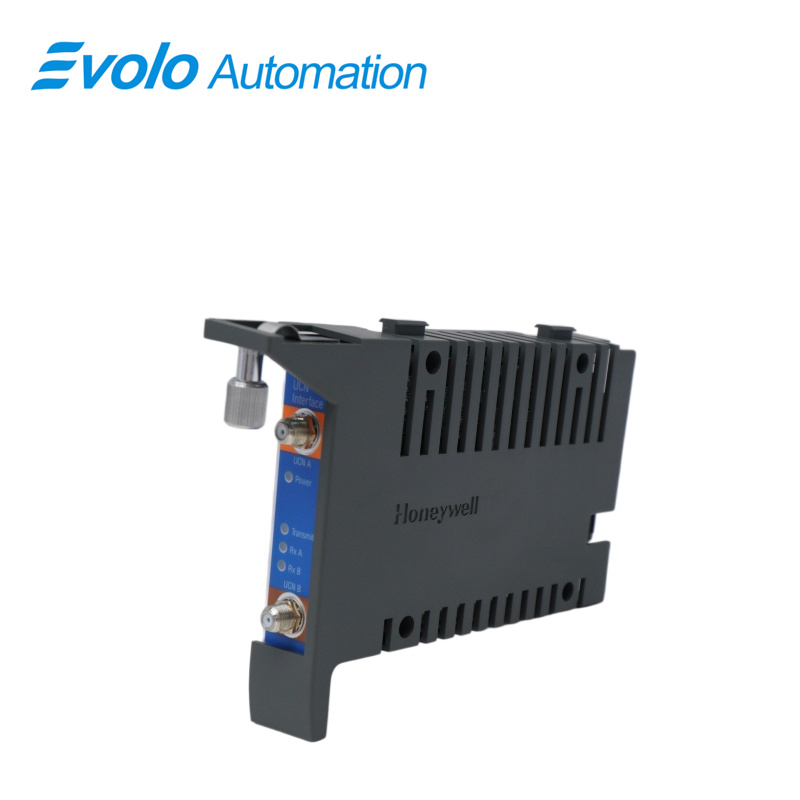

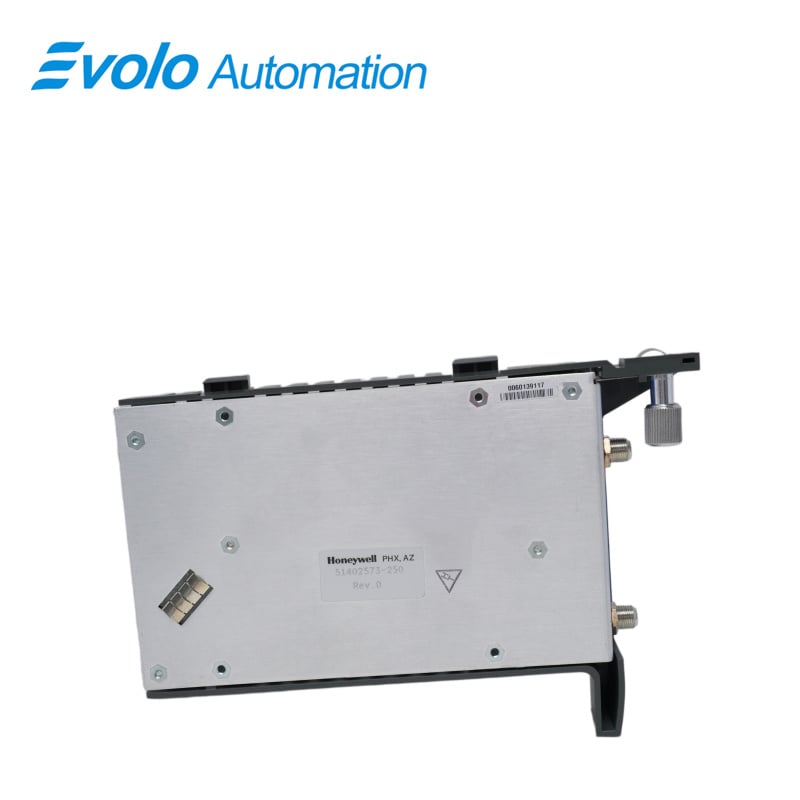

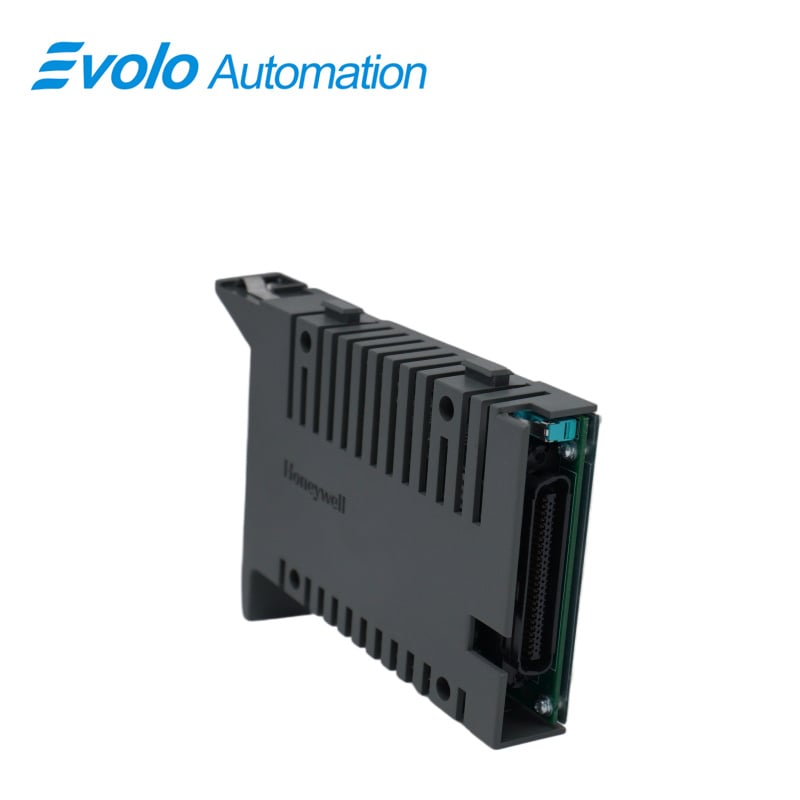

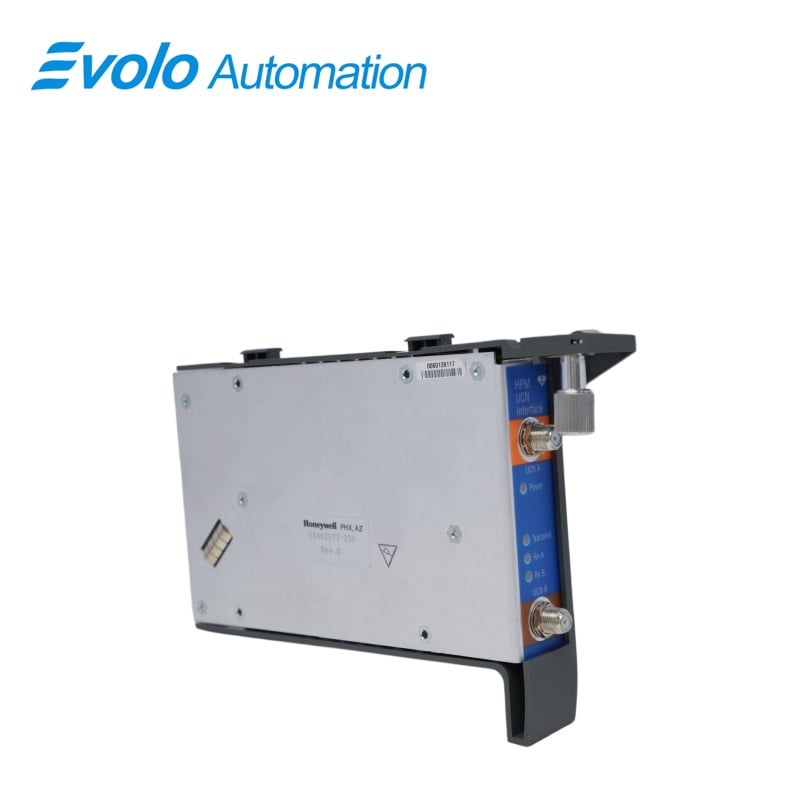

The 51402573-250 is the HPM UCN Interface between the HPM and UCN cable. This HPM UCN interface module plugs into the 50-pin cable socket for slot 1 directly below the HPM Comm/Ctrl module. It connects the main controller to the universal control network cable, transmitting and exchanging electrical signals between the system and external networks.
Applications
LNG Plants: Cryogenic tank and compressor interlock communication.
Combined Power Plants: Gas, steam turbines and generator control signals.
Ethylene Plants: High-density cracking process data flow.
Fine Chemical Plants: Stable batch reactor control alignment.
Nonferrous Smelters: Flash smelting and electrolysis parameter sync.
Card set
The HPMM card set consists of following assemblies:
High-Performance Comm/Control card 51403988-150
High-Performance I/O Link card 51309276-150
HPM UCN Interface module Non-Conformal Coated 51402573-150
Features
Reliable Communication: Bridges HPMand UCN for seamless control data exchange
Modular Integration: Fits into standard HPM chassis slot configuration
Dual UCN Support: Two front-facing UCN cable ports for redundaney or extended networking
System Certified: Tested and validated for TDC 3000 environments
FAQ
Q: Where should 51402573-250 be installed?
A: It is installed in the slot directly below the HPM communication/control module.
Q: What is the contact resistance of 51402573-250?
A: The contact resistance is less than 10 mΩ.
Q: What is the data transmission rate and network speed of 51402573-250?
A: Up to 100 Mbps.
Q: What type of coating is on the PCB of 51402573-250?
A: It is a non-conformal coated variant.
Q: What is the physical depth of 51402573-250?
A: The depth is 60 mm.
