Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51401286-100 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
51401286-100 |
|
Product Type |
EPDG Interface Card |
|
Dimensions |
36.9 x 36.5 x 1.5 cm |
|
Weight |
0.98 kg |
|
Compatibility |
Universal Station nodes |
|
Control Function |
SCSI control |
|
Board Thickness |
1.6 mm |
|
Current Type |
AC |
|
Substrate material |
Multilayer printed circuit board (often marked with FR-4 / 94V-0 flame retardant certification) |
Description

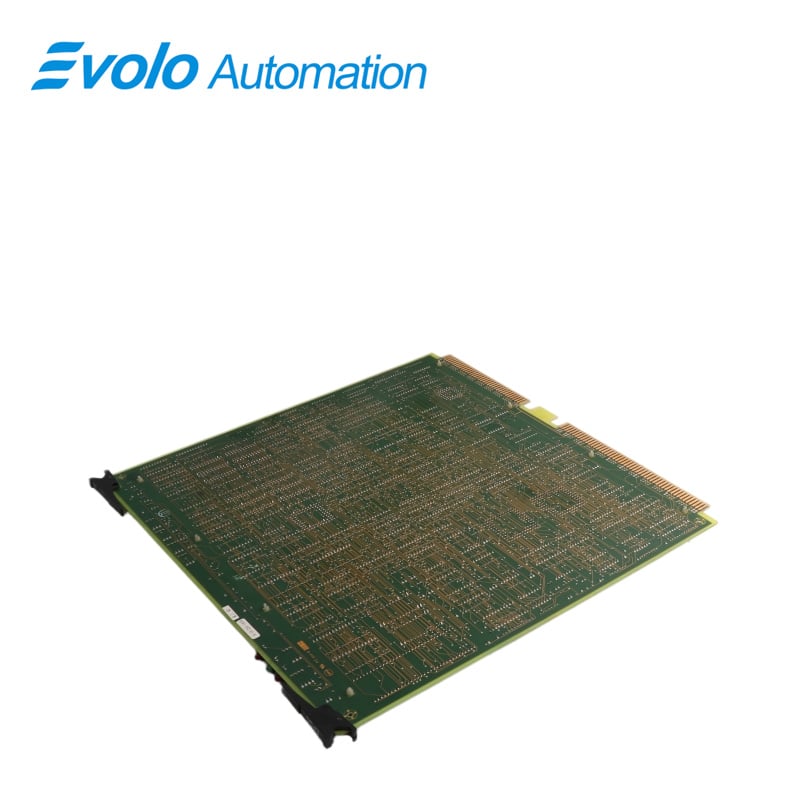

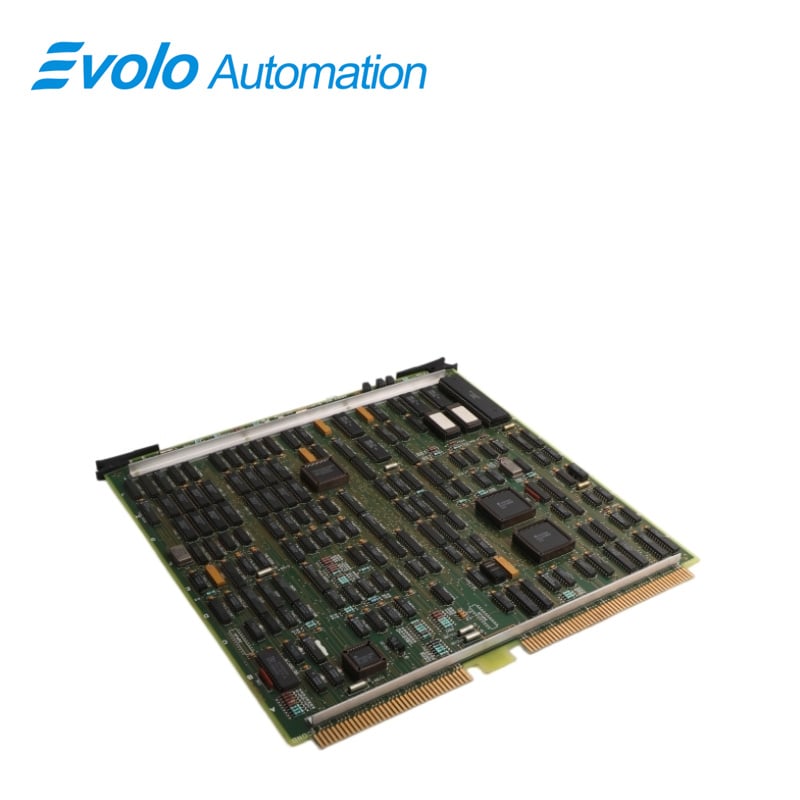

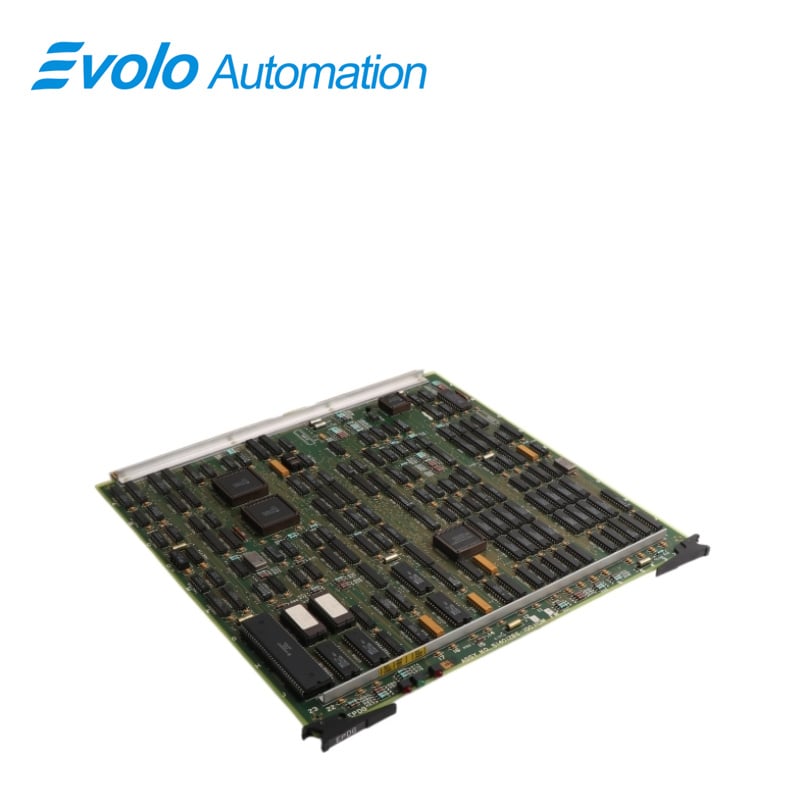

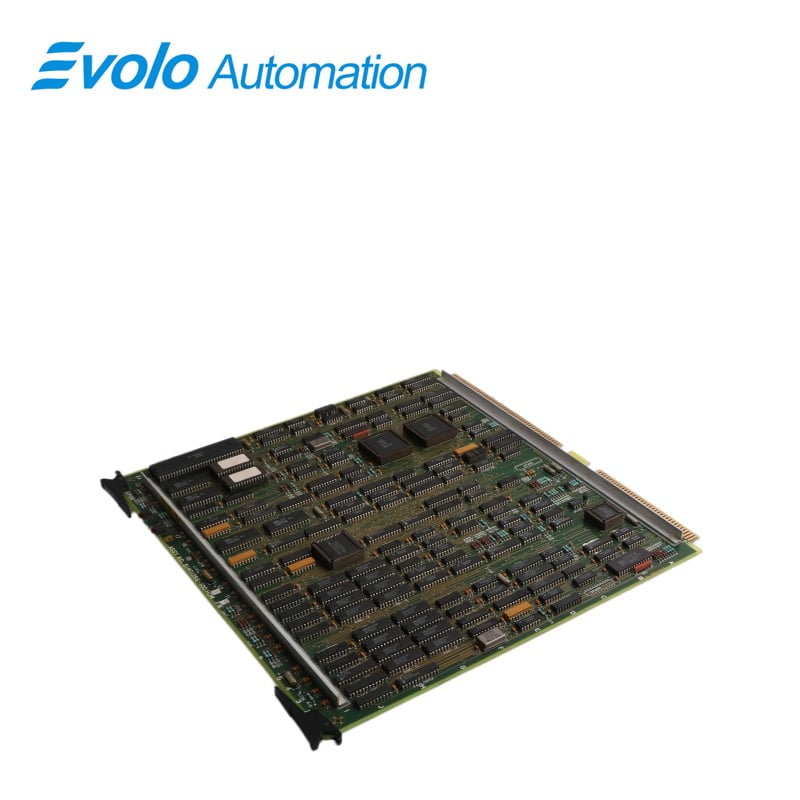

Honeywell 51401286-100 is the first-generation Enhanced Peripheral Display Generator card(EPDG Interface Card) for Universal Station nodes. It provides the signals for the video display, SCSI control for the Bernoulli or Zip drive, cursor control for the touch screen, trackball, or mouse, communication for the keyboard, and the printer, if present.
Applications
Petrochemical Plants: Display main process screens in operator stations.
Power Plants: Visualize boiler and turbine real-time graphics.
Steel Plants: Enable human-machine interaction via control consoles.
Fine Chemical Plants: Process operator touch and control inputs.
Cement Plants: Generate kiln charts and drive printers.
Features
Simple installation and setup
Durable construction for harsh industrial environments
Compatible with a wide range of equipment and systems
Supports both analog and digital data transmission
FAQ
Q: What is the node compatibility of 51401286-100?
A: It is compatible with Universal Station nodes.
Q: What control function does 51401286-100 have?
A: It has SCSI control functionality.
Q: What is the PCB thickness of 51401286-100?
A: The PCB thickness is 1.6 mm.
Q: What type of current does 51401286-100 use?
A: It uses AC (alternating current).
Q: What flame-retardant certification does the base material of 51401286-100 have?
A: The multilayer PCB substrate typically carries FR-4 / 94V-0 flame-retardant certification.
