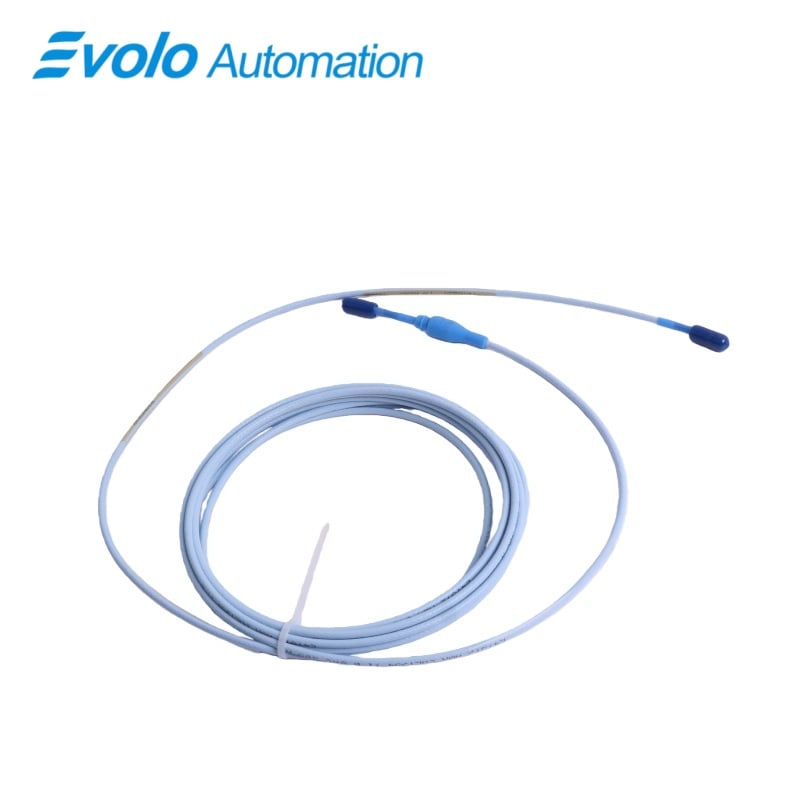

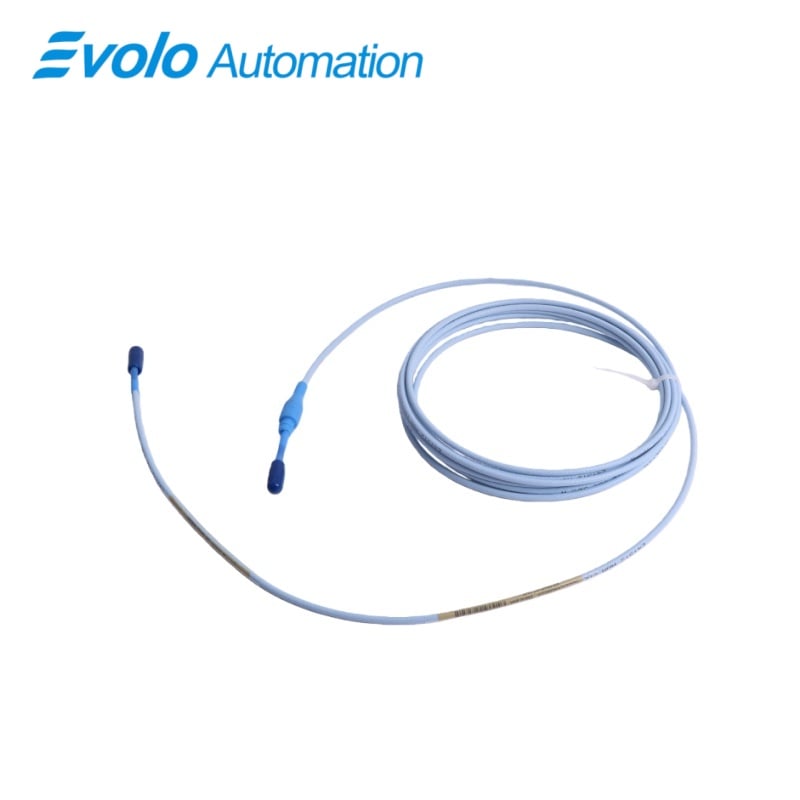

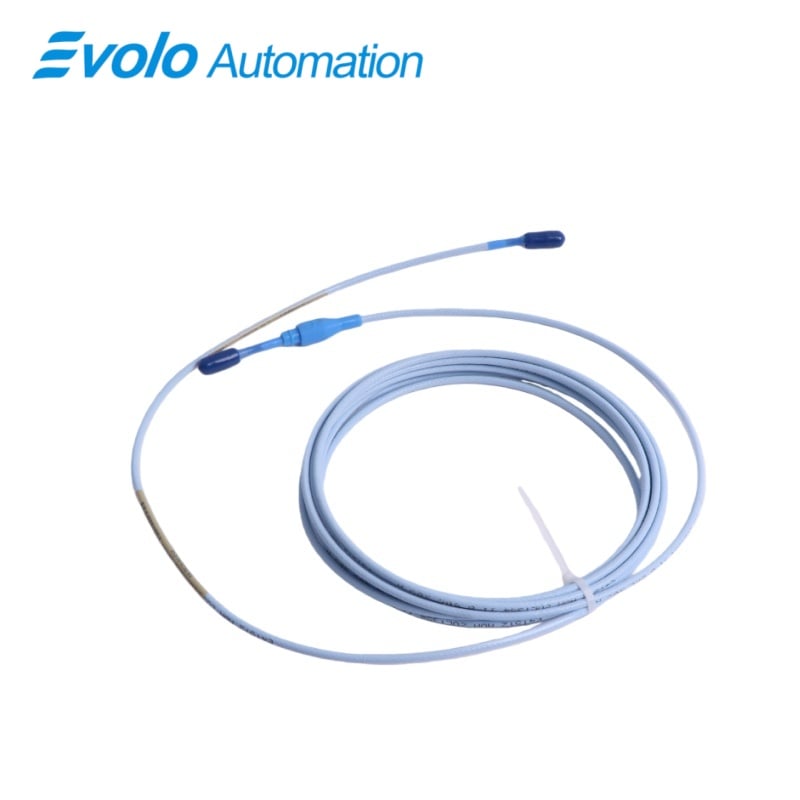

330130-045-02-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-045-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-045-02-05 3300 XL Standard Extension Cable is a high-performance interconnect component specifically engineered for the Bently Nevada 3300 XL proximity transducer system. As a specialized 3300 XL Standard Extension Cable, the 330130-045-02-05 model acts as the critical bridge between a 3300 XL 8 mm proximity probe and a Proximitor* sensor, ensuring that delicate eddy current signals are transmitted with maximum fidelity. This 3300 XL Standard Extension Cable features a 4.5-meter (14.8 feet) length, providing the necessary reach for complex machinery layouts while maintaining the strict electrical properties required for API 670 compliant monitoring.

A defining characteristic of the 330130-045-02-05 3300 XL Standard Extension Cable is its superior signal stability. The 3300 XL Standard Extension Cable utilizes a 75Ω triaxial construction that effectively shields the signal path from electromagnetic interference (EMI) and radio frequency interference (RFI), which are prevalent in power plants and industrial processing zones. This ensures that the 330130-045-02-05 delivers a clean, low-noise signal that directly correlates to the gap between the probe tip and the target surface. Furthermore, the inclusion of a factory-installed connector protector shields the gold-plated ClickLoc connectors from moisture, oil wicking, and environmental contaminants, significantly extending the service life of the entire transducer loop.

Applications

The 330130-045-02-05 is primarily used in the hydrocarbon and power generation industries to monitor fluid-film bearing machinery. Its 4.5-meter length is the industry standard for bridging the distance from the proximity probe—often mounted deep within a turbine or compressor casing—to a Proximitor sensor located in a nearby junction box. By maintaining a precise capacitance of 68.6 pF/m, the cable ensures that critical vibration and axial thrust data are delivered to the monitoring system with the accuracy needed to trigger safety-critical machine trips.

In chemical refineries and offshore platforms, this 3300 XL Standard Extension Cable is frequently deployed in hazardous areas. With its CSA, ATEX, and IECEx certifications, the 330130-045-02-05 is safe for use in explosive atmospheres where flammable gases or vapors may be present. The cable's robust outer jacket and connector protector prevent oil and moisture from wicking through the cable interior, ensuring that it remains operational in environments saturated with synthetic lubricants or saltwater mist, which would cause standard cables to fail.

The cable also plays a vital role in phase reference and speed measurement applications across diverse manufacturing sectors. When used in a Keyphasor* setup, the 330130-045-02-05 provides the high-speed pulse transmission necessary for accurate shaft centerline plotting and orbit analysis. Its ability to maintain signal integrity over long-distance routing (up to 305 meters with field wiring) makes it a foundational component for comprehensive machinery condition monitoring programs, supporting both 3300 series and 3500 series monitoring racks.

Specifications

Competitive Advantage

1. Certified Reliability for Global Hazardous Areas

The 330130-045-02-05 is fully compliant with CSA, ATEX, and IECEx standards, offering a universal solution for plants operating in hazardous environments. Unlike uncertified cables that require expensive explosion-proof conduit or specialized enclosures, this extension cable is engineered for intrinsic safety. This allows for direct deployment in volatile zones, reducing compliance risks and significantly lowering the total cost of installation for the machinery protection system.

2. Enhanced Environmental Sealing with Connector Protectors

A major competitive edge for the 330130-045-02-05 is the inclusion of the factory-installed connector protector. This feature, combined with gold-plated ClickLoc connectors, ensures a moisture-proof and vibration-resistant seal. This prevents the most common cause of proximity sensor failure: signal loss due to connector corrosion or oil wicking. By safeguarding the connection point, this cable ensures a much higher Mean Time Between Failures (MTBF) in "wet" or oily industrial settings.

3. Total Interchangeability and API 670 Compliance

Built to strictly adhere to the API 670 Standard, the 330130-045-02-05 offers total component interchangeability. Maintenance teams can replace the cable without the need for time-consuming bench calibration or matching with specific probes or sensors. This "plug-and-play" capability, coupled with a low supply sensitivity of less than 2 mV/V, ensures that data remains accurate and stable even when components are swapped during emergency maintenance, minimizing machine downtime.
