Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51305508-200 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
51305508-200 |
|
Product Type |
LCN Extender Paddle Board |
|
Operating Temperature Range |
-40 °C to +85 °C |
|
Power Consumption |
Less than 10 W |
|
Communication Interface |
RS-485; Modbus |
|
Memory Capacity |
16K EEPROM |
|
Processing Speed |
20 MHz |
|
Input/Output Channels |
16 inputs / 16 outputs |
|
Fiber optic physical interface: |
ST type fiber optic connector |
|
Transmission medium |
Multimode fiber |
|
International certification standard |
CE certification |
Description

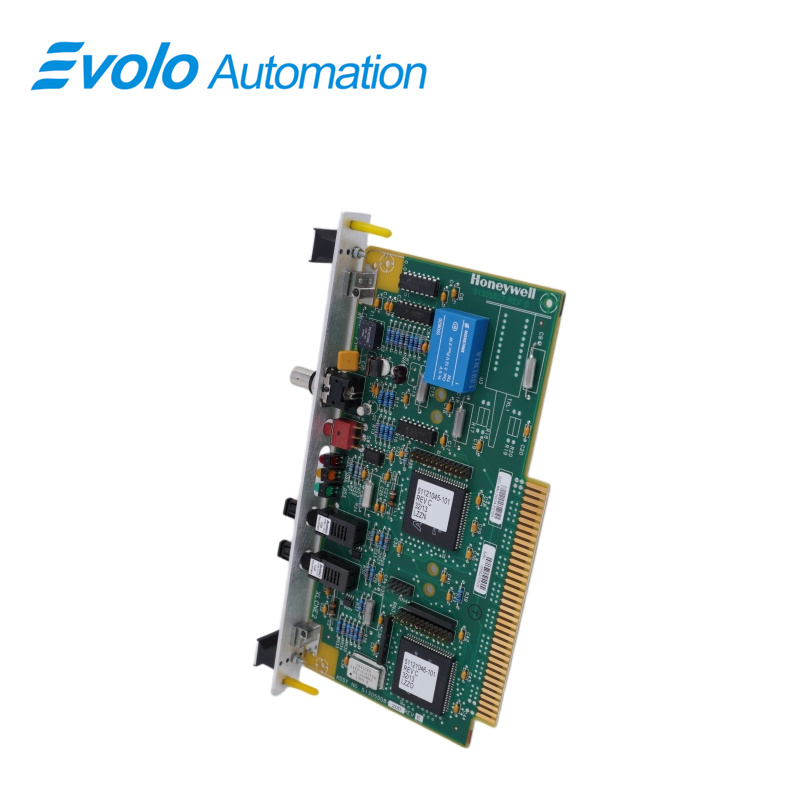

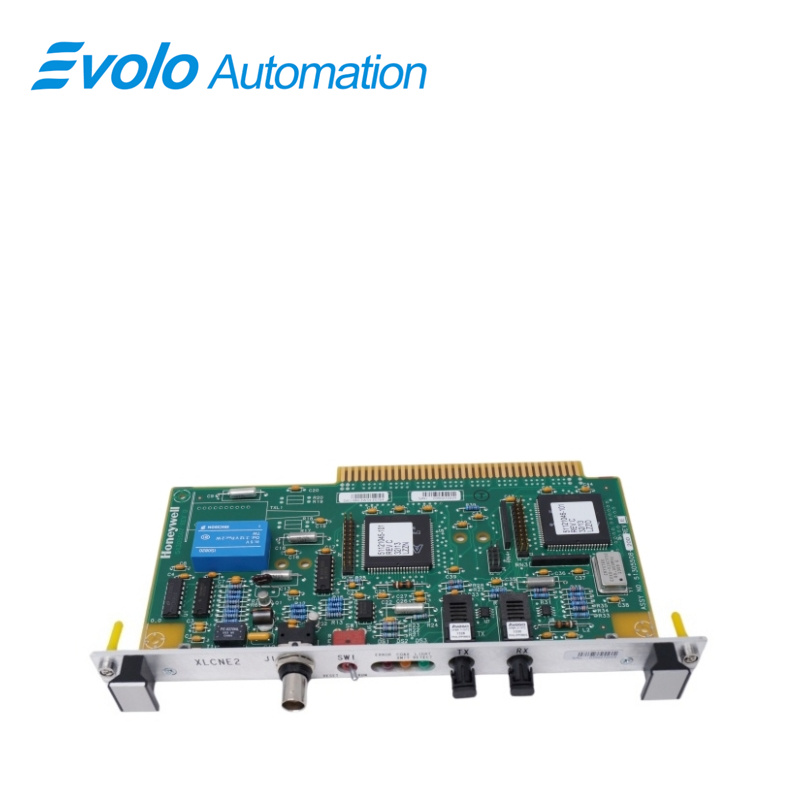

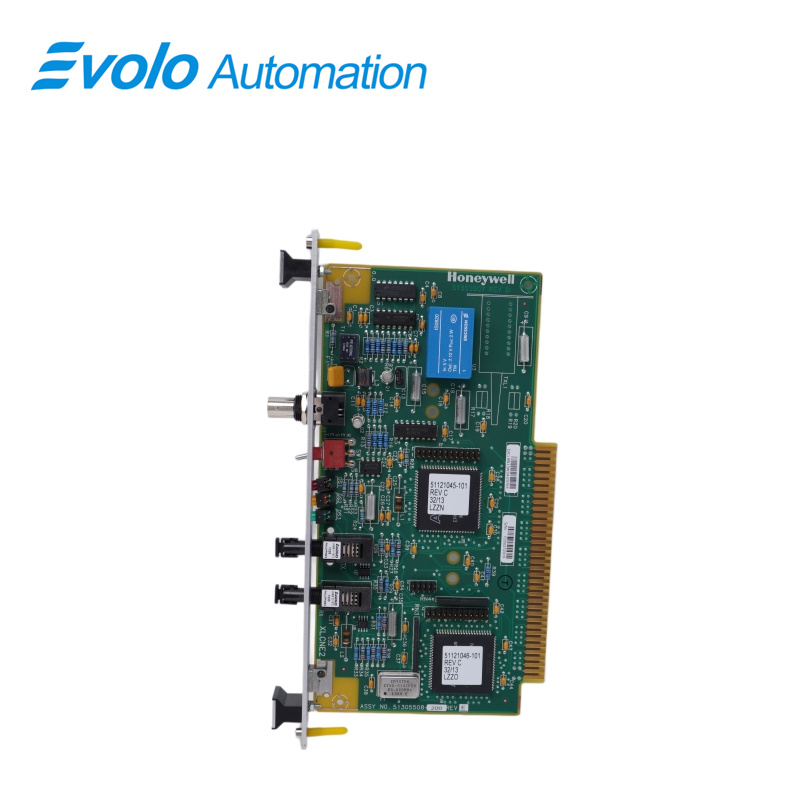

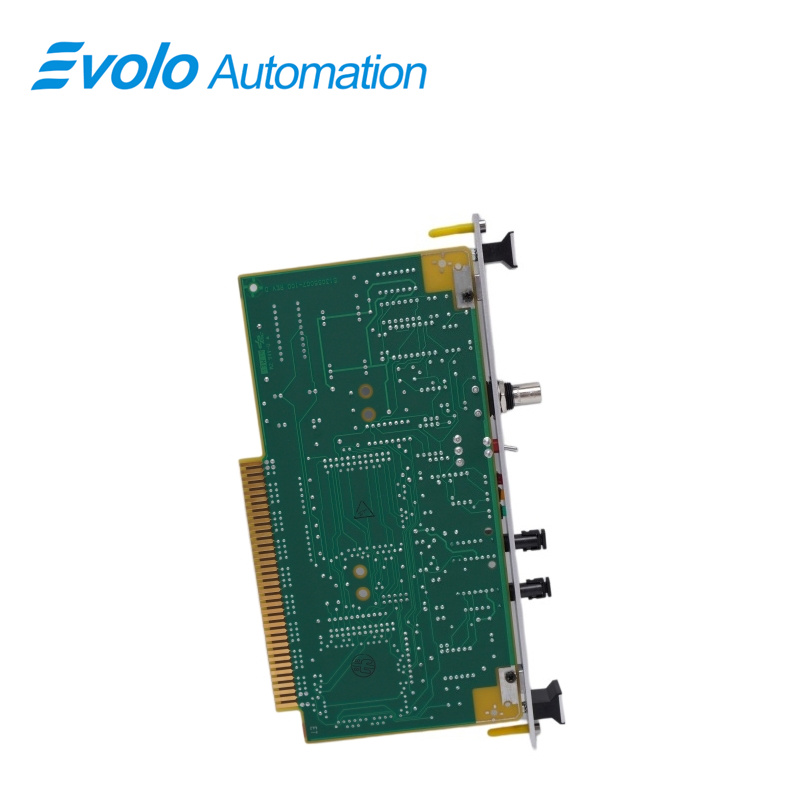

Honeywell's 51305508-200 is an LCN extender paddle board for network extension and signal conversion. This board is installed in the Local Control Network (LCN) of large industrial control systems, and its main function is to transmit network data over long distances via fiber optic cables.
Applications
Refinery Plants: Extend LCN to connect remote tank monitoring.
Chemical Plants: Expand control bus for reactor coordination.
Power Plants: Link coal terminal and main control room.
Metallurgy Plants: Extend signals to hot rolling lines.
Paper Plants: Connect pulping and paper machine networks.
Feature
The next-generation fiber optic extension (XLCNE2): Current CE-certified LCN extension board replacing LCNE/LCNE2.
Physical photoelectric conversion: ST fiber connectors convert LCN coax signals to multimode fiber for long-distance transmission.
Standard configuration quantity: Each LCN extension link typically uses 4 boards for redundant A/B cable ends.
FAQ
Q: How many input/output channels does 51305508-200 provide?
A: It provides 16 input and 16 output I/O channels.
Q: What type of fiber optic interface does 51305508-200 use?
A: It uses an ST-type fiber optic connector interface.
Q: What transmission medium is specified for 51305508-200?
A: It uses multimode optical fiber.
Q: What is the processing speed of 51305508-200?
A: Its hardware processing speed is 20 MHz.
Q: What is the memory capacity of 51305508-200?
A: It has 16K EEPROM non-volatile memory.
