Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51305348-100 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
51305348-100 |
|
Product Type |
Media Adapter MAU Assembly |
|
Dimensions |
3.2 x 10.7 x 13 cm |
|
Weight |
0.3 kg |
|
Measuring Range |
0–10 inH2O to 0–1000 psi |
|
Accuracy |
±0.075% of span |
|
Output Signal |
4–20 mA with HART 7 |
|
Process Connection |
1/2" NPT & flange options |
|
Wetted Materials |
316L SS / Hastelloy C |
|
Operating Temperature Range |
-40 °C to +400 °C |
|
Overpressure Rating |
1500 psi |
|
Certifications |
SIL2; ATEX Zone 1; IECEx |
|
Firmware |
FW 36–99 |
|
Mounting Type |
Wall mount |
|
Casing |
Aluminum casing |
Description

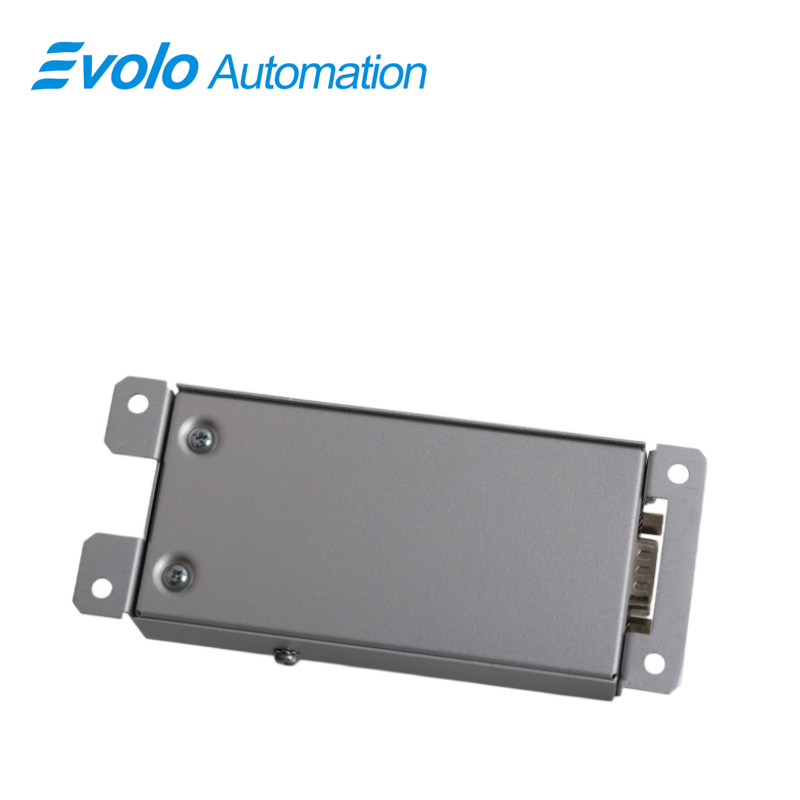

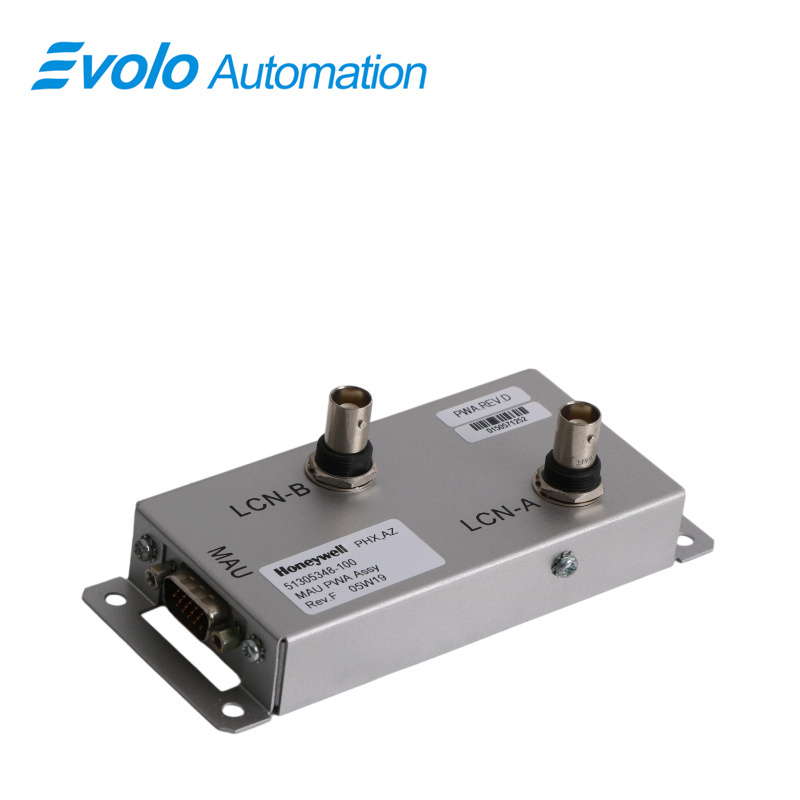

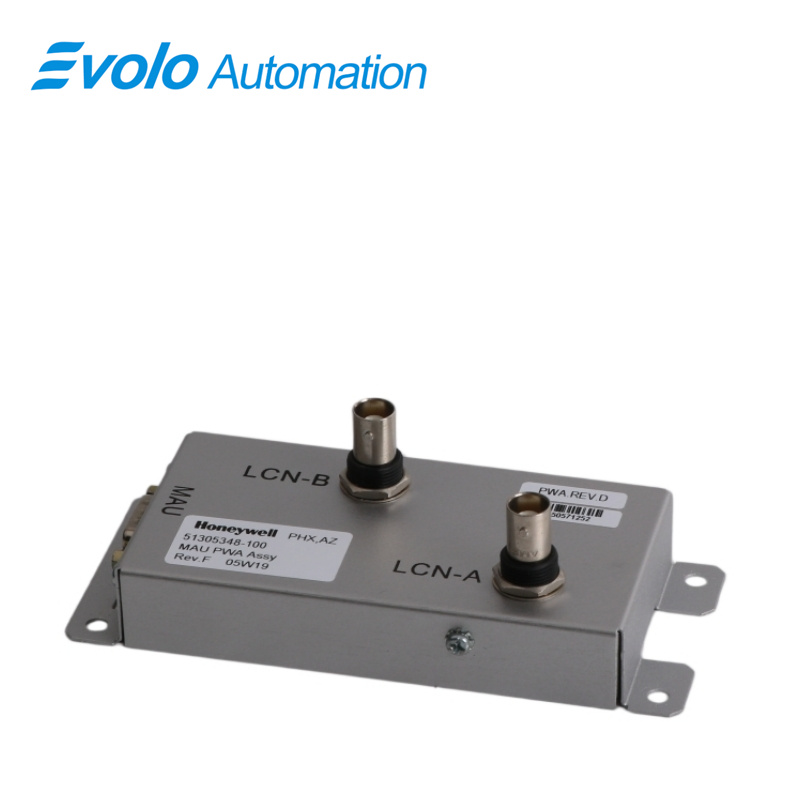

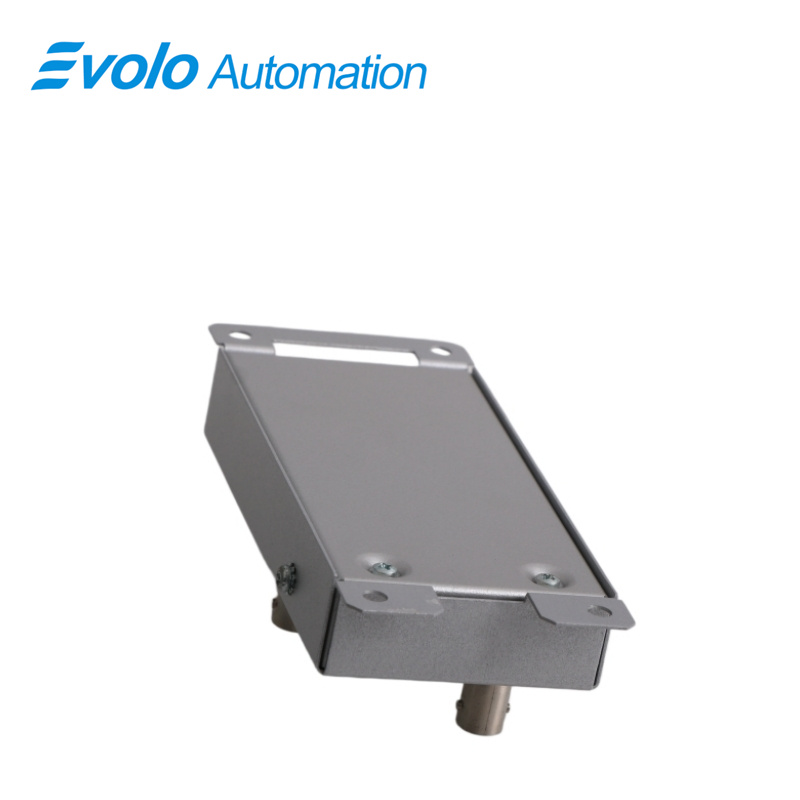

The Honeywell 51305348-100 is a Media Adapter MAU Assembly. It provides a physical channel for Global User Stations (GUS) to access the Local Control Network (LCN). It connects redundant LCN “A cable” and “B cable” together, allowing GUS stations to securely and reliably access and schedule DCS process data.
Applications
Refinery Plants: Convert control signals for fast DCS communication.
Chemical Plants: Link field transmitters with safe isolation control.
Power Plants: Transfer boiler and turbine monitoring data with redundancy.
Paper Plants: Connect pulping control systems for fieldbus conversion.
Metallurgy Plants: Interface high-temperature monitoring for signal digitization.
Key Features
High-Precision Measurement: Honeywell 51305348-100 offers ±0.075% accuracy,making it
suitable for critical process control.
Extreme Operating Temperatures: With an operating range of -40C to +40o-C and a pressure
resistance of 150o psi, it withstands harsh industrial environments.
Safety Certifications: SIL2 and ATEX Zone 1 certified, ensuring safe operation in hazardous areas.
Quick rules
FAQ
Q: What output signal does 51305348-100 support?
A: It supports a 4–20 mA signal with HART 7 protocol.
Q: What is the measurement accuracy of 51305348-100?
A: Its span accuracy is up to ±0.075%.
Q: What is the operating temperature range of 51305348-100?
A: The operating ambient temperature range is -40°C to +400°C.
Q: What is the overpressure rating of 51305348-100?
A: Its maximum overpressure rating is 1500 psi.
Q: What certification does 51305348-100 have besides explosion protection?
A: It is certified for SIL2 functional safety.
