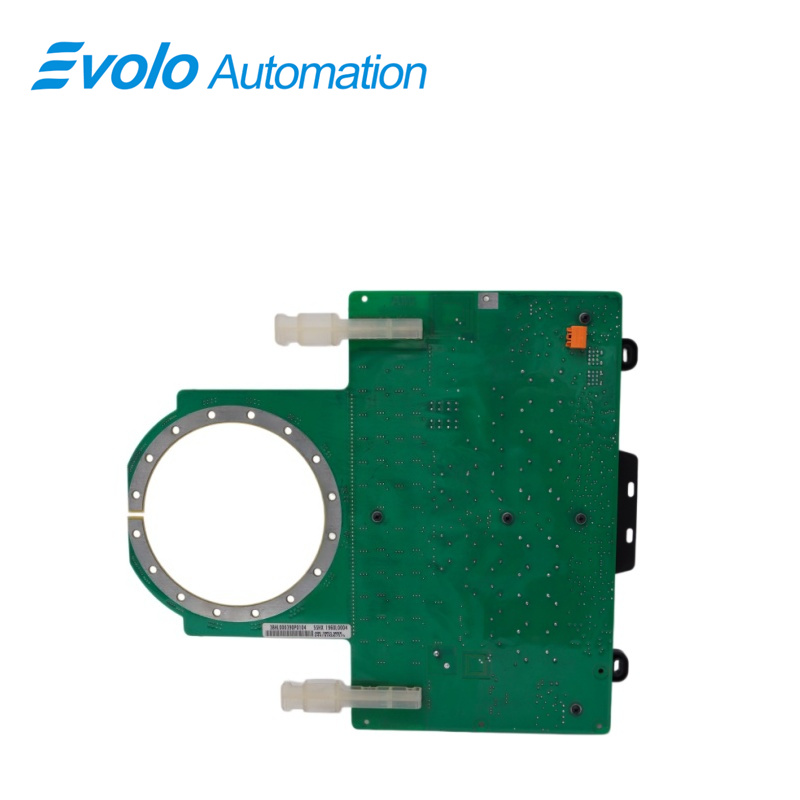

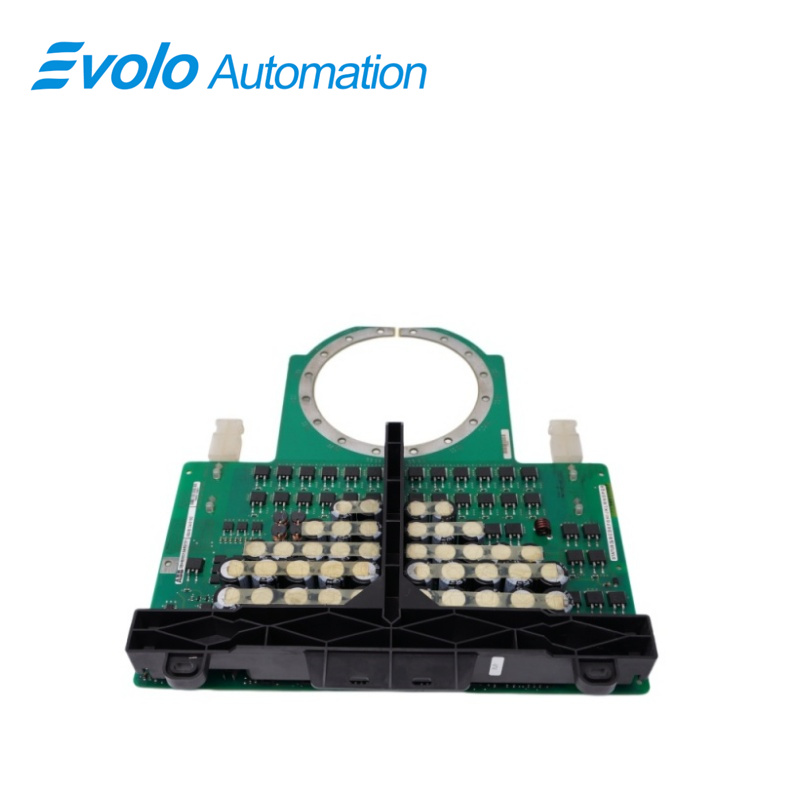

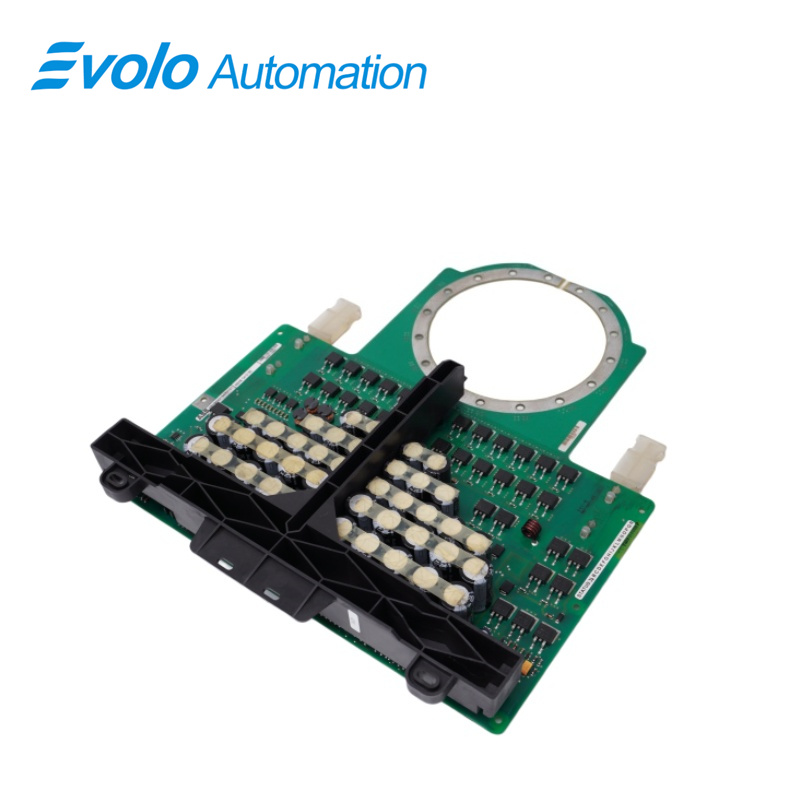

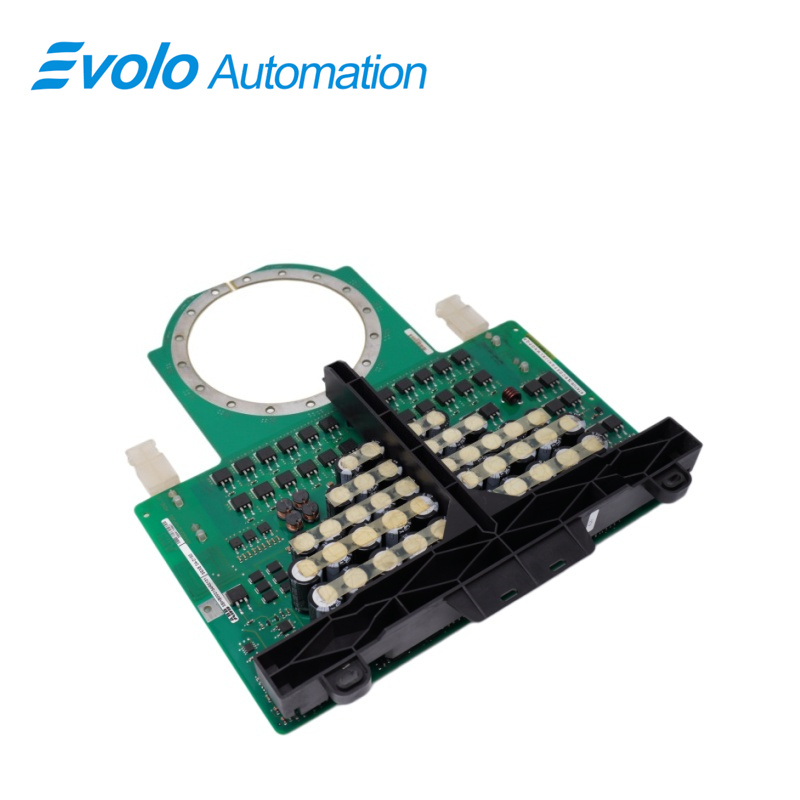

3BHB003154R0101 5SXE 04-0150/3BHL000390P0104 5SHX 1960L0004 IGCT Module Board

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	3BHB003154R0101 5SXE 04-0150/3BHL000390P0104 5SHX 1960L0004
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

3BHB003154R0101 5SXE 04-0150/3BHL000390P0104 5SHX 1960L0004 is an IGCT Module Board manufactured by ABB. IGCT is a high-power, high-frequency semiconductor device mainly used in power electronic equipment, such as frequency converters and DC transmission systems.

Applications

Steel mills: High-power main drive frequency converters used in hot and cold rolling production lines.

Aluminum electrolysis plants: Deployed in high-power rectifiers to maintain high current and stable voltage in the electrolytic cells.

Chemical plants: Drive large gas compressors or high-pressure pump sets.

Natural gas compressor stations (plants): Work in conjunction with frequency converters to control the operation of large synchronous motors.

Offshore wind power plants: Serving as the core power conversion component of wind turbine converters.

Competitive Advantage

High power: Capable of withstanding high voltage and high current, suitable for high-power applications.

High frequency: High switching frequency enables more precise control.

Low loss: Low on-state voltage drop, low loss, and high efficiency.

High reliability: Equipped with multiple protection functions such as overload, overvoltage, and short circuit protection to ensure stable system operation.

FAQ

Q: What electronic component is the 3BHB003154R0101 5SXE 04-0150/3BHL000390P0104 5SHX 1960L0004?
A: It is a high-end IGCT module with integrated driver circuitry, designed for high-voltage and high-current applications.

Q: What is the fiber optic port on the 3BHB003154R0101 5SXE 04-0150/3BHL000390P0104 5SHX 1960L0004 used for?
A: It is used to receive ON/OFF control commands from the control system, and fiber optic transmission provides complete electrical isolation from high-voltage interference.

Q: Why is the status light on the driver board of the 3BHB003154R0101 5SXE 04-0150/3BHL000390P0104 5SHX 1960L0004 red?
A: A red status light usually indicates undervoltage, excessive internal temperature, or detected short-circuit conditions.

Q: What precautions should be taken when replacing the 3BHB003154R0101 5SXE 04-0150/3BHL000390P0104 5SHX 1960L0004?
A: Proper mechanical pressing force must be strictly applied; insufficient pressure can increase contact resistance and may cause interface overheating or burnout.

Q: Is the 3BHB003154R0101 5SXE 04-0150/3BHL000390P0104 5SHX 1960L0004 different from a regular SCR thyristor?
A: Yes, IGCT technology allows active turn-off at the gate, providing higher control precision and switching performance compared to conventional SCR devices.
