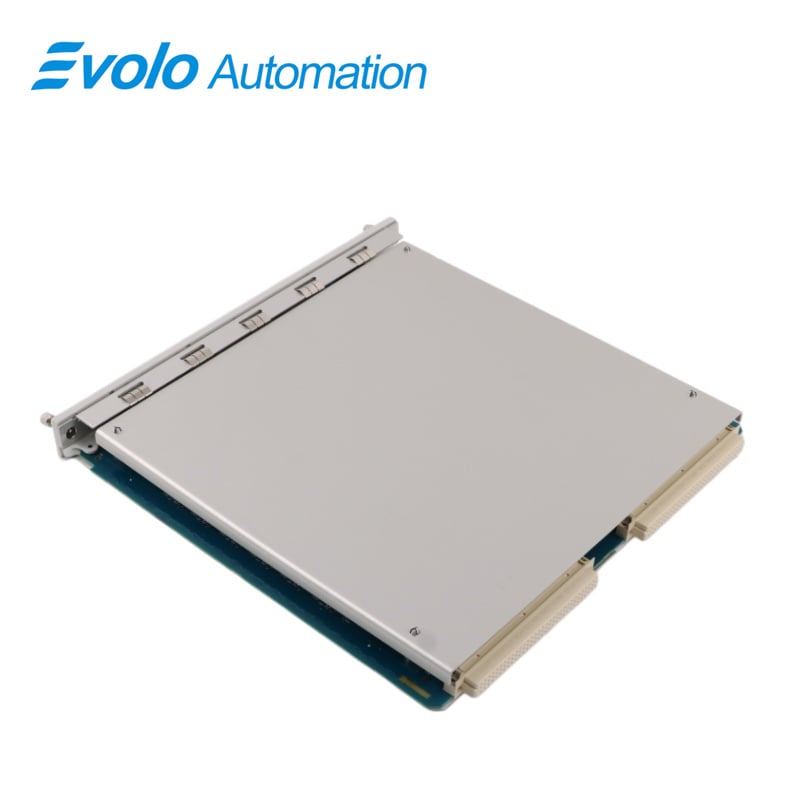

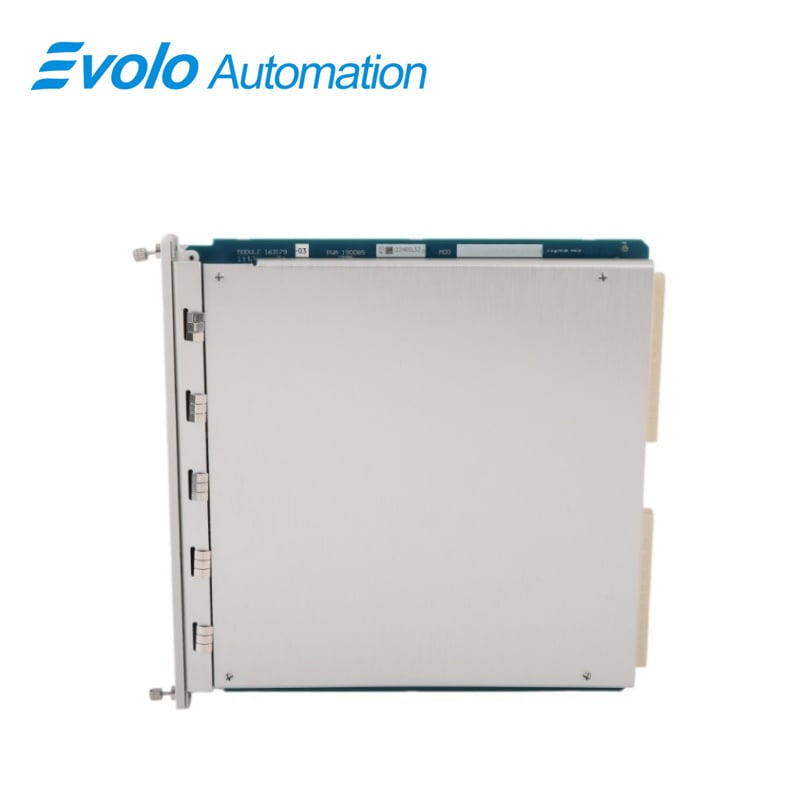

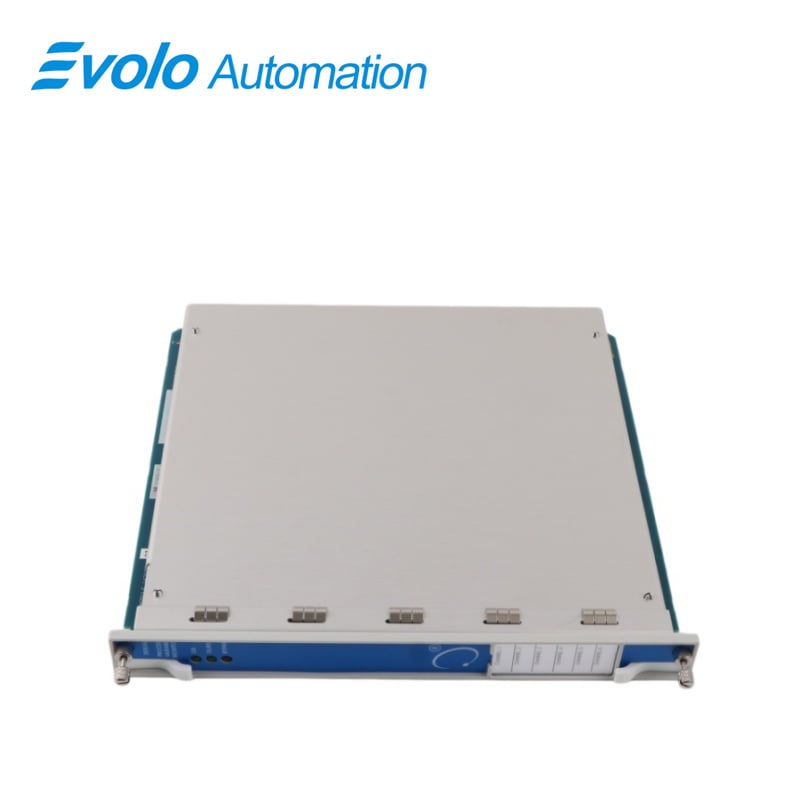

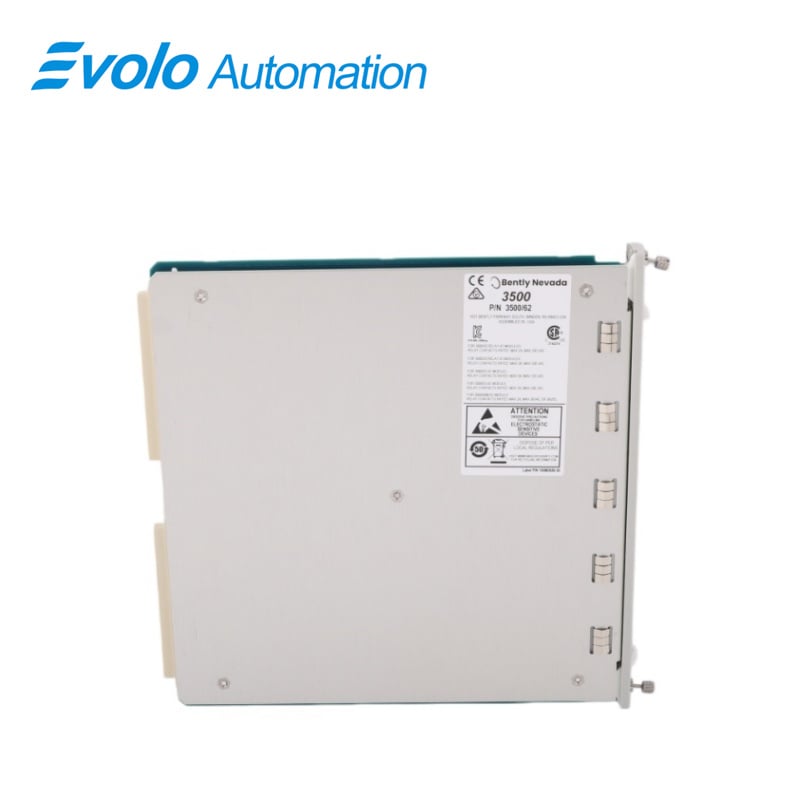

3500/62 163179-03 3500/62 Monitor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	3500/62 163179-03
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The Bently Nevada 3500/62 163179-03 Process Variable Monitor is a 6-channel automation module designed for continuous measurement of critical process parameters such as pressure, flow, temperature, and level. Each 3500/62 163179-03 accepts ±10 Vdc voltage inputs or 4-20 mA current signals, including isolated and intrinsically safe barrier I/O. With input impedance of 1 MΩ for voltage and 50 Ω for current, the 3500/62 163179-03 ensures precise signal conditioning. The monitor delivers ±0.33% full-scale typical accuracy over a maximum 20,000-unit span and supports programmable alert and danger delays. Operating from -30°C to +65°C, the 3500/62 163179-03 features 500 V isolation for isolated I/O, +24 Vdc external transducer power for barrier inputs, and a 7 W typical power draw. Rack-mountable in full-height front (monitor) and rear (I/O) slots, the 3500/62 163179-03 integrates front panel LEDs for OK, TX/RX, and Bypass status. Using 3500 Rack Configuration Software, the 3500/62 163179-03performs voltage or current measurements, providing automation control and protection. In TMR setups, three adjacent 3500/62 163179-03 modules use dual voting to maintain accurate process monitoring and machine safety.

Applications

Monitor Pressure and Flow in Industrial Processes
The 3500/62 163179-03 accepts ±10 Vdc or 4-20 mA inputs and continuously measures pressure and flow in pumps, compressors, and pipelines. Programmable alert and danger delays allow operators to respond to deviations within 1–60 seconds.

Track Temperature in Critical Machinery
Using isolated 4-20 mA or barrier I/O, the 3500/62 163179-03 monitors temperature in turbines, heat exchangers, or reactors. Input impedance of 50 Ω for current signals ensures precise readings, enabling accurate process adjustments.

Measure Liquid Levels in Storage and Tanks
The 3500/62 163179-03 provides level monitoring for tanks and vessels by conditioning voltage or current signals from transducers. External +24 Vdc power for barrier I/O supports intrinsically safe transducers for hazardous areas.

Integrate with Automated Control Systems
The 3500/62 163179-03 communicates via rack-mounted I/O modules and front panel LEDs for OK, TX/RX, and Bypass indications, providing real-time data for automation systems and control software.

Specifications

Competitive Advantage

High-Precision Signal Processing
The 3500/62 163179-03 delivers ±0.33% full-scale typical accuracy and up to 20,000-unit measurement range, ensuring precise detection of critical process changes.

Support for Intrinsically Safe and Isolated Inputs
With 500 V isolation and barrier I/O with +24 Vdc power, the 3500/62 163179-03 allows safe operation in hazardous zones while maintaining accurate current measurements.

Rapid Response with Programmable Delays
Operators can configure alert delays (1–60 s) and danger delays (1–60 s in 0.5 s intervals), allowing fast response to abnormal process conditions.

Triple Modular Redundancy (TMR) Configuration
When installed in TMR, three 3500/62 163179-03 monitors use dual voting logic to prevent single-point failures, ensuring continued process protection without operational interruption.
