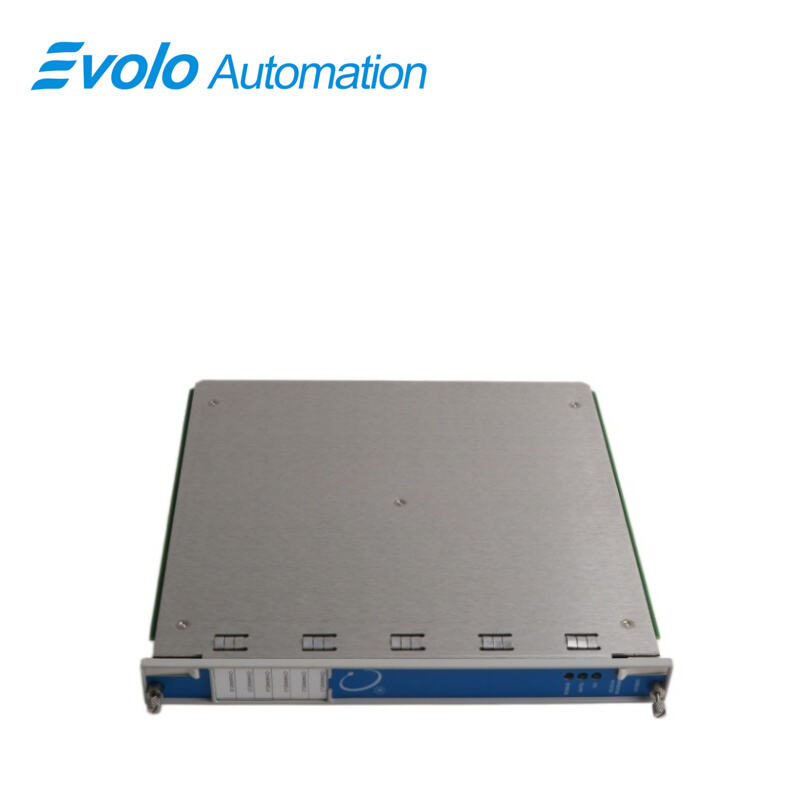

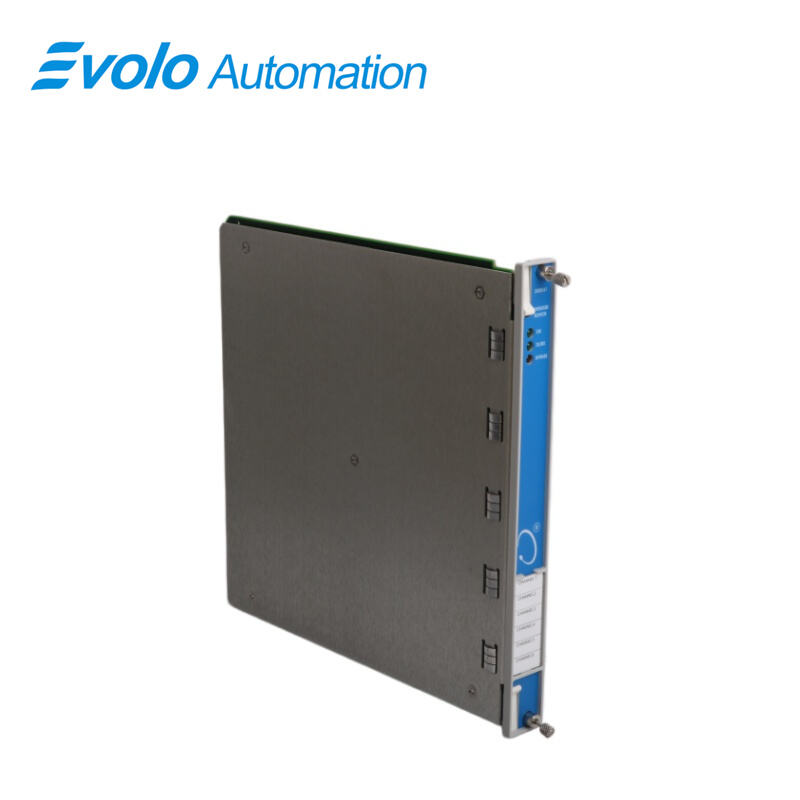

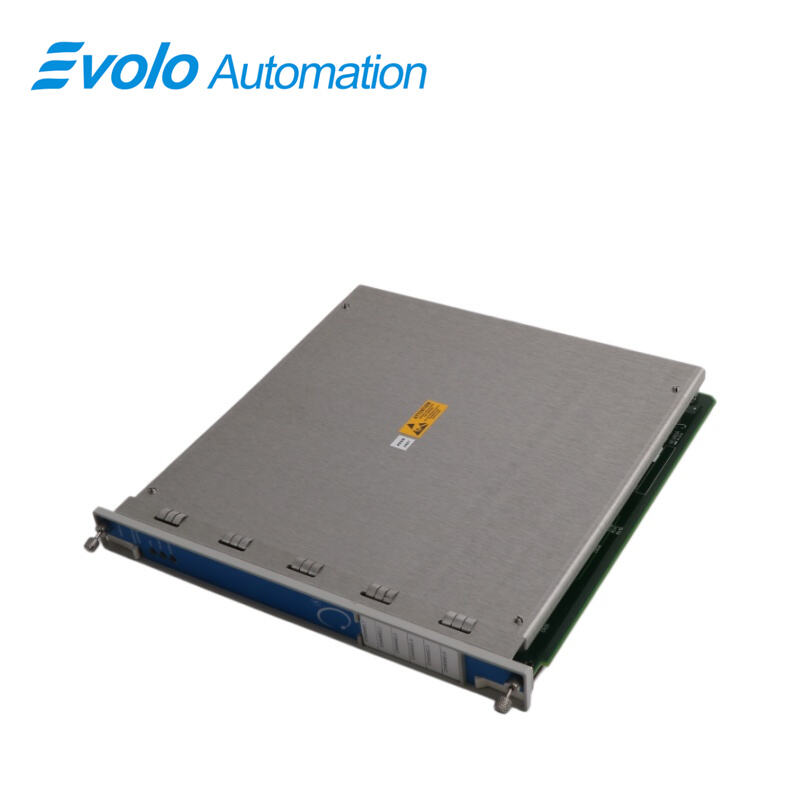

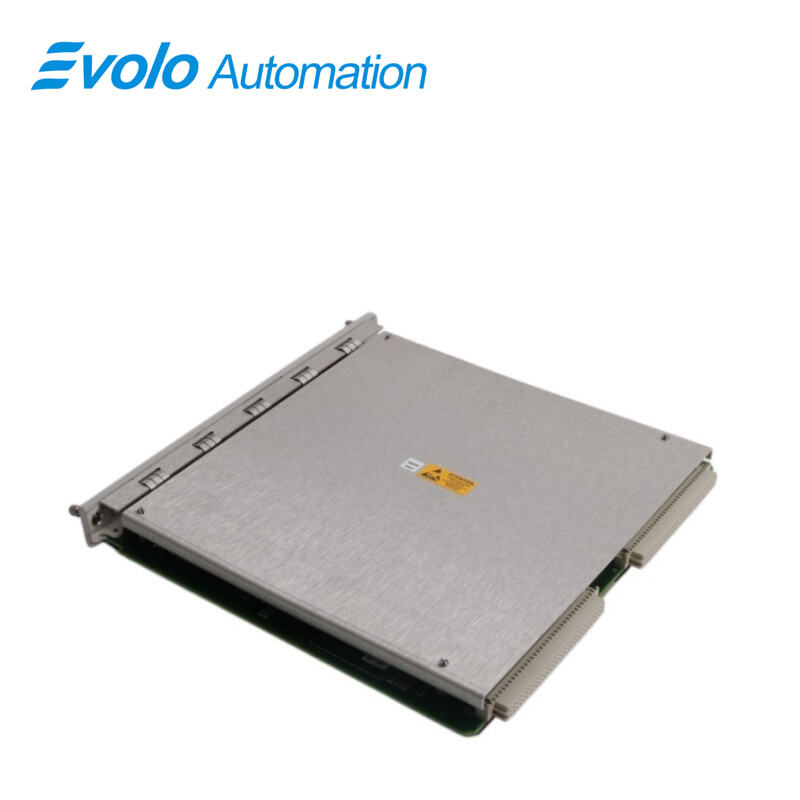

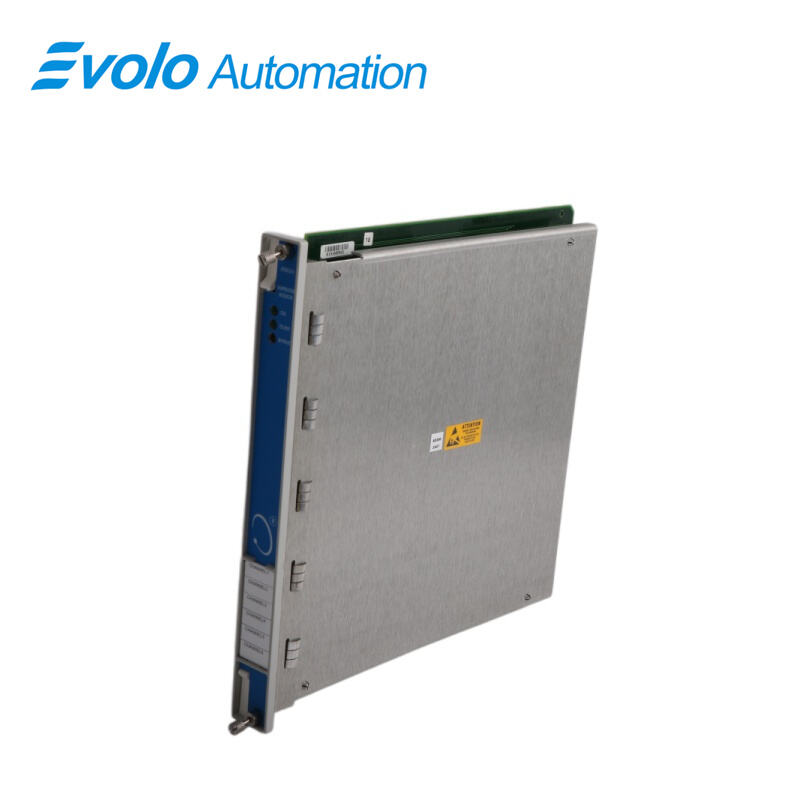

Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
3500/61 133811-02+133819-02 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Product Name |
3500/61 133811-02 + 133819-02 |
|
Type |
Temperature Monitor |
|
Dimensions |
2.5x25x24 cm |
|
Weight |
0.8 kg |
|
Input Signal |
1 to 6 RTD or thermocouple (TC) transducer signals |
|
Input Impedance |
>10 MΩ per lead input |
|
Isolation |
250 VDC isolation between channels (for isolated TC I/O modules) |
|
Signal Conditioning |
Field-configurable full-scale via 3500 Configuration Software; no calibration required |
|
Operating Temperature (Standard I/O) |
-30°C to +65°C |
|
Operating Temperature (Internal Barrier I/O) |
0°C to +65°C |
|
Rack Space Requirement |
1 full-height front slot |
|
RTD Current Source |
925 ±15 µA @ 25°C per transducer |
|
Recorder Output |
+4 to +20 mA proportional to full-scale (per channel) |
|
Output Voltage Compliance |
0 to +12 VDC across load; 0–600 Ω load resistance |
|
Resolution |
0.3662 µA per bit |
|
Accuracy (Room Temperature) |
±0.15% |
|
Accuracy (Full Temperature Range) |
±0.4% |
|
RTD/TC Resolution (except 10Ω Copper RTDs) |
1°C or 1°F |
|
Internal Termination Accuracy (Bulkhead Rack) |
±3°C at 25°C |
|
Internal Termination Accuracy (Standard Rack) |
±3°C at 25°C |
Description
The Bently Nevada 3500/61 133811-02+133819-02 is a 6-channel high-performance temperature monitor designed specifically for rotating machinery. It is suitable for high-voltage isolation, various sensor inputs, and harsh industrial environments. This module supports field software configuration, features high-precision data processing capabilities, and provides real-time alarm protection via proportional current output, ensuring the safe operation of bearings and motor windings.
Applications
Thermal power plants: Real-time monitoring of turbine main bearing and generator stator winding temperatures, synchronizing thermal status to the central control room via a 4-20 mA output.
Oil and gas refineries: Monitoring cylinder head and critical bearing temperatures in reciprocating or centrifugal compressor units to prevent unplanned shutdowns due to thermal overload.
Large fertilizer plants: Deployed in high-pressure pump units of ammonia synthesis plants, utilizing 250 Vdc isolation to ensure data accuracy in environments with strong electromagnetic interference.
Steel rolling mills: Monitoring bearing housing temperatures of large main drive motors, utilizing their wide operating temperature range to ensure reliable monitoring in extreme industrial climates.
Mining processing plants: Used in heavy-duty hoists or conveyor systems, utilizing their high input impedance to reduce signal attenuation caused by long-distance sensor cables.
Features
Product Attributes
6 Temperature Monitoring Channels
Temperature Inputs: Each Channel's (3500/61) Resistance Temperature Detector (RTD) and Thermocouple (TC) Recorder Outputs
Versions that are RTD/TC Non-Isolated or TC Isolatec
FAQ
Q: Does the 3500/61 133811-02+133819-02 support module replacement without system shutdown?
A: Yes. It is hot-swappable, but interlocking logic must be set to safe bypass before replacement.
Q: Will a short circuit in the recorder output damage the 3500/61 133811-02+133819-02?
A: No. It has short-circuit protection and continues normal data acquisition.
Q: What is the measurement resolution for a 10Ω copper RTD on the 3500/61 133811-02+133819-02?
A: Typically 1°C, but exact resolution depends on configuration settings.
Q: What are the load resistance requirements for the I/O module in the 3500/61 133811-02+133819-02?
A: Total resistance must be 0–600 Ω to ensure 12 Vdc compliance.
Q: Can the 3500/61 133811-02+133819-02 start in -30°C environments?
A: Yes. It supports -30°C rated operation for cold-climate use.
