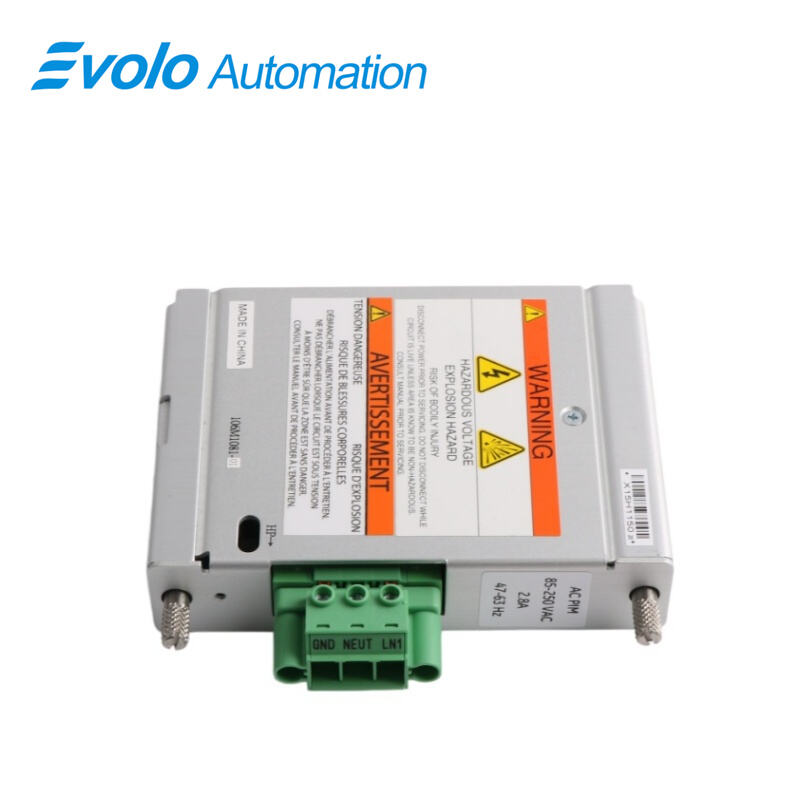

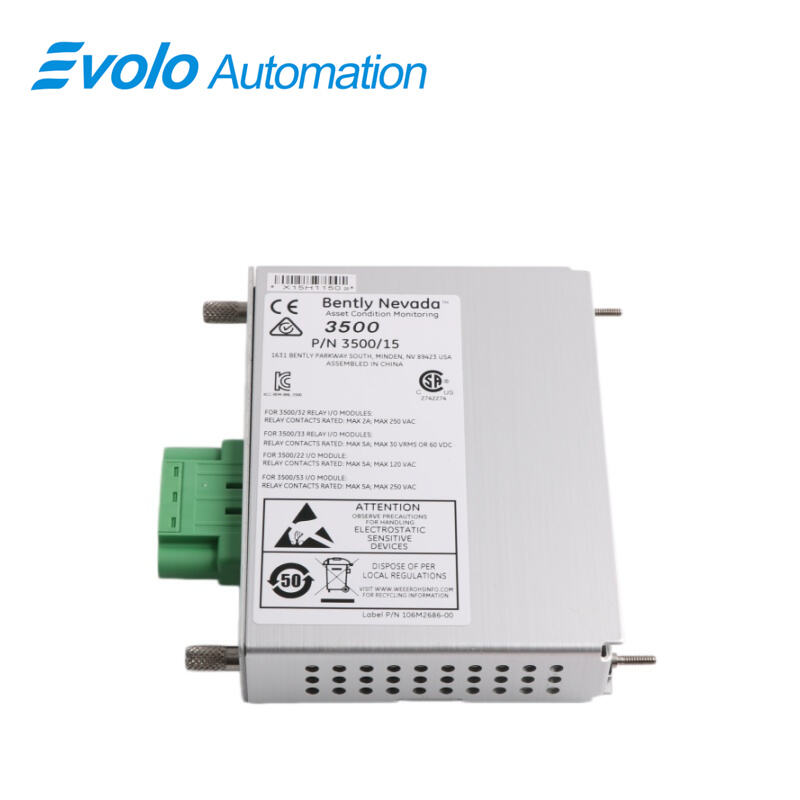

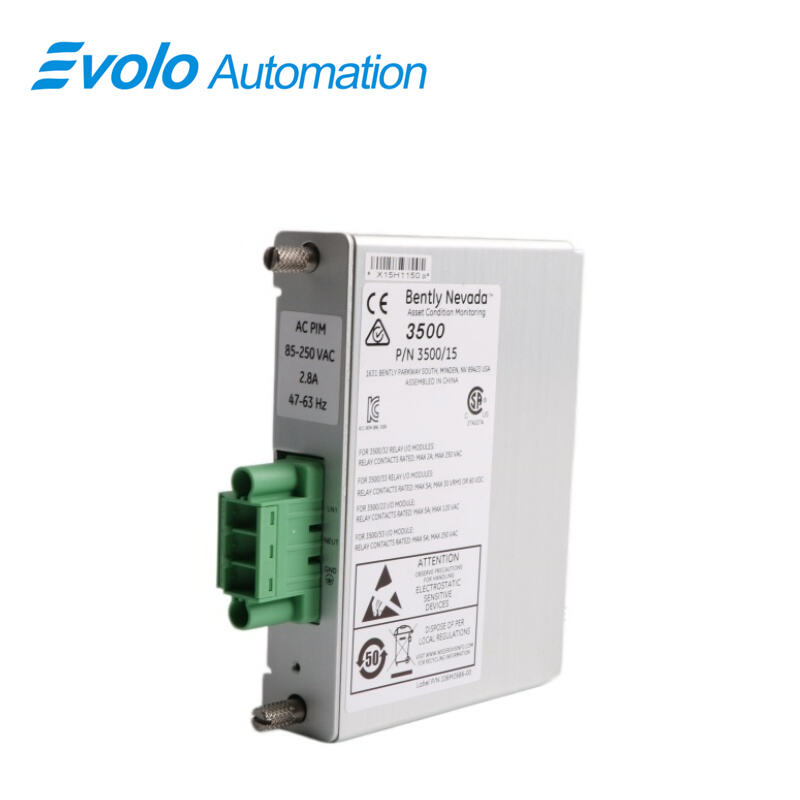

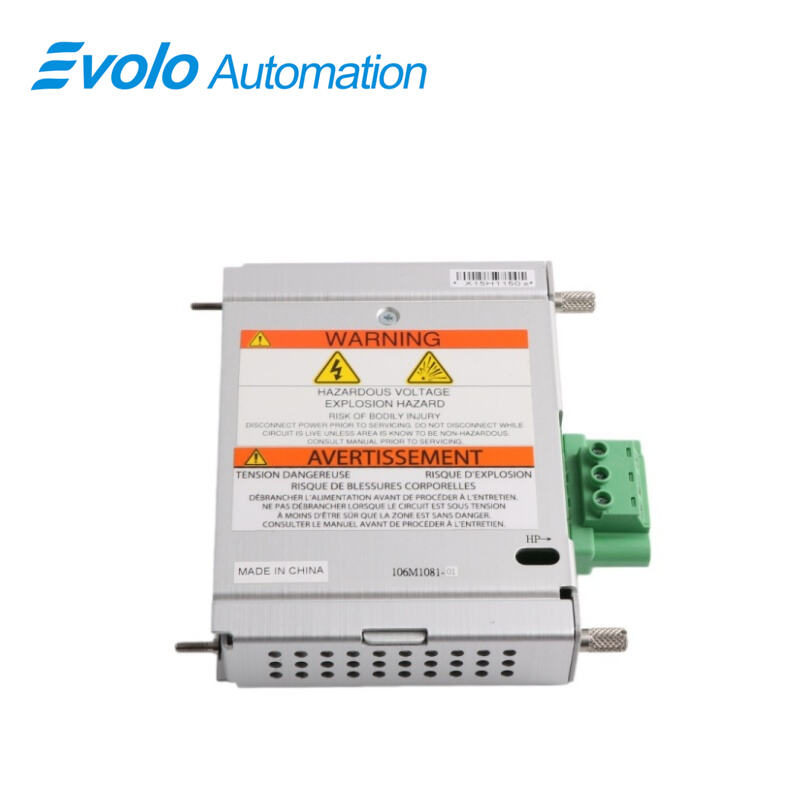

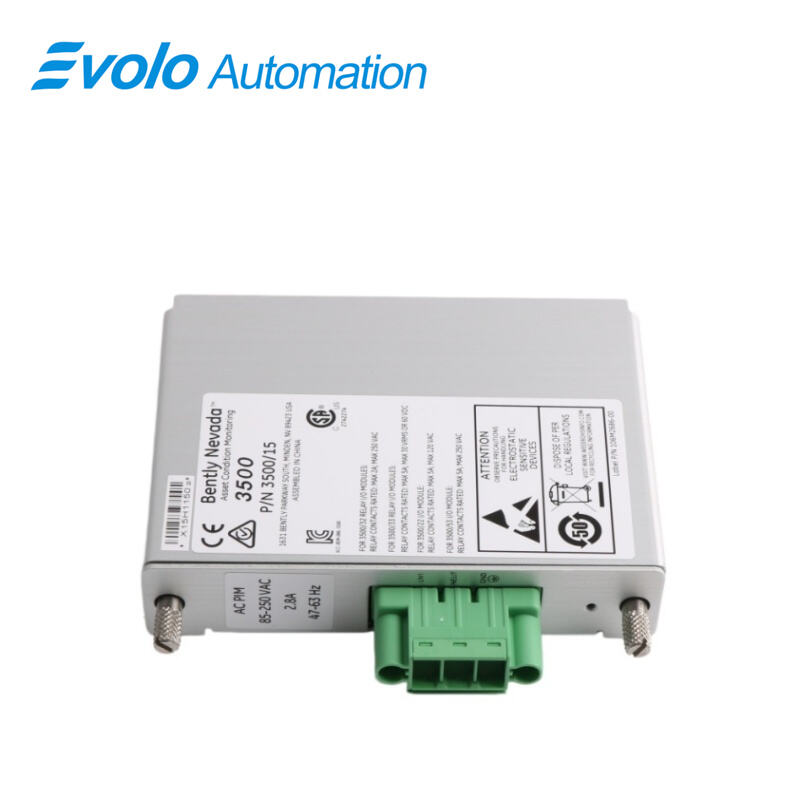

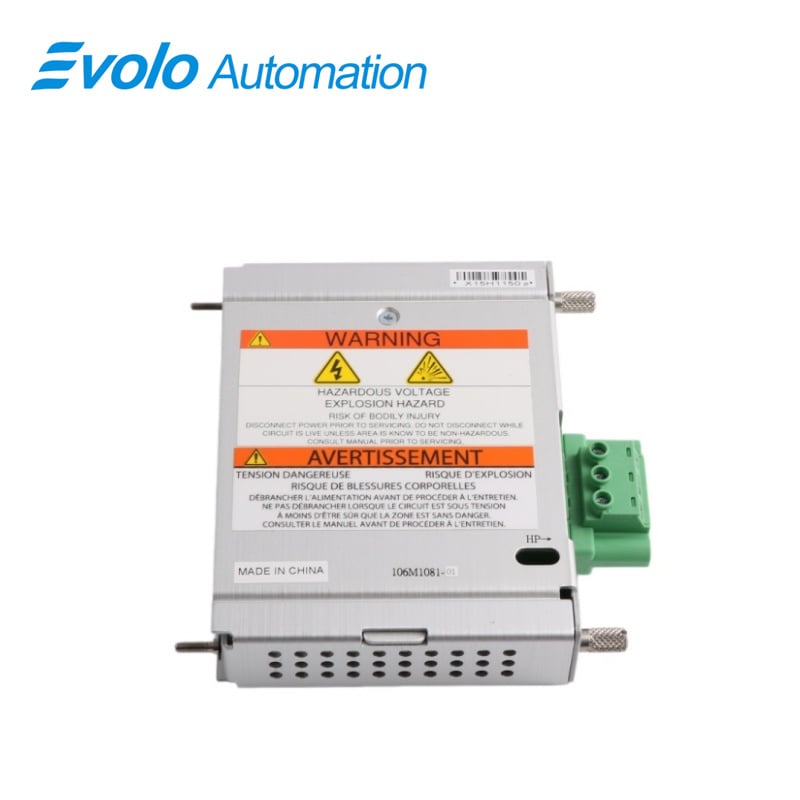

3500/15 106M1079-01+106M1081-01 Power Supply Module

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	3500/15 106M1079-01+106M1081-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The Bently Nevada 3500/15 106M1079-01+106M1081-01 Power Supply Module is an industrial-grade power conversion device designed specifically for monitoring racks, supporting AC to DC power supply. This module features redundancy automatic switching, full-range voltage adaptive capability, intelligent lightning and undervoltage/overvoltage protection mechanisms, and maintains high stability in harsh industrial environments.

Applications

Oil and gas refineries: Power the monitoring racks for critical compressor units, utilizing redundant power supply characteristics to ensure high availability of safety systems within explosion-proof areas.

Coal power plants: Integrated into the turbine monitoring system, providing stable 24V DC internal conversion power in complex power plant grid environments.

Large fertilizer plants: Used in the power control rooms of ammonia synthesis units, utilizing their wide-temperature operating characteristics to maintain continuous frame data acquisition under variable industrial climates.

Steel rolling mills: Deployed in the monitoring cabinets of large main drive motors, using high-performance filtering technology to resist harmonic interference in heavy industrial power grids.

Mining and processing plants: Provide power to hoist or crusher monitoring stations in remote areas, with overvoltage protection mechanisms effectively handling transient impacts from unstable power grids.

Maintenance and Troubleshooting

Troubleshooting: If the power indicator is abnormal, first verify that the input voltage of the PIM module is within the range of 85-264 Vac. If overvoltage causes a power outage, check if the fuse on the PIM module has blown to protect the downstream precision circuitry.

Maintenance Recommendations: Although the 3500/15 can operate without a minimum load, it is recommended to periodically check the load balance of the two power supplies in a redundant configuration. Please note that this universal module is incompatible with older models and must be replaced as a complete set.

FAQ

Q: Does the 3500/15 106M1079-01+106M1081-01 support redundancy with another power supply module?
A: Yes. The rack supports two power slots, and dual modules provide hot-swap redundancy with no power interruption.

Q: Will the power supply module in the 3500/15 106M1079-01+106M1081-01 be damaged if input drops below 85 Vac?
A: No. It has undervoltage protection and simply stops output without causing damage.

Q: Can the fuse on the PIM module in the 3500/15 106M1079-01+106M1081-01 be replaced in the field?
A: Yes. After confirming no external faults, the same-spec fuse can be replaced to restore power.

Q: Why is the 3500/15 106M1079-01+106M1081-01 incompatible with older AC power units?
A: It uses a different circuit topology and wiring protocol, making it electrically and physically incompatible.

Q: Does 95% humidity affect the lifespan of the 3500/15 106M1079-01+106M1081-01?
A: No, as long as conditions are non-condensing; ventilation or dehumidification is recommended in extreme humidity.
