Overview

Place of Origin:	Germany
Brand Name:	INDUSTRONIC
Model Number:	341-720-300 12 DAL 03
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Height x Depth	233 × 160 mm (9.17" × 6.30")
Front Plate Dimensions	6 RU, 4 HP
Weight	Approx. 0.8 kg (1.76 lbs)
Plug Types	PC612-C64/Sub-D 25
Control Electronics Voltage	5 V
Control Electronics Current	0.3 A
AF Input Voltage	0 Vss to 3.5 Vss
AF Input Impedance	Approx. 5,000 Ω
AF Output Voltage	0 Vss to 3.5 Vss
AF Output Impedance	300 Ω

Description

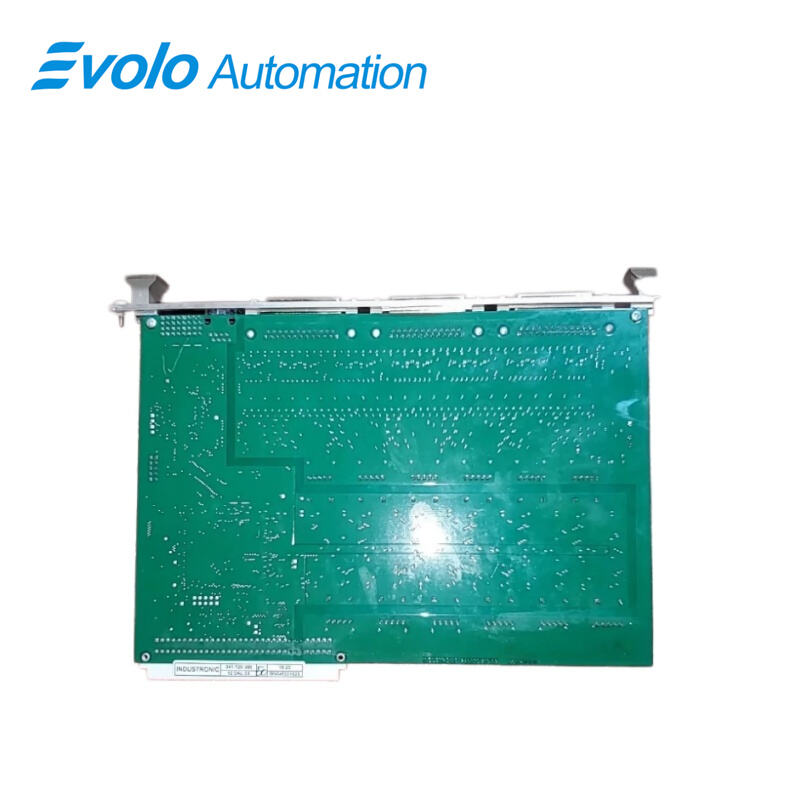

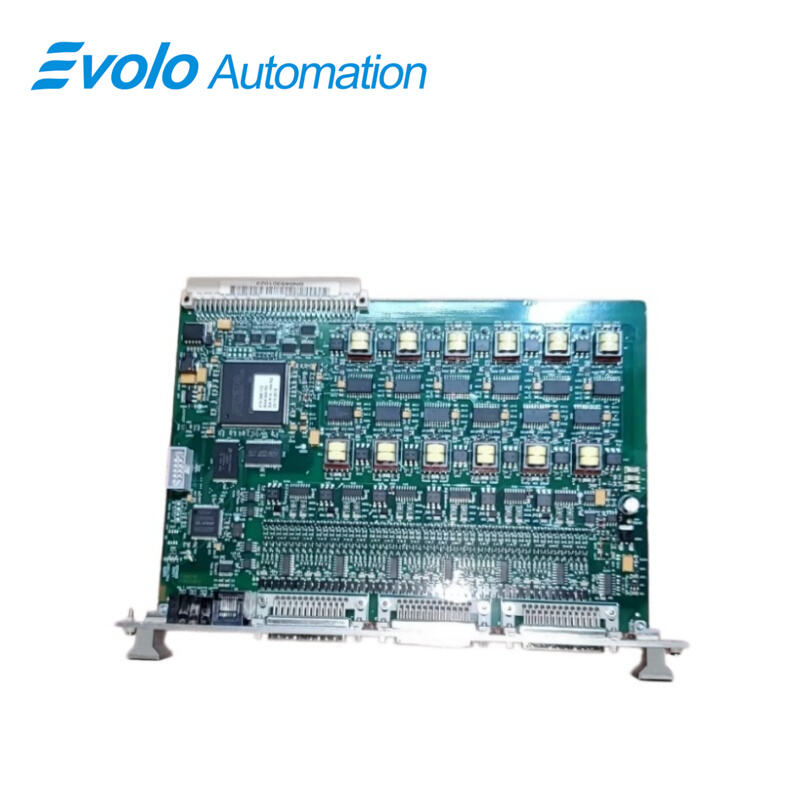

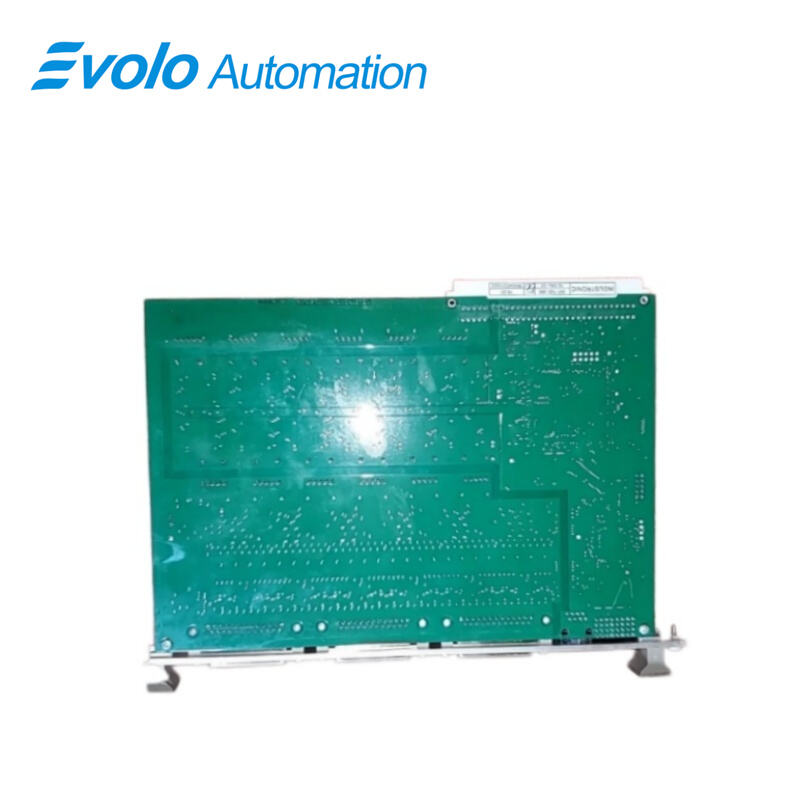

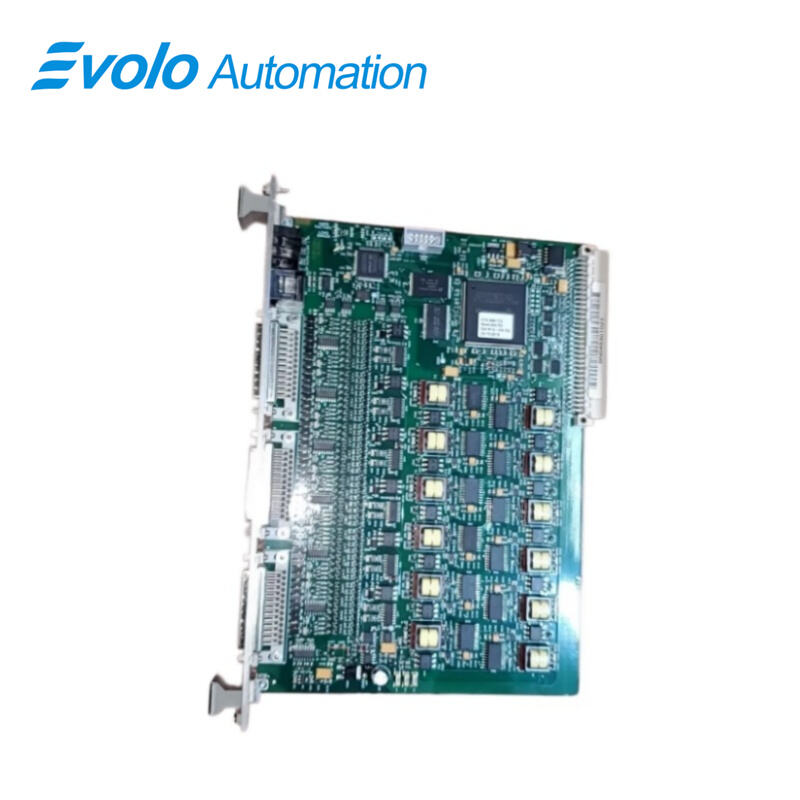

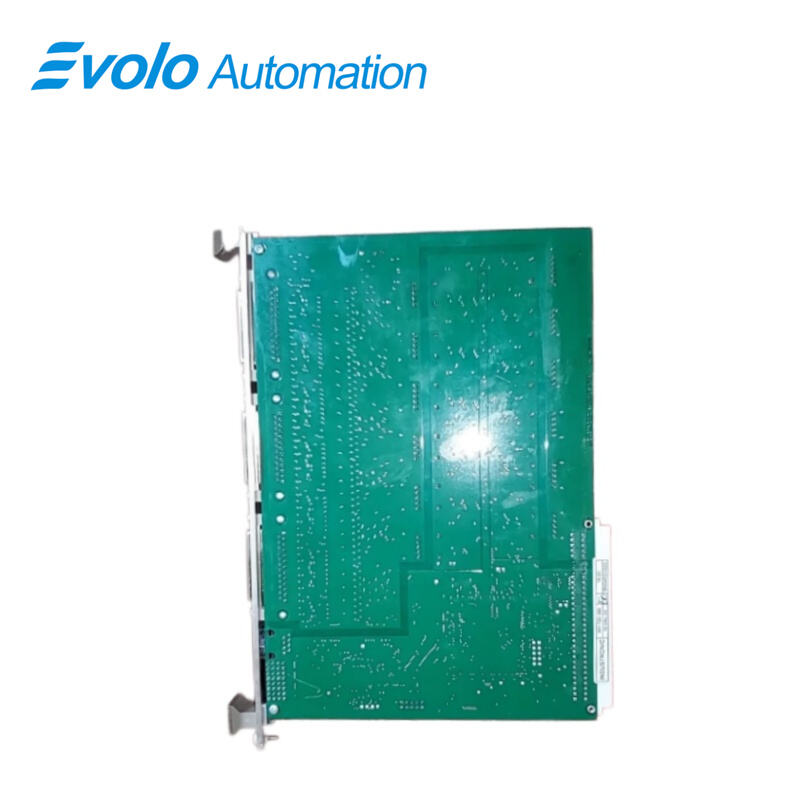

The analog line card 341-720-300 12 DAL 03 serves to receive and output AF signals as well as to read in and output 60 V line signals. Thus, it forms the interface to analog intercom stations, amplifiers, tone generators, voice memories, etc. Furthermore the linecard 341-720-300 12 DAL 03 is controlled by the DXC controller.

FEATURES

Management of up to 12 analog intercom stations,

Management of up to 48 line inputs/outputs,

Protected line outputs against short circuits and overvoltage

One green LED per each intercom station to indicate incoming and outgoing AF signals,

Red LED indicates failures,

Hot swapping of the line card,

Galvanic separation between transmission lines and electronics,

Digitizing of the incoming AF signals and through-connection of the PCM data to the DXC controller (and vice versa),

HDLC interface for the communication with the DXC controller,

Easy to service connection of intercom stations by three 25-pin Sub-D plugs at the front plate.

Specifications

Peripheral Operating Voltage	48 V to 72 V
Max Current via AF Transformer	350 mA
Max Total Current per 8 Lines	350 mA
Min Input Voltage to Detect Line Active	38 V
Operating Ambient Temperature	-5 °C to +50 °C (+23 °F to +122 °F)
EMC Standards	IEC/EN 61000-6-2, IEC/EN 61000-6-4
Front Interfaces	1 x RS232 service, 2 x 25-pin Sub-D female for control lines, 1 x 25-pin Sub-D female for AF signals, 1 x bus interface
AF Channel Isolation	Transformers for galvanic separation per channel

Competitive Advantage

High-Density Analog Intercom Management
The Industronic 341-720-300 12 DAL 03 manages up to 12 analog intercom stations and 48 line inputs/outputs. With input impedance of approx. 5,000 ohms and output impedance of 300 ohms, the 341-720-300 12 DAL 03 ensures accurate AF signal transmission and reception across multiple stations.

Short-Circuit and Overvoltage Protection
Each line output of the 341-720-300 12 DAL 03 is protected against short circuits and overvoltage. With operating peripheral voltage of 48–72 V and max. current per 8 lines at 350 mA, the 341-720-300 12 DAL 03 prevents damage to connected intercom stations and amplifiers.

Galvanic Separation and Signal Isolation
The 341-720-300 12 DAL 03 provides transformers for galvanic separation for each AF channel, isolating transmission lines from control electronics powered at 5 V with 0.3 A current consumption. This ensures the 341-720-300 12 DAL 03 maintains clean signal paths while preventing electrical interference.

Front-Panel Service Access
The 341-720-300 12 DAL 03 includes 2 × 25-pin Sub-D connectors for control lines, 1 × 25-pin Sub-D for AF signals, and 1 RS232 service interface. Hot swapping is supported, allowing technicians to replace or service the 341-720-300 12 DAL 03 without interrupting system operation.

LED Signal Indicators for Monitoring
Each intercom station on the 341-720-300 12 DAL 03 has a green LED to indicate AF signal activity and a red LED for faults. This enables immediate detection and troubleshooting of signal or line issues in industrial intercom systems.

HDLC Interface for DXC Controller Communication
The 341-720-300 12 DAL 03 digitizes incoming AF signals and transmits PCM data through the HDLC interface to the DXC controller, allowing seamless integration and automated control of connected analog intercom stations.
