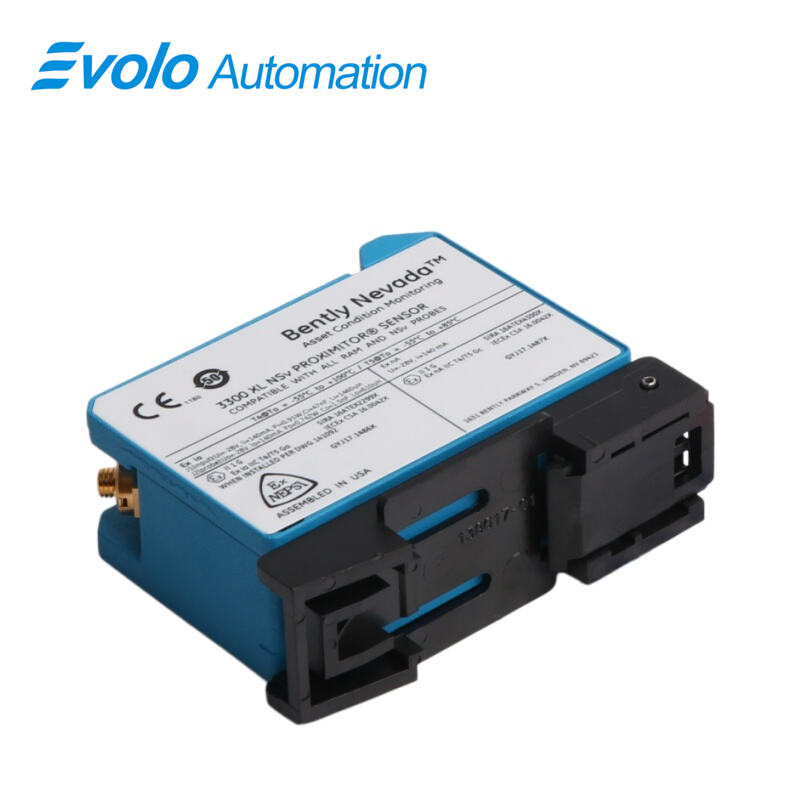

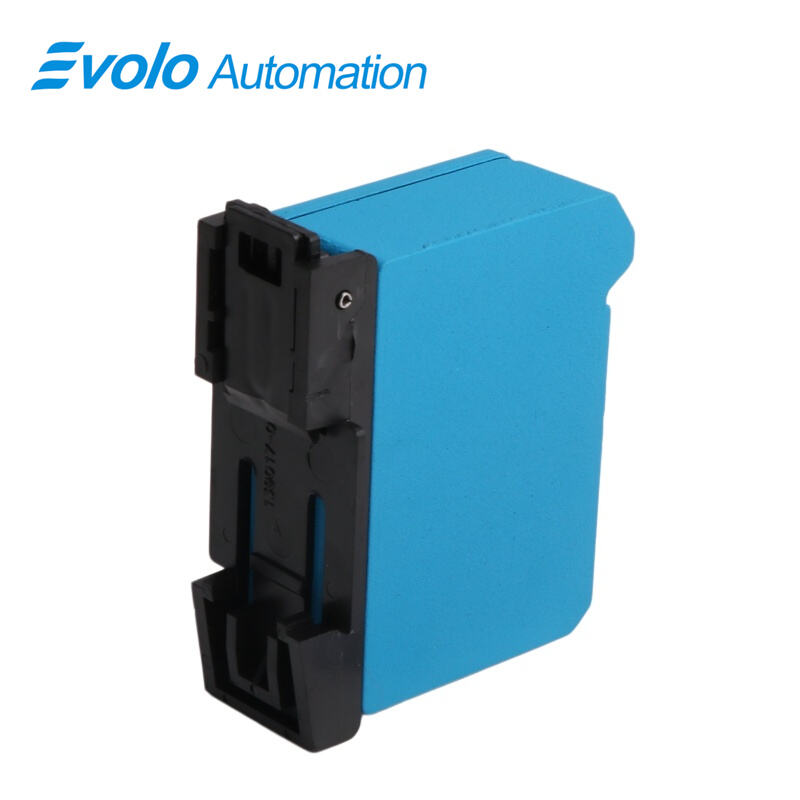

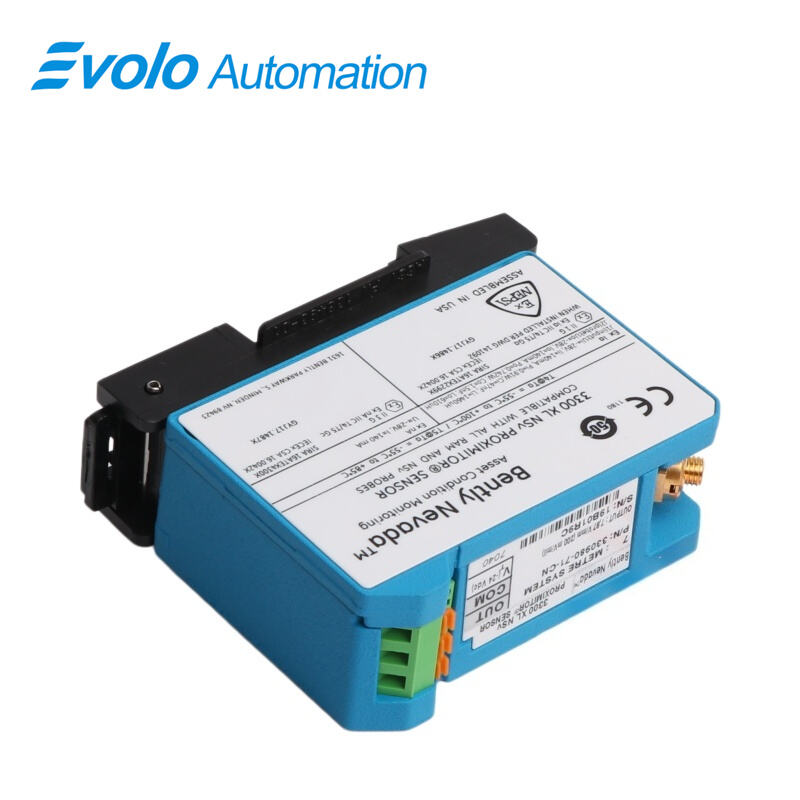

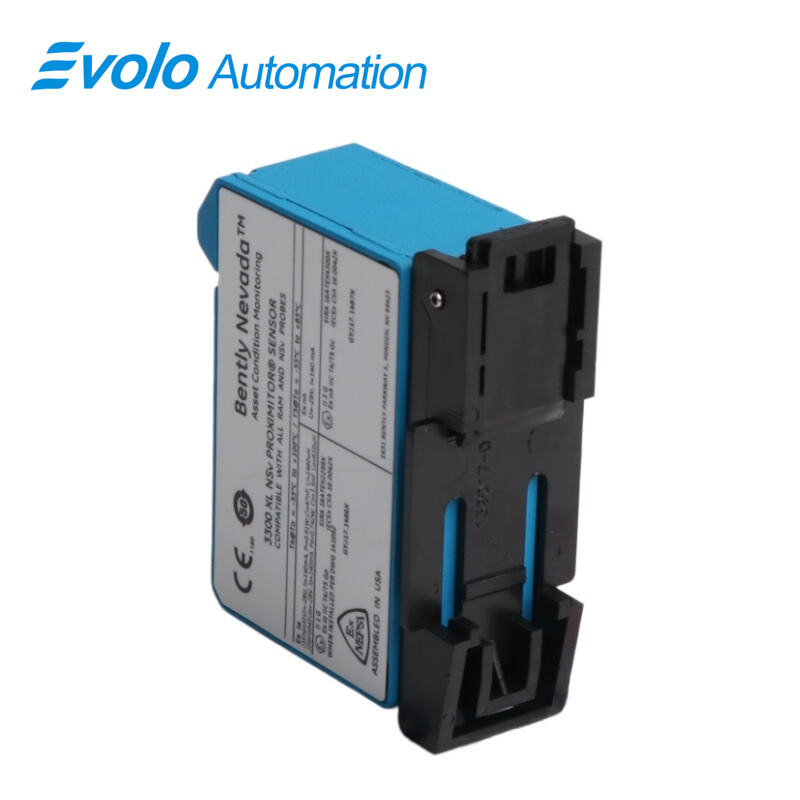

330980-71-CN 3300 XL NSv Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330980-71-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330980-71-CN 3300 XL NSv Proximitor Sensor supports automated monitoring in centrifugal air compressors, refrigeration compressors, and process gas compressors. With a 7.0-meter system length and DIN-rail mounting, the 330980-71-CN 3300 XL NSv Proximitor Sensor connects one 3300 NSv Proximity Probe or 3300 RAM Proximity Probe to deliver 1.5 mm linear range output at 50 Ω, enabling precise radial vibration and axial position measurements. Operating from −52°C to +100°C and handling 100% condensing humidity, the 330980-71-CN 3300 XL NSv Proximitor Sensor ensures continuous automated signal transmission. SpringLoc terminal strips simplify field wiring for 0.2–1.5 mm² cables, and improved RFI/EMI immunity maintains accurate phase reference (Keyphasor) signals. The 330980-71-CN 3300 XL NSv Proximitor Sensor is ideal for compact panel layouts, providing real-time feedback for automated process control, zero-speed monitoring, and small-shaft vibration analysis, while integrating seamlessly with 3300 NSv Proximity Probes in high-density industrial automation setups.

Applications

Radial Vibration Measurement on Shafts under 51 mm
The 330980-71-CN 3300 XL NSv Proximitor Sensor with a 1.5 mm linear range accurately measures radial vibration on shafts smaller than 51 mm (2 in), enabling automated detection of deviations in high-speed compressors.

Axial (Thrust) Position Monitoring
Paired with a 3300 NSv Proximity Probe, the 330980-71-CN 3300 XL NSv Proximitor Sensor tracks axial movements up to ±1.5 mm, supporting automated thrust position control for fluid-filmed bearing machines.

Zero-Speed Detection and Tachometer Applications
The 330980-71-CN 3300 XL NSv Proximitor Sensor provides precise zero-speed detection and tachometer signals for shafts rotating up to 30,000 RPM, facilitating automated speed control in industrial compressors.

Phase Reference Keyphasor Output
With a standard 50 Ω output resistance, the 330980-71-CN 3300 XL NSv Proximitor Sensor delivers Keyphasor signals for automated vibration phase analysis in rotating machinery.

Specifications

Competitive Advantage

Extended Environmental Operation
Operating from −52°C to +100°C and tolerating 100% condensing humidity, the 330980-71-CN 3300 XL NSv Proximitor Sensor maintains accurate readings in extreme industrial environments.

DIN-Rail Mounting for High-Density Panels
The slim 7.0 m system design of the 330980-71-CN 3300 XL NSv Proximitor Sensor maximizes space efficiency in automated control cabinets.

RFI/EMI Immunity
The 330980-71-CN 3300 XL NSv Proximitor Sensor prevents interference from high-frequency signals, ensuring linear measurement accuracy within ±2 mV over the 1.5 mm range.

Quick Field Wiring with SpringLoc Terminals
The 330980-71-CN 3300 XL NSv Proximitor Sensor supports 0.2–1.5 mm² field wiring, enabling rapid integration into automated monitoring systems with secure electrical connections.

High-Precision Linear Range
With a 1.5 mm linear range and 50 Ω output resistance, the 330980-71-CN 3300 XL NSv Proximitor Sensor provides precise automated detection of radial and axial movements, reducing mechanical wear through proactive monitoring.
