330930-065-04-00 3300 NSv Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330930-065-04-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

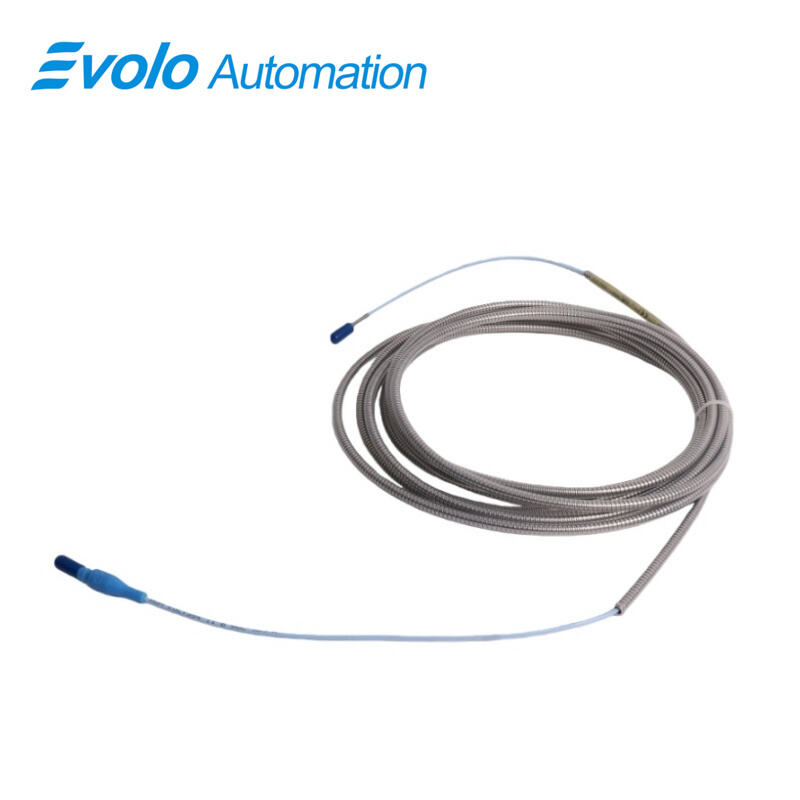

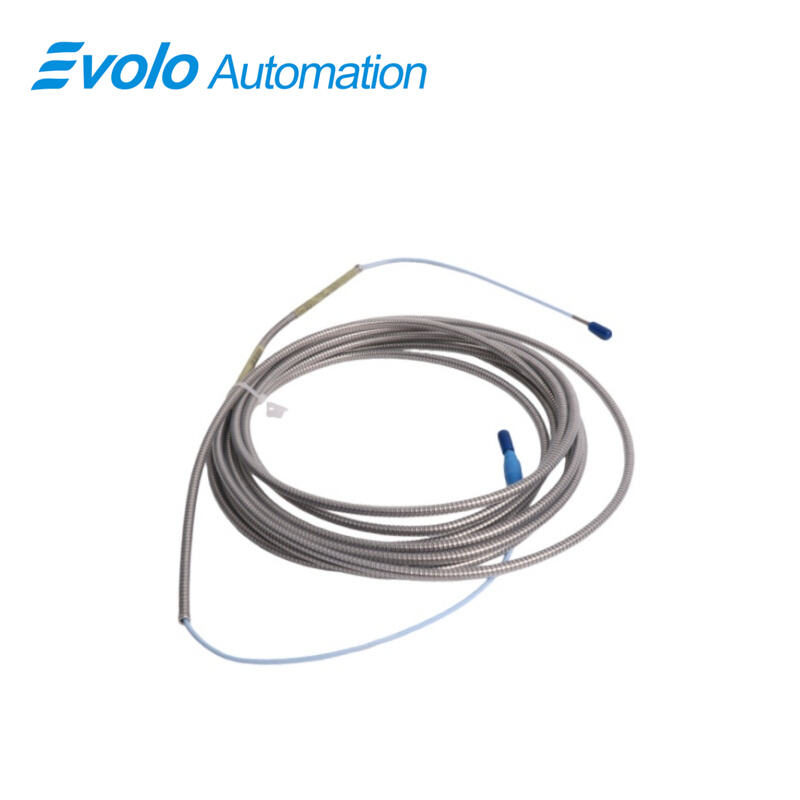

330930-065-04-00 is a 3300 NSv Extension Cable designed for automation systems that require reliable signal transmission from compact NSv proximity probes. 330930-065-04-00 features a 6.5-meter (21.3 ft) length with stainless steel armor, FEP jacket, and connector protectors, allowing secure connection between 3300 NSv probes and Proximitor Sensors in tight compressor and refrigeration installations. With 50 Ω output resistance, supply sensitivity under 2 mV per volt, and field wiring support from 0.2 to 1.5 mm², 330930-065-04-00 ensures precise voltage signal delivery for PLC, DCS, and automated monitoring systems. The cable operates from -52°C to +177°C and withstands high humidity, supporting 1.5 mm linear range and 1.0 mm recommended gap for small-target and side-view measurements.

330930-065-04-00 pairs with 3300 NSv probes to extend automated radial vibration, axial position, Keyphasor, and zero-speed signal measurement across fluid-film bearing machines, enabling installation where standard 3300 or 3300 XL cables cannot reach or fit. The CableLoc and ClickLoc designs provide robust mechanical and electrical attachment, preventing signal loss and allowing 330930-065-04-00 to transmit accurate displacement signals in automated industrial environments.

Applications

Extend Signal from Small Shaft Radial Vibration Probes
330930-065-04-00 transmits precise radial vibration signals from 3300 NSv probes mounted on shafts smaller than 51 mm. The 50 Ω output resistance and supply sensitivity below 2 mV per volt ensure that 330930-065-04-00 delivers accurate automated trip and alarm signals to PLC or DCS systems.

Connect Axial Position Probes in Tight Spaces
330930-065-04-00 carries axial displacement signals from 3300 NSv probes installed near thrust bearings or flat targets under 15 mm. The 1.5 mm linear range and 1.0 mm recommended gap allow 330930-065-04-00 to support automated adjustment of machinery operation.

Transmit Keyphasor and Zero-Speed Signals
330930-065-04-00 provides reliable Keyphasor and zero-speed signals from side-view 3300 NSv probes to turbine or compressor monitoring systems. With a 6.5-meter length, 330930-065-04-00 allows flexible probe placement for accurate automated speed detection and sequencing.

Link Multiple NSv Probes in High-Humidity or Chemical Areas
The stainless steel armor, FEP jacket, and connector protectors of 330930-065-04-00 enable secure signal transmission from multiple 3300 NSv probes in harsh environments. The cable ensures automated monitoring systems receive clean, uninterrupted signals.

Specifications

Competitive Advantage

Long-Length Cable for Large Equipment
The 6.5-meter extension length of 330930-065-04-00 allows 3300 NSv probes to reach control cabinets in large turbines, compressors, and refrigeration systems where shorter cables are insufficient.

Low Output Variation Under Supply Change
With supply sensitivity under 2 mV per volt and 50 Ω output resistance, 330930-065-04-00 maintains consistent voltage signals from 3300 NSv probes across long cable runs, supporting reliable automated monitoring.

Durable Armor and Protective Connectors
The stainless steel armor, FEP jacket, and connector protectors of 330930-065-04-00 prevent mechanical damage and moisture ingress, ensuring 3300 NSv probe signals reach automation systems without interruption.

Side-View and Small-Target Support
330930-065-04-00 enables 3300 NSv probes to operate in restricted mounting locations while maintaining accurate transmission of radial vibration, axial displacement, and Keyphasor signals for automation control.
