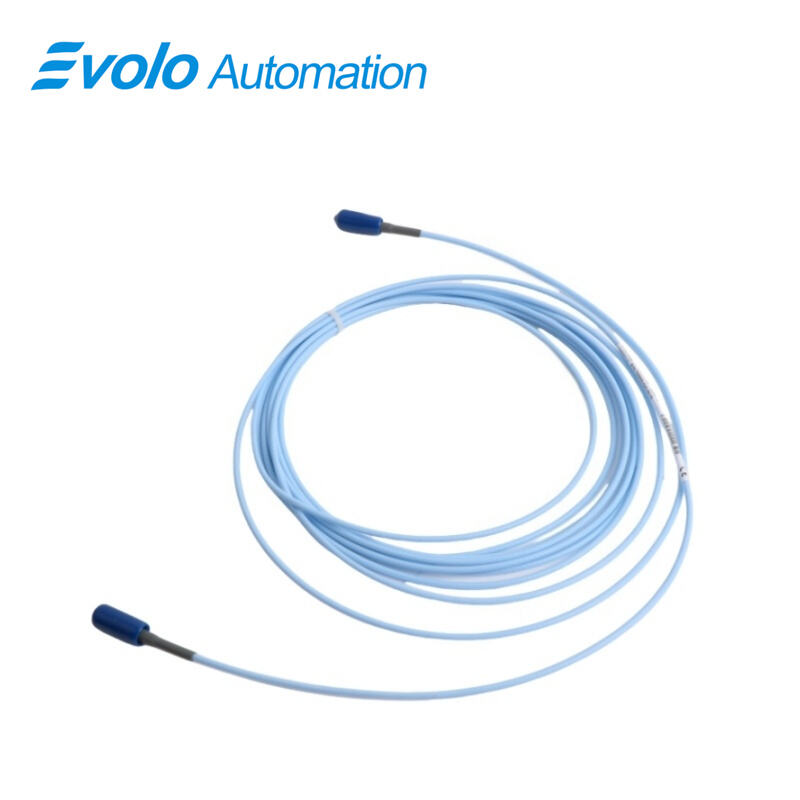

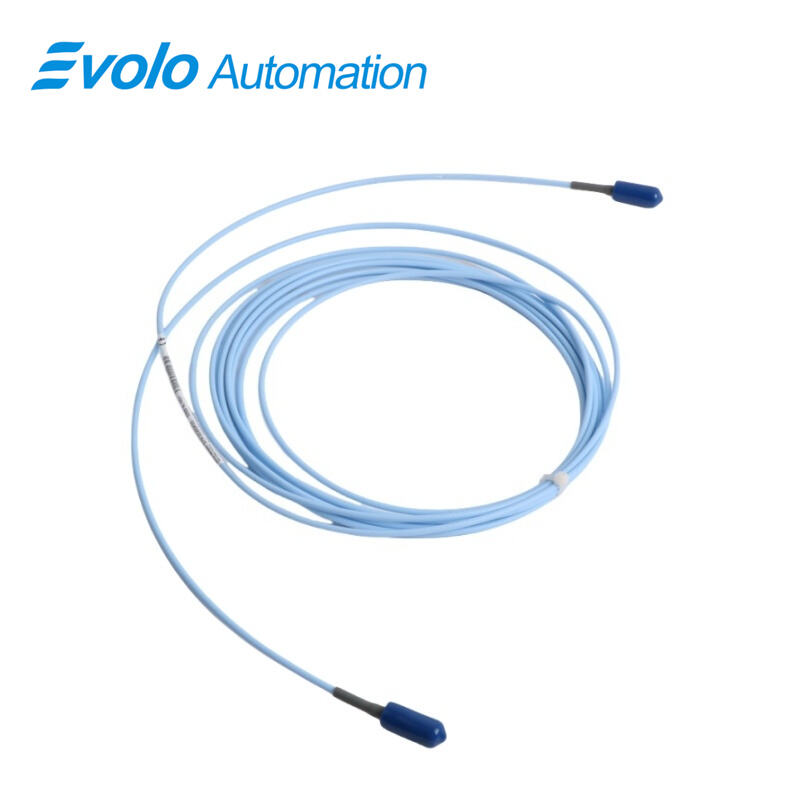

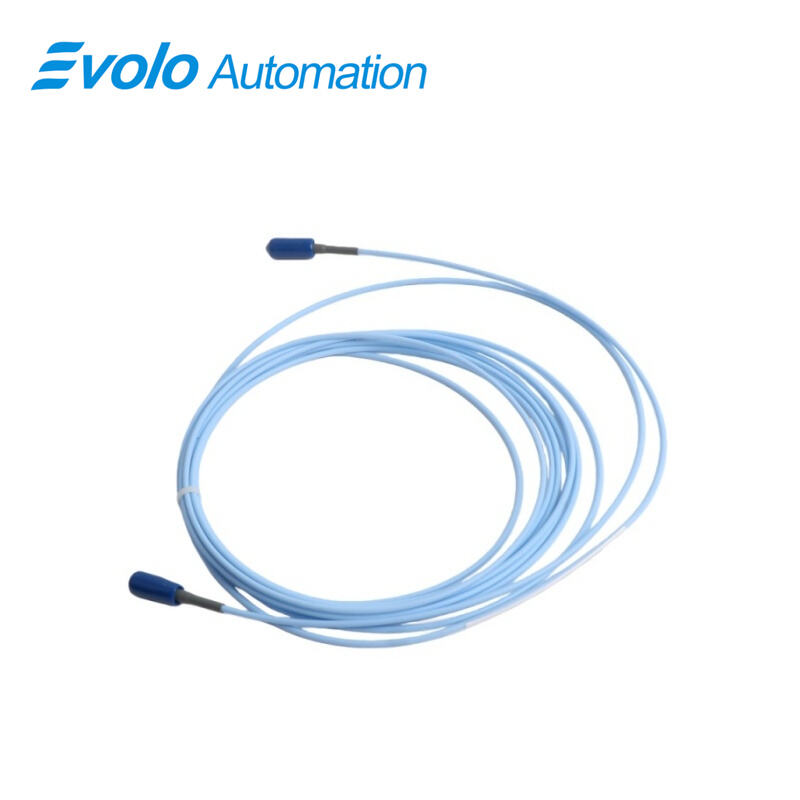

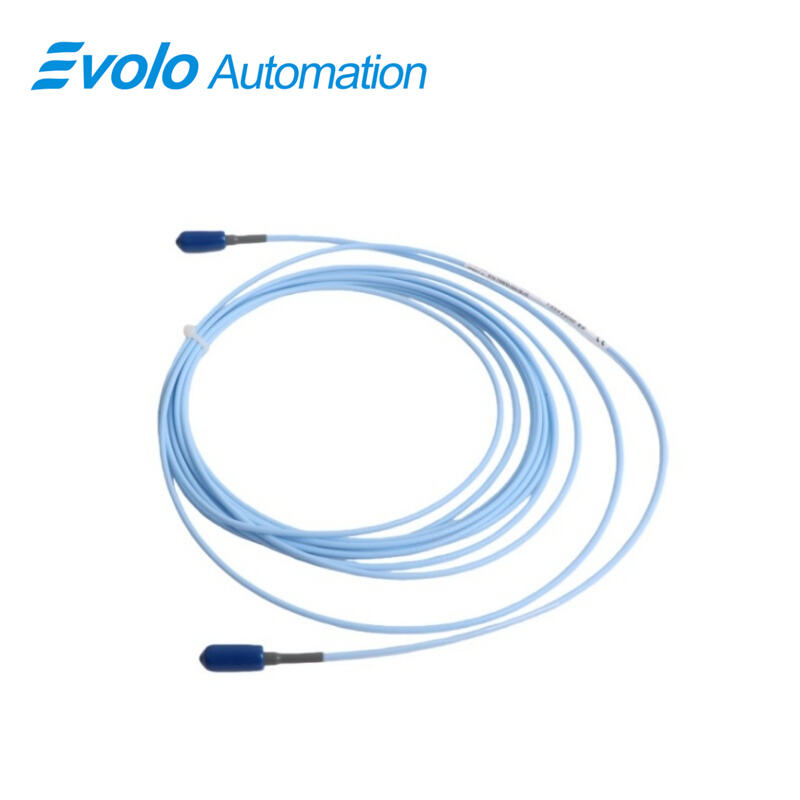

330930-040-00-CN 3300 NSv Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330930-040-00-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330930-040-00 3300 NSv Extension Cable provides a 4.0-meter (13.1 ft) connection for 3300 NSv Proximity Probes in automated monitoring systems for centrifugal, refrigeration, and process gas compressors. This extension cable supports a linear range of 1.5 mm (60 mils) and recommended gap setting of 1.0 mm (40 mils), maintaining high signal accuracy with 50 Ω output resistance and less than 2 mV/V supply sensitivity. Designed for -52°C to +177°C (-62°F to +351°F), the 330930-040-00 3300 NSv Extension Cable accommodates tight installation spaces without stainless steel armor. It is mechanically and electrically compatible with previous 3300 RAM systems, enabling automated upgrades without altering existing probes or monitoring hardware. The 330930-040-00 3300 NSv Extension Cable features ClickLoc connectors for secure electrical connections and optimal routing in constrained environments. Using 0.2–1.5 mm² (16–24 AWG) shielded triad wiring, it supports reliable radial vibration, axial position, tachometer, and phase reference (Keyphasor) measurements in automated process machinery. Its compact design, chemical-resistant construction, and precise signal transmission make the 330930-040-00 3300 NSv Extension Cable ideal for small-shaft or side-view restricted automation applications.

Applications

Radial Vibration Measurement on Small Shafts
The 330930-040-00 3300 NSv Extension Cable enables precise radial vibration monitoring on shafts smaller than 51 mm using 3300 NSv Proximity Probes, supporting automation systems in centrifugal compressors and process machines. Its 1.5 mm linear range ensures accurate signal transfer.

Axial (Thrust) Position Monitoring
Connect a 3300 NSv Proximity Probe via the 330930-040-00 3300 NSv Extension Cable to measure axial movement of rotors in refrigeration or gas compressors, using the recommended 1.0 mm probe-to-target gap for optimal output.

Tachometer and Zero Speed Detection
The 330930-040-00 3300 NSv Extension Cable allows 3300 NSv Proximity Probes to transmit high-fidelity tachometer and zero-speed signals to automated control systems, maintaining 50 Ω output resistance and less than 2 mV/V supply sensitivity.

Specifications

Competitive Advantage

Extended Linear Range Support
The 330930-040-00 3300 NSv Extension Cable maintains the 1.5 mm linear range of 3300 NSv Proximity Probes, supporting precise measurements in compact, automated machinery.

High Temperature Operation
Rated for -52°C to +177°C, the 330930-040-00 3300 NSv Extension Cable ensures consistent signal delivery in harsh industrial environments.

Easy System Upgrade
The 330930-040-00 3300 NSv Extension Cable is mechanically and electrically compatible with older 3300 RAM systems, enabling automated system upgrades using existing probes and sensors.

Secure Connections
ClickLoc connectors on the 330930-040-00 3300 NSv Extension Cable prevent loosening and protect signal integrity, ensuring precise data collection in automated monitoring systems.

Flexible Installation
With a 4.0-meter length and compact design, the 330930-040-00 3300 NSv Extension Cable supports installations in limited spaces or side-view restricted applications without affecting signal accuracy.
