Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
32000-28-05-00-120-03-02 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Probe with Connector: |
3300 XL 8 mm probe, multiple approvals |
|
Probe Cable Length: |
0.5 m (20 in) |
|
Standoff Adapter Length (Option C Dimension): |
No standoff adapter |
|
Probe Penetration Option (Option D Dimension): |
12.0 in |
|
Fittings: |
Two plugs, one 3/4-14 NPT fitting One 3/4-14 to 1/2-14 NPT SST reducer One cable seal grip with grommets for the following cable sizes: • 1/8 to 3/16 inches • 1/4 to 5/16 inches • 5/16 to 3/8 inches |
|
Mounting Thread Option: |
3/4-14 NPT (Required if ordering Standoff Adapter Option). |
|
Dimension: |
37x9x8cm |
|
Weight: |
1.5kg |
Description

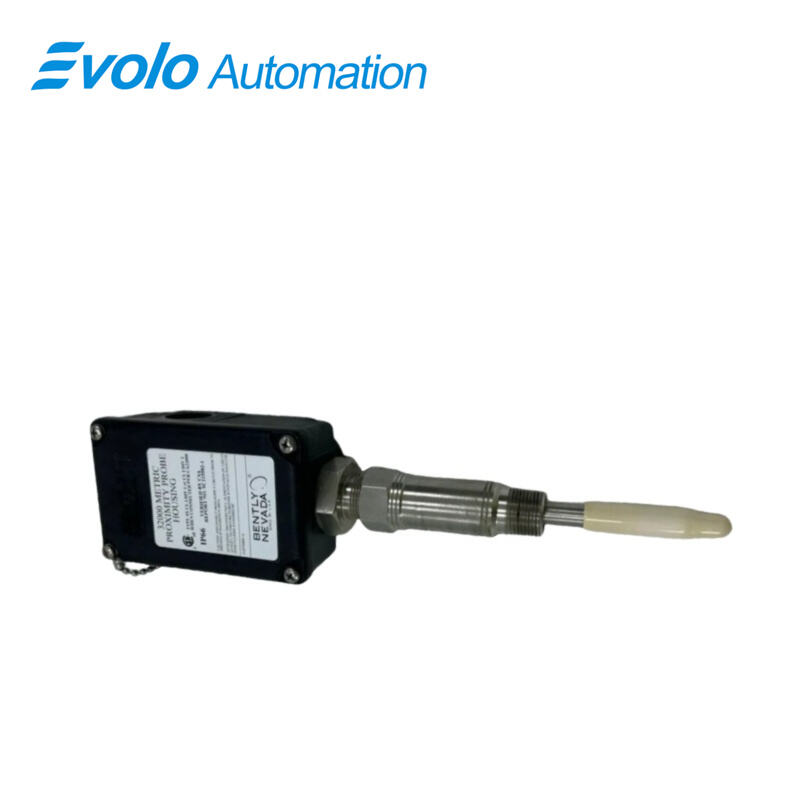

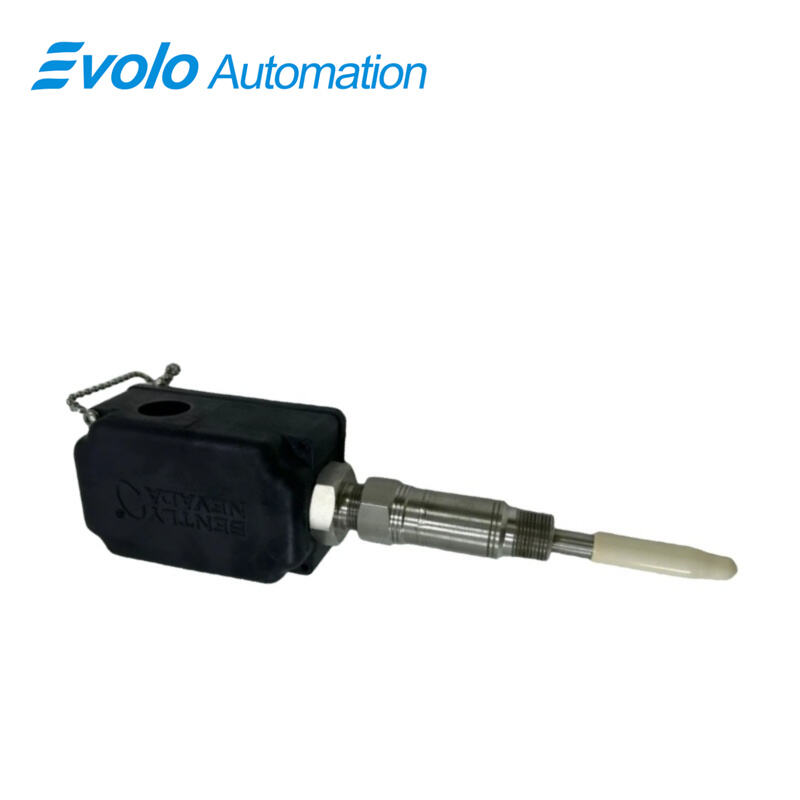

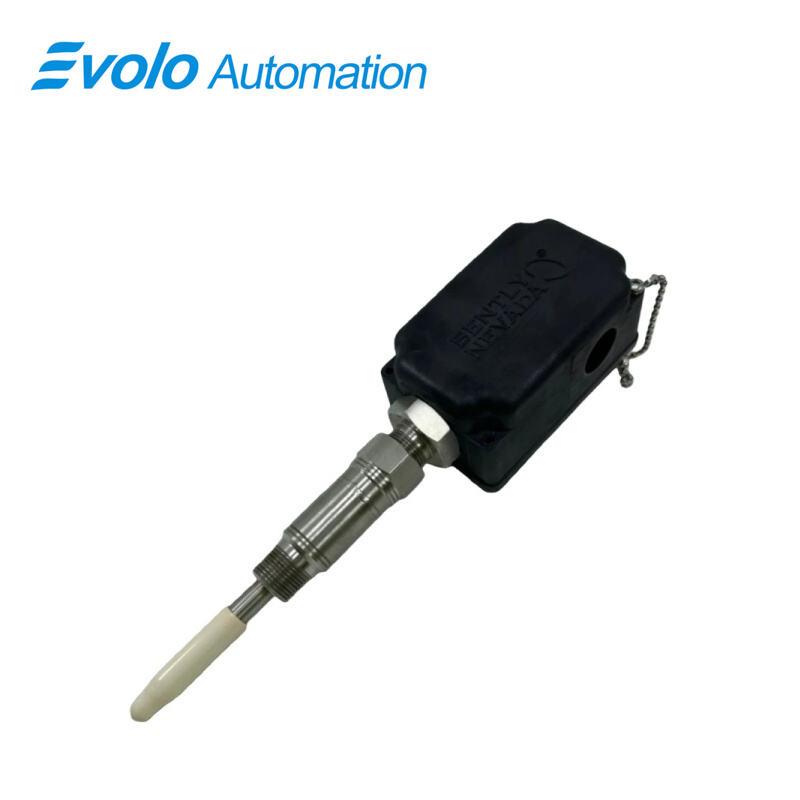

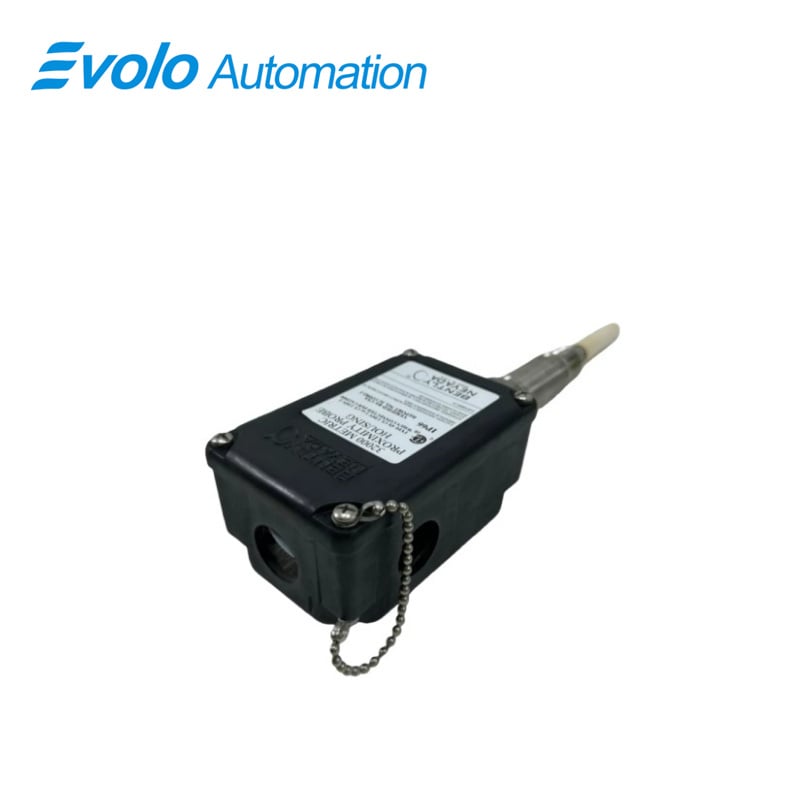

The 32000-28-05-00-120-03-02 Proximity Probe Housing Assembly is a high-precision solution designed for radially mounting 3300 XL 8 mm Proximity Probes in automated machinery and industrial systems. Built from glass-reinforced polyphenylene sulfide (PPS) thermoplastic with conductive fibers, this housing provides exceptional corrosion resistance and mechanical durability. The assembly features a 0.5 m (20 in) probe cable, a 12.0 in probe penetration, and includes multiple fittings such as two plugs, a 3/4-14 NPT fitting, a 3/4-14 to 1/2-14 SST reducer, and a cable seal grip for 1/8 to 3/8 in cables. Stainless steel components, including AISI 304 sleeve and AISI 303 exterior screws, ensure reliability under extreme operating conditions. Certified Type 4X by CSA, the housing is impact-tested to withstand 4 Joule impacts at -39°C and 115°C, ensuring robust performance in demanding industrial environments. The 32000 assembly allows external access to the probe for gap adjustments or replacements without machine disassembly, reducing maintenance time and operational downtime. Fully compliant with API 670 standards, it supports intrinsically safe hazardous area installations when used with approved transducer systems and I.S. barriers, making it suitable for vibration, position, and Keyphasor measurements in automated monitoring systems.
Applications
Radial Vibration Monitoring
Designed for radially mounted transducers in turbines, compressors, and motors, enabling precise monitoring of vibration amplitudes.
Keyphasor Signal Acquisition
Supports accurate phase reference signals for rotating machinery, essential for speed and position control in automation.
Gap Adjustment Without Disassembly
Allows technicians to perform probe gap adjustments externally, minimizing downtime during maintenance.
Hazardous Area Deployment
CSA Type 4X certification and compatibility with I.S. barriers permit safe use in explosive or high-risk industrial environments.
High Corrosion and Temperature Resistance
Polyphenylene sulfide and stainless steel materials ensure reliable operation in corrosive environments and temperatures from -39°C to 115°C.
Specifications
|
Protection Ratings : |
Type 4X rating certified by Canadian Standards Association (CSA) |
|
Housing Material: |
Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers |
|
Sleeve Material and Retaining Chain: |
AISI 304 stainless steel |
|
Outer Sleeve and Exterior Screws: |
AISI 303 stainless steel |
|
O-Ring Material : |
Neoprene |
|
Recommended Torque(retaining nut) : |
29.4 N·m (260 in·lb) |
|
Housing Strength (typical): |
Outer sleeve was mounted on a test stand with its axis parallel to horizontal and the housing mounted on the outer sleeve through an end hole |
|
Housing Impact Strength: |
Certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and at 115°C (239°F) |
Competitive Advantage
Robust Material Construction
PPS thermoplastic and stainless steel provide superior corrosion resistance and mechanical strength for long-term reliability.
Maintenance Efficiency
External probe and cable access enable quick adjustments and replacements, significantly reducing operational downtime.
Impact Resistance
BASEEFA-certified to withstand 4 Joule impacts at extreme temperatures, ensuring reliable performance in harsh conditions.
API 670 Compliance
Meets industry standards for externally mounted proximity probe housings, guaranteeing compatibility with advanced monitoring systems.
Intrinsic Safety Ready
Supports intrinsically safe applications when combined with approved transducer systems and I.S. barriers, extending use to hazardous locations.
