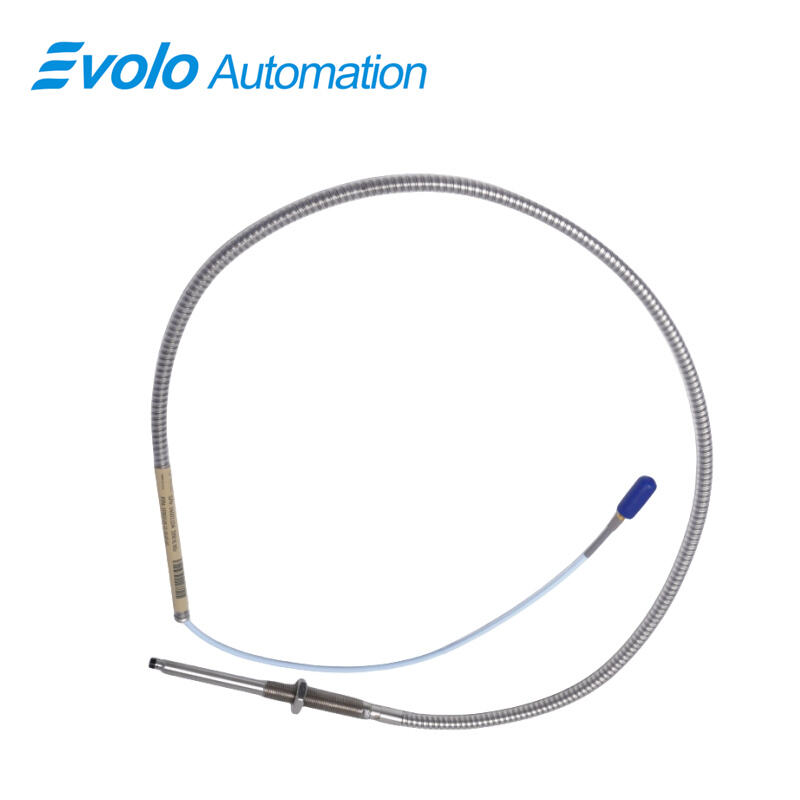

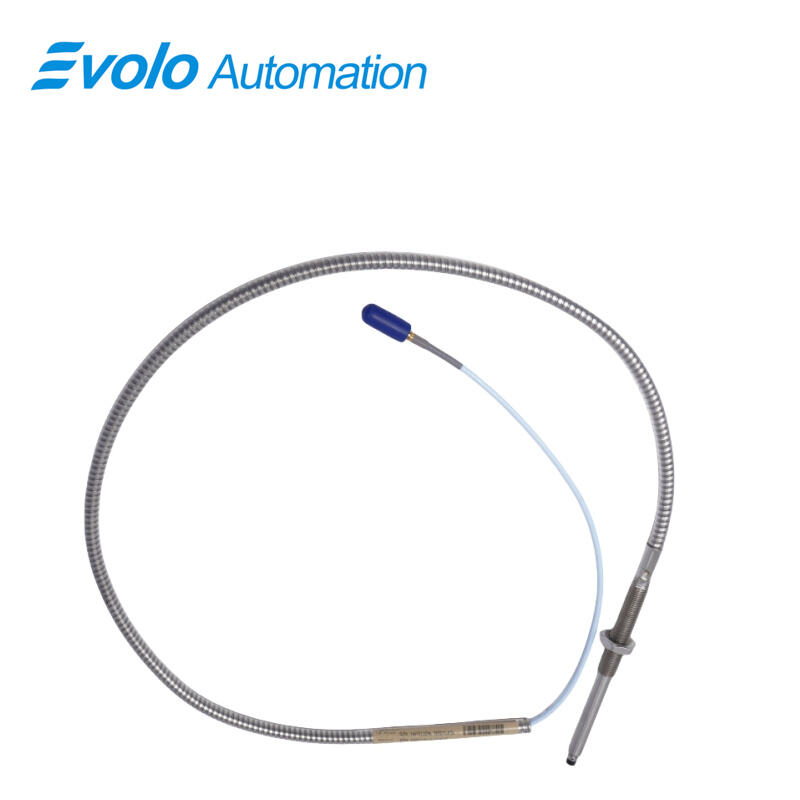

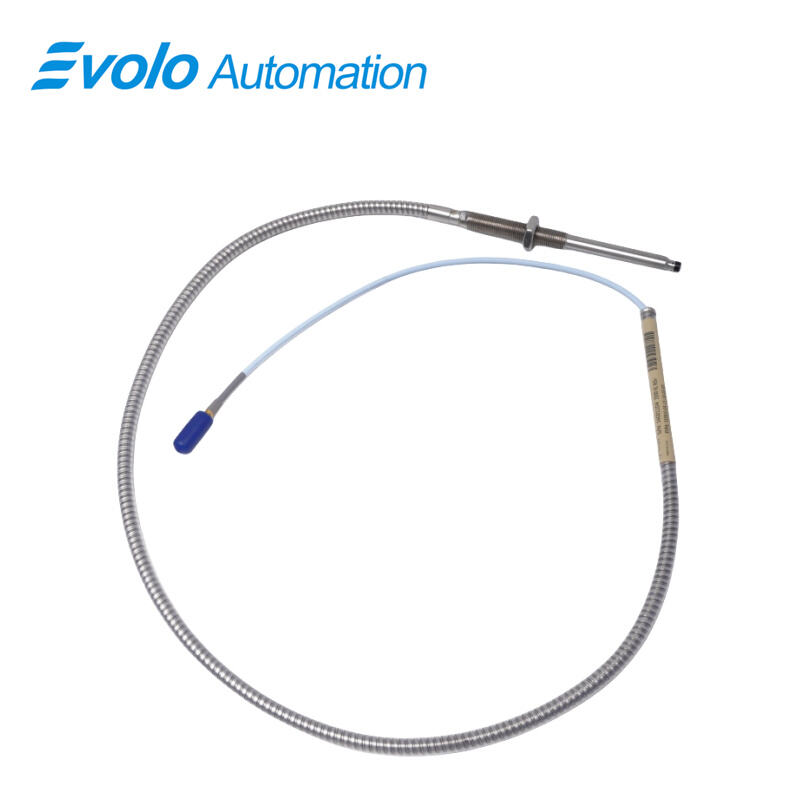

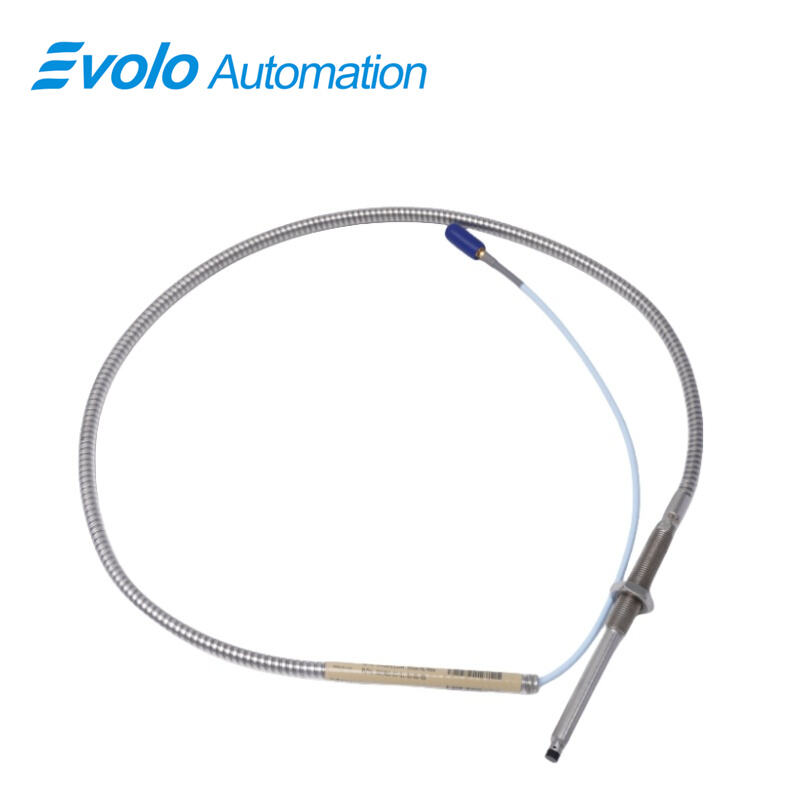

330910-05-10-02-00 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330910-05-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330910-05-10-02-00 3300 NSv Proximity Probe is designed for precision vibration and position measurements in centrifugal compressors, process gas compressors, and tight-installation machinery. Featuring an unthreaded length of 50 mm, overall case length of 100 mm, and M10X1 probe thread with 15 mm maximum engagement, the 330910-05-10-02-00 3300 NSv Proximity Probe accommodates small shaft and reduced side-view applications. Its PPS probe tip and AISI 304 stainless steel case withstand -52°C to +177°C, while the 0.5 m miniature coaxial ClickLoc cable ensures reliable field wiring with 50 Ω output resistance. The linear range of 1.5 mm and recommended gap of 1.0 mm provide accurate radial and axial measurements. Compatible with previous 3300 RAM systems, the 330910-05-10-02-00 3300 NSv Proximity Probe integrates seamlessly with existing extension cables and Proximitor Sensors. Side-view configuration, TipLoc molded probe tip, and CableLoc design deliver secure mechanical and electrical connections. Ideal for radial vibration, axial position, tachometer, and Keyphasor measurements, this probe supports industrial automation monitoring and precise machine diagnostics while maintaining robust signal output under varying input voltage.

Applications

Radial Shaft Vibration Measurement
The 330910-05-10-02-00 3300 NSv Proximity Probe measures radial shaft vibration on shafts smaller than 51 mm (2 in). With a 1.5 mm linear range and 1.0 mm recommended gap, it provides accurate vibration data for centrifugal compressors and process gas compressors.

Axial Position Tracking
Using its PPS probe tip and M10X1 probe thread, the 330910-05-10-02-00 3300 NSv Proximity Probe monitors axial (thrust) shaft movement on flat targets smaller than 15 mm, enabling precise axial position control in high-speed rotating machinery.

Tachometer and Zero Speed Detection
The 330910-05-10-02-00 3300 NSv Proximity Probe outputs a 50 Ω signal suitable for tachometer monitoring and zero-speed detection, supporting automation systems in industrial compressors and motors.

Phase Reference Signal Generation
Equipped with ClickLoc connectors and a 0.5 m standard cable, the 330910-05-10-02-00 3300 NSv Proximity Probe provides Keyphasor signals for phase reference in rotating machinery, ensuring accurate rotational phase tracking.

Specifications

Competitive Advantage

Direct Upgrade from 3300 RAM Probes
The 330910-05-10-02-00 3300 NSv Proximity Probe can replace 3300 RAM probes without changing extension cables or Proximitor Sensors, reducing installation time and minimizing system downtime.

High-Temperature and Chemical Resistance
With an operating range of -52°C to +177°C and PPS probe tip, the 330910-05-10-02-00 3300 NSv Proximity Probe withstands harsh compressor environments and process chemicals while maintaining accurate output.

Small Target and Side-View Installation
The short overall case length of 100 mm and side-view capabilities allow the 330910-05-10-02-00 3300 NSv Proximity Probe to fit in tight spaces, making it suitable for compact machinery with restricted installation areas.

Accurate Output under Voltage Variation
The 330910-05-10-02-00 3300 NSv Proximity Probe maintains less than 2 mV output change per volt input change, supporting precise vibration and position measurement in automated control systems.
