330905-00-03-10-02-00 3300 NSv Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330905-00-03-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

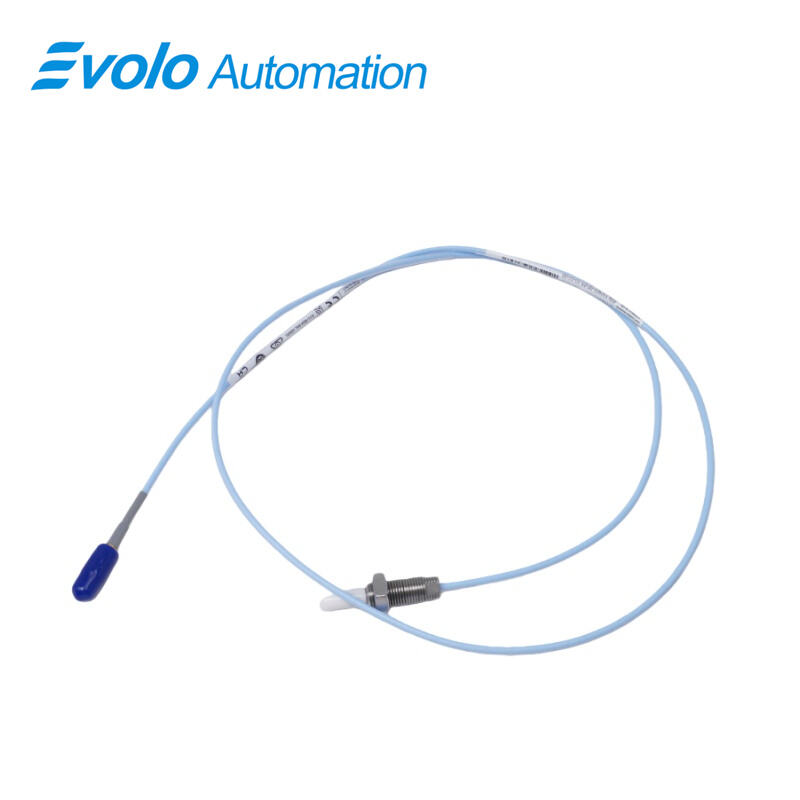

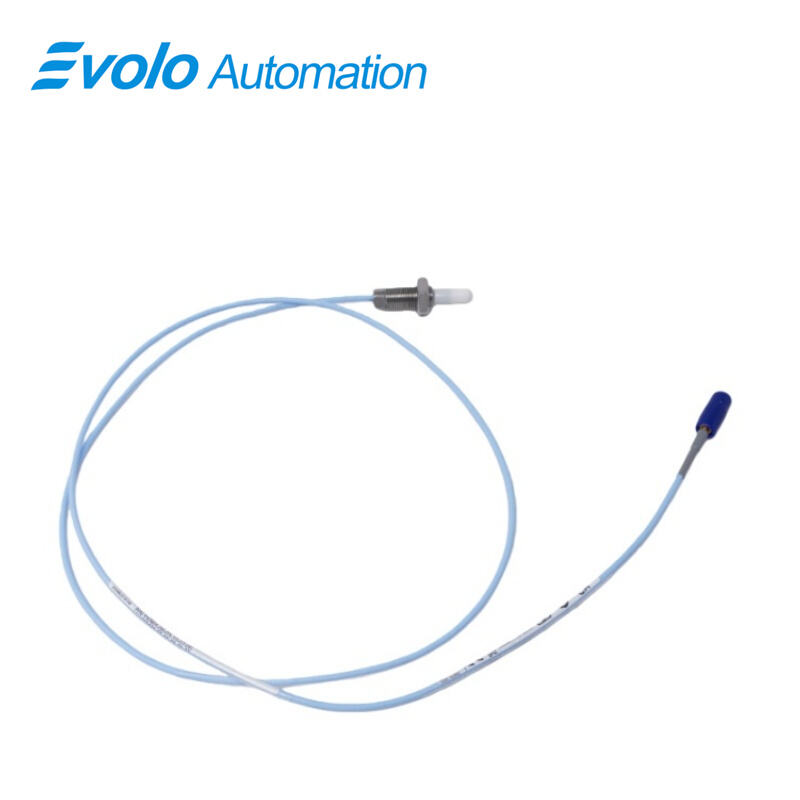

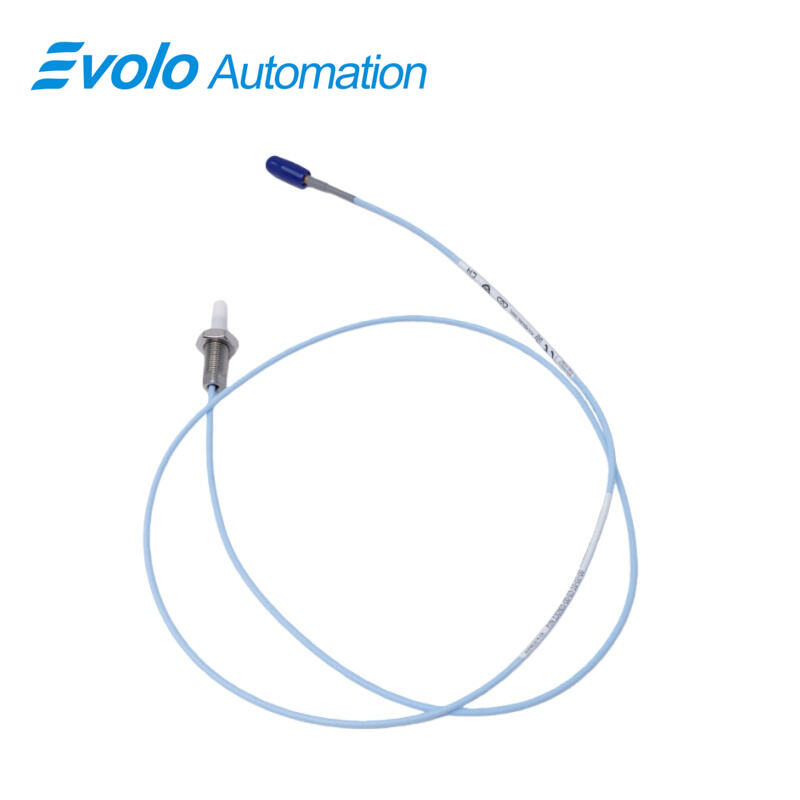

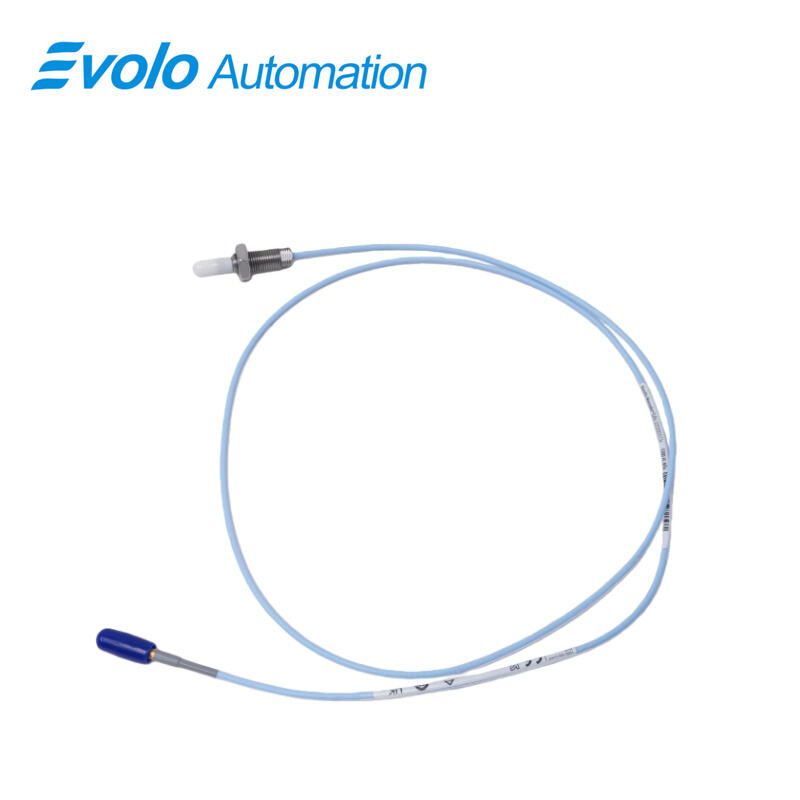

The 330905-00-03-10-02-00 3300 NSv Proximity Probe features a 1.0 meter cable and M10X1 threaded case, designed for tight installation spaces in centrifugal air compressors, refrigeration compressors, and process gas compressors. The 330905-00-03-10-02-00 3300 NSv Proximity Probe operates from -52°C to +177°C (-62°F to +351°F) and outputs 50 Ω signals with less than 2 mV supply sensitivity change. Its PPS probe tip and AISI 304 stainless steel case support precise 1.5 mm linear range and 1.0 mm recommended gap measurements. Equipped with a miniature coaxial ClickLoc connector, the 330905-00-03-10-02-00 3300 NSv Proximity Probe enables radial vibration, axial (thrust) position, tachometer, and Keyphasor signal detection in automated monitoring systems. This probe replaces 3300 RAM and 3000/7000-series transducers without changing extension cables or Proximitor sensors, providing chemical-resistant operation and accurate side-view measurements. The 330905-00-03-10-02-00 3300 NSv Proximity Probe integrates with automation systems for consistent rotor vibration monitoring, small target positioning, and phase reference detection, ensuring reliable performance in tight or restricted spaces.

Applications

Radial Vibration Monitoring on Small Shafts
The 330905-00-03-10-02-00 3300 NSv Proximity Probe measures radial vibration on shafts smaller than 51 mm (2 in) using its 1.5 mm linear range and 1.0 mm recommended gap, enabling precise monitoring in centrifugal air compressors and process gas compressors.

Axial Position (Thrust) Measurements
With its 1.0 mm gap setting and AISI 304 stainless steel case, the 330905-00-03-10-02-00 3300 NSv Proximity Probe accurately detects axial movement on flat targets smaller than 15 mm, ensuring reliable axial position readings in automated monitoring systems.

Tachometer and Zero-Speed Detection
Using a miniature coaxial ClickLoc connector, the 330905-00-03-10-02-00 3300 NSv Proximity Probe provides low-resistance 50 Ω output, supporting tachometer and zero-speed measurement for automated rotor speed tracking.

Phase Reference (Keyphasor Signals)
The probe’s PPS tip and chemical-resistant construction enable consistent detection of Keyphasor signals for phase reference applications, even under high-temperature conditions from -52°C to +177°C.

Specifications

Competitive Advantage

Compact Design for Tight Spaces
The 330905-00-03-10-02-00 3300 NSv Proximity Probe features a 30 mm overall case length and M10X1 threading, allowing installation in restricted sideview or counterbore areas without modification of existing systems.

High Accuracy with Low Voltage Sensitivity
With less than 2 mV change per volt input, the 330905-00-03-10-02-00 3300 NSv Proximity Probe delivers precise linear range measurements of 1.5 mm for small targets, enabling detailed automated vibration analysis.

Mechanical and Electrical Upgrade Path
The 330905-00-03-10-02-00 3300 NSv Proximity Probe can replace 3300 RAM and 3000/7000-series 190 probes without replacing extension cables or Proximitor sensors, reducing retrofit time and costs.
