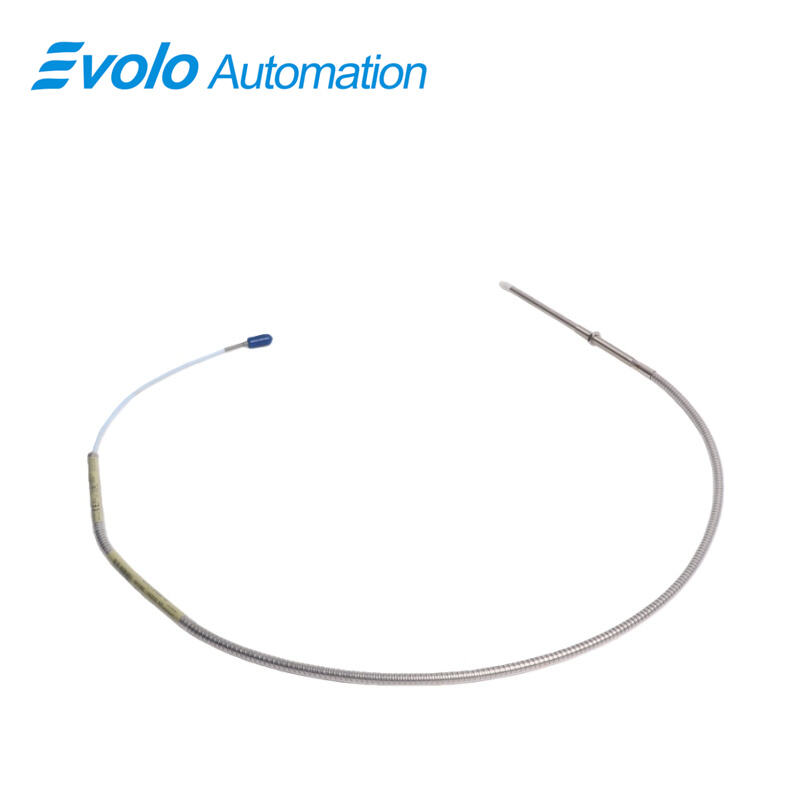

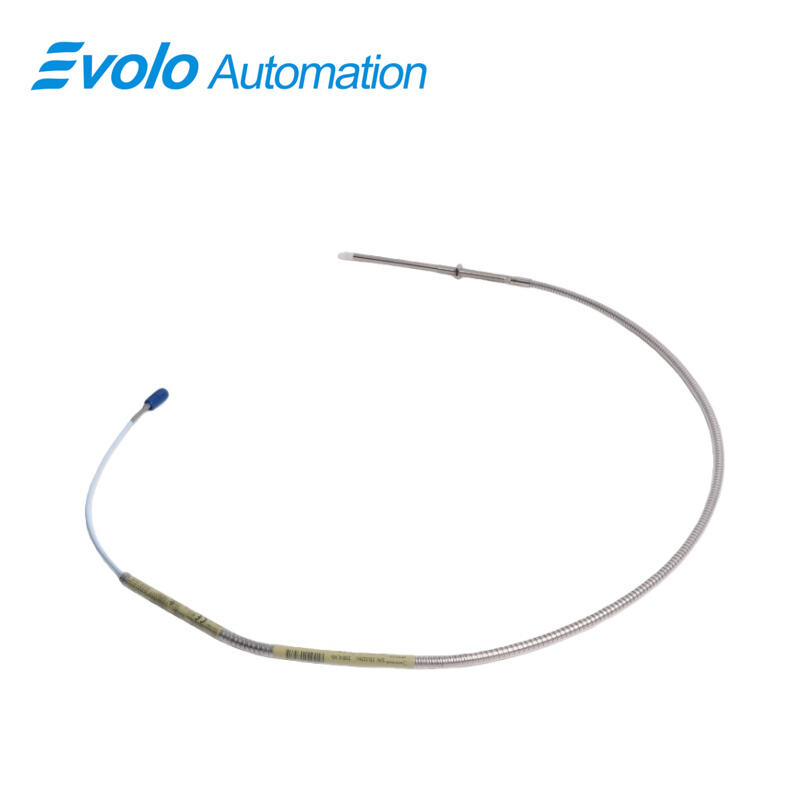

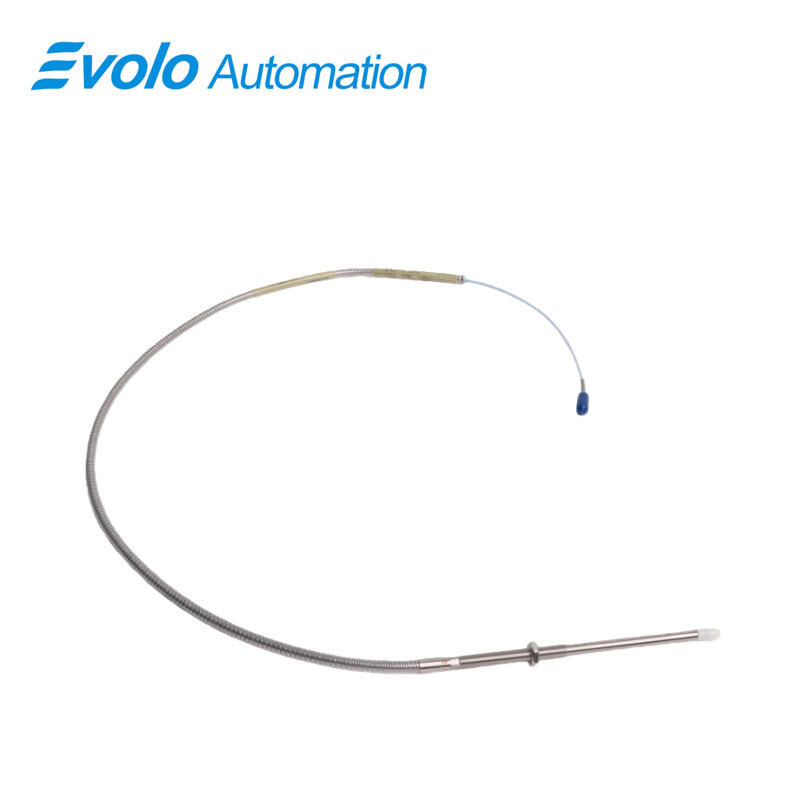

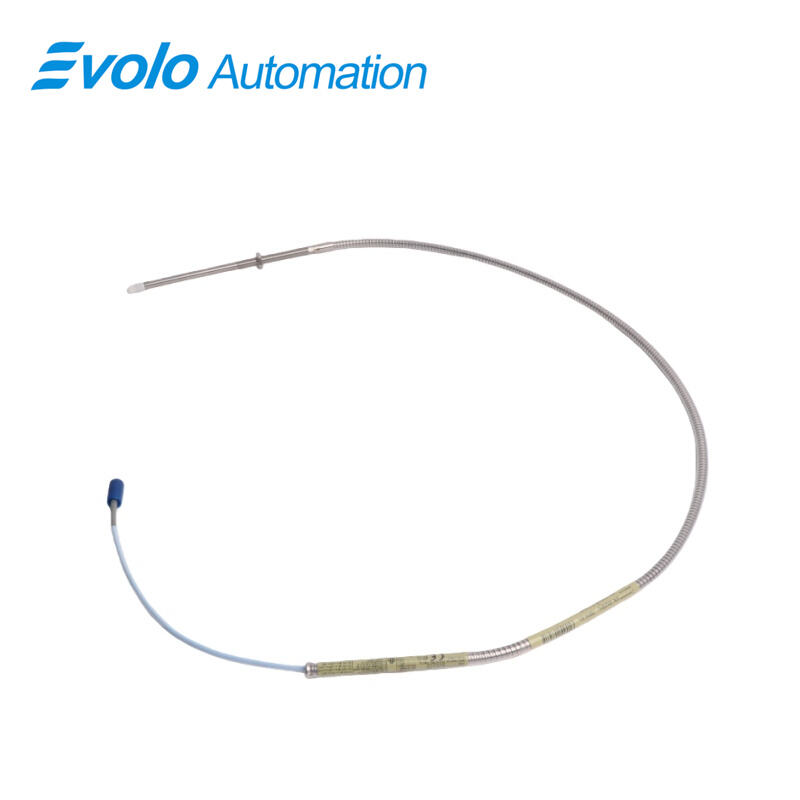

330904-09-17-05-01-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330904-09-17-05-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330904-09-17-05-01-05 3300 NSv Proximity Probe is designed for precise radial and axial vibration measurements in centrifugal compressors, refrigeration compressors, and other rotating machinery with tight installation spaces. The 330904-09-17-05-01-05 3300 NSv Proximity Probe features an M8X1 threaded stainless steel case, 90 mm unthreaded length, 170 mm overall length, and 0.5 m cable with ClickLoc connector. Its probe tip is made of PPS, supports linear range up to 1.5 mm, and operates from -52°C to +177°C. Field wiring supports 0.2–1.5 mm², and output resistance is 50 Ω with minimal supply sensitivity. The 330904-09-17-05-01-05 3300 NSv Proximity Probe is ideal for small shaft targets under 51 mm or axial flat targets under 15 mm. Its design allows replacement of 3300 RAM or 3000/7000-series 190 transducers without full system changes. With robust CableLoc and TipLoc designs, the 330904-09-17-05-01-05 3300 NSv Proximity Probe ensures secure connections and reliable automation signal transmission, making it essential for high-precision machine monitoring and automated condition measurement.

Applications

Radial Vibration Monitoring on Small Shafts
The 330904-09-17-05-01-05 3300 NSv Proximity Probe measures radial vibration on shafts smaller than 51 mm, using its 1.5 mm linear range to deliver precise readings in compact compressors and turbines.

Axial Position Measurement
The 330904-09-17-05-01-05 3300 NSv Proximity Probe monitors axial thrust on flat targets under 15 mm, using the PPS probe tip to maintain accuracy across temperatures from -52°C to +177°C.

Tachometer and Zero-Speed Detection
The 330904-09-17-05-01-05 3300 NSv Proximity Probe outputs 50 Ω signals suitable for automated speed detection and machine shutdown control in industrial automation systems.

Phase Reference Signal Generation
The 330904-09-17-05-01-05 3300 NSv Proximity Probe generates Keyphasor signals for rotor phase tracking, leveraging ClickLoc connectors to ensure signal consistency.

Specifications

Competitive Advantage

Direct Upgrade from 3300 RAM
The 330904-09-17-05-01-05 3300 NSv Proximity Probe uses existing extension cables and monitoring hardware, enabling fast replacement of older 3300 RAM probes with minimal downtime.

Chemical and Temperature Resistance
With PPS probe tip and stainless steel case, the 330904-09-17-05-01-05 3300 NSv Proximity Probe operates reliably in harsh process fluids and extreme temperatures, supporting automated condition monitoring.

Small Target and Sideview Access
The 330904-09-17-05-01-05 3300 NSv Proximity Probe fits restricted installation spaces, using its 90 mm unthreaded length and 170 mm overall length to reach compact shaft areas.

Secure Connection Design
The 330904-09-17-05-01-05 3300 NSv Proximity Probe features CableLoc and TipLoc designs, providing 220 N pull strength and consistent signal transmission for automated monitoring systems.
