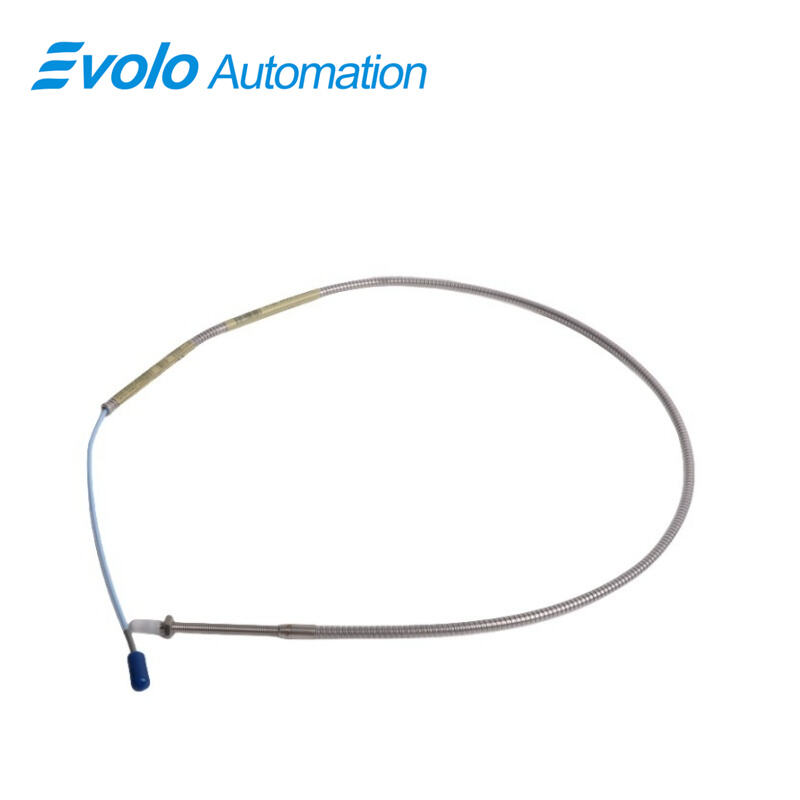

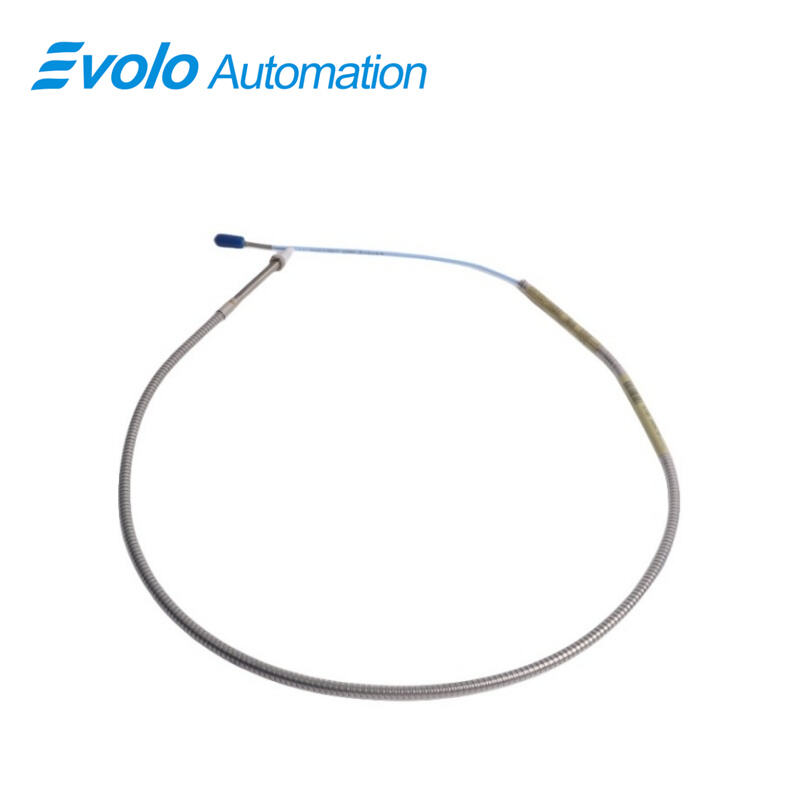

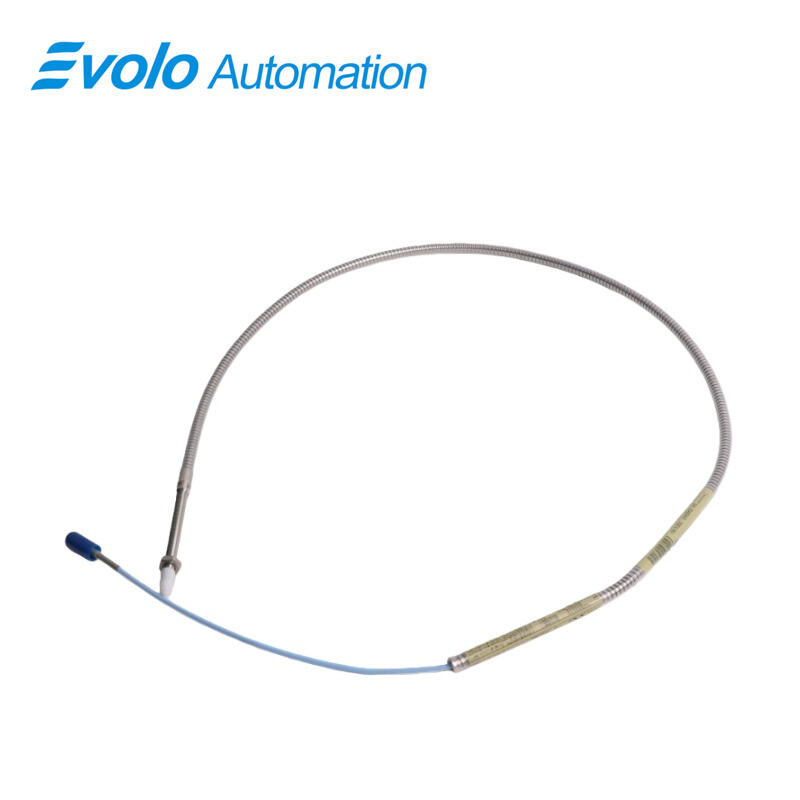

330902-00-50-05-02-00 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330902-00-50-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330902-00-50-05-02-00 3300 NSv Proximity Probe delivers precise non-contact measurements of shaft vibration and axial position in tight industrial spaces. With a 1.5 mm (60 mils) linear range and 7.87 V/mm output, the 330902-00-50-05-02-00 3300 NSv Proximity Probe is ideal for radial vibration detection on shafts smaller than 51 mm (2 in) and axial positioning on flat targets down to 15 mm (0.6 in). Constructed with a PPS probe tip and AISI 304 stainless steel case, it operates from -52°C to +177°C (-62°F to +351°F) and withstands chemical exposure in centrifugal, refrigeration, and process gas compressors. The 330902-00-50-05-02-00 3300 NSv Proximity Probe features a 0.5 m cable, 1/4-28 UNF threaded case, miniature coaxial ClickLoc connector, and patented CableLoc design with 220 N pull strength, ensuring secure probe-to-cable attachment. Recommended 1.0 mm gap settings and gold-plated connectors maintain accurate signal transmission. Its compact 5 in case length allows installation in counterbore or side-view restricted areas, enabling precise Keyphasor reference and tachometer measurements. The 330902-00-50-05-02-00 3300 NSv Proximity Probe supports seamless upgrades from 3300 RAM and 3000/7000-series systems while maintaining high measurement fidelity in automation applications.

Applications

Measure Radial Vibration on Small Shafts
The 330902-00-50-05-02-00 3300 NSv Proximity Probe is ideal for shafts smaller than 51 mm (2 in), providing precise radial vibration measurements in centrifugal and refrigeration compressors. Its 1.5 mm (60 mils) linear range ensures accurate readings even in tight installations.

Track Axial (Thrust) Position on Flat Targets
With a recommended gap setting of 1.0 mm (40 mils) and PPS tip material, the 330902-00-50-05-02-00 3300 NSv Proximity Probe delivers high-resolution axial displacement measurements on flat targets down to 15 mm (0.6 in).

Provide Tachometer and Zero-Speed Measurements
Equipped with gold-plated ClickLoc connectors and 0.5 m cable length, the 330902-00-50-05-02-00 3300 NSv Proximity Probe allows accurate shaft speed and zero-speed detection in automation systems.

Generate Phase Reference Signals (Keyphasor)
The probe supports consistent Keyphasor output with 50 Ω output resistance and <2 mV/V supply sensitivity, enabling reliable phase reference for rotational machinery monitoring.

Specifications

Competitive Advantage

Compact Design for Restricted Spaces
With a 5 in overall case length and 1/4-28 UNF thread, the 330902-00-50-05-02-00 3300 NSv Proximity Probe fits counterbore, sideview, or rearview-limited locations, simplifying installation in compact machinery.

High Temperature and Chemical Resistance
Constructed from AISI 304 stainless steel and a PPS probe tip, the 330902-00-50-05-02-00 3300 NSv Proximity Probe operates from -52°C to +177°C (-62°F to +351°F) and resists chemical exposure, suitable for process gas and refrigeration compressors.

Secure Probe-to-Cable Connection
The patented CableLoc design provides 220 N pull strength, while ClickLoc connectors prevent loosening, ensuring reliable electrical connection in automated measurement systems.

Seamless Upgrade Path
The 330902-00-50-05-02-00 3300 NSv Proximity Probe can replace 3300 RAM and 3000/7000-series probes, using existing monitoring systems with minimal modifications while maintaining 7.87 V/mm output accuracy.

Small Target Precision
Optimized for radial and axial measurements on targets smaller than 51 mm or 15 mm, the 330902-00-50-05-02-00 3300 NSv Proximity Probe supports high-precision automation monitoring where larger probes cannot be used.
