330730-040-01-00 3300 XL 11 mm Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330730-040-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

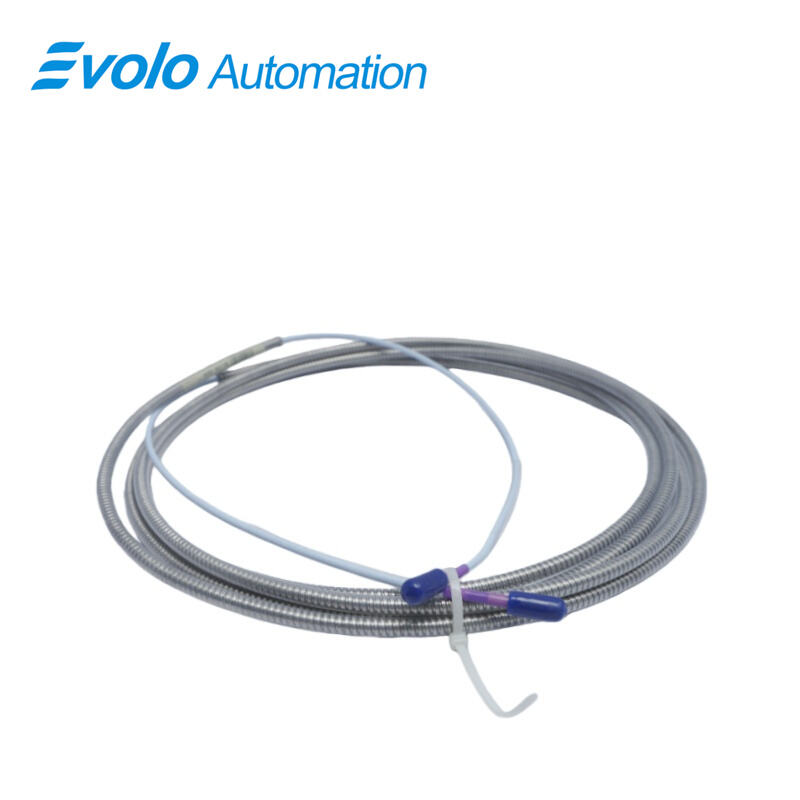

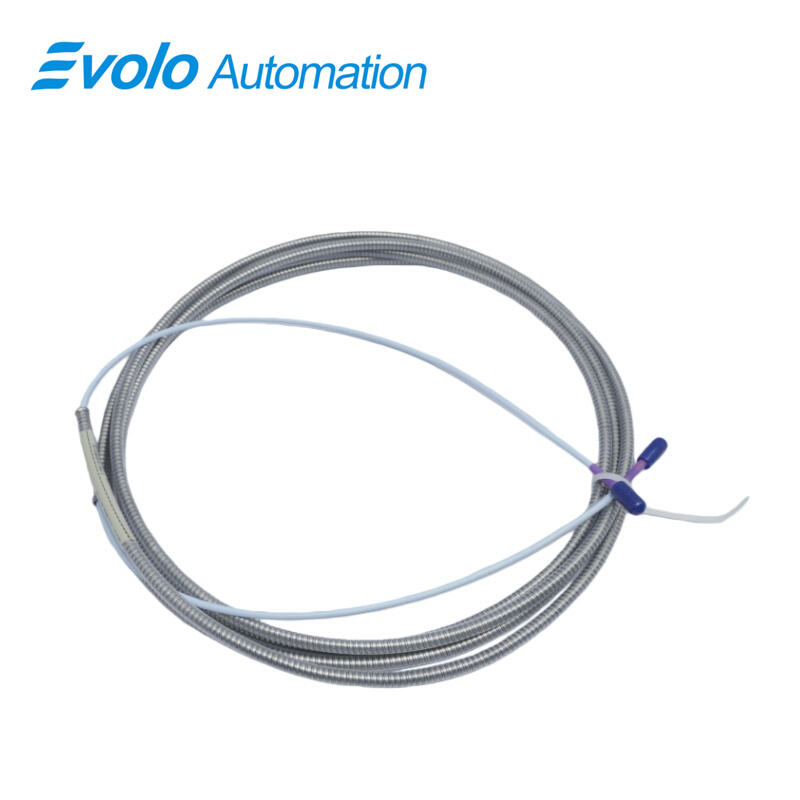

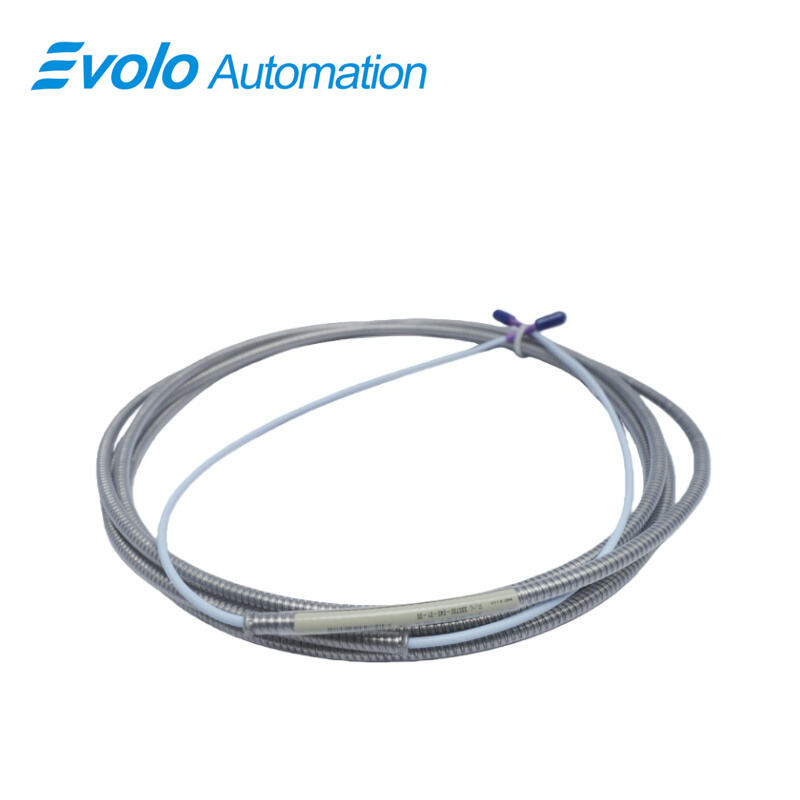

The 330730-040-01-00 3300 XL 11 mm Extension Cable provides a 4.0-meter (13.1 ft) armored connection for 3300 XL 11 mm probes, ensuring precise non-contacting vibration and displacement measurements on fluid-film bearing machines. Constructed with 75 Ω triaxial FEP insulation and flexible AISI 302 SST armor, the 330730-040-01-00 3300 XL 11 mm Extension Cable maintains output resistance of 50 Ω and less than 2 mV/V supply sensitivity. It supports the 3.94 V/mm output of 3300 XL 11 mm probes over a long linear range, enabling axial thrust position, rod drop, and ramp differential expansion measurements, as well as Keyphasor and tachometer signal transmission. Gold-plated ClickLoc connectors and CableLoc attachment provide 330 N pull strength, securing the probe-cable interface in automated monitoring systems. Optional FluidLoc and connector protector features prevent oil and moisture intrusion, allowing safe operation in lubrication-heavy or humid environments. The 330730-040-01-00 3300 XL 11 mm Extension Cable integrates seamlessly with all 3300 XL 11 mm system components, simplifying upgrades from 7200-series 11 mm and 14 mm transducer systems and supporting precise signal transmission in modern automated machinery.

Applications

Axial Thrust Position Measurement
Use the 330730-040-01-00 3300 XL 11 mm Extension Cable with 3300 XL 11 mm probes to measure axial thrust positions on turbines. Its 4.0-meter length ensures accurate signal transmission across the machine.

Rod Drop Detection on Reciprocating Compressors
The 330730-040-01-00 3300 XL 11 mm Extension Cable transmits precise displacement signals from 3300 XL 11 mm probes to monitor rod drop events, using the 50 Ω output resistance to maintain consistent voltage levels.

Ramp Differential Expansion Measurement
Connect 3300 XL 11 mm probes via the 330730-040-01-00 3300 XL 11 mm Extension Cable for measuring differential expansion on steam turbines. The 75 Ω triaxial design minimizes signal distortion over 4 meters.

Keyphasor and Tachometer Signal Transmission
The 330730-040-01-00 3300 XL 11 mm Extension Cable carries phase reference and zero-speed signals from 3300 XL 11 mm probes to automated monitoring systems with less than 2 mV/V voltage variation.

Specifications

Competitive Advantage

Extended Linear Range Support
The 330730-040-01-00 3300 XL 11 mm Extension Cable preserves the 3.94 V/mm output of 3300 XL 11 mm probes, enabling longer linear range measurements without signal loss.

Secure Connection
Gold-plated ClickLoc connectors and CableLoc attachment provide 330 N pull strength, ensuring the 330730-040-01-00 3300 XL 11 mm Extension Cable maintains reliable connections in automated environments.

Seamless Upgrade Path
The 330730-040-01-00 3300 XL 11 mm Extension Cable integrates directly with all 3300 XL 11 mm system components, enabling easy replacement of 7200-series 11 mm and 14 mm transducer systems.

Flexible Installation
The armored 75 Ω triaxial cable and 4.0-meter length allow the 330730-040-01-00 3300 XL 11 mm Extension Cable to be routed in dense or restricted spaces, supporting automated vibration and position monitoring layouts.
