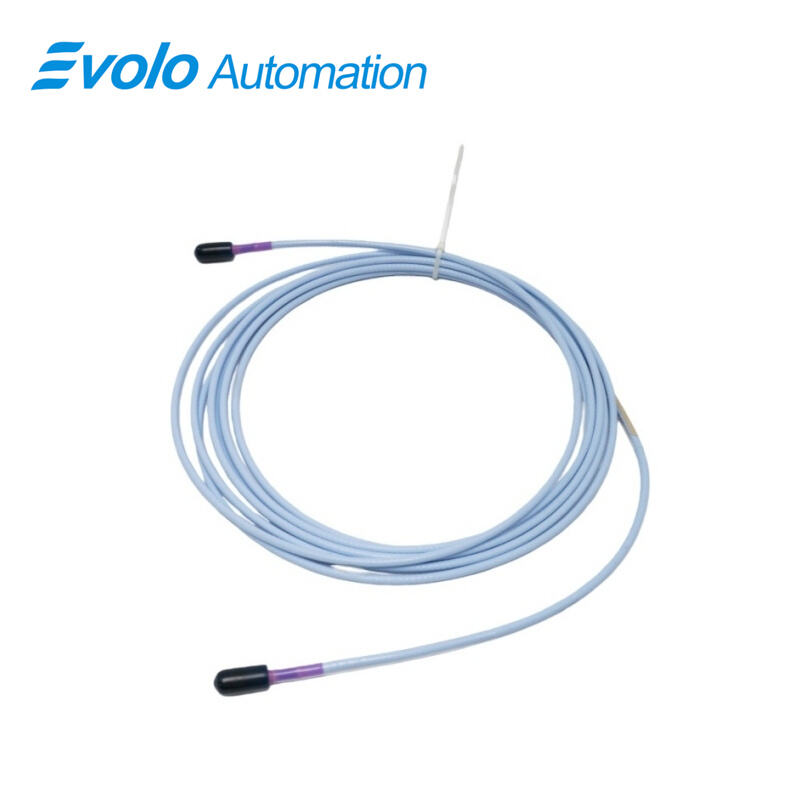

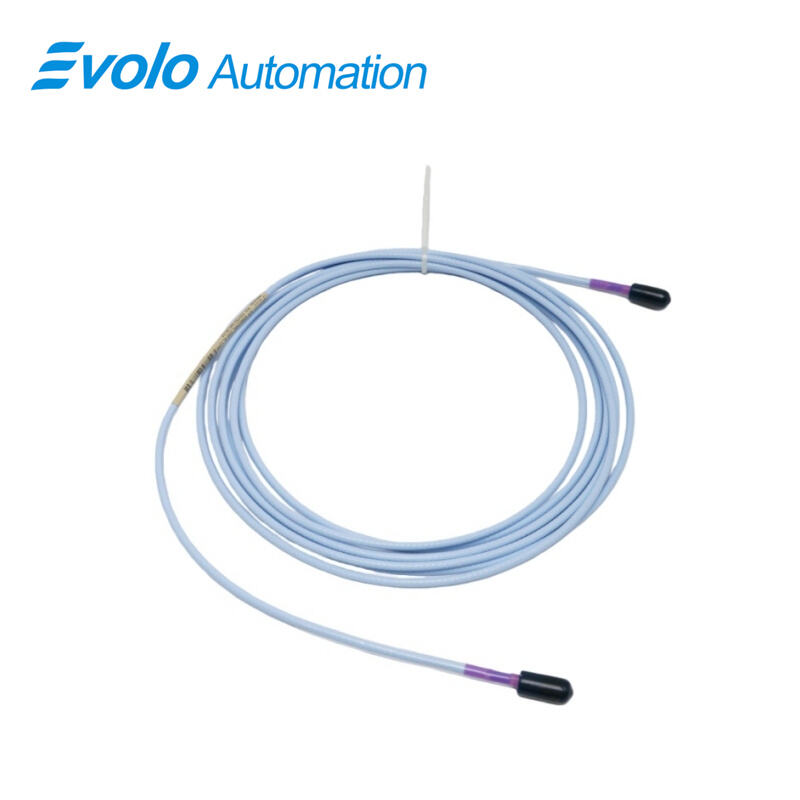

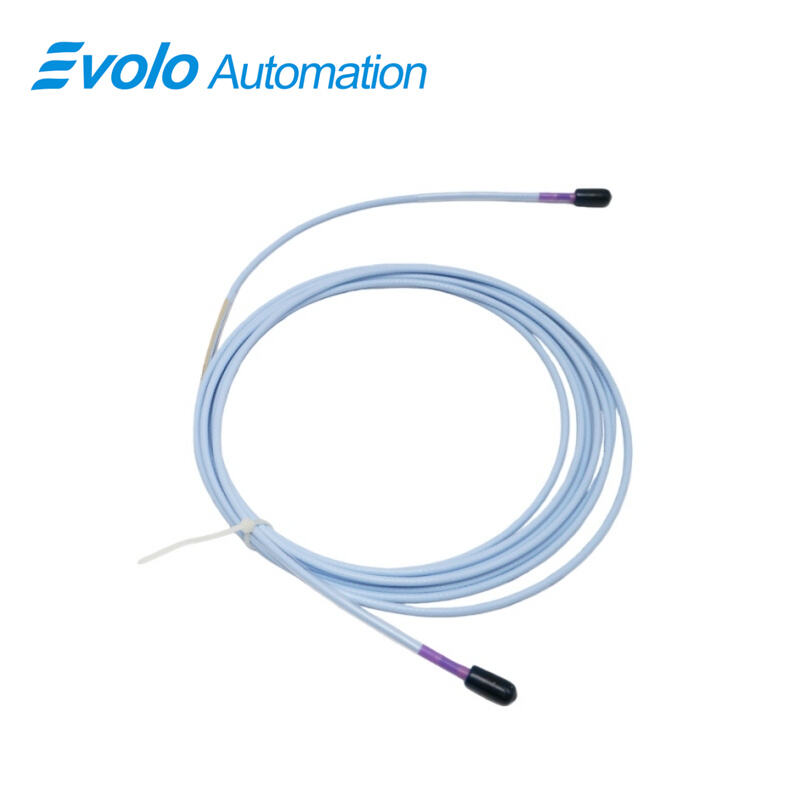

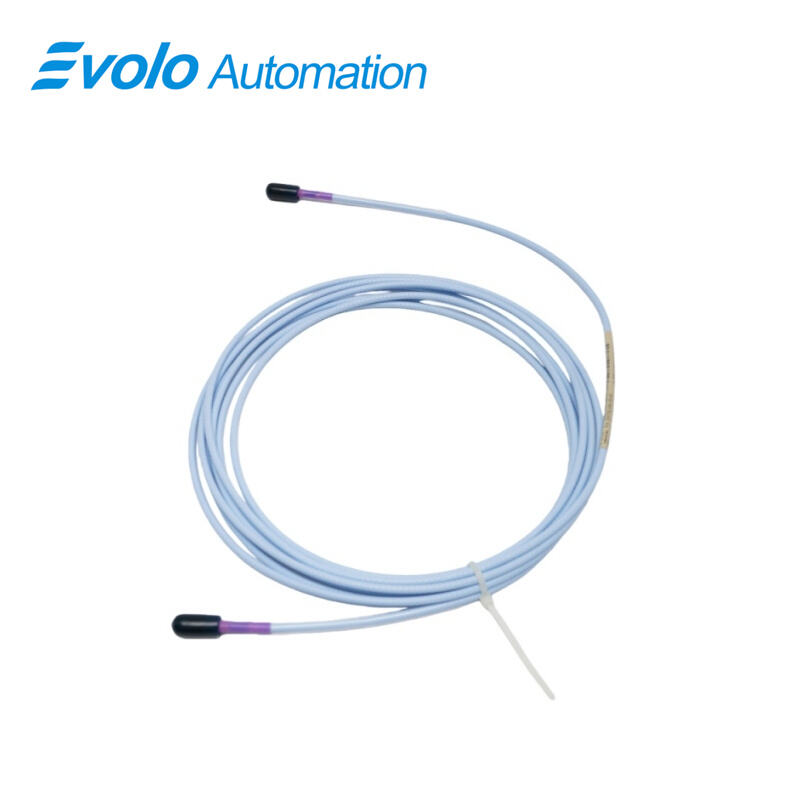

330730-040-00-CN 3300 XL 11 mm Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330730-040-00-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330730-040-00-CN 3300 XL 11 mm Extension Cable provides a 4.0-meter connection for high-performance 3300 XL 11 mm Proximity Transducer Systems. Its 75 Ω triaxial FEP-insulated cable and optional flexible AISI 302 SST armor with FEP jacket enable automated monitoring in fluid-film bearing machines. The 330730-040-00-CN 3300 XL 11 mm Extension Cable supports field wiring from 0.2 to 1.5 mm² (16–24 AWG) and maintains less than 2 mV change per volt supply variation. Output resistance is 50 Ω, and the cable operates reliably between -52°C and +177°C (-62°F to +351°F).

Designed for vibration, displacement, and axial position measurements, the 330730-040-00-CN 3300 XL 11 mm Extension Cable pairs with 3300 XL 11 mm probes to deliver 3.94 V/mm (100 mV/mil) output for dynamic monitoring. Gold-plated ClickLoc connectors and patented CableLoc attachment provide 330 N (75 lb) pull strength, preventing disconnections in automated systems. Optional FluidLoc and connector protector features safeguard against oil ingress and humid environments, ensuring consistent performance in critical automation applications.

Applications

Axial Position Measurements on Fluid-Film Bearings
The 330730-040-00-CN 3300 XL 11 mm Extension Cable transmits signals from 3300 XL 11 mm probes with 4.0-meter length, 75 Ω triaxial FEP insulation, and 50 Ω output resistance, enabling precise axial position tracking in thrust-bearing systems.

Vibration and Displacement Monitoring
The 330730-040-00-CN 3300 XL 11 mm Extension Cable supports the 3.94 V/mm output of 3300 XL 11 mm probes, maintaining accurate non-contact vibration and displacement readings over distances up to 4 meters.

Rod Drop Measurement in Reciprocating Compressors
Using the 330730-040-00-CN 3300 XL 11 mm Extension Cable, signal fidelity is preserved for rod position and rod drop detection, supporting high-speed automated compressor monitoring with minimal voltage variation (<2 mV/V).

Phase Reference and Speed Monitoring
The 330730-040-00-CN 3300 XL 11 mm Extension Cable ensures Keyphasor and tachometer signals from 3300 XL 11 mm probes remain precise, with frequency response up to 10 kHz over standard field wiring distances.

Specifications

Competitive Advantage

Extended Linear Range Support
The 330730-040-00-CN 3300 XL 11 mm Extension Cable maintains signal integrity over its 4.0-meter length, supporting the 3300 XL 11 mm system’s larger 11 mm probe tip for extended linear range applications.

High-Temperature Operation
Capable of -52°C to +177°C, the 330730-040-00-CN 3300 XL 11 mm Extension Cable allows continuous operation in hot automation environments while preserving output voltage and frequency response.

Enhanced Connection Security
Patented CableLoc design and ClickLoc connectors on the 330730-040-00-CN 3300 XL 11 mm Extension Cable provide 330 N pull strength, ensuring 3300 XL 11 mm probe cables remain securely attached in automated systems.

Seamless 3300 XL 11 mm System Integration
The 330730-040-00-CN 3300 XL 11 mm Extension Cable is fully compatible with all 3300 XL 11 mm probes, extension cables, and transducer system components, simplifying installation and upgrade from 7200-series systems.
