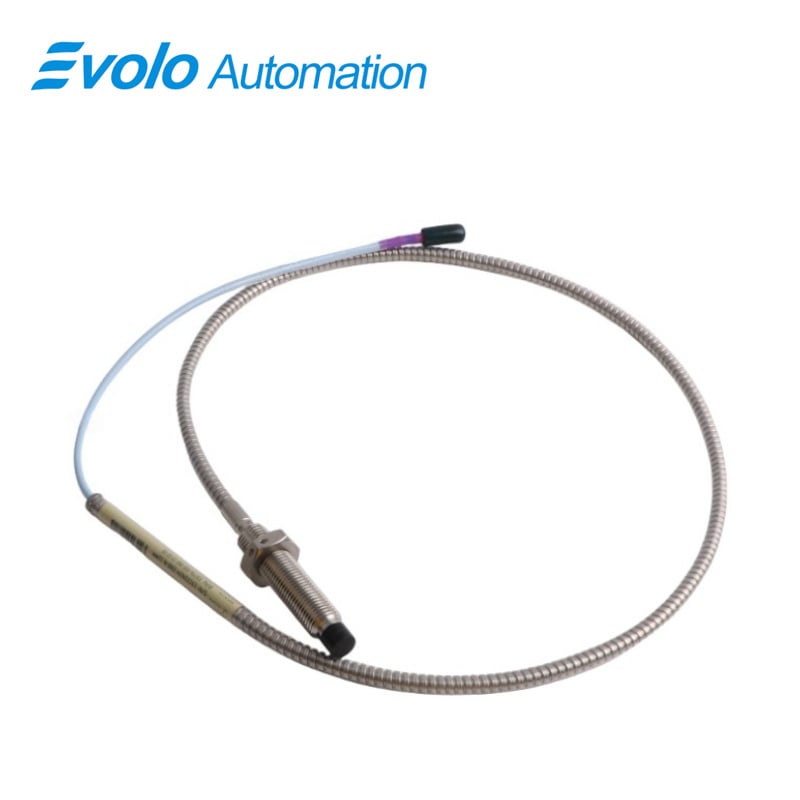

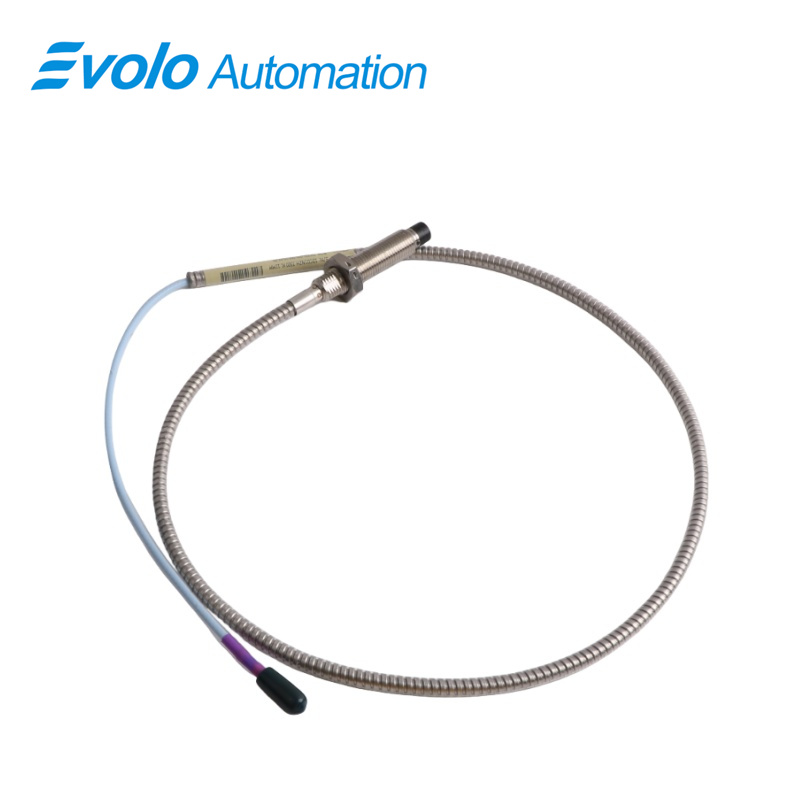

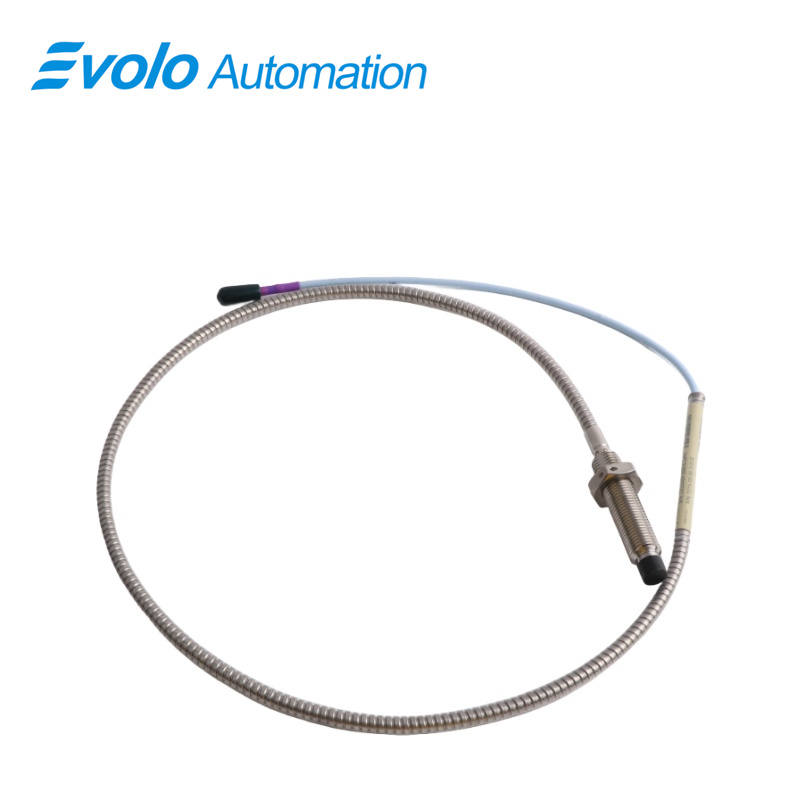

330704-000-070-10-02-CN 3300 XL 11 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330704-000-070-10-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330704-000-070-10-02-CN 3300 XL 11 mm Proximity Probe provides 3.94 V/mm output for precise non-contact vibration and displacement measurements on fluid film bearing machines. With a 70 mm overall case length and M14 × 1.5 thread allowing 21 mm engagement, the 330704-000-070-10-02-CN 3300 XL 11 mm Proximity Probe supports extended linear range compared to 8 mm probes. Its 1.0-meter miniature coaxial ClickLoc cable and 99.9% braided copper shielding deliver secure signal transmission for automated control systems. Rated IP67 and operating from -40°C to +85°C, the 330704-000-070-10-02-CN 3300 XL 11 mm Proximity Probe is ideal for axial shaft position monitoring, rod drop detection on compressors, and tachometer or zero-speed sensing. ClickLoc connectors lock firmly, and CableLoc design withstands 330 N pull, ensuring secure integration. Automation applications also benefit from the probe’s compatibility with Keyphasor signals and ramp differential expansion measurements. The 330704-000-070-10-02-CN 3300 XL 11 mm Proximity Probe includes a locknut with pre-drilled safety wire holes and can be paired with standard or FluidLoc cables to prevent fluid leakage, enabling reliable data collection for automated monitoring systems.

Applications

Axial Shaft Position Measurement
The 330704-000-070-10-02-CN 3300 XL 11 mm Proximity Probe measures axial (thrust) position of rotating shafts on fluid film bearing machines, using its 3.94 V/mm output and 11 mm probe tip to capture precise shaft movement for automated monitoring.

Rod Drop Detection on Reciprocating Compressors
With a 1.0-meter ClickLoc cable and IP67-rated probe case, the 330704-000-070-10-02-CN 3300 XL 11 mm Proximity Probe provides accurate rod position tracking, enabling automated alerts when compression rods reach end-of-stroke or drop positions.

Ramp Differential Expansion Measurement on Steam Turbines
The extended linear range of the 330704-000-070-10-02-CN 3300 XL 11 mm Proximity Probe allows measurement of turbine ramp differential expansion during startup and shutdown sequences, feeding precise data into automated control systems.

Tachometer and Zero-Speed Sensing
The 330704-000-070-10-02-CN 3300 XL 11 mm Proximity Probe supports tachometer functions by generating phase reference (Keyphasor) signals and detecting zero-speed conditions for automated safety interlocks.

Specifications

Competitive Advantage

Long Linear Range with Large Tip
The 11 mm tip of the 330704-000-070-10-02-CN 3300 XL 11 mm Proximity Probe extends linear range compared to standard 8 mm probes, providing high-resolution displacement measurements for automated monitoring.

Durable Cable and Connector System
Featuring a 1.0-meter miniature coaxial ClickLoc cable with 330 N pull strength and 99.9% braided copper shielding, the 330704-000-070-10-02-CN 3300 XL 11 mm Proximity Probe delivers secure, low-noise signals to automated control systems.

Environmental Protection
Rated IP67 and capable of operating from -40°C to +85°C, the 330704-000-070-10-02-CN 3300 XL 11 mm Proximity Probe functions in dusty or wet environments without affecting automated measurement accuracy.

Flexible Installation Options
With M14 × 1.5 thread and pre-drilled locknut safety wire holes, the 330704-000-070-10-02-CN 3300 XL 11 mm Proximity Probe integrates easily into existing automated machinery setups and monitoring systems.
