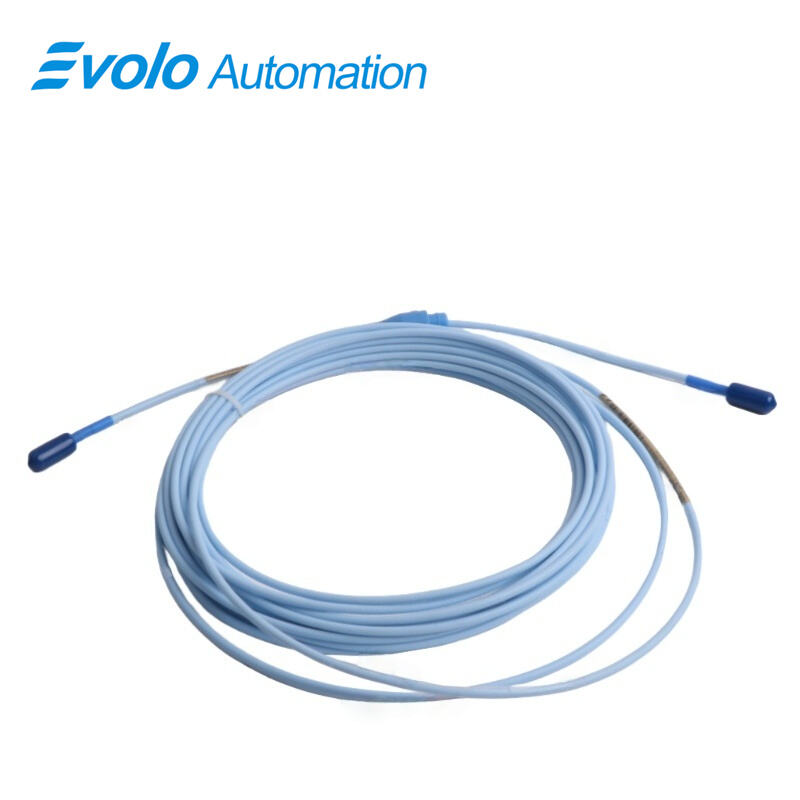

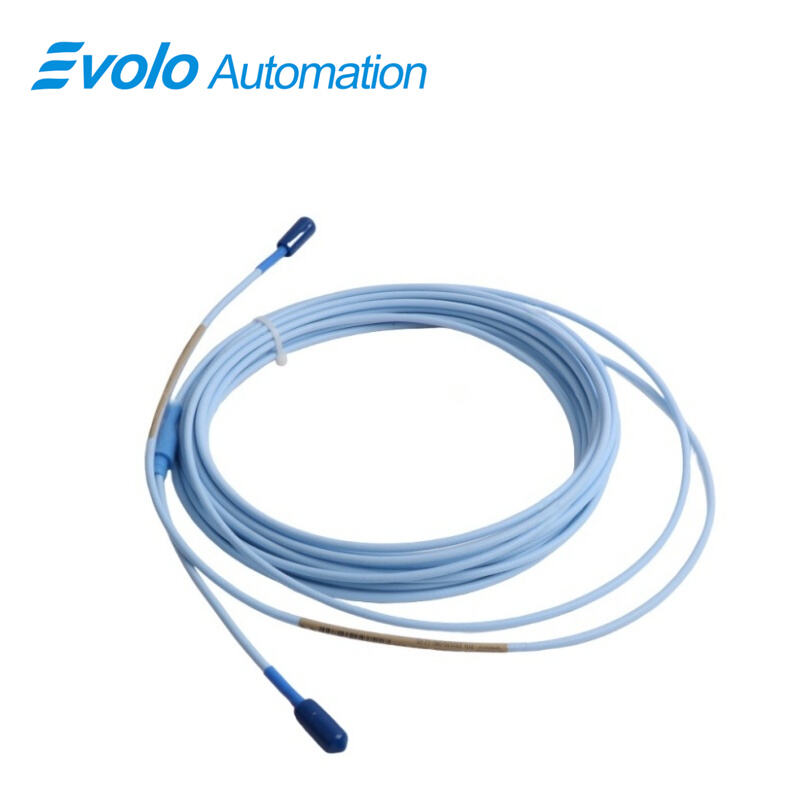

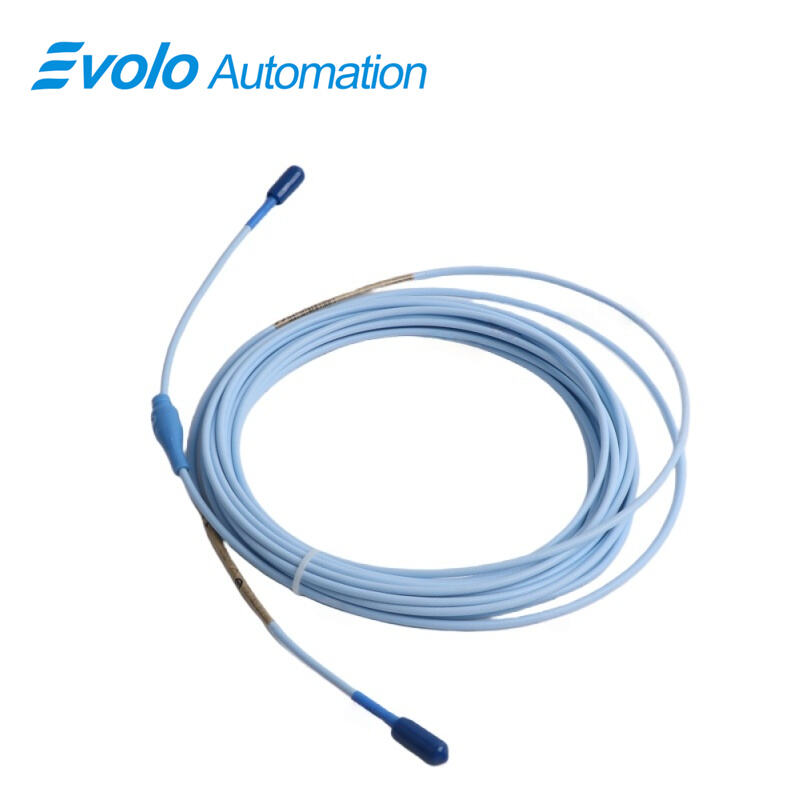

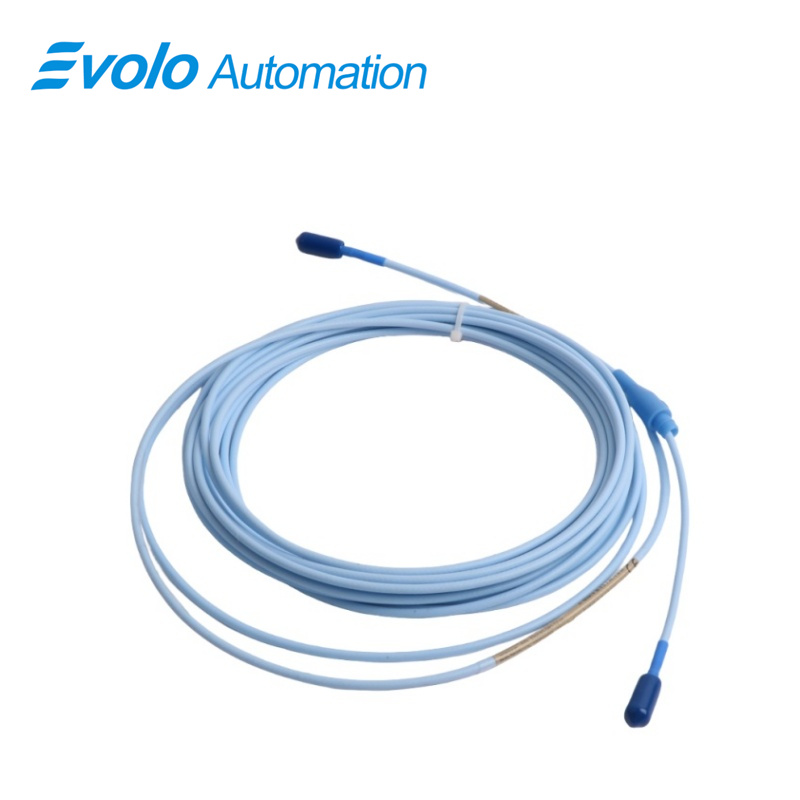

330130-080-13-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-080-13-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-080-13-05 3300 XL Standard Extension Cable is a key component within the 3300 XL 8 mm Proximity Transducer System and is engineered to support high-performance vibration and position monitoring in advanced industrial automation environments. Constructed with 75 Ω triaxial FEP-insulated cable and armored FluidLoc protection, the 330130-080-13-05 offers consistent electrical stability and environmental resilience, ensuring accurate static and dynamic measurement transmission between the proximity probe and the Proximitor sensor. Its 8.0-meter cable length with connector protector allows flexible routing through congested machinery layouts, particularly in rotating equipment such as turbines, compressors, and fluid-film bearing machines. With frequency response capability from 0 to 10 kHz and supply sensitivity less than 2 mV per volt, the 330130-080-13-05 3300 XL Standard Extension Cable enhances data fidelity across long cable runs and complies with ATEX, IECEx, and CSA approvals for hazardous area deployment. As part of the 3300 XL product ecosystem, the cable maintains full component interchangeability, linear measurement range up to 2 mm, and system compatibility with API 670–oriented machine protection platforms used in petrochemical, power generation, and heavy manufacturing sectors.

Applications

Application 1 Turbine Vibration & Position Monitoring
Used in steam and gas turbine bearing housings where 0 to 10 kHz frequency response enables transmission of shaft dynamic vibration signals for rotor stability and protective trip logic in automation systems.

Application 2 Compressor Condition Monitoring
Supports proximity measurement for high-speed compressors requiring reliable signal transmission across 8 m cable runs; low supply sensitivity ensures accurate Keyphasor speed detection for surge avoidance controls.

Application 3 API 670 Machine Protection Integration
Compatible with API 670 platforms used in refineries and petrochemical plants; stable 2 mm linear range and low capacitance (69.9 pF/m) sustain diagnostics for imbalance, misalignment, and rub conditions.

Application 4 Hazardous Zone Rotating Machinery
CSA/ATEX/IECEx approvals enable secure deployment in Zone 0/1 compressor halls and gas processing units; armored FluidLoc design prevents oil leakage paths along cable interiors.

Application 5 Fluid-Film Bearing System Automation
Supports static and dynamic displacement measurements in fluid-film bearings with minimum target requirements of 15.2 mm, improving rotor centerline tracking and shutdown reliability within DCS or SCADA systems.

Specifications

Competitive Advantage

Advantage 1 High-Fidelity Signal Transmission
Triaxial 75 Ω architecture and capacitance of 69.9 pF/m reduce signal distortion across long cable distances up to 1000 feet with minimal frequency attenuation.

Advantage 2 Hazardous-Area Compliance
Approval under CSA, ATEX, and IECEx standards reduces certification overhead for OEMs and end users deploying vibration instrumentation in explosive processing units.

Advantage 3 Mechanical & Environmental Robustness
Armored FluidLoc cable prevents oil and liquid migration through the conductor channel, improving reliability in lubricant-rich turbine and compressor environments and reducing maintenance intervals.

Advantage 4 Full System Interchangeability
Backward compatibility within the 3300 XL ecosystem enables component swapping without recalibration, lowering spare-part inventory cost and simplifying field retrofits.

Advantage 5 Automation Platform Compatibility
Supports position, vibration, and Keyphasor reference measurements essential to DCS, PLC, and machine-protection platforms, ensuring comprehensive asset monitoring and faster diagnostic response.
