330703-050-120-10-02-00 3300 XL 11 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330703-050-120-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

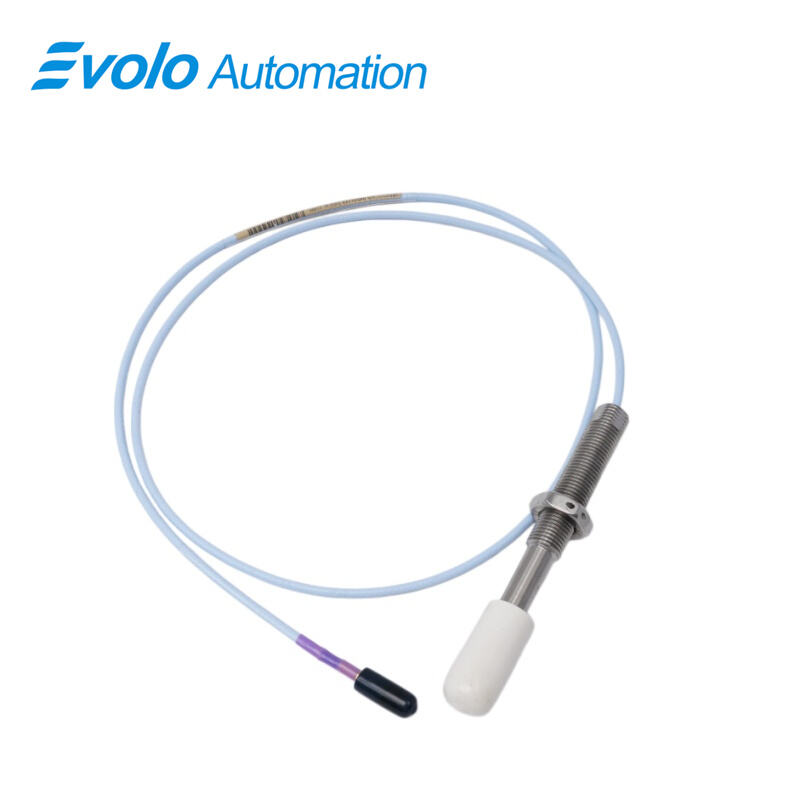

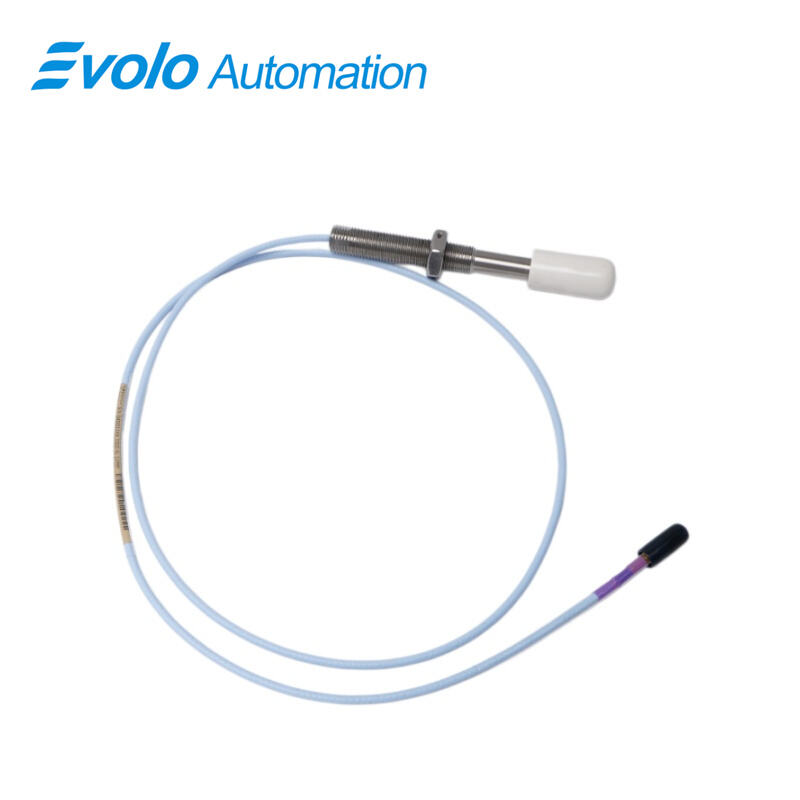

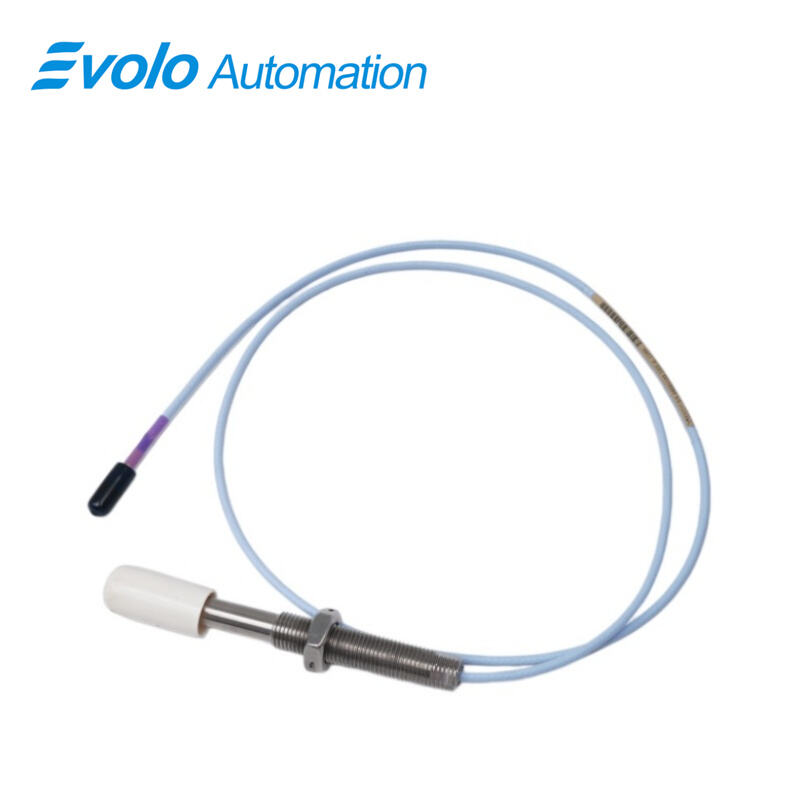

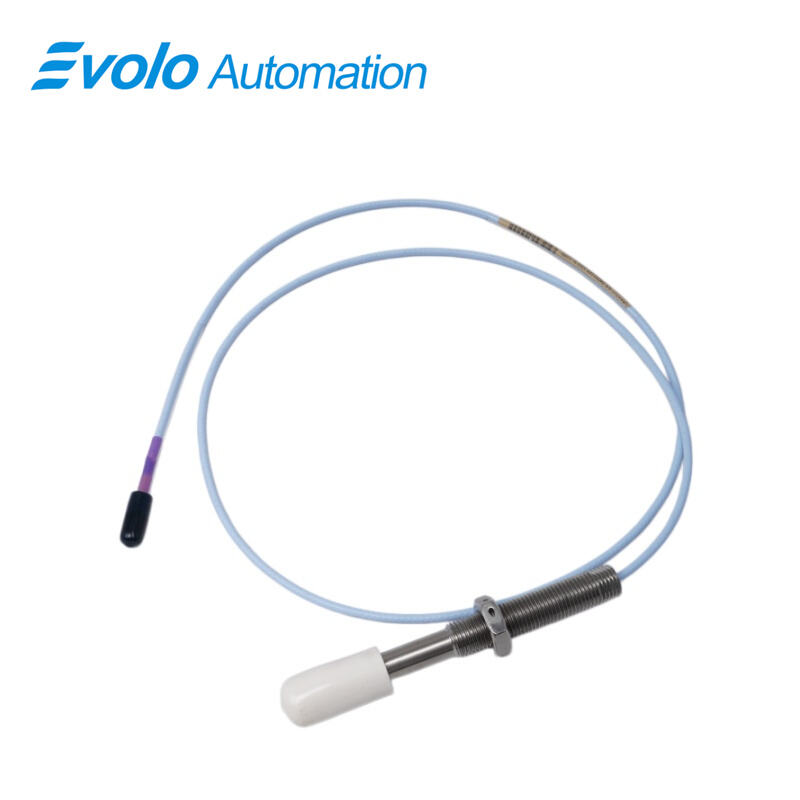

The 330703-050-120-10-02-00 3300 XL 11 mm Proximity Probe provides precise non-contact vibration and displacement measurements in automated machinery. With a 120 mm overall case length, 50 mm unthreaded section, and M14 x 1.5 threaded case with 21 mm maximum thread engagement, the 330703-050-120-10-02-00 probe mounts securely for axial, rod position, and ramp expansion monitoring. Its 11 mm tip extends linear measurement range, while the 1.0-meter standard cable with miniature coaxial ClickLoc connector ensures reliable data transfer. The 330703-050-120-10-02-00 probe features 99.9% braided copper shielding, IP67 dust and water resistance, and operates from -40°C to +85°C, supporting automated control in harsh environments. Compatible with 3300 XL Proximitor Sensors and extension cables, the 330703-050-120-10-02-00 enables tachometer, zero speed, and Keyphasor signal generation for real-time monitoring. TipLoc molding and CableLoc design secure the probe tip and cable, delivering 330 N pull strength and consistent performance in industrial automation systems.

Applications

Application Axial Position Monitoring in Turbines

The 330703-050-120-10-02-00 probe, with 120 mm overall case length and 11 mm tip, measures axial positions of turbine fluid film bearings. Its M14 x 1.5 threaded case with 21 mm thread engagement ensures secure mounting, while the 1.0-meter standard cable and ClickLoc connector transmit precise vibration and displacement data to automated control systems.

Application Rod Drop Detection in Reciprocating Compressors

Using the 330703-050-120-10-02-00 probe, operators can monitor rod positions or detect rod drop in reciprocating compressors. The 50 mm unthreaded length allows easy positioning in confined spaces, and the 99.9% braided copper shielding maintains accurate signal transmission.

Application Ramp Differential Expansion Measurement

The 330703-050-120-10-02-00 probe tracks ramp differential expansion in steam turbines. Its extended linear range and TipLoc molded probe tip deliver consistent measurements, while CableLoc design secures the cable for automated data collection.

Application Tachometer Signal Generation

The 330703-050-120-10-02-00 probe generates tachometer and zero-speed signals for rotating machinery monitoring. Its IP67-rated housing and -40°C to +85°C operating range allow measurement in wet or dusty automated environments.

Application Keyphasor Signal Output

With the 330703-050-120-10-02-00 probe, Keyphasor phase reference signals are accurately produced for vibration monitoring systems. The secure ClickLoc connection and 330 N pull strength prevent data loss during operation.

Specifications

Competitive Advantage

Competitive Advantage Quick and Secure Mounting

The 330703-050-120-10-02-00 probe uses an M14 x 1.5 threaded case and 21 mm thread engagement for fast installation, minimizing setup time in automated machinery.

Competitive Advantage Extended Linear Measurement Range

The 11 mm probe tip of 330703-050-120-10-02-00 provides a longer linear range than standard 8 mm probes, enabling precise vibration and displacement readings in critical automation applications.

Competitive Advantage Durable Signal Transmission

The 330703-050-120-10-02-00 probe features 99.9% braided copper shielding, ClickLoc connectors, and CableLoc design, ensuring accurate signal delivery over the 1.0-meter cable under harsh industrial conditions.

Competitive Advantage Easy Upgrade from Legacy Systems

The 330703-050-120-10-02-00 probe replaces 7200-series 11 mm and 14 mm transducers, allowing complete system upgrades while maintaining automated monitoring continuity.

Competitive Advantage Cable and Connector Security

TipLoc molding and CableLoc design in 330703-050-120-10-02-00 provide 330 N pull strength, preventing loose connections and supporting continuous automated operation in industrial environments.
