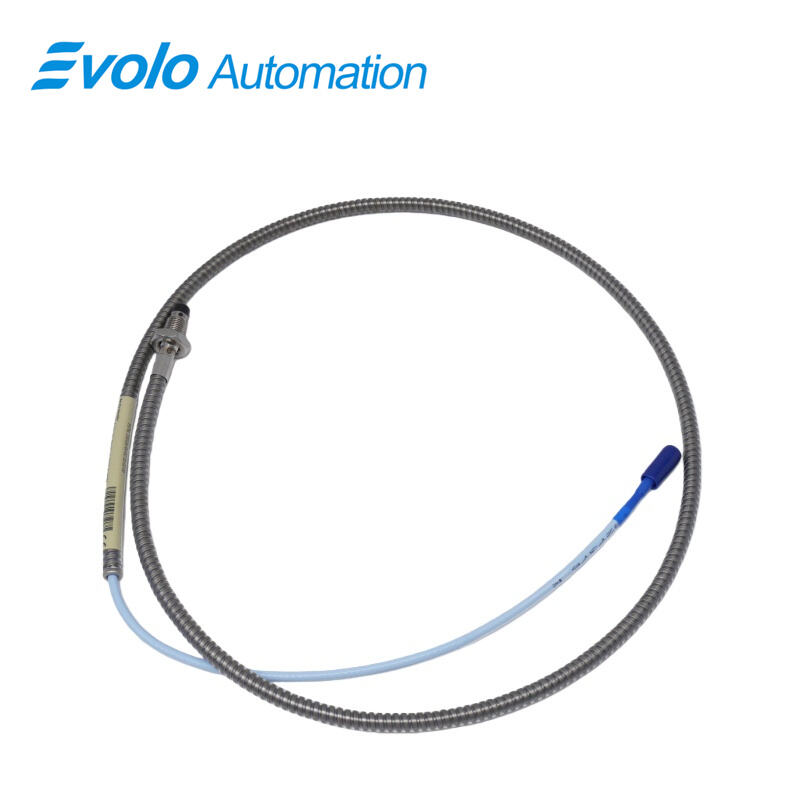

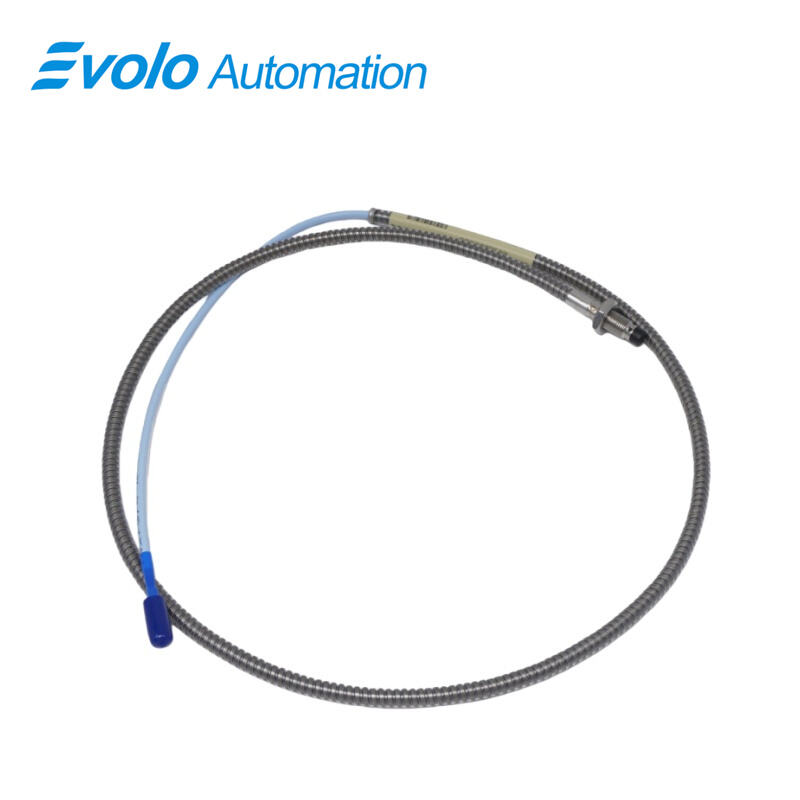

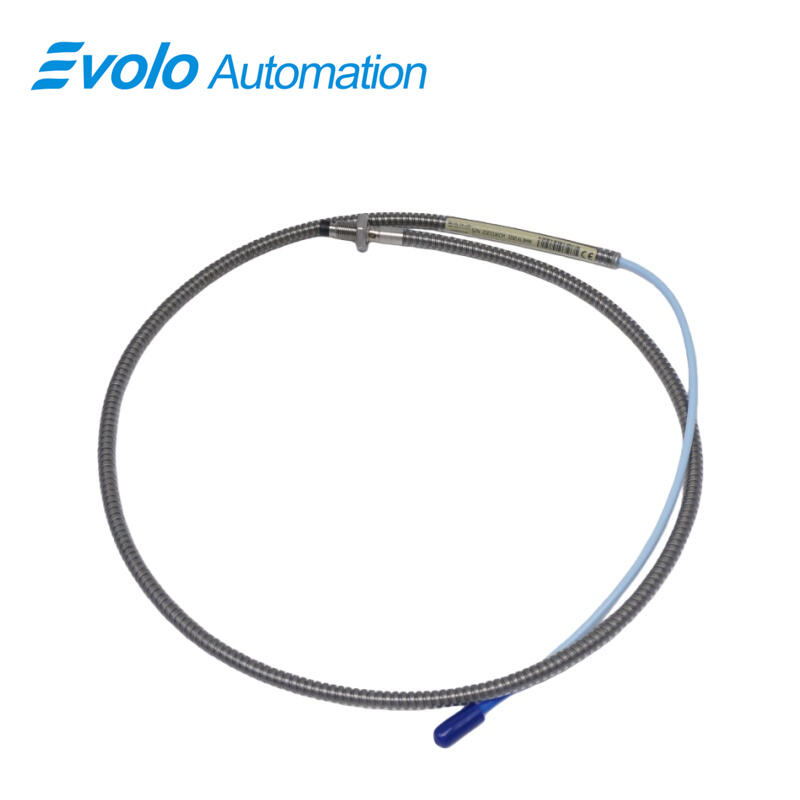

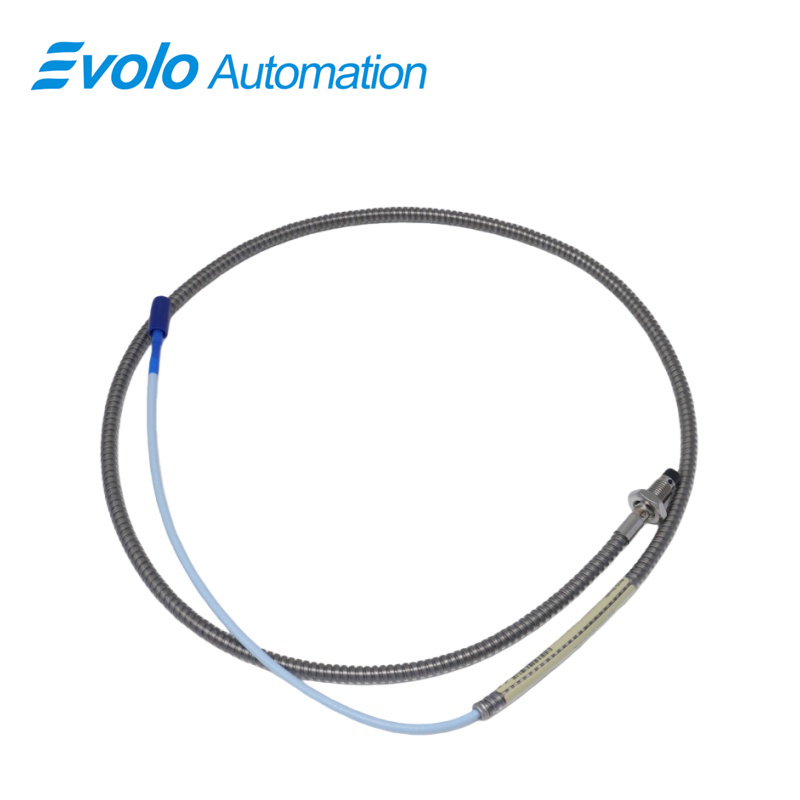

330104-02-13-10-01-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-02-13-10-01-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-02-13-10-01-00 3300 XL 8 mm Proximity Probe is a precision-engineered eddy current probe designed for high-performance industrial automation and machinery protection systems. Built for the 3300 XL 8 mm Proximity Transducer System, this probe accurately measures both static (position) and dynamic (vibration) distances between the probe tip and conductive surfaces. Featuring a linear range of 2 mm (80 mils), a miniature coaxial ClickLoc connector with cable protector, and an M10x1 threaded case with 15 mm maximum engagement, the probe ensures secure mounting and reliable signal transmission in automated machinery monitoring. Operating reliably across extreme temperatures from -52°C to +177°C (-62°F to +350°F) and compatible with field wiring of 0.2–1.5 mm², it maintains output resistance of 50 Ω and extension cable capacitance of 69.9 pF/m, ensuring precise vibration and position feedback for control systems. The probe incorporates patented TipLoc and CableLoc designs, providing 330 N (75 lbf) pull strength and robust mechanical stability. Optional FluidLoc configurations prevent oil or liquid ingress, protecting signal integrity. Fully backward-compatible and interchangeable with all 3300 XL and non-XL series 5 mm and 8 mm transducer system components, this probe supports seamless integration, API 670 compliance, and advanced machinery automation applications where reliable, high-precision measurements are critical.

Applications

1. Fluid-Film Bearing Monitoring
Provides accurate vibration and position feedback for pumps and turbines with tight tolerances, supporting predictive maintenance and machinery protection.

2. Centrifugal Compressor Position Sensing
Ensures precise static and dynamic measurements for compressor rotors, with a linear range of 2 mm and real-time signal output to control systems.

3. Keyphasor and Speed Reference Integration
Delivers reliable position data for speed and phase reference measurements, facilitating automated control and diagnostics in rotating machinery.

4. Compact Space Automation Systems
M10x1 threaded design and 130 mm case length allow installation in confined spaces, while maintaining precise probe-to-target distance measurements.

5. High-Temperature Industrial Environments
Operating from -52°C to +177°C, the probe provides consistent output in extreme temperature applications, such as chemical processing or power generation equipment.

Specifications

Competitive Advantage

1. Robust Mechanical Design
Patented TipLoc molding and CableLoc technology provide 330 N pull strength and secure cable attachment, minimizing downtime due to mechanical failure.

2. Extended Temperature Capability
Reliable performance across -52°C to +177°C enables monitoring in environments where conventional probes fail.

3. High Signal Integrity
50 Ω output resistance and 69.9 pF/m extension cable capacitance maintain accurate data transmission over long field wiring distances.

4. Interchangeability and Backward Compatibility
Compatible with all 3300 XL and non-XL 5 mm and 8 mm probes, extension cables, and Proximitor sensors, simplifying system upgrades and reducing inventory complexity.

5. Fluid and Contaminant Protection
Optional FluidLoc cable prevents oil and liquid ingress, ensuring long-term signal stability and reducing maintenance in industrial automation systems.
