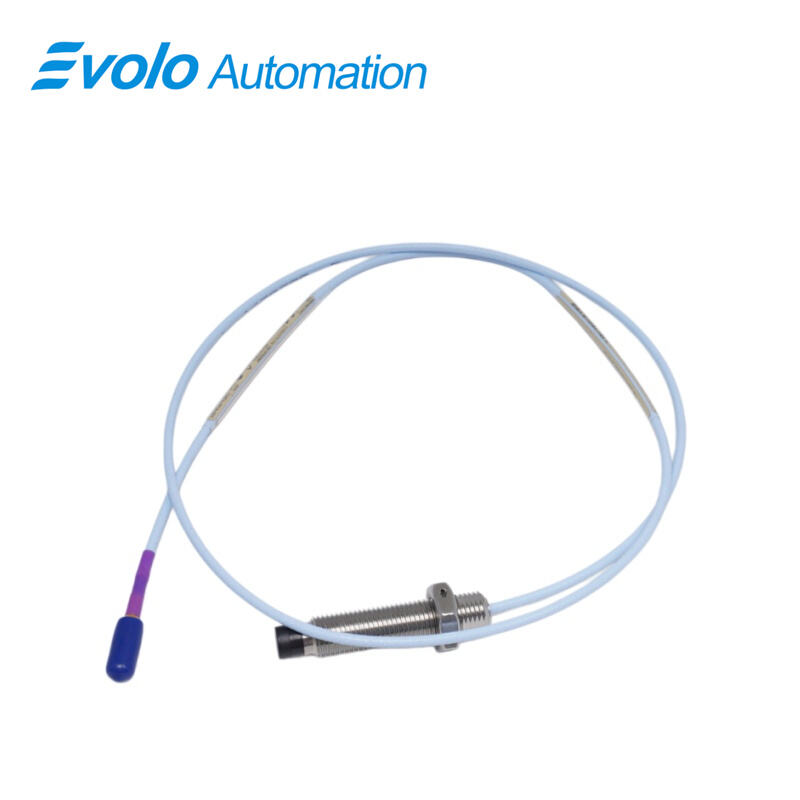

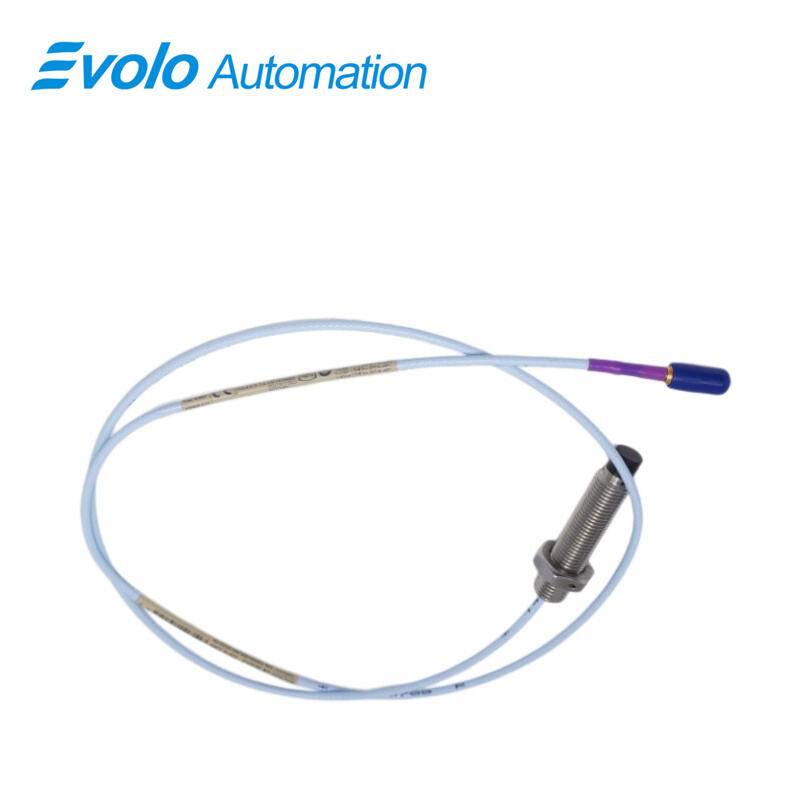

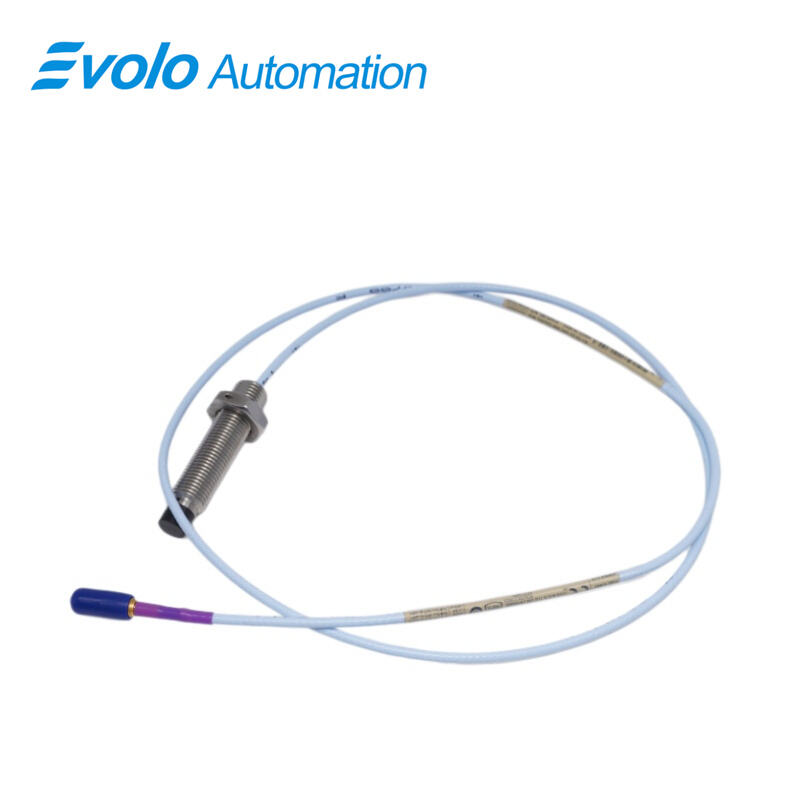

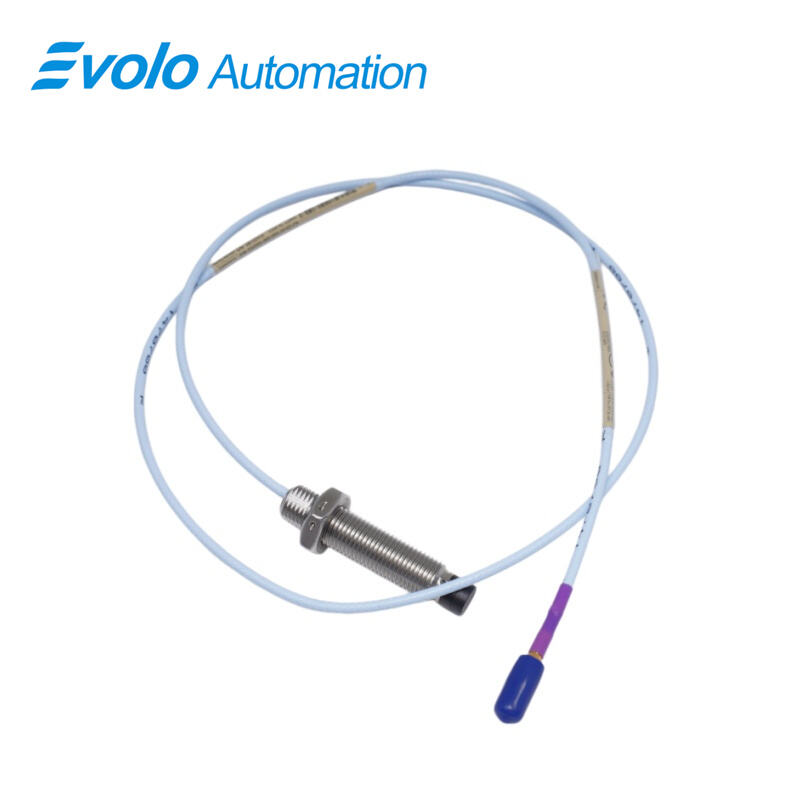

330703-000-060-10-02-CN 3300 XL 11 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330703-000-060-10-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330703-000-060-10-02-CN 3300 XL 11 mm Proximity Probes provide 3.94 V/mm output for non-contact vibration and displacement measurement on fluid-film bearing machines. Featuring an 11 mm probe tip, M14 x 1.5 thread, 60 mm overall case length, and 1 m total length, the 330703-000-060-10-02-CN 3300 XL 11 mm Proximity Probes support axial position, ramp expansion, and rod position monitoring. Equipped with Miniature coaxial ClickLoc connectors, standard cable, and 330 N pull strength CableLoc design, these probes prevent oil or liquid leakage. With 99.9% braided copper shielding, RJ45 connectors, IP67 rating, and operating range –40°C to +85°C, the 330703-000-060-10-02-CN 3300 XL 11 mm Proximity Probes enable automated Keyphasor, tachometer, and zero speed signal collection for real-time machinery monitoring.

Applications

Application Measure Shaft Vibration

The 330703-000-060-10-02-CN 3300 XL 11 mm Proximity Probes measure dynamic shaft vibration on fluid-film bearing machines. The 11 mm probe tip with 3.94 V/mm output and M14 x 1.5 thread ensures accurate automated vibration detection.

Application Monitor Axial Position

The 330703-000-060-10-02-CN 3300 XL 11 mm Proximity Probes track axial (thrust) position of rotating shafts. The 60 mm overall case length and 1 m total length allow secure installation in tight machinery spaces.

Application Detect Ramp Expansion on Steam Turbines

The 330703-000-060-10-02-CN 3300 XL 11 mm Proximity Probes measure ramp differential expansion on turbine shafts. IP67-rated housing and 99.9% braided copper shielding maintain signal integrity in humid or dusty environments.

Application Collect Keyphasor and Tachometer Signals

The 330703-000-060-10-02-CN 3300 XL 11 mm Proximity Probes provide Keyphasor, tachometer, and zero-speed signals for automated machinery monitoring. Miniature coaxial ClickLoc connectors with CableLoc design secure the probe cable with 330 N pull strength.

Specifications

Competitive Advantage

Competitive Advantage Quick Installation

The 330703-000-060-10-02-CN 3300 XL 11 mm Proximity Probes use ClickLoc connectors for fast attachment to 3300 XL extension cables and Proximitor sensors, reducing setup time in automated systems.

Competitive Advantage Long Linear Range

With an 11 mm probe tip and 3.94 V/mm output, the 330703-000-060-10-02-CN 3300 XL 11 mm Proximity Probes provide extended measurement range for large axial displacements and rod drop detection.

Competitive Advantage Environmental Protection

The 330703-000-060-10-02-CN 3300 XL 11 mm Proximity Probes feature IP67-rated housings, RJ45 connectors, and braided copper shielding to prevent dust and moisture ingress, supporting industrial automation operation.

Competitive Advantage Secure Probe and Cable Connection

The 330703-000-060-10-02-CN 3300 XL 11 mm Proximity Probes use TipLoc and CableLoc designs, providing 330 N pull strength to maintain secure probe tip and cable attachment under automated machinery movement.
