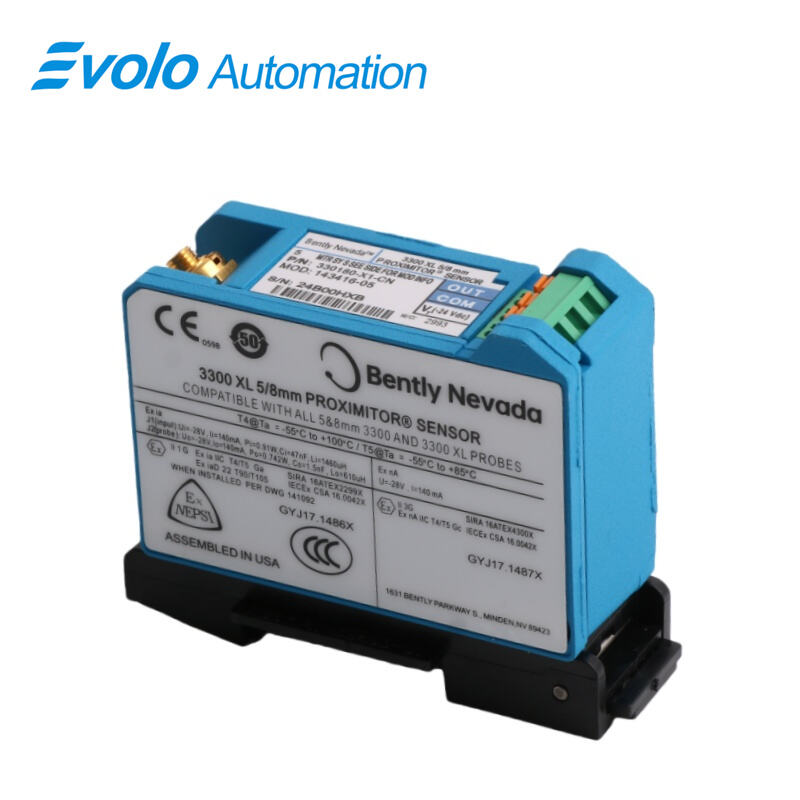

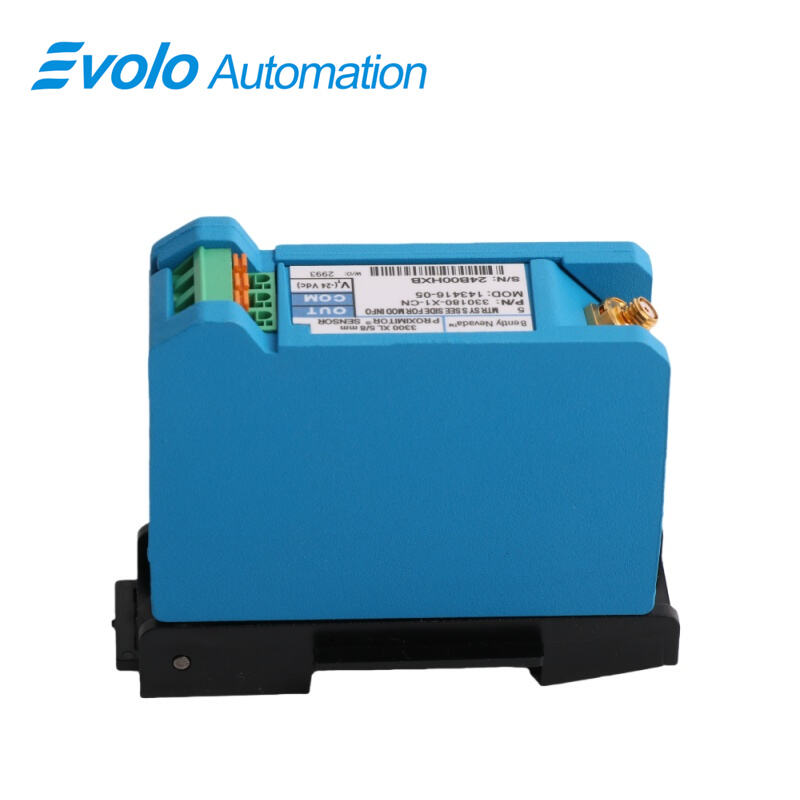

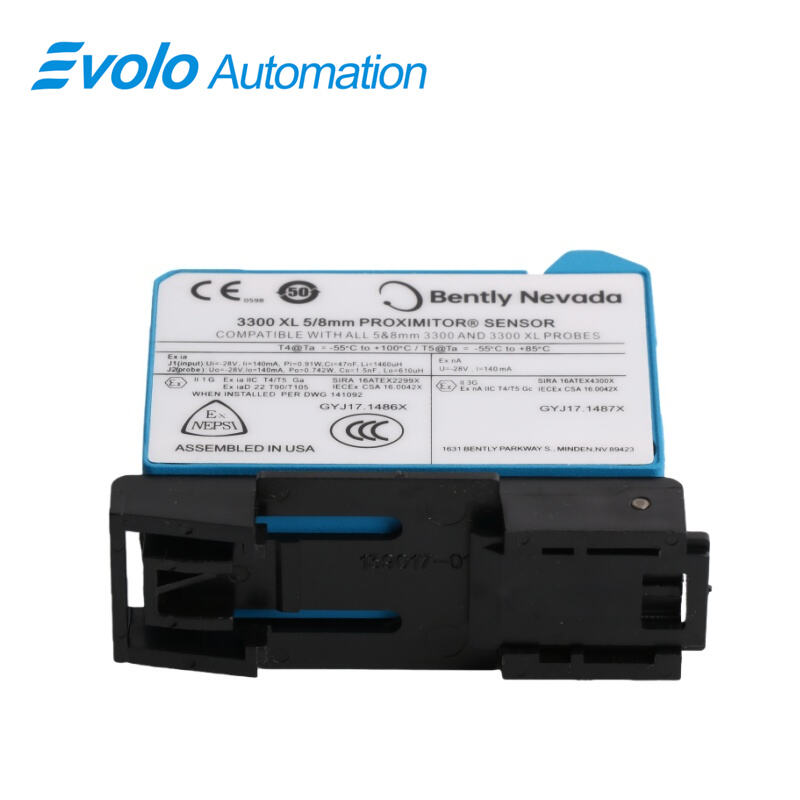

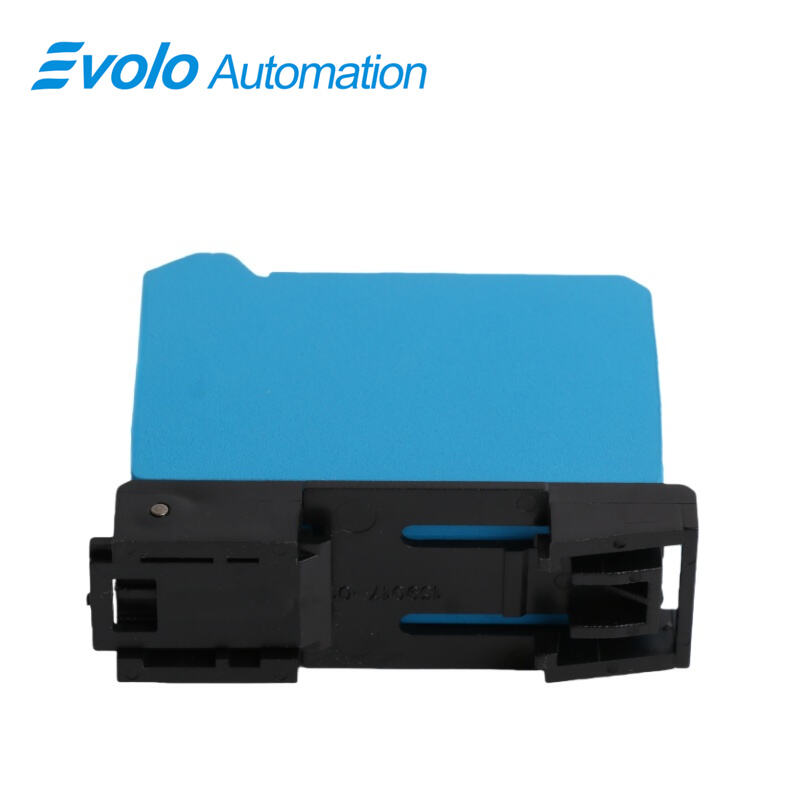

330180-X1-CN MOD 145193-01 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-X1-CN MOD 145193-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330180-X1-CN MOD 145193-01 3300 XL Proximitor Sensor delivers precise shaft position and vibration measurements for automated machinery. Designed to accept a 3300 XL 8 mm Proximity Probe or 5 mm 3300-series probe with extension cable, the 330180-X1-CN MOD 145193-01 3300 XL Proximitor Sensor operates from -17.5 Vdc to -26 Vdc and maintains output voltage changes below 2 mV per volt input variation. Constructed from A308 aluminum, it handles operating temperatures from -52°C to +100°C and supports field wiring up to 305 meters with ±3 dB frequency response (0–10 kHz). The 330180-X1-CN MOD 145193-01 3300 XL Proximitor Sensor produces output voltages of 0.0247–0.0348 Mil pp/Gauss across 9-meter connections, enabling accurate real-time monitoring for fluid-film bearings, Keyphasor signals, and shaft speed detection. Its compact DIN-rail or panel mounting, RFI/EMI resistant design, and SpringLoc terminals simplify integration into automated control systems. Paired with optional FluidLoc cables, the 330180-X1-CN MOD 145193-01 3300 XL Proximitor Sensor prevents fluid leakage, supporting continuous operation in industrial automation environments while ensuring high measurement reliability.

Applications

Monitoring Shaft Vibrations
The 330180-X1-CN MOD 145193-01 3300 XL Proximitor Sensor tracks vibrations on fluid-film bearing machinery with a 0–10 kHz frequency range and support for field wiring up to 305 meters, providing precise detection for automated industrial systems.

Displacement Measurement
Paired with either a 5 mm 3300-series probe or 3300 XL 8 mm Proximity Probe, the 330180-X1-CN MOD 145193-01 3300 XL Proximitor Sensor outputs voltage proportional to shaft position, enabling real-time position tracking for automation control.

Keyphasor Pulse Generation
The 330180-X1-CN MOD 145193-01 3300 XL Proximitor Sensor generates Keyphasor pulses for speed and rotation measurement, supporting predictive maintenance and synchronized operation of automated equipment.

Integration with Automation Systems
Featuring DIN-rail or panel mount installation, SpringLoc terminals, and strong RFI/EMI immunity, the 330180-X1-CN MOD 145193-01 3300 XL Proximitor Sensor integrates seamlessly with distributed control systems and SCADA platforms for continuous condition monitoring.

Specifications

Competitive Advantage

Accurate Voltage Output
With less than 2 mV variation per volt input and output voltage from 0.0247 to 0.0348 Mil pp/Gauss over 9 meters, the 330180-X1-CN MOD 145193-01 3300 XL Proximitor Sensor delivers precise measurements critical for automation monitoring.

Wide Operating Range
The 330180-X1-CN MOD 145193-01 3300 XL Proximitor Sensor functions reliably between -52°C and +100°C and can be stored up to +105°C, allowing continuous operation in harsh industrial conditions.

Versatile Mounting Options
Supporting DIN-rail and standard 4-hole panel mounts, the 330180-X1-CN MOD 145193-01 3300 XL Proximitor Sensor simplifies integration into compact automation cabinets.

Leak-Preventing Cable Option
The optional FluidLoc cable for the 330180-X1-CN MOD 145193-01 3300 XL Proximitor Sensor prevents oil or liquid seepage, minimizing machine downtime and maintenance for automated production lines.

Long-Distance Signal Transmission
The 330180-X1-CN MOD 145193-01 3300 XL Proximitor Sensor supports reliable signal transfer across distances up to 305 meters, enabling centralized monitoring in automated systems.
