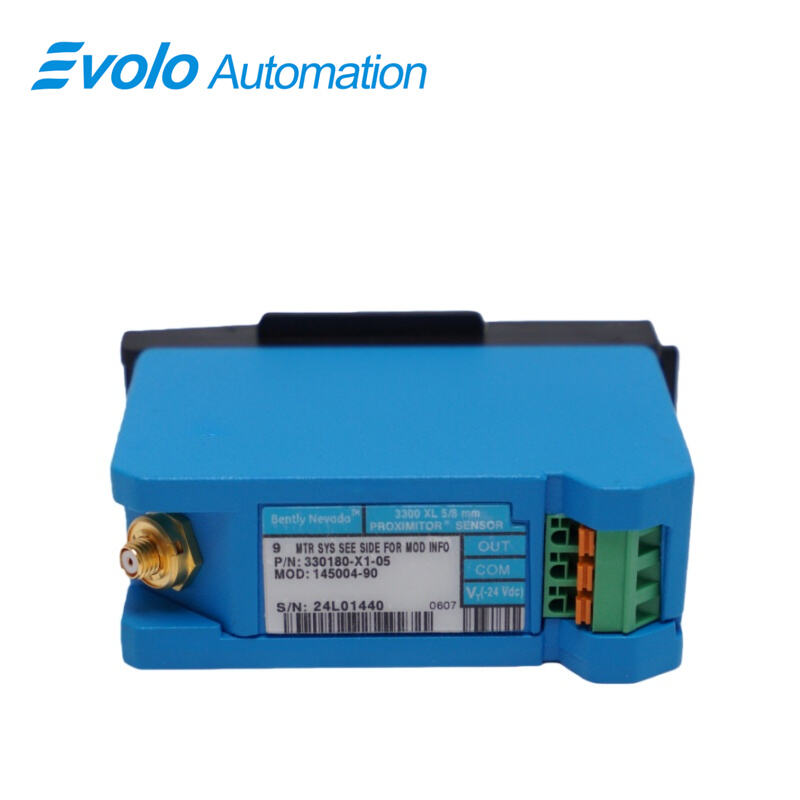

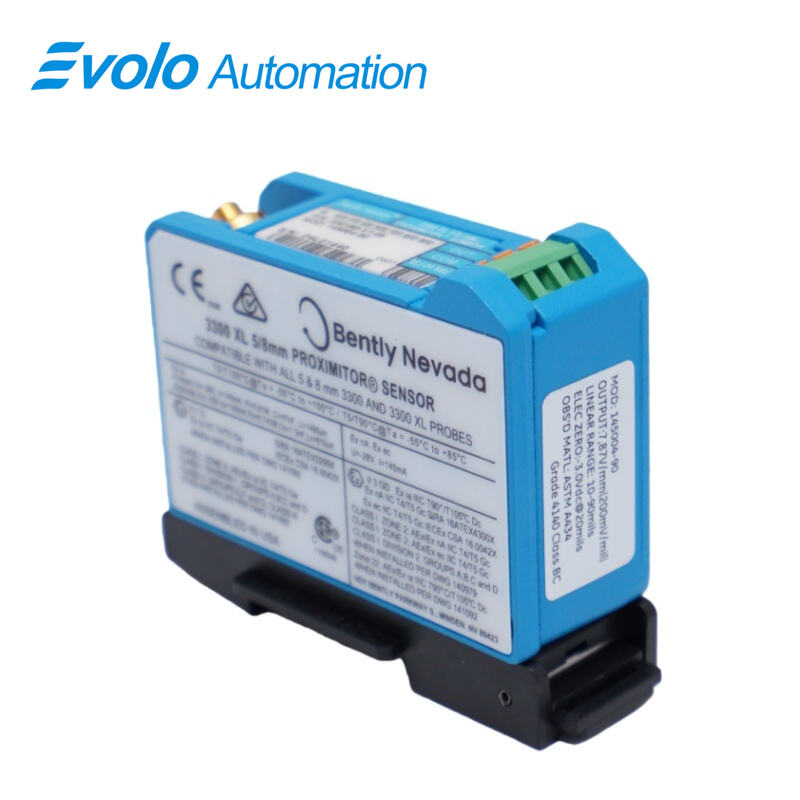

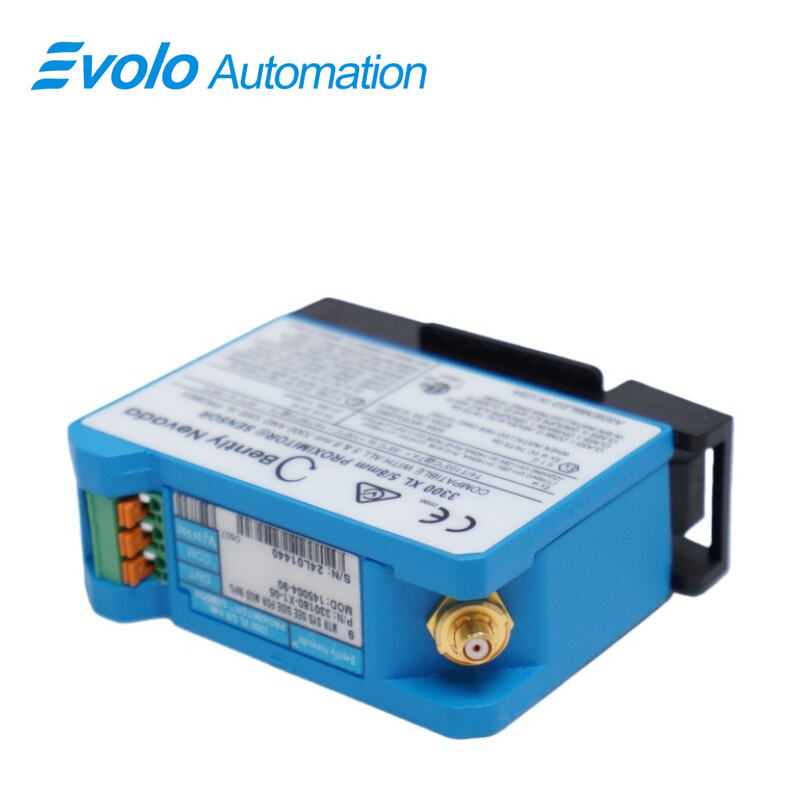

330180-X1-05 MOD 163339-01 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-X1-05 MOD 163339-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330180-X1-05 MOD 163339-01 3300 XL Proximitor Sensor accepts one non-contact 3300 XL 8 mm Proximity Probe or 5 mm 3300-series probe with extension cable, providing output voltage proportional to probe-to-shaft distance. Designed for industrial automation, the 330180-X1-05 MOD 163339-01 3300 XL Proximitor Sensor measures both position and vibration on fluid-film bearing machines. The sensor operates from -17.5 Vdc to -26 Vdc and supports field wiring up to 305 meters (1000 feet) with frequency response of 0–10 kHz. Output voltage ranges from 0.0247 to 0.0348 Mil pp/Gauss for 9-meter wiring gaps of 10–90, with minimum target size 15.2 mm. Built with A308 aluminum, the 330180-X1-05 MOD 163339-01 3300 XL Proximitor Sensor functions in temperatures from -52°C to +100°C and complies with CSA, ATEX, and IECEx approvals. Its physical design allows DIN-rail or panel mounting while electrical isolation eliminates the need for separate plates. The SpringLoc terminal strips enable fast wiring without tools, and improved RFI/EMI immunity ensures reliable operation in high-density industrial environments.

Applications

Measure Shaft Position in Fluid-Film Bearings
The 330180-X1-05 MOD 163339-01 3300 XL Proximitor Sensor measures rotor position with a minimum target size of 15.2 mm (0.6 in). Its output voltage of 0.0247–0.0348 Mil pp/Gauss (for 9 m wiring, gaps 10–90) ensures precise position readings for static and dynamic applications in automated fluid-film bearing machines.

Monitor Rotor Vibration
Use the 330180-X1-05 MOD 163339-01 3300 XL Proximitor Sensor for vibration detection with a 0–10 kHz frequency response. Its ability to maintain voltage consistency over 305 meters of wiring allows long-distance sensor placement without signal degradation, enabling predictive maintenance and vibration analysis in industrial automation systems.

Keyphasor Signal Generation and Speed Measurement
The 330180-X1-05 MOD 163339-01 3300 XL Proximitor Sensor provides accurate Keyphasor pulses and rotor speed measurement using the 3300 XL 8 mm probe input. Power supply sensitivity of <2 mV per volt change ensures signal precision, essential for synchronous monitoring and automation control loops.

Specifications

Competitive Advantage

Extended Field Wiring Support
The 330180-X1-05 MOD 163339-01 3300 XL Proximitor Sensor supports up to 305 meters (1000 feet) of wiring without significant signal loss, maintaining Mil pp/Gauss output levels, which reduces the need for intermediate signal conditioning and lowers installation costs in large plants.

Wide Temperature Operating Range
Designed for -52°C to +100°C (-62°F to +212°F), the 330180-X1-05 MOD 163339-01 3300 XL Proximitor Sensor can be installed directly in hot or cold environments, enabling continuous automated monitoring without auxiliary heating or cooling systems.

Rapid Installation with SpringLoc Terminals
The 330180-X1-05 MOD 163339-01 3300 XL Proximitor Sensor uses SpringLoc terminal strips for tool-free connections. Combined with DIN-rail or panel mounting options, this feature allows faster, error-free wiring in automated control panels.

Global Compliance for Automation Deployment
With CSA, ATEX, and IECEx approvals, the 330180-X1-05 MOD 163339-01 3300 XL Proximitor Sensor meets international automation standards, supporting plant-wide deployment without redesigning mechanical or electrical layouts.

Enhanced RFI/EMI Immunity
The 330180-X1-05 MOD 163339-01 3300 XL Proximitor Sensor maintains accurate output voltage and frequency response even in high-density electromagnetic environments, ensuring consistent automated process control and rotor monitoring.
