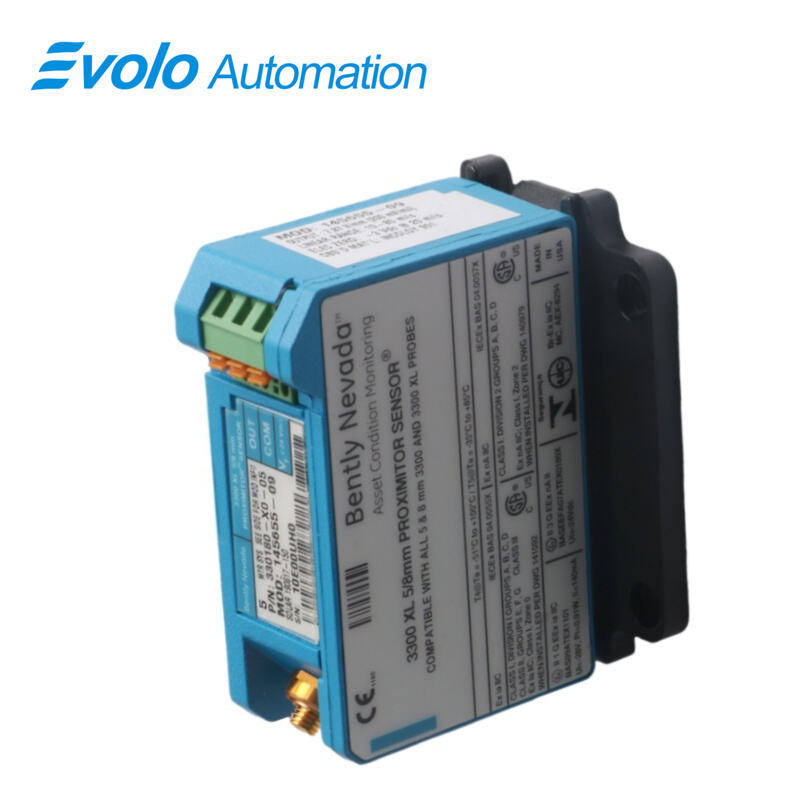

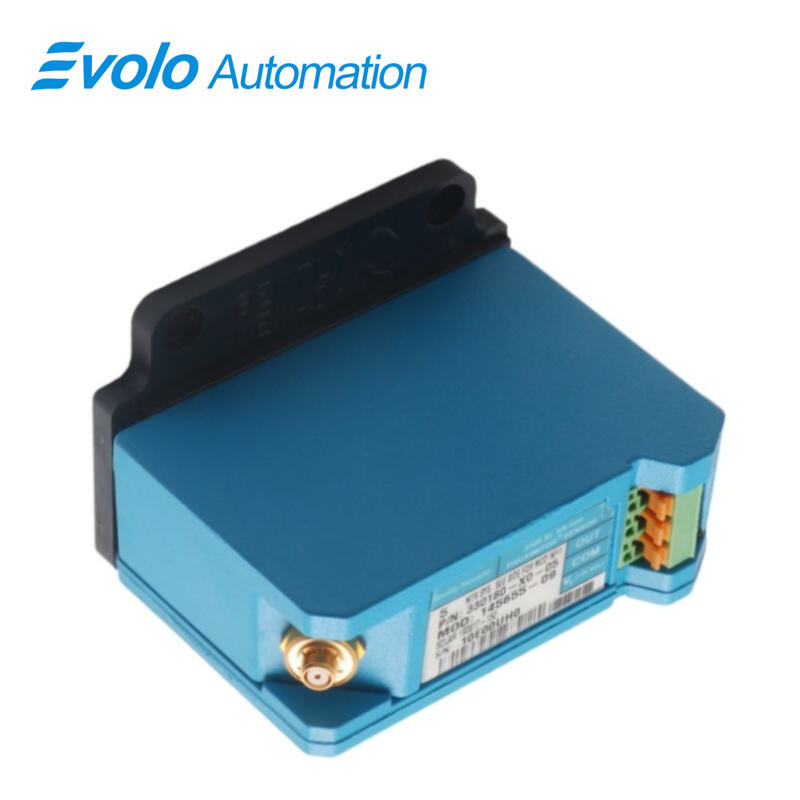

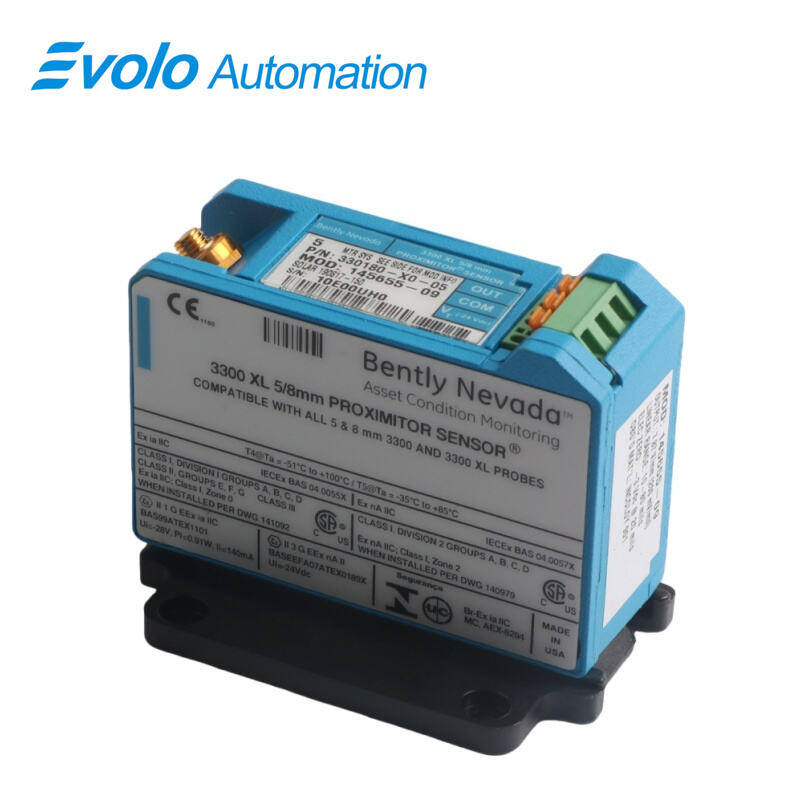

330180-X0-05 MOD 145193-01 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-X0-05 MOD 145193-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330180-X0-05 MOD 145193-01 3300 XL Proximitor Sensor supports 1.0 meter system length installations without mounting hardware and accepts a single 3300 XL 8 mm Proximity Probe or 5 mm 3300-series probe with extension cable. Operating on –17.5 to –26 Vdc, it features an A308 aluminum body, output resistance of 50 Ω, and supply sensitivity under 2 mV per volt. The 330180-X0-05 MOD 145193-01 3300 XL Proximitor Sensor handles a frequency response of 0–10 kHz, measuring targets as small as 15.2 mm in diameter, and supports up to 305 meters of field wiring. With CSA, ATEX, and IECEx approvals, it can operate between –52°C and +100°C while safely storing up to 105°C. The sensor delivers output voltages of 0.0247, 0.0323, and 0.0348 Mil pp/Gauss at gaps of 10, 50, and 90, providing accurate static and dynamic measurements for automated systems. Its DIN-rail or panel mounting footprint allows integration in high-density automation panels. The 330180-X0-05 MOD 145193-01 3300 XL Proximitor Sensor minimizes interference in RFI/EMI environments and facilitates fast wiring through SpringLoc terminals, ensuring precise data acquisition for vi

Applications

Vibration Measurement on Fluid-Film Bearings
The 330180-X0-05 MOD 145193-01 3300 XL Proximitor Sensor can detect vibration signals from 0 to 10 kHz with a minimum target size of 15.2 mm, enabling precise monitoring of shaft movement and early detection of misalignment or imbalance in automated machinery.

Shaft Position Monitoring
By using a 3300 XL 8 mm Proximity Probe with output voltage proportional to distance, the 330180-X0-05 MOD 145193-01 3300 XL Proximitor Sensor accurately tracks static shaft positions in turbines, compressors, and pumps within automated control systems.

Keyphasor Reference for Speed Measurement
The 330180-X0-05 MOD 145193-01 3300 XL Proximitor Sensor converts proximity readings into Keyphasor signals for real-time speed monitoring of rotating equipment, supporting automated process control and data acquisition.

Extended Field Wiring Installations
With support for up to 305 meters of wiring, the 330180-X0-05 MOD 145193-01 3300 XL Proximitor Sensor enables long-distance sensor deployment in large automation plants without signal loss.

Specifications

Competitive Advantage

High-Precision Output
The 330180-X0-05 MOD 145193-01 3300 XL Proximitor Sensor delivers output voltages of 0.0247, 0.0323, and 0.0348 Mil pp/Gauss for gaps of 10, 50, and 90, providing precise dynamic and static measurement in automated systems.

Wide Operating Temperature Range
The 330180-X0-05 MOD 145193-01 3300 XL Proximitor Sensor operates from –52°C to +100°C and stores safely up to +105°C, allowing integration into harsh industrial automation environments.

Flexible Mounting Options
Designed for high-density DIN-rail or panel mount, the 330180-X0-05 MOD 145193-01 3300 XL Proximitor Sensor fits compact automation panels and facilitates easy replacement without custom adapters.

Interference Resistance
The 330180-X0-05 MOD 145193-01 3300 XL Proximitor Sensor provides high RFI/EMI immunity, enabling installation near motors, drives, or other electromagnetic sources without signal distortion.

Rapid Field Wiring
SpringLoc terminal strips on the 330180-X0-05 MOD 145193-01 3300 XL Proximitor Sensor simplify wiring connections, reducing installation time and errors in automated monitoring systems.
