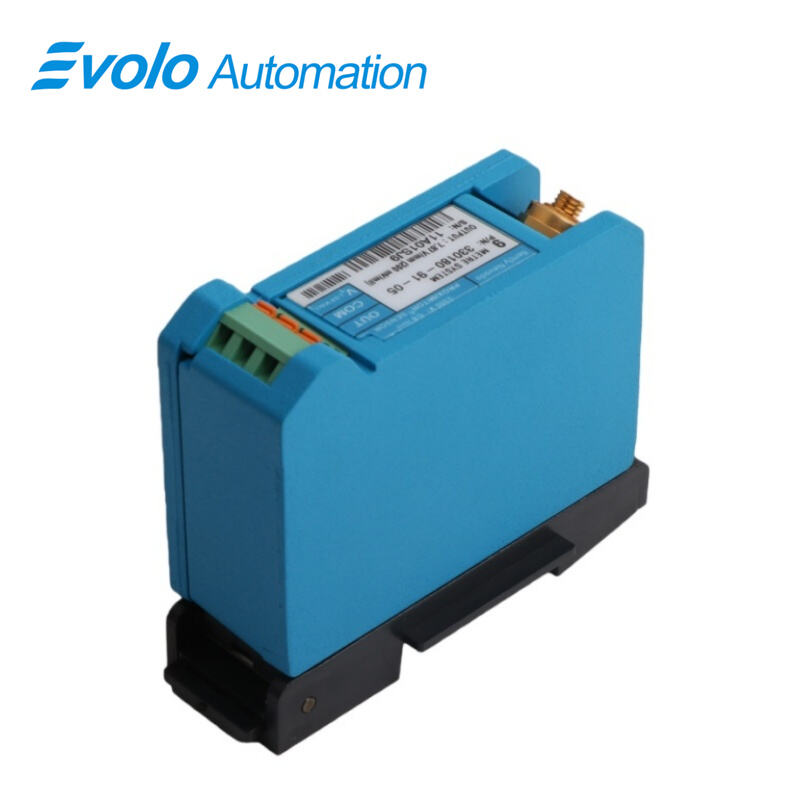

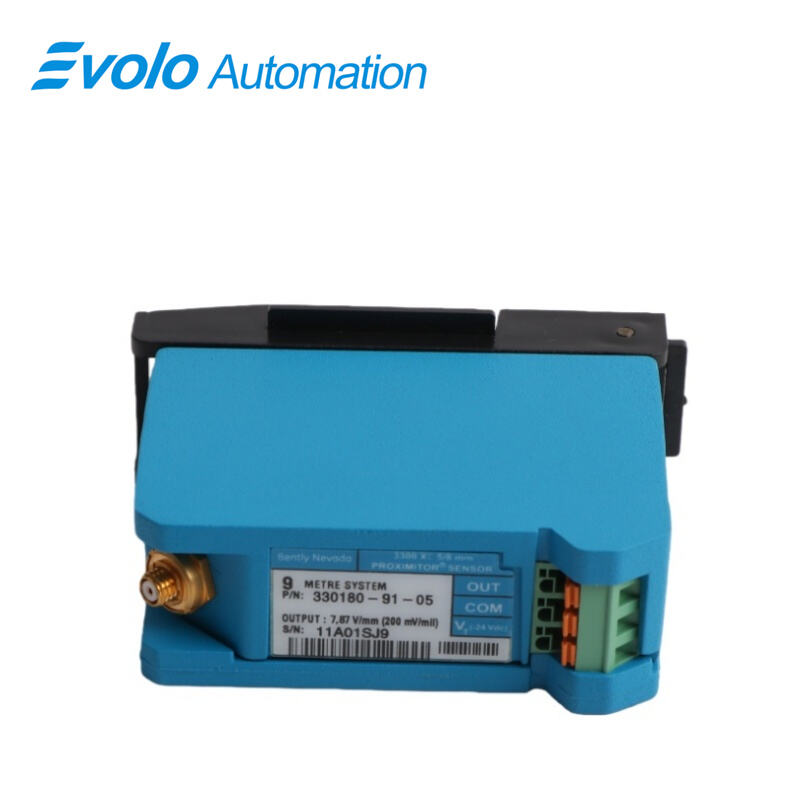

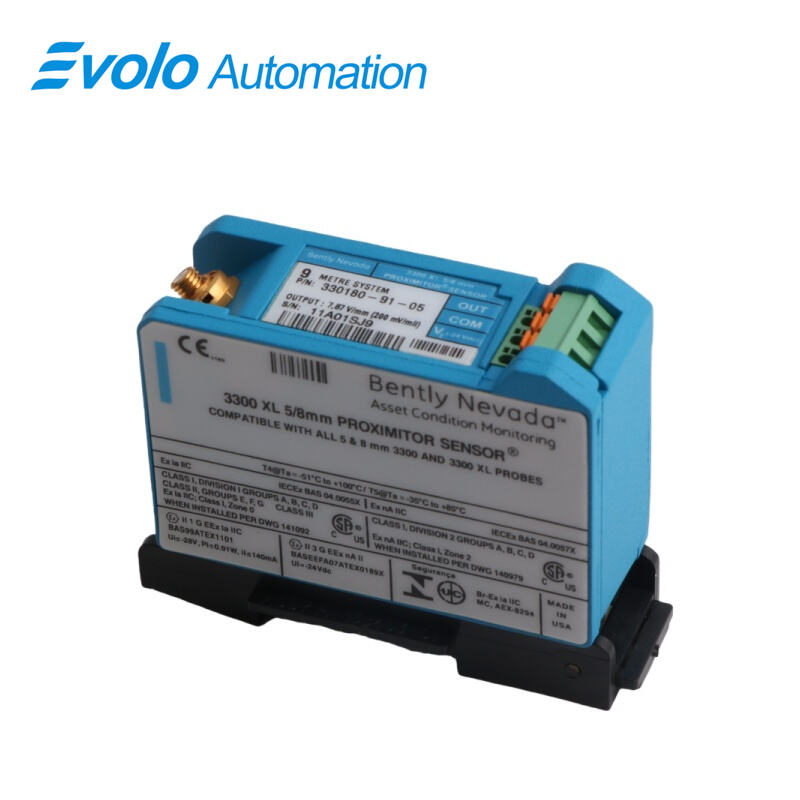

330180-91-CN 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-91-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330180-91-CN 3300 XL Proximitor Sensor converts signals from 3300-series 5 mm or 3300 XL 8 mm Proximity Probes into precise voltage outputs for automated monitoring systems. The 330180-91-CN supports system lengths up to 9.0 meters (29.5 feet) and operates with field wiring up to 305 meters (1000 feet) while maintaining frequency response from 0 to 10 kHz.

The DIN-mount 330180-91-CN allows installation in high-density automation racks or traditional panel-mount configurations. Its A308 aluminum housing and SpringLoc terminal strips enable rapid field wiring with 16–24 AWG conductors without special tools. Operating from –52°C to +100°C and storing up to +105°C, the 330180-91-CN maintains less than 2 mV output variation per volt of input change, ensuring reliable signal conversion.

Output voltages of the 330180-91-CN scale proportionally with probe-to-target gap: 0.0247 mV pp/Gauss at 10 mil, 0.0323 at 50 mil, and 0.0348 at 90 mil, enabling precise Keyphasor speed signals, shaft position, and vibration monitoring. CSA, ATEX, and IECEx approvals allow the 330180-91-CN to function safely in hazardous-area automation systems while minimizing installation complexity.

Applications

Convert 3300 XL Probe Signals to Voltage for Automation

The 330180-91-CN receives signals from 3300-series 5 mm or 3300 XL 8 mm Proximity Probes and converts them into proportional voltage outputs. With a 0–10 kHz frequency response and up to 305 meters (1000 feet) of field wiring, the 330180-91-CN provides automated systems with real-time shaft position and vibration measurements for pumps, turbines, and compressors.

Generate Keyphasor Speed Reference Signals

The 330180-91-CN produces Keyphasor pulses by detecting probe-to-target spacing. Measured output voltages—0.0247 mV pp/Gauss at 10 mil, 0.0323 at 50 mil, and 0.0348 at 90 mil—allow the 330180-91-CN to feed precise speed data into PLC or DCS control systems for automated monitoring.

High-Density Panel Installation for Multiple Sensors

The DIN-mount footprint of the 330180-91-CN supports installation in high-density automation racks. SpringLoc terminal strips enable quick field wiring with 16–24 AWG conductors, allowing multiple 330180-91-CN sensors to be deployed efficiently without additional tools.

Specifications

Competitive Advantage

Accept Long Probe Cables without Voltage Drop

The 330180-91-CN supports 9.0 meter system length and up to 305 meters of extension cable while keeping less than 2 mV output variation per volt of input. This ensures the 330180-91-CN delivers accurate voltage signals across long field wiring.

Operate in High-Temperature Machinery

The 330180-91-CN functions from –52°C to +100°C and stores safely up to +105°C, enabling monitoring of hot machinery shafts and bearings without affecting output signals.

Rapid Field Wiring with SpringLoc Terminals

The 330180-91-CN uses SpringLoc terminal strips to connect field wiring securely without screw-type clamps. Multiple 330180-91-CN sensors can be wired quickly in automation panels, reducing installation time.

Compact DIN Mount for Automation Racks

The 330180-91-CN’s DIN-mount footprint allows multiple sensors to be installed in tight cabinet layouts. This compact design supports high-density automated systems while maintaining precise signal output for shaft position and vibration monitoring.
