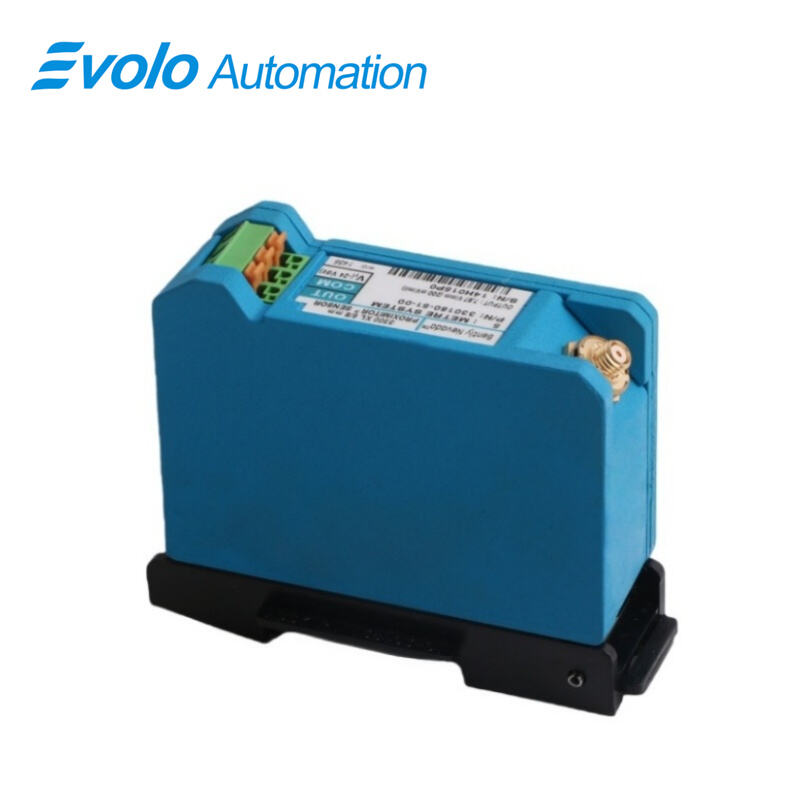

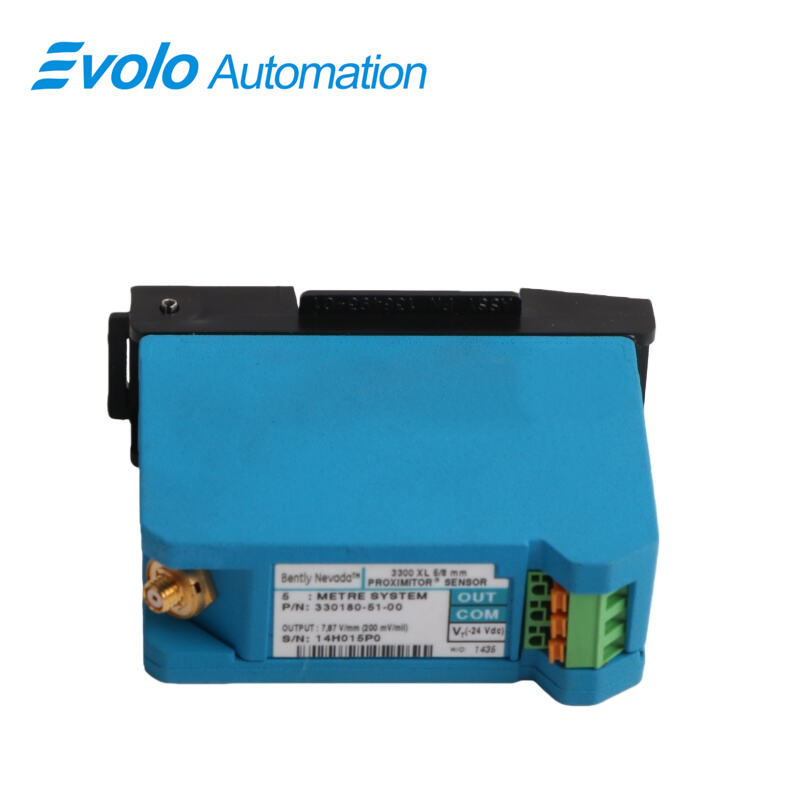

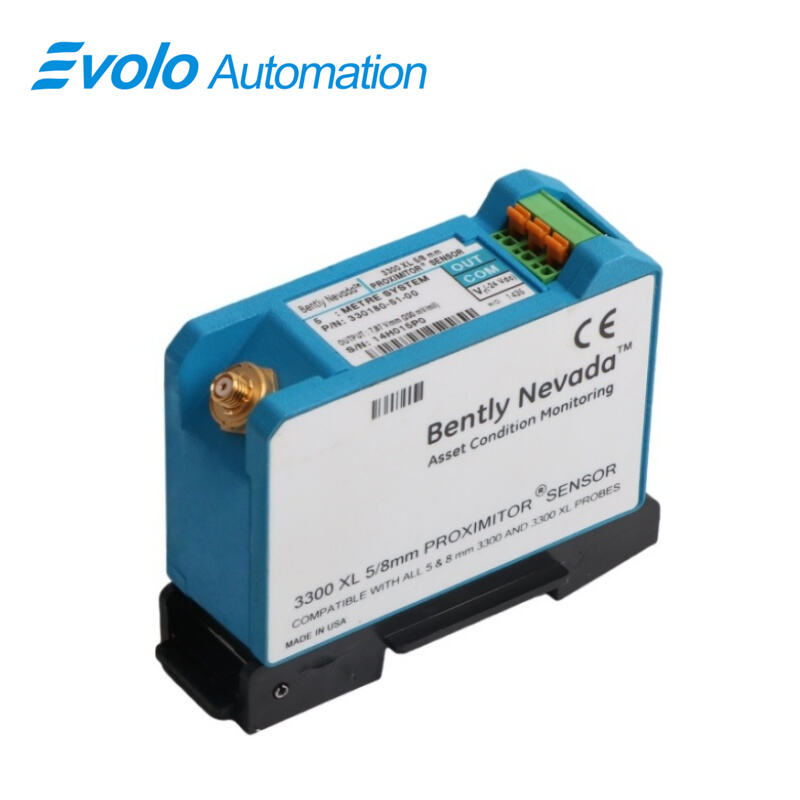

330180-51-05 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-51-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330180-51-05 3300 XL Proximitor Sensor is designed for automated shaft monitoring systems, converting signals from a 3300-series 5 mm or 3300 XL 8 mm Proximity Probe into precise voltage outputs. The 330180-51-05 accepts probes via extension cables up to 305 meters (1000 feet) and delivers frequency response up to 10 kHz, supporting both static position and dynamic vibration measurements.

The 330180-51-05 features a DIN-mount or panel-mount footprint with a 5.0 meter system length, allowing installation in compact automation racks. Its A308 aluminum housing and SpringLoc terminal strips enable quick field wiring connections without special tools. The sensor operates from –52°C to +100°C and stores safely up to +105°C, maintaining less than 2 mV output variation per volt of input change. CSA, ATEX, and IECEx approvals allow the 330180-51-05 to function in hazardous-area industrial automation environments.

Output voltage of the 330180-51-05 varies proportionally with probe-to-target distance: 0.0247 mV pp/Gauss at 10 mil gap, 0.0323 at 50 mil, and 0.0348 at 90 mil, enabling accurate Keyphasor speed signals, vibration monitoring, and shaft position measurement. The 330180-51-05 is suitable for high-density DIN installations and automation systems requiring reliable, non-contact shaft sensing.

Applications

Convert 3300 XL Probe Signals to Voltage for Automation

The 330180-51-05 receives signals from 3300-series 5 mm or 3300 XL 8 mm Proximity Probes and converts them into proportional voltage outputs. With a frequency response of 0–10 kHz and support for up to 305 meters (1000 feet) of field wiring, the 330180-51-05 provides automated systems with real-time shaft position and vibration measurements for pumps, turbines, and compressors.

Generate Keyphasor Speed Reference Pulses

The 330180-51-05 calculates Keyphasor signals by detecting changes in probe-to-target spacing. Measured output voltages—0.0247 mV pp/Gauss at 10 mil gap, 0.0323 at 50 mil, and 0.0348 at 90 mil—enable precise speed input for PLC and DCS control systems. The 5.0 meter system length and DIN-mount option allow the 330180-51-05 to integrate easily into automation cabinets.

High-Density Panel Installation for Multiple Sensors

The 330180-51-05 uses a compact DIN or panel mount footprint, supporting multiple sensors in automated machinery control racks. SpringLoc terminal strips allow the 330180-51-05 to connect field wiring (16–24 AWG) quickly without special tools, reducing installation time and minimizing signal loss.

Specifications

Competitive Advantage

Accept Long Probe Cables without Signal Loss

The 330180-51-05 supports extension cables up to 305 meters (1000 feet) while maintaining accurate voltage output. Less than 2 mV change per volt of input ensures the 330180-51-05 delivers reliable readings even with long-distance probe wiring.

Operate in High-Temperature Industrial Environments

The 330180-51-05 functions from –52°C to +100°C and stores safely up to +105°C. This range allows installation near hot bearings or enclosed machinery while maintaining accurate output for automated monitoring.

Compact Mounting for High-Density Automation Racks

The DIN or panel mount footprint of the 330180-51-05 supports tight sensor spacing, allowing automated systems to incorporate multiple sensors in a single cabinet. This design enables high-density layouts without sacrificing accurate signal output.
