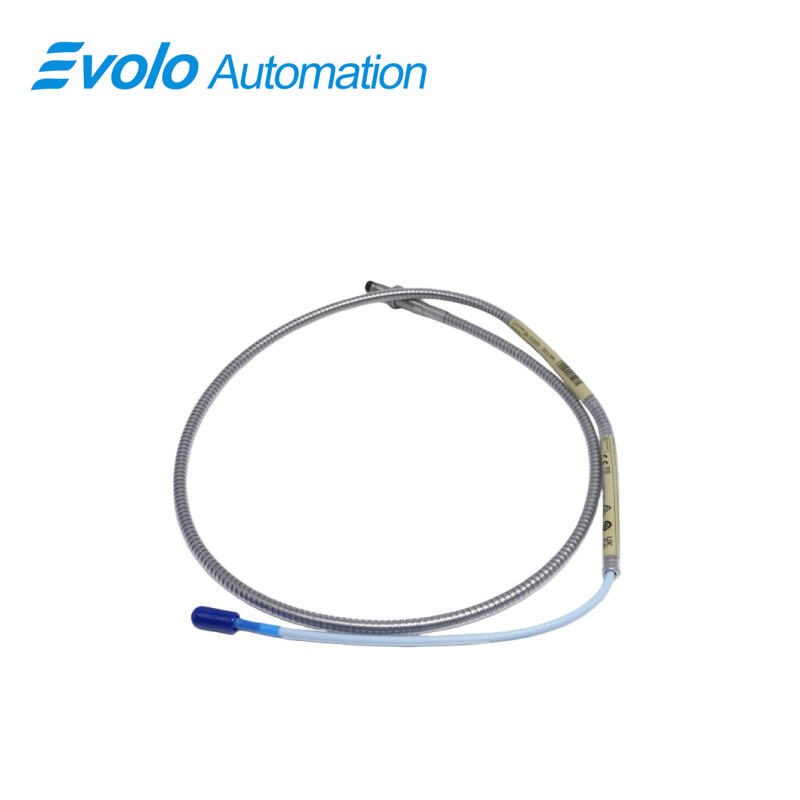

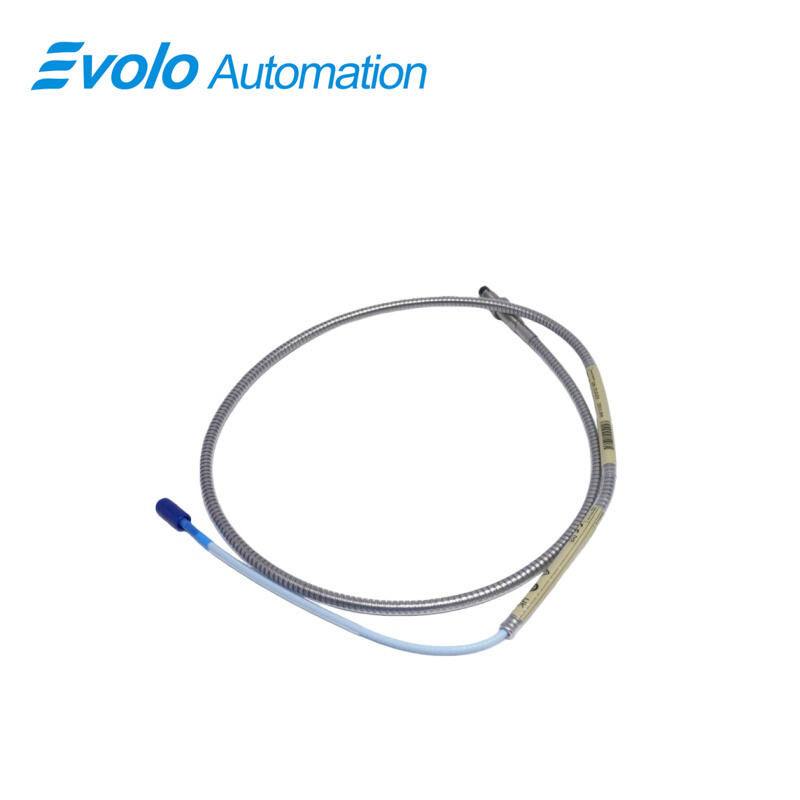

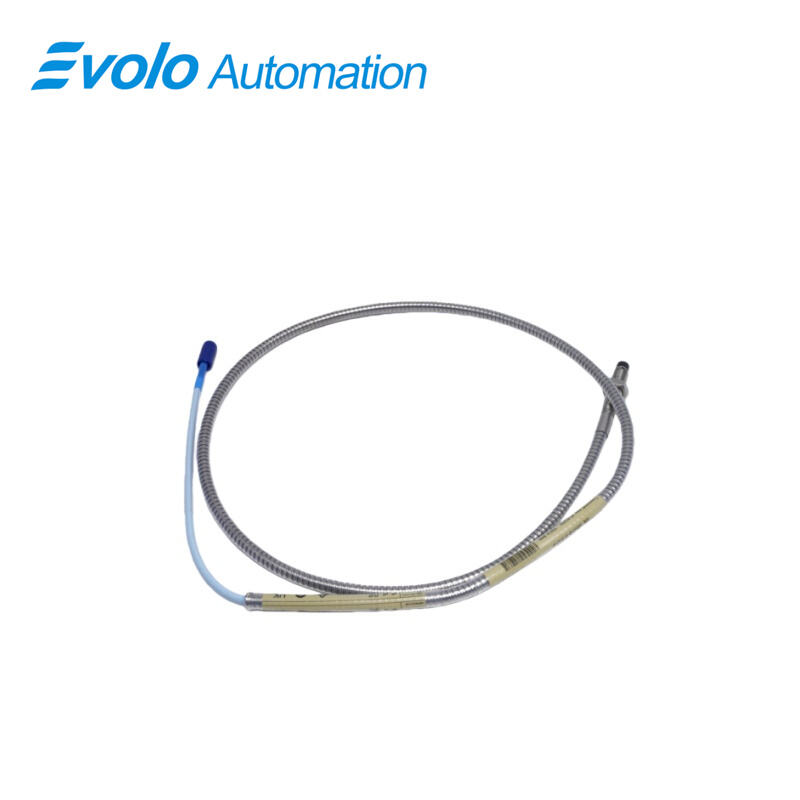

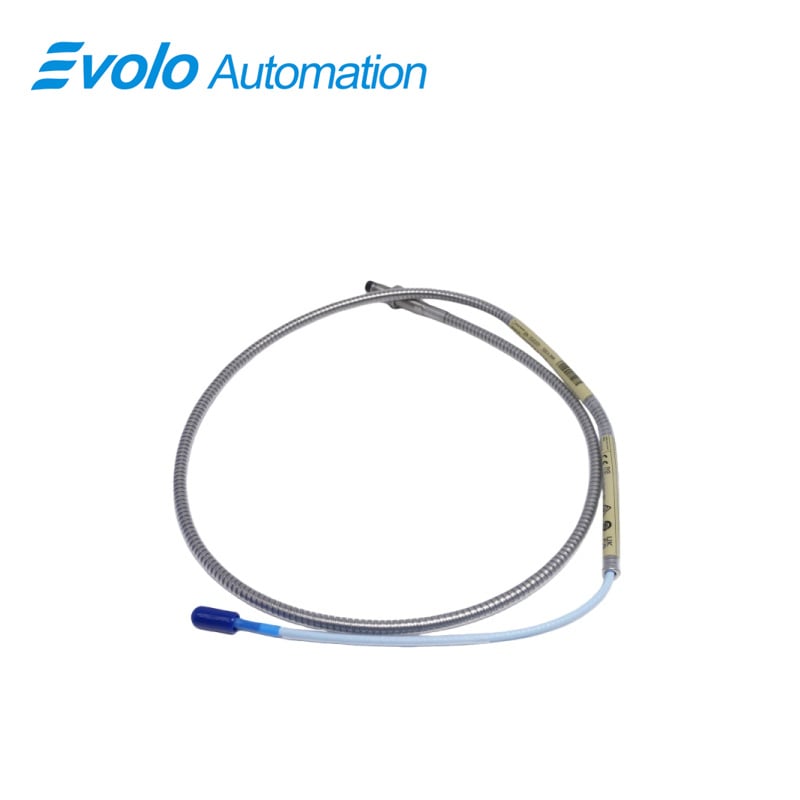

330102-20-96-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-20-96-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-20-96-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision non-contact eddy current sensor independently developed by Bently Nevada, dedicated to continuous displacement and vibration measurement of critical industrial rotating machinery. As a core component of the 3300 XL product series, this 3300 XL 8 mm Proximity Probe integrates advanced mechanical design, stable electrical performance and certified safety compliance, perfectly meeting the stringent requirements of modern industrial condition monitoring systems, and is widely applied in scenarios where measurement accuracy, structural durability and long-term operational stability are essential.

This 3300 XL 8 mm Proximity Probe has an unthreaded length of 2 in, an overall case length of 9.6 in, and a total cable length of 1.0 meter (3.3 feet), with compact dimensions of 1.3×110×1.2 cm and a lightweight design of only 0.1 kg, which is ideal for flexible installation in confined machinery housings and tight mounting spaces. It is equipped with a miniature coaxial ClickLoc connector and standard cable, realizing quick and firm connection with signal conditioning modules, effectively avoiding signal interruption caused by connector loosening under high-vibration working conditions. The probe has obtained multiple authoritative agency approvals including CSA, ATEX and IECEx, which allows safe deployment in hazardous industrial areas with explosive gases or strict regulatory requirements, helping users reduce compliance risks.

In terms of structural design, the 330102-20-96-10-02-05 3300 XL 8 mm Proximity Probe adopts Bently Nevada’s patented TipLoc molding technology, which permanently bonds the polyphenylene sulfide (PPS) probe tip to the AISI 303 or 304 stainless steel (SST) case, significantly reducing the risk of mechanical separation under continuous vibration, thermal cycling or mechanical shock. The cable assembly is configured with the patented CableLoc retention system, with a pull strength of up to 330 N (75 lbf), which securely anchors the cable to the probe body and prevents cable loosening or detachment during installation and operation.

Applications

The 330102-20-96-10-02-05 3300 XL 8 mm Proximity Probe is widely used in continuous vibration and displacement monitoring of core rotating equipment in power generation facilities, including steam turbines, gas turbines and large industrial pumps. Relying on its 2 mm linear measurement range, the probe can accurately capture the radial vibration, axial displacement and rotational speed signals of turbine rotors and pump shafts, realizing early identification of potential faults such as rotor imbalance, shafting misalignment and bearing wear, providing reliable data support for maintenance personnel to formulate predictive maintenance strategies, and effectively reducing the risk of unplanned downtime of power generation equipment.

In oil and gas and petrochemical processing plants with strict safety regulations, this proximity probe can be safely deployed in hazardous areas due to its CSA, ATEX and IECEx certifications. Its corrosion-resistant PPS probe tip and stainless steel case can adapt to the harsh working environment with high humidity, corrosive gas and oil pollution, and the stable electrical performance ensures accurate measurement of key parameters of centrifugal compressors, pipeline pumps and other equipment, helping enterprises meet the safety monitoring requirements of hazardous workplaces and ensure the stable operation of the production line.

In addition, the 330102-20-96-10-02-05 3300 XL 8 mm Proximity Probe is suitable for installation in tight machinery spaces such as compact gearboxes and small motors. Its lightweight design of 0.1 kg and compact structural dimensions will not interfere with the normal operation of equipment, and the 1.0-meter cable length meets the wiring needs of most small and medium-sized equipment. The ClickLoc connector enables quick replacement and maintenance, which shortens the equipment downtime during system debugging and component replacement, and improves the overall operation efficiency of the industrial production line.

Specifications

Competitive Advantage

1.Authoritative Agency Certifications & Hazardous Area Compliance

The probe has obtained CSA, ATEX and IECEx certifications, meeting the safety and regulatory requirements of hazardous industrial areas with explosive gases. It can be safely deployed in oil and gas, petrochemical and other high-risk industries, helping users avoid compliance risks and expand the scope of application of the monitoring system.

2.Patented TipLoc & CableLoc Technologies & Superb Structural Reliability

The patented TipLoc molding technology ensures the firm bonding between the probe tip and the case, avoiding mechanical separation under harsh conditions; the CableLoc retention system provides high pull strength, preventing cable loosening or detachment. These two patented designs solve the two most common failure modes of proximity probes, significantly extending the service life of the product.

3.High-Precision Measurement & Stable Electrical Performance

With a 2 mm (80 mils) linear measurement range, 50 Ω output resistance and low supply sensitivity, the probe delivers consistent and accurate displacement and vibration data, supporting reliable condition monitoring and fault early warning. It can maintain stable performance under wide temperature fluctuations, ensuring the accuracy of monitoring data in complex industrial environments.

4.Compact & Lightweight Design & Flexible Installation

The probe has an overall case length of 9.6 in, unthreaded length of 2 in, and weight of only 0.1 kg, which is suitable for installation in confined machinery housings and tight mounting spaces. The ClickLoc connector realizes quick plug-and-play, reducing the difficulty of on-site installation and maintenance, and improving the deployment efficiency of the monitoring system.

5.Excellent Corrosion Resistance & Harsh Environment Adaptability

The PPS probe tip and AISI 303/304 stainless steel case have strong resistance to corrosion, oil pollution and temperature extremes, enabling stable operation in harsh industrial environments such as high humidity, high temperature and corrosive gas, and reducing the frequency of probe replacement and maintenance costs.
