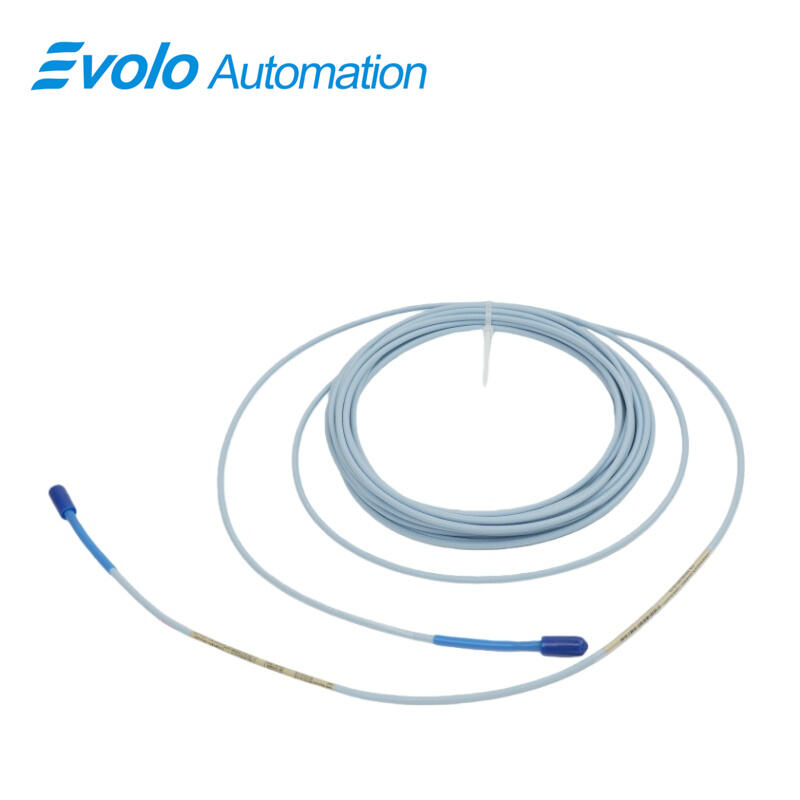

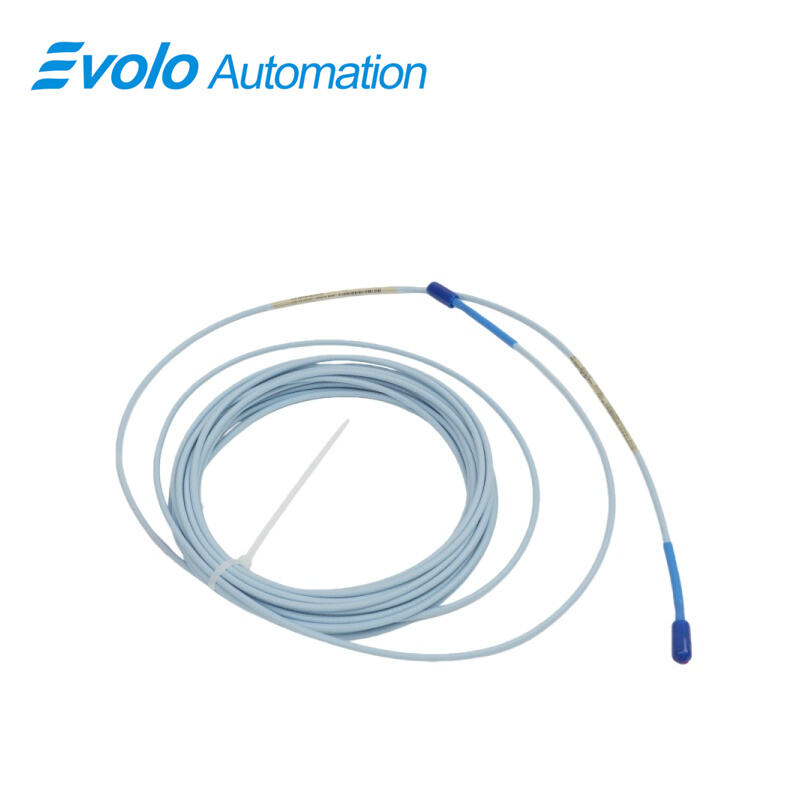

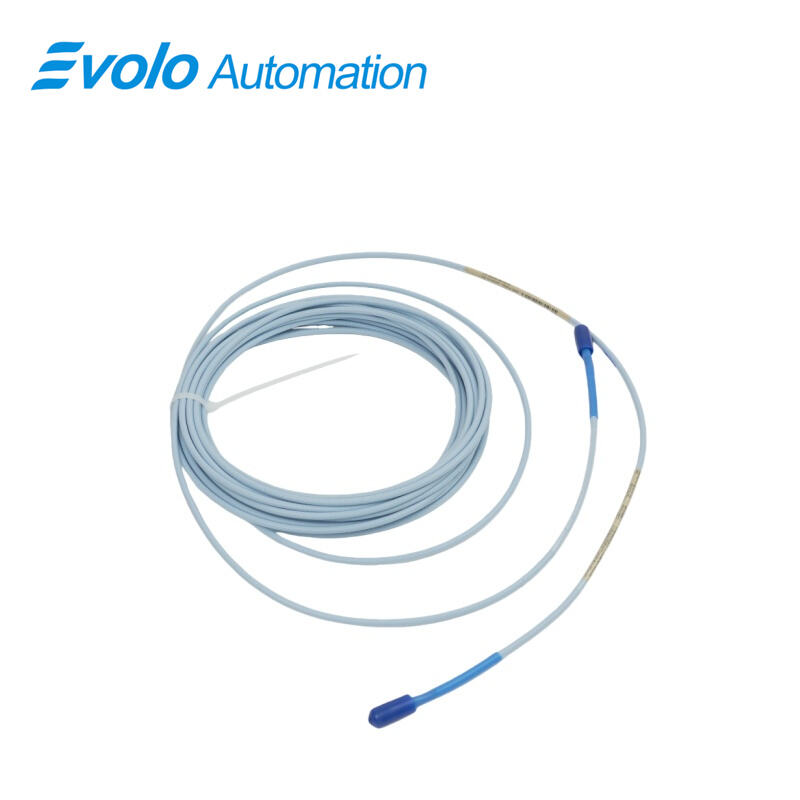

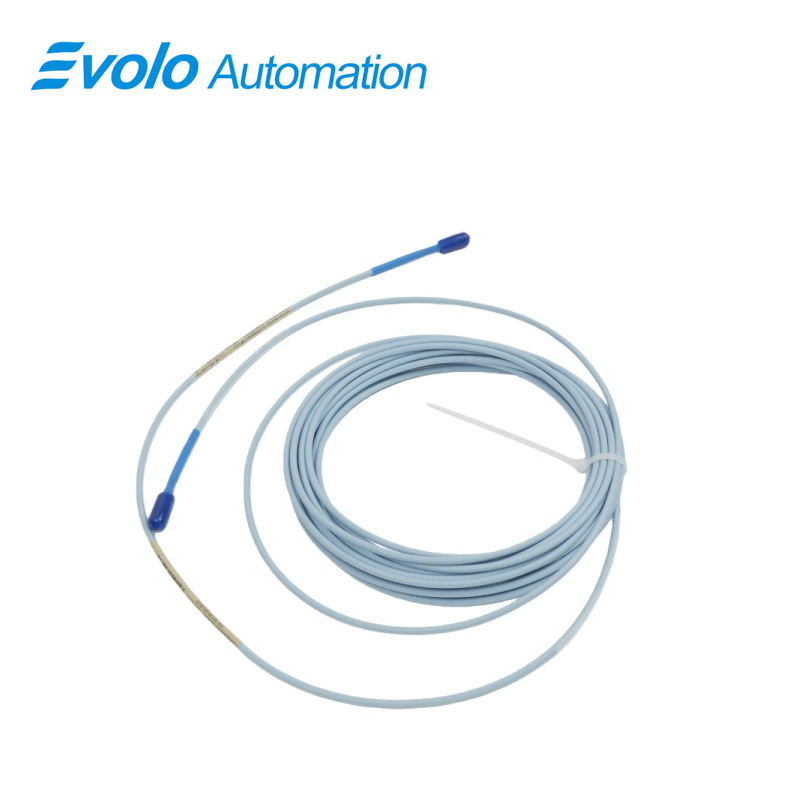

330190-085-00-05 3300 XL Extended Temperature Range (ETR) Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330190-085-00-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330190-085-00-05 3300 XL Extended Temperature Range (ETR) Extension Cable is engineered for high-performance industrial automation applications where extreme heat conditions are encountered. Designed for seamless integration with 3300 XL 8 mm Proximity Probes and standard 3300 XL Proximitor Sensors, this ETR cable provides reliable and precise transmission of vibration and displacement signals over long distances up to 8.5 meters (27.9 feet). Constructed from high-quality 75Ω triaxial PFA-insulated materials, the cable maintains linear range performance of 2 mm and frequency response up to 10 kHz (±3 dB) even under extended temperatures ranging from −52°C to +260°C (−62°F to +500°F).

With CSA, ATEX, and IECEx approvals, the 3300 XL ETR cable is suitable for deployment in hazardous and high-temperature industrial environments. Its low supply sensitivity (<2 mV/V) and consistent 50 Ω output resistance ensure minimal signal variation, while triaxial insulation reduces EMI and crosstalk, allowing stable operation even in electrically noisy environments. The ETR cable is fully compatible with standard 3300 XL probes and extension cables, allowing flexible system configurations without compromising measurement accuracy. Optional connector protectors and patented CableLoc designs enhance mechanical strength, preventing cable disconnection under harsh operational conditions, while the cable’s perfluoroalkoxy insulation ensures chemical resistance and durability for long-term deployment.

Applications

Application 1: High-Temperature Turbine Monitoring
The ETR extension cable supports shaft vibration and displacement monitoring in gas turbines and steam turbines operating above 200°C, ensuring accurate readings without thermal degradation. Continuous monitoring reduces unplanned turbine downtime by 25–35%.

Application 2: Petrochemical Reactor Equipment
Used to connect proximity probes in reactors and high-temperature vessels, the cable maintains measurement integrity up to 260°C, providing early detection of misalignment or excessive vibration in agitators and pumps.

Application 3: Industrial Furnace Condition Monitoring
The cable enables real-time measurement of mechanical movement and vibration inside furnaces or kilns, where ambient temperatures can exceed 230°C, helping to prevent structural damage and extending equipment life by 20%.

Application 4: High-Speed Compressor Vibration Measurement
Deployed on high-speed compressors operating in hot environments, the ETR cable ensures reliable transmission of Keyphasor signals and dynamic displacement data, improving predictive maintenance accuracy by 15–20%.

Application 5: Oil Refinery Heat Exchanger Monitoring
The cable allows vibration and displacement data collection on air-cooled heat exchanger fans and pumps operating in extreme heat, maintaining sensor signal integrity for extended periods, reducing bearing and coupling failures by 30%.

Specifications

Competitive Advantage

Advantage 1: Extreme Temperature Tolerance
The ETR extension cable operates up to +260°C (500°F), enabling reliable performance in the harshest thermal environments, unmatched by standard cables, reducing replacement frequency by 50%.

Advantage 2: High Signal Integrity
Triaxial PFA insulation and 50 Ω output resistance maintain minimal noise interference over long distances, supporting accurate vibration measurement with less than 2 mV/V signal fluctuation.

Advantage 3: Compatibility with Standard 3300 XL Systems
Fully interoperable with standard probes and sensors, the ETR cable allows flexible integration without system redesign, saving engineering and installation time by 20–30%.

Advantage 4: Durable Mechanical Design
Patented CableLoc connector and optional protector ensure 330 N (75 lbf) pull strength, preventing disconnection in harsh industrial conditions, reducing downtime caused by cable failures.

Advantage 5: Regulatory Compliance
CSA, ATEX, and IECEx approvals allow deployment in hazardous environments, such as petrochemical and power plants, enhancing operational safety while simplifying global certification compliance.
