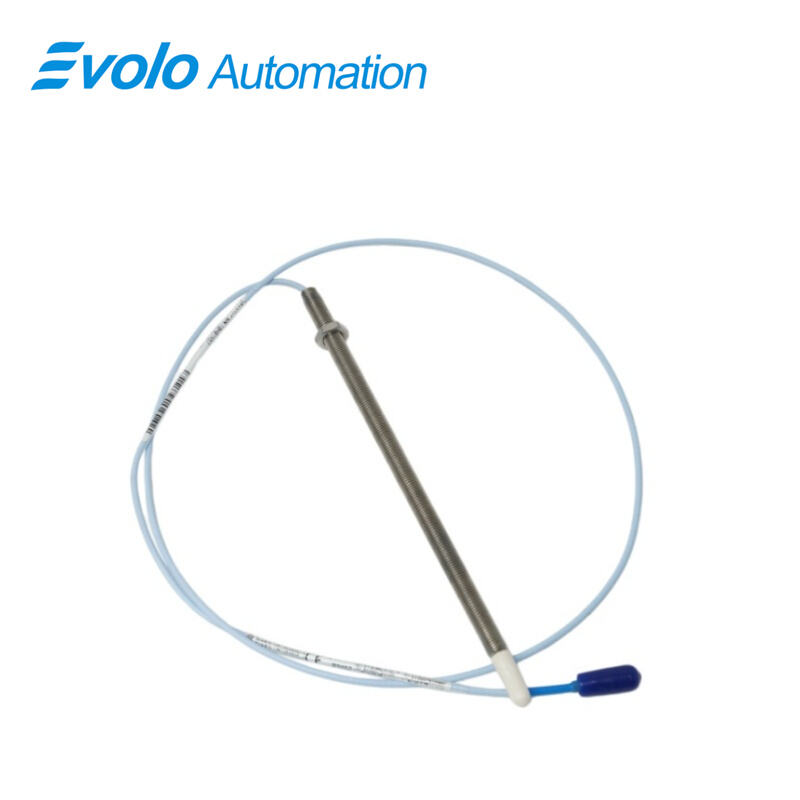

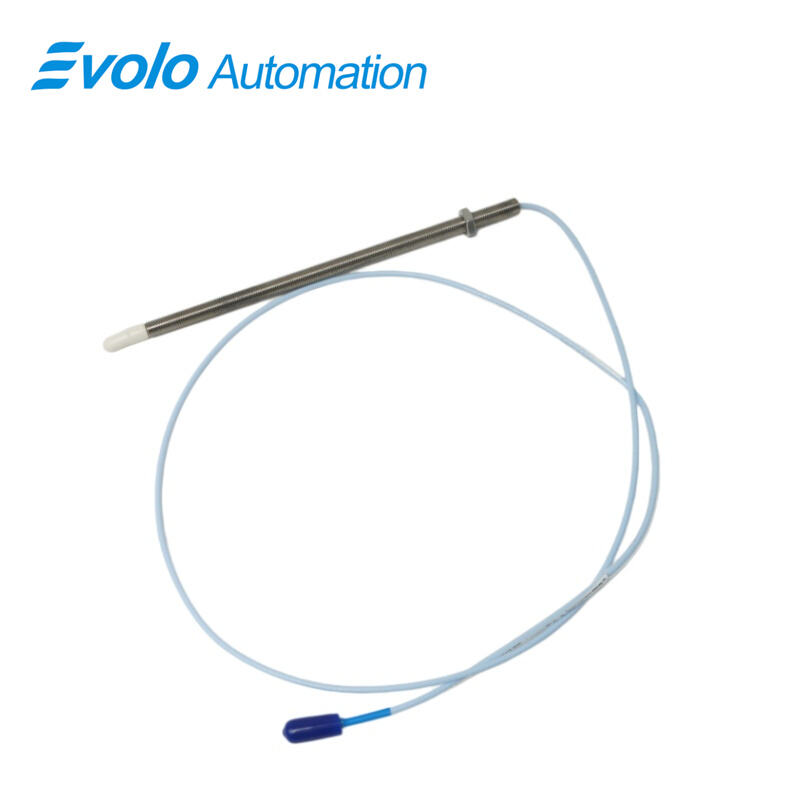

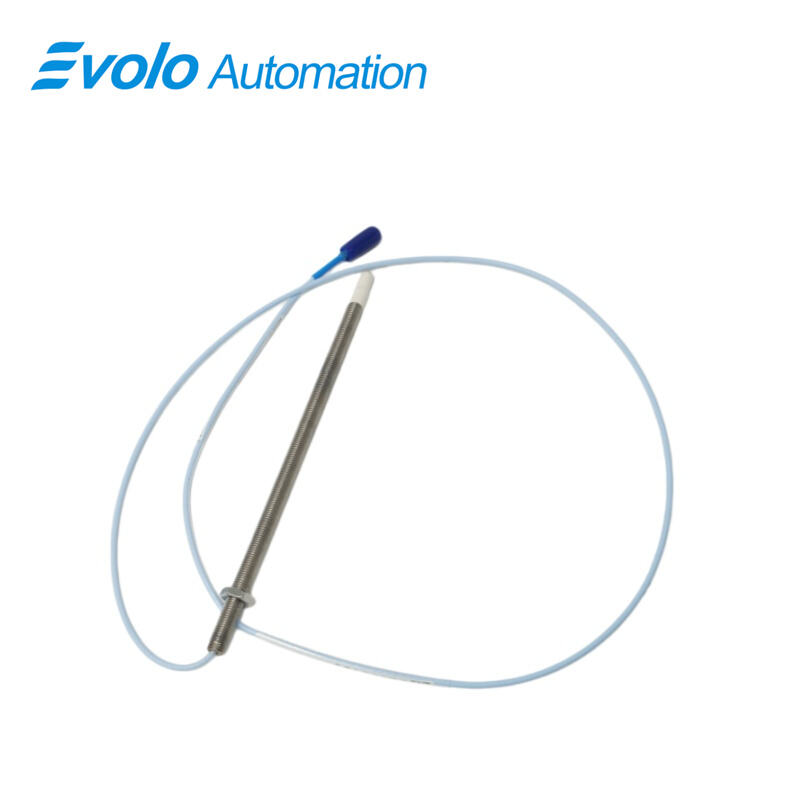

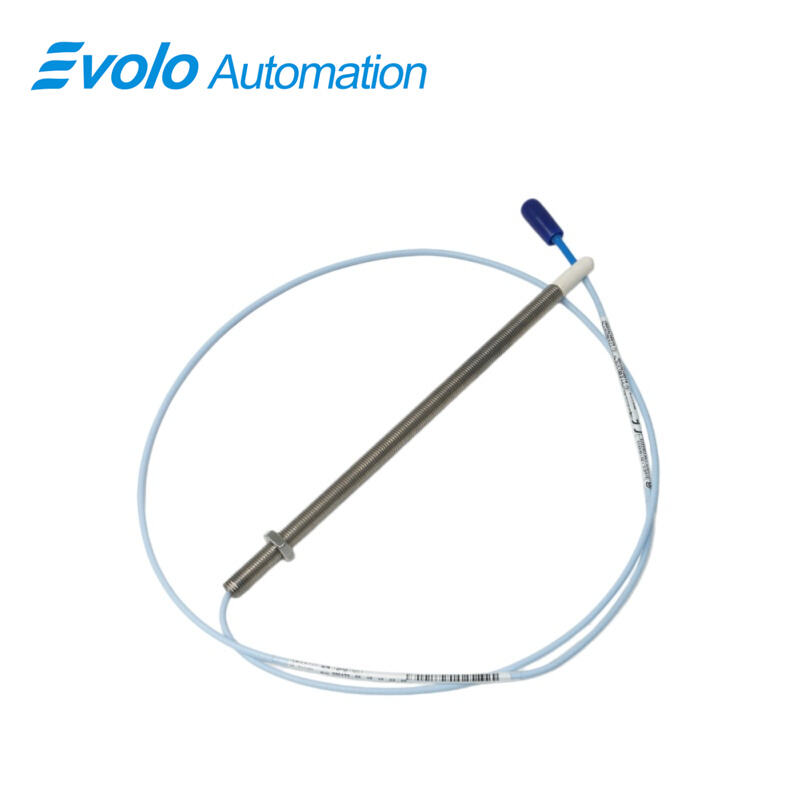

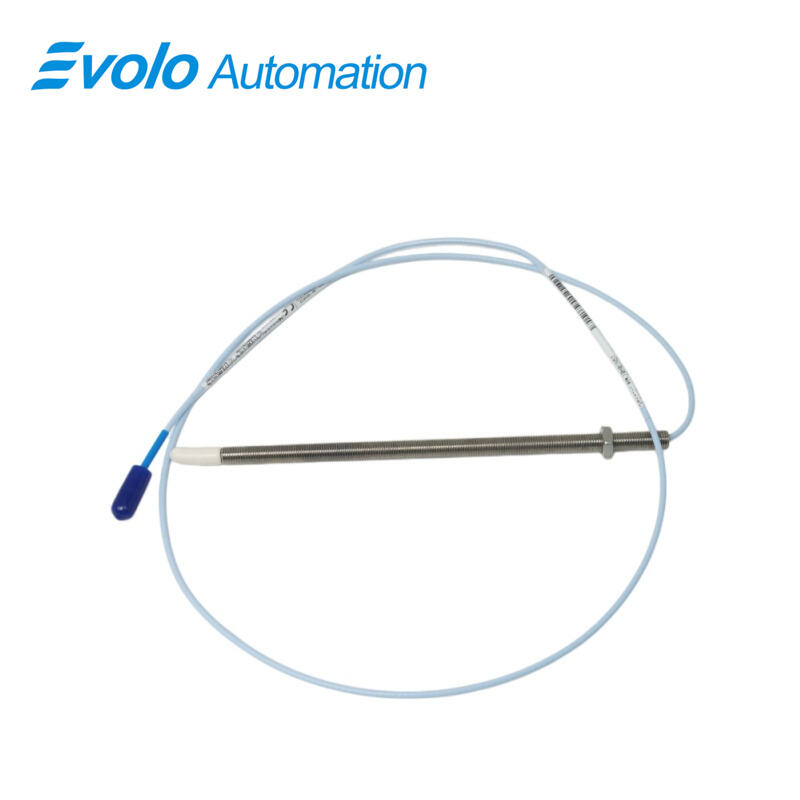

330173-00-18-10-02-05 3300 5 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330173-00-18-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330173-00-18-10-02-05 3300 5 mm Proximity Probe delivers precise measurement of shaft position and vibration with a 2 mm linear range. Its M8 x 1 threaded probe supports maximum 7.3 N•m torque, recommended 5.1 N•m, and operates from -52°C to +177°C. The probe features 50 Ω output resistance, <2 mV supply sensitivity, and extension cable capacitance of 69.9 pF/m. Equipped with a miniature coaxial ClickLoc™ connector and standard 1-meter cable, the 330173-00-18-10-02-05 3300 5 mm Proximity Probe enables direct integration into automated bearing monitoring, Keyphasor reference, and speed measurement systems. Optional extended temperature range allows probe operation up to 218°C and extension cable up to 260°C. Patented TipLoc and CableLoc designs secure the probe tip and cable against 330 N pull forces, while FluidLoc prevents oil leakage, making the 330173-00-18-10-02-05 3300 5 mm Proximity Probe ideal for industrial automation machinery.

Applications

Application Monitor Vibration on Fluid-Film Bearings

The 330173-00-18-10-02-05 3300 5 mm Proximity Probe detects dynamic vibration with a 2 mm linear range. Using M8 x 1 threading and recommended torque of 5.1 N•m, the 330173-00-18-10-02-05 3300 5 mm Proximity Probe provides precise tip-to-surface distance measurement. With output resistance of 50 Ω and supply sensitivity below 2 mV/V, vibration signals can be captured accurately in automated bearing monitoring systems.

Application Measure Shaft Position in Automated Machinery

Install the 330173-00-18-10-02-05 3300 5 mm Proximity Probe to measure static shaft displacement. The miniature coaxial ClickLoc™ connector and 1-meter standard cable ensure minimal signal loss, with extension cable capacitance of 69.9 pF/m maintaining voltage integrity. The 330173-00-18-10-02-05 3300 5 mm Proximity Probe enables accurate position feedback for PLC-controlled machinery.

Application Capture Keyphasor and Speed Signals

The 330173-00-18-10-02-05 3300 5 mm Proximity Probe supports Keyphasor signals and shaft speed measurement up to high RPMs. Coupled with Proximitor sensors, the 330173-00-18-10-02-05 3300 5 mm Proximity Probe provides precise timing pulses for automated control and process monitoring systems.

Specifications

Competitive Advantage

Competitive Advantage Secure Probe Tip Attachment

The patented TipLoc design on the 330173-00-18-10-02-05 3300 5 mm Proximity Probe bonds the probe tip to the body, supporting cable pull forces up to 330 N. Use the 330173-00-18-10-02-05 3300 5 mm Proximity Probe in high-vibration installations without detachment risks.

Competitive Advantage Prevent Oil and Fluid Leakage

The CableLoc design with optional FluidLoc sealing on the 330173-00-18-10-02-05 3300 5 mm Proximity Probe prevents oil leakage through the probe cable. The 330173-00-18-10-02-05 3300 5 mm Proximity Probe is ideal for lubrication-heavy machinery where accurate measurement must be maintained under fluid exposure.

Competitive Advantage Extended Temperature Operation

The 330173-00-18-10-02-05 3300 5 mm Proximity Probe operates from -52°C to +177°C, with extended temperature range (ETR) options up to 218°C for probes and 260°C for extension cables. Use the 330173-00-18-10-02-05 3300 5 mm Proximity Probe in turbines or steam-driven equipment to maintain measurement reliability in high-temperature automated processes.
