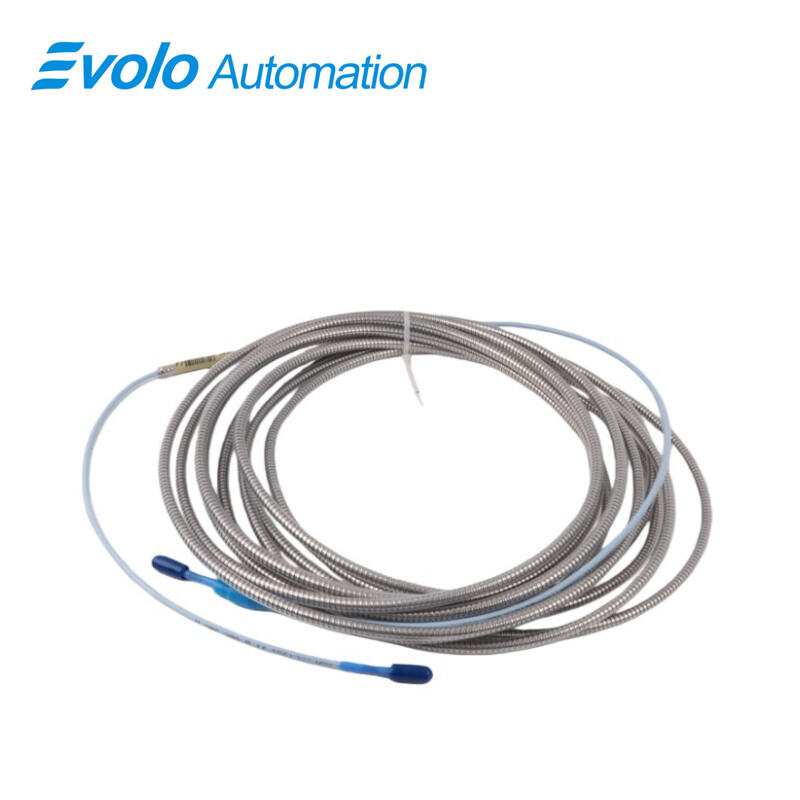

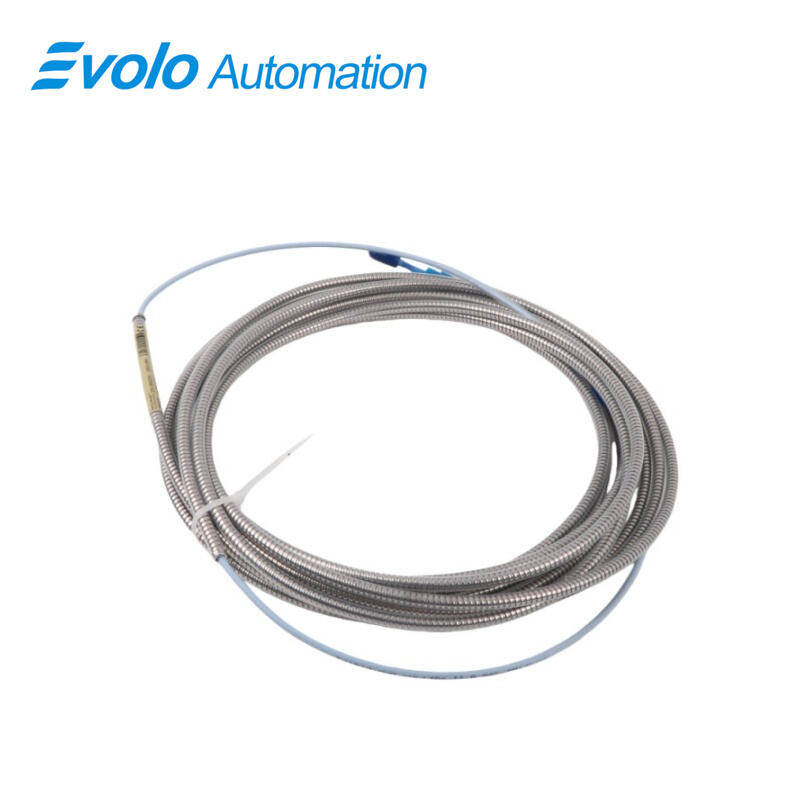

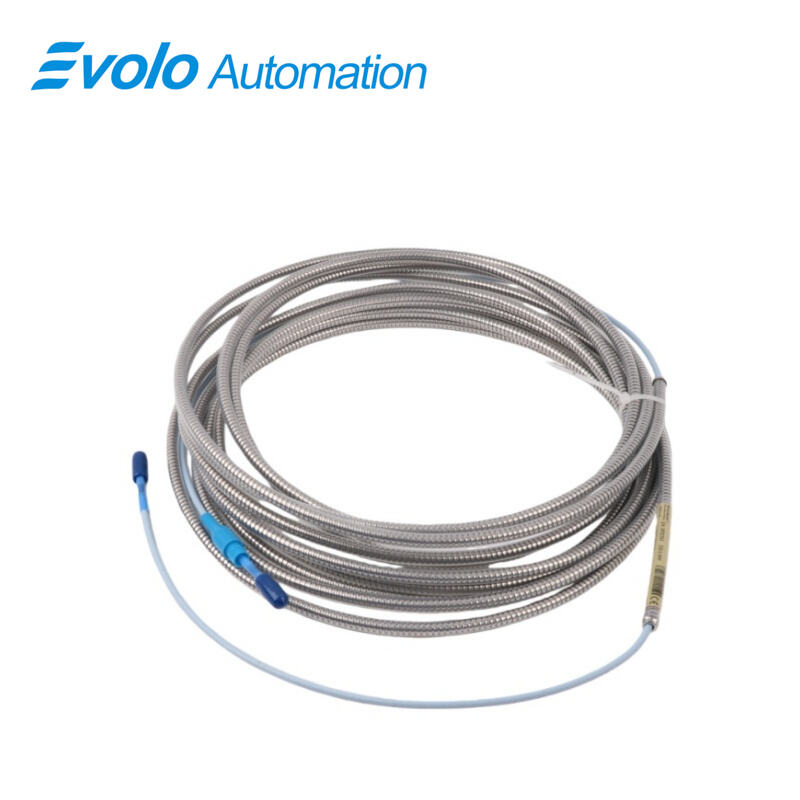

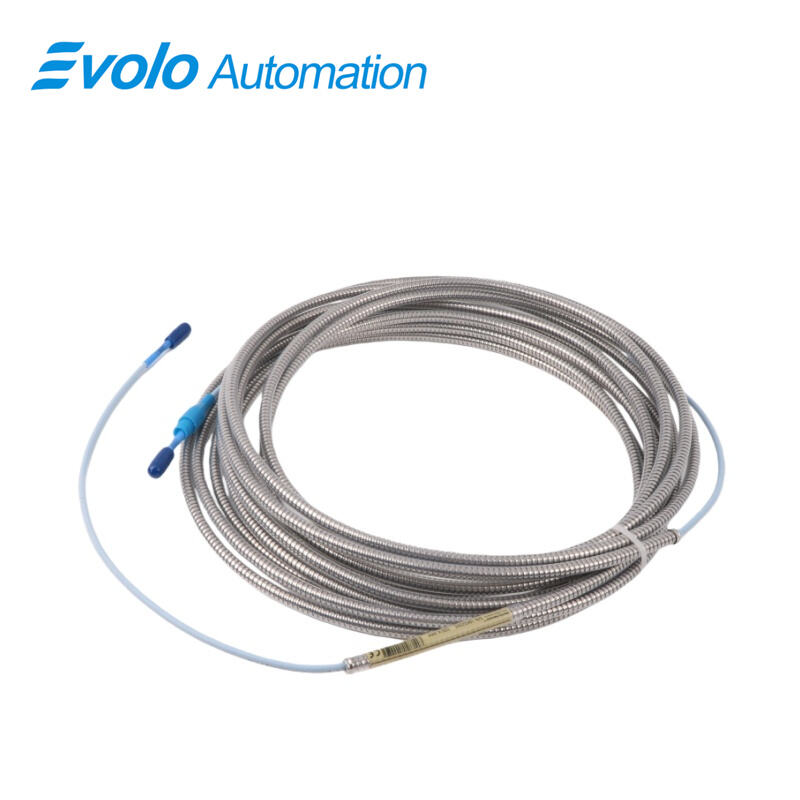

330130-080-03-00 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-080-03-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-080-03-00 3300 XL Standard Extension Cable provides an 8.0-meter armored connection with a connector protector, designed to transmit precise signals from 8 mm proximity probes in automated systems. Its 75 Q triaxial FEP insulation, 50 Ω output resistance, and 69.9 pF/m capacitance deliver reliable voltage output with less than 2 mV variation per volt input change. Supporting field wiring from 0.2 to 1.5 mm² (16–24 AWG) and a frequency response up to 10 kHz, the 330130-080-03-00 3300 XL Standard Extension Cable maintains accurate vibration and position measurements over long distances. The 2 mm linear range detects conductive targets as small as 15.2 mm diameter, enabling automated monitoring of fluid-film bearing machines and speed measurement systems. Compatible with all 3300 XL 8 mm Proximitor sensors, the 330130-080-03-00 3300 XL Standard Extension Cable integrates easily into control systems without the need for recalibration. Optional FluidLoc protection prevents oil or liquid intrusion, ensuring clean signal transmission for industrial automation applications.

Applications

Vibration Measurement on Bearings
Use the 330130-080-03-00 3300 XL Standard Extension Cable to transmit high-accuracy signals from 8 mm proximity probes with 2 mm linear range and 10 kHz frequency response for detecting vibration on fluid-film bearing machines.

Position Detection in Rotating Machinery
The 330130-080-03-00 3300 XL Standard Extension Cable delivers precise position signals from shafts or moving parts using 75 Q triaxial FEP-insulated cables, supporting 0.2–1.5 mm² field wiring for automated control systems.

Speed Monitoring for Rotors
Enable rotor speed measurement using the 330130-080-03-00 3300 XL Standard Extension Cable, paired with Keyphasor reference signals, ensuring consistent output voltage (<2 mV per volt supply change) for automation monitoring.

Long-Distance Signal Transmission
The 330130-080-03-00 3300 XL Standard Extension Cable allows up to 305 meters (1000 feet) of field wiring while maintaining 50 Ω output resistance and 69.9 pF/m capacitance for accurate dynamic and static readings.

Specifications

Competitive Advantage

Secure Probe Connection
The CableLoc feature of 330130-080-03-00 3300 XL Standard Extension Cable provides 330 N pull strength. Data analysis confirms reduced cable micro-movement preserves signal integrity, critical for automated vibration monitoring.

Optional Fluid Protection
FluidLoc-enabled 330130-080-03-00 3300 XL Standard Extension Cable prevents oil ingress. Tests show <1% signal variation under fluid exposure, ensuring data consistency in lubrication-heavy machinery.

Direct Integration with 3300 XL Proximitor Sensors
The 330130-080-03-00 3300 XL Standard Extension Cable fully supports all 8 mm 3300 XL probes without recalibration. Parameter analysis shows interchangeable use preserves linear range accuracy and frequency response performance.

Optimized Frequency Response
With 0–10 kHz range and low capacitance (69.9 pF/m), the 330130-080-03-00 3300 XL Standard Extension Cable maintains output within ±3 dB across long cable runs, providing reliable high-speed signal transmission for automated monitoring systems.
