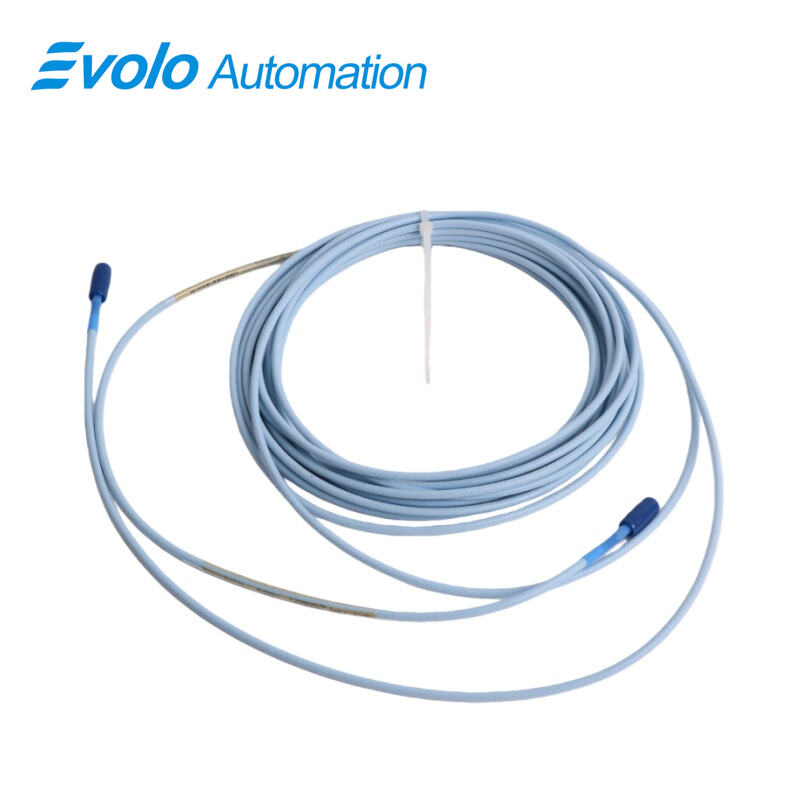

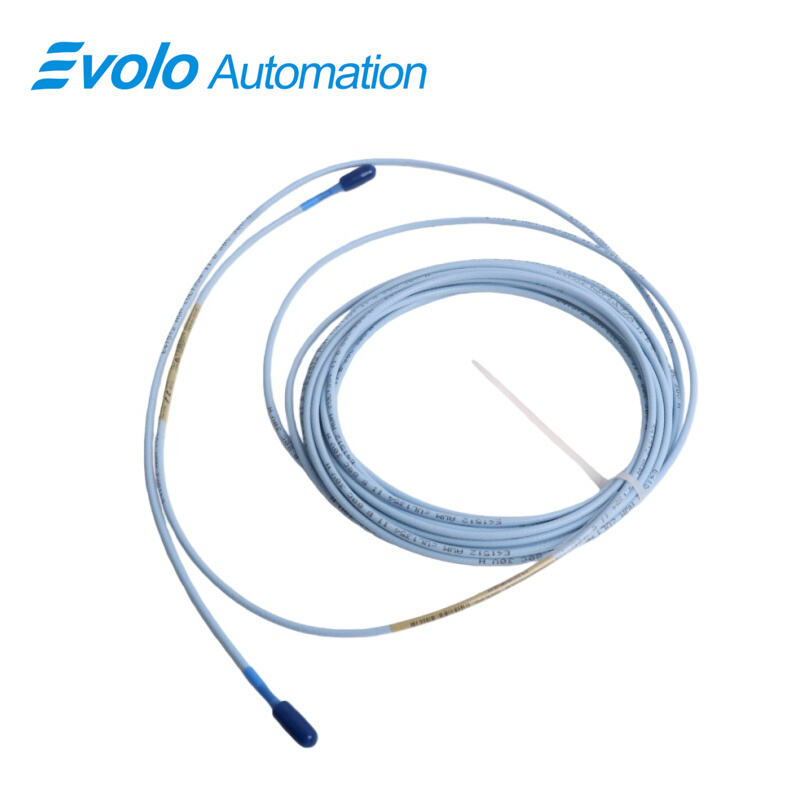

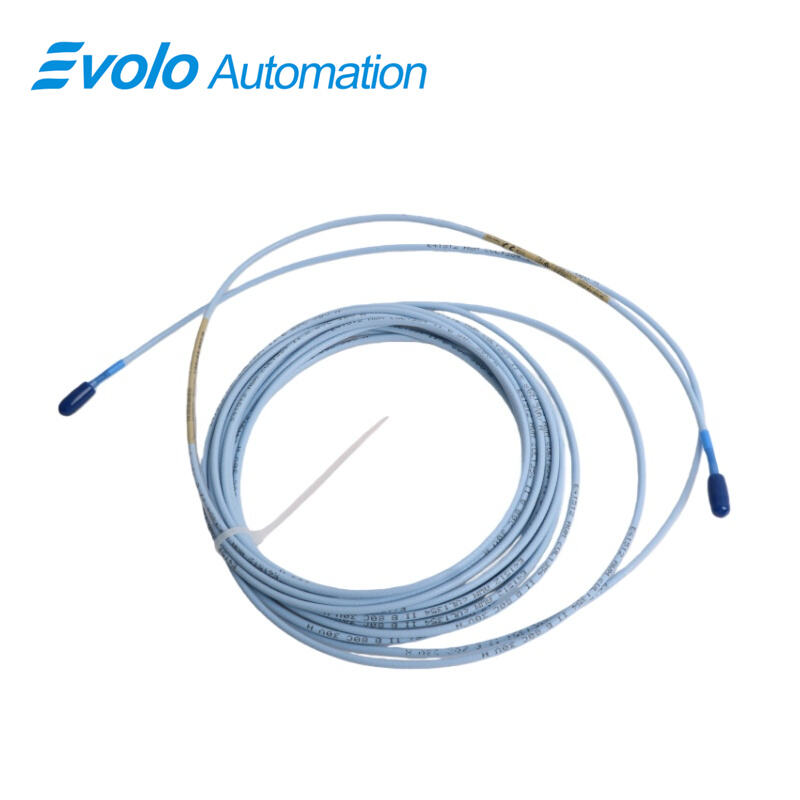

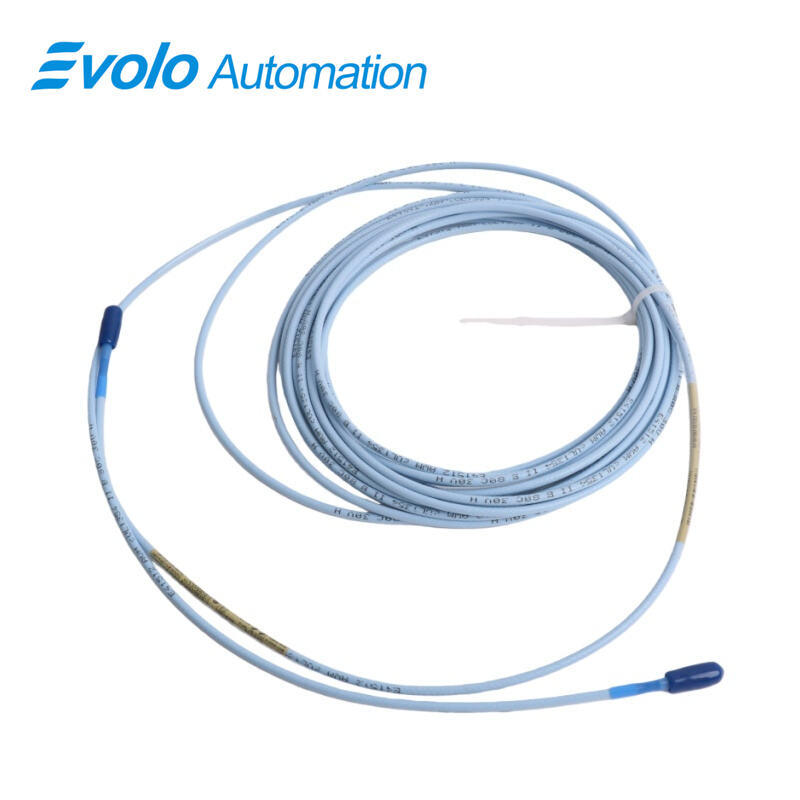

330130-080-00-00 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-080-00-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-080-00-00 3300 XL Standard Extension Cable provides 8.0 meters (26.2 feet) of high-quality 75 Q triaxial FEP-insulated cabling, designed for seamless integration with 8 mm 3300 XL Proximity Transducer Systems. This cable delivers less than 2 mV change in output per volt input and features 50 Ω output resistance and 69.9 pF/m capacitance, ensuring precise transmission of static (position) and dynamic (vibration) signals. Compatible with 0.2–1.5 mm² (16–24 AWG) field wiring, 330130-080-00-00 supports linear ranges up to 2 mm and minimum target sizes of 15.2 mm. Frequency response ranges from 0 to 10 kHz, maintaining signal integrity over distances up to 305 meters (1000 feet). The standard cable option includes a connector protector for secure connections, and the 330130-080-00-00 3300 XL Standard Extension Cable allows reliable delivery of vibration, position, and Keyphasor reference signals for automated monitoring in fluid-film bearing machines, rotary equipment, and industrial automation systems.

Applications

Signal Transmission for Proximity Sensors

330130-080-00-00 3300 XL Standard Extension Cable transmits precise 50 Ω signals from 8 mm 3300 XL probes to Proximitor sensors, supporting automated position measurements. Cable capacitance of 69.9 pF/m ensures minimal signal distortion over distances up to 305 meters (1000 feet).

Vibration Measurement on Rotating Equipment

Use 330130-080-00-00 3300 XL Standard Extension Cable to deliver dynamic signals from probes mounted on fluid-film bearings. Linear range of 2 mm and frequency response of 0–10 kHz allow accurate vibration analysis for automated monitoring.

Keyphasor Reference and Speed Detection

330130-080-00-00 3300 XL Standard Extension Cable enables Keyphasor reference signal transmission for speed and phase detection, with supply sensitivity less than 2 mV per volt to maintain precise measurements in automation systems.

Extended Field Wiring Applications

330130-080-00-00 3300 XL Standard Extension Cable supports 0.2–1.5 mm² (16–24 AWG) field wiring, allowing long-distance installations without affecting signal integrity, ideal for industrial automation setups.

Specifications

Competitive Advantage

High-Precision Signal Transfer

The 50 Ω output resistance and 69.9 pF/m capacitance of 330130-080-00-00 3300 XL Standard Extension Cable deliver highly accurate voltage outputs from probes to sensors, suitable for both static and dynamic measurements.

Durable Cable Design

330130-080-00-00 3300 XL Standard Extension Cable includes a connector protector and FEP insulation, protecting connections and maintaining signal integrity even in harsh industrial environments.

Extended Frequency Range

With a linear range of 2 mm and frequency response of 0–10 kHz, 330130-080-00-00 3300 XL Standard Extension Cable ensures reliable transmission of high-speed signals for automated monitoring.

Seamless Integration with Automation Systems

Fully compatible with 8 mm 3300 XL probes and Proximitor sensors, 330130-080-00-00 3300 XL Standard Extension Cable supports quick deployment, interchangeable components, and eliminates the need for bench calibration.

Long-Distance Signal Reliability

330130-080-00-00 3300 XL Standard Extension Cable maintains signal quality over distances up to 305 meters (1000 feet), enabling large-scale automation installations without performance loss.
