Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330130-075-00-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Cable Length Option: |
7.5 meters (24.6 feet) |
|
Connector Protector and Cable Option: |
Standard cable |
|
Agency Approval Option: |
Not required |
|
Extension Cable Material: |
75 Q triaxial, fluoroethylene propylene (FEP) insulated |
|
Dimension: |
20.5x22x3cm |
|
Weight: |
0.32 kg |
Description
Description

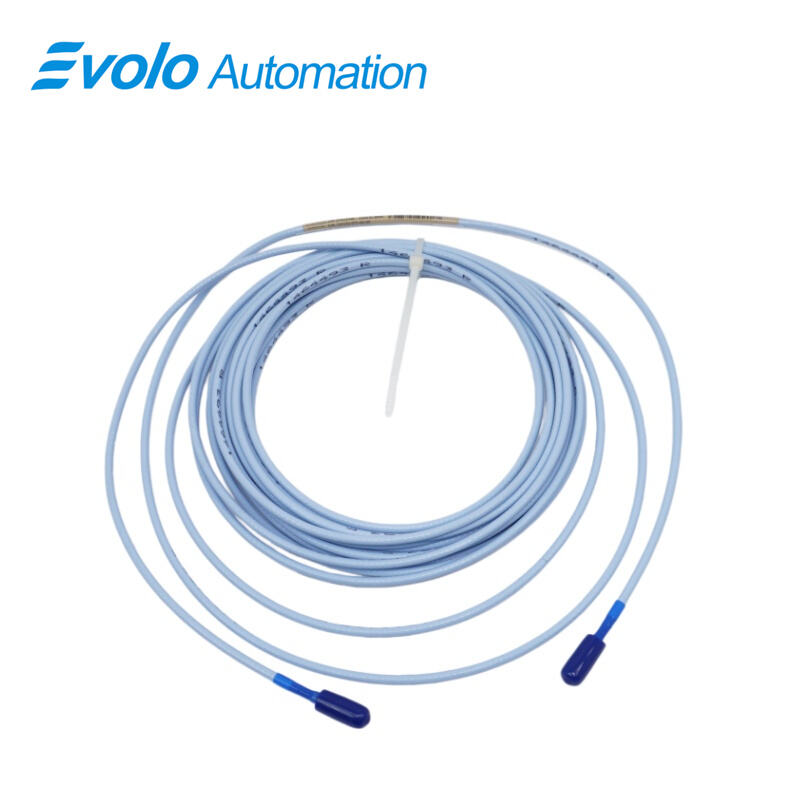

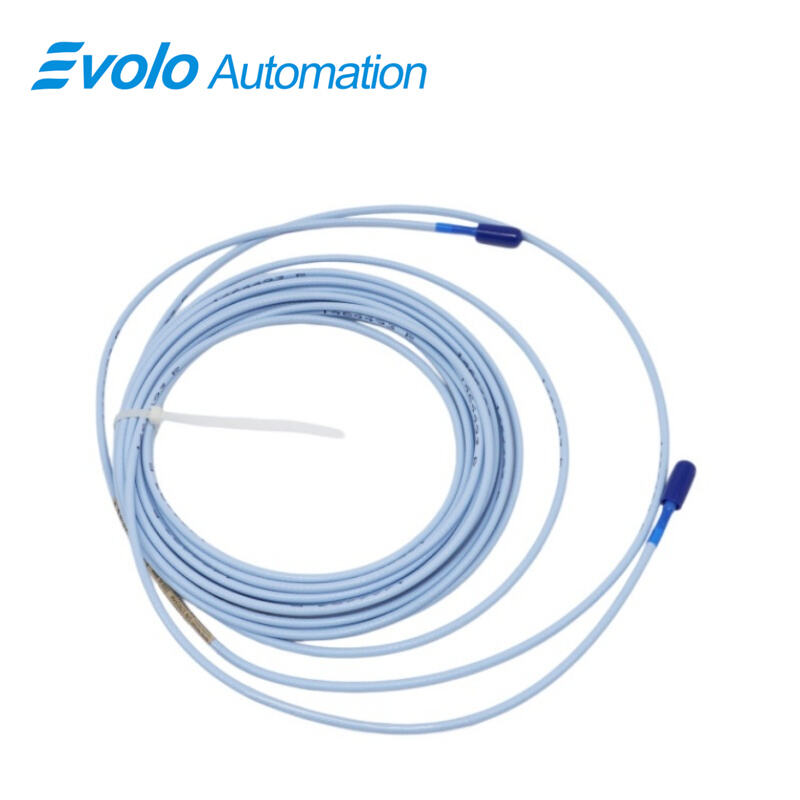

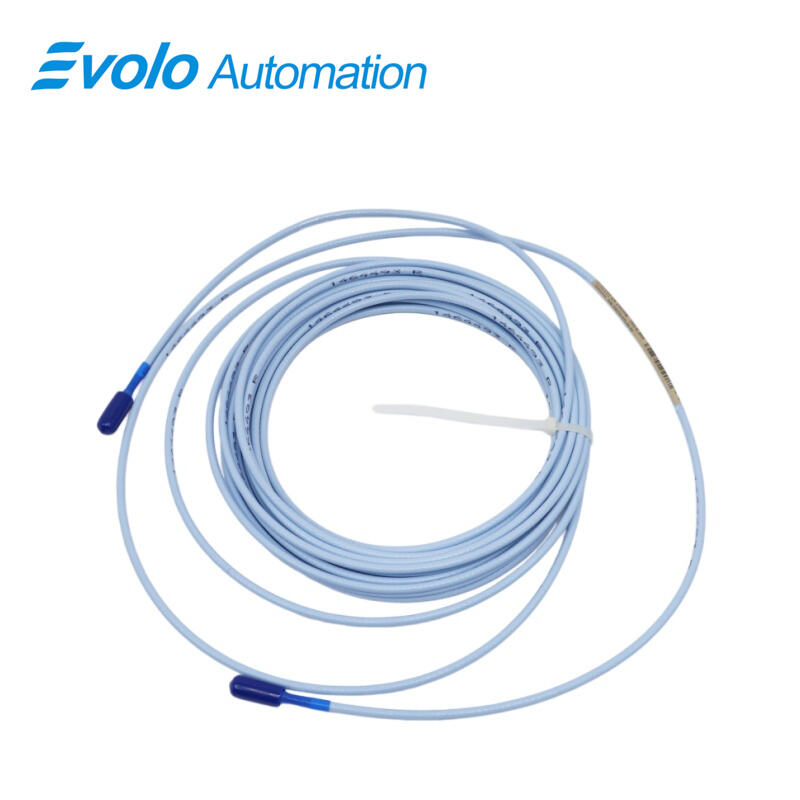

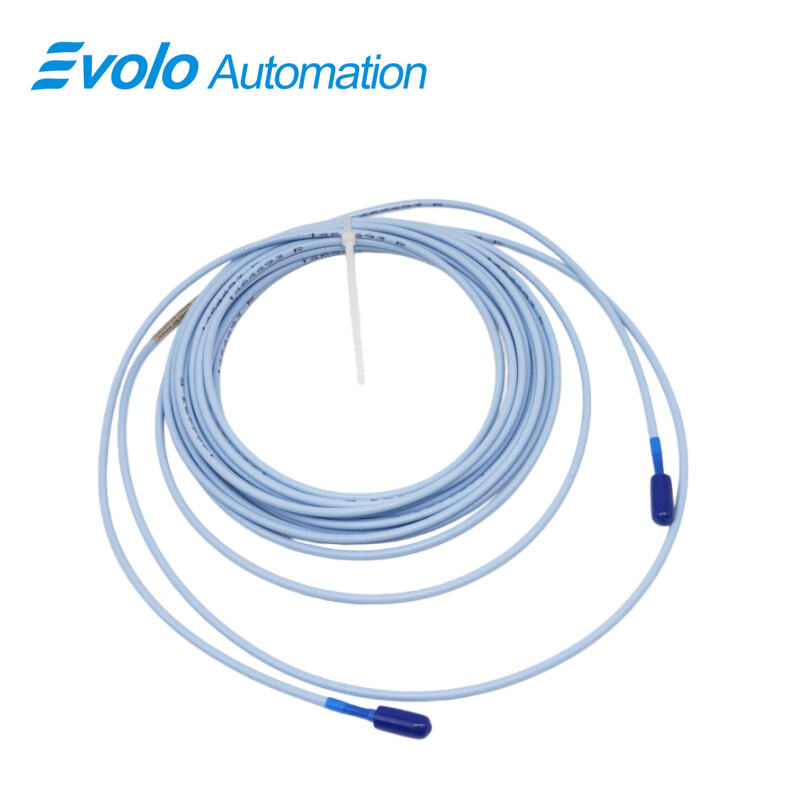

330130-075-00-00 is a 7.5 m 24.6 ft standard extension cable for 3300 XL 8 mm proximity transducer systems in industrial automation. The 330130-075-00-00 uses 75 Ω triaxial FEP-insulated cable with 50 Ω output resistance and 69.9 pF/m capacitance, providing approximately 524 pF total capacitance over 7.5 m. Supply sensitivity is less than 2 mV per volt, supporting accurate vibration and position measurements. Frequency response is 0 to 10 kHz with up to 305 m 1000 ft field wiring. Field wiring accepts 0.2 to 1.5 mm² 16 to 24 AWG conductors. The 330130-075-00-00 linear range is 2 mm, and it detects minimum target sizes of 15.2 mm diameter. Operating temperatures range from -52°C to +177°C, making 330130-075-00-00 suitable for installation on turbines, compressors, and motors in automation systems.
Applications
Application for turbine radial vibration monitoring
Use 330130-075-00-00 to connect 8 mm probes on turbine shafts, supporting 0–10 kHz frequency response and maintaining less than 2 mV per volt supply sensitivity.
Application for compressor axial position measurement
Install 330130-075-00-00 to transmit probe signals for 2 mm linear range axial displacement measurements in centrifugal compressors, with total cable capacitance of 524 pF.
Application for large motor bearing proximity measurement
Route 330130-075-00-00 over long field wiring to deliver accurate 50 Ω signals from motor bearing probes while handling extreme temperatures up to +177°C.
Specifications
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Frequency Response: |
(0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring |
|
Minimum Target Size: |
15.2 mm (0.6 in) diameter (flat target) |
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
Competitive Advantage
Competitive advantage for long-distance signal transmission
The 7.5 m 330130-075-00-00 maintains calibrated total capacitance of 524 pF, ensuring precise probe output over extended distances.
Competitive advantage for high-temperature operation
Use 330130-075-00-00 near turbines or compressors operating up to +177°C without affecting output resistance or supply sensitivity.
Competitive advantage for vibration and position measurement
The 330130-075-00-00 supports 0–10 kHz frequency response, enabling accurate dynamic and static measurements of rotating machinery.
Competitive advantage for compact target detection
With a 15.2 mm minimum target size, 330130-075-00-00 allows monitoring of small probe targets in tight machine spaces.
