Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330130-045-00-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Cable Length Option: |
4.5 meters (14.8 feet) |
|
Connector Protector and Cable Option: |
Standard cable |
|
Agency Approval Option: |
Not required |
|
Extension Cable Material: |
75 Q triaxial, fluoroethylene propylene (FEP) insulated |
|
Dimension: |
20x20x1.5cm |
|
Weight: |
0.16kg |
Description

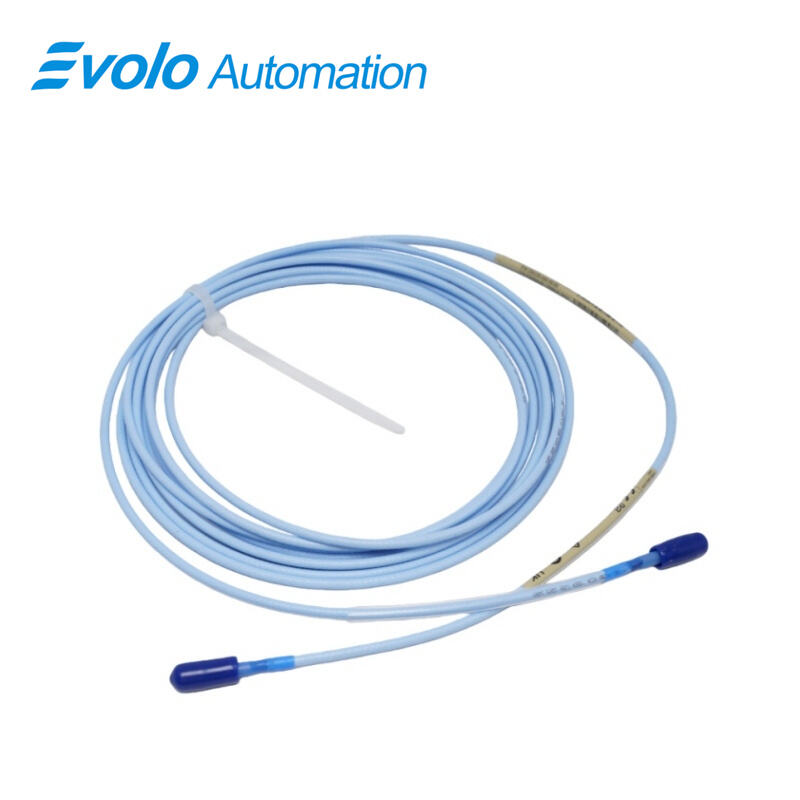

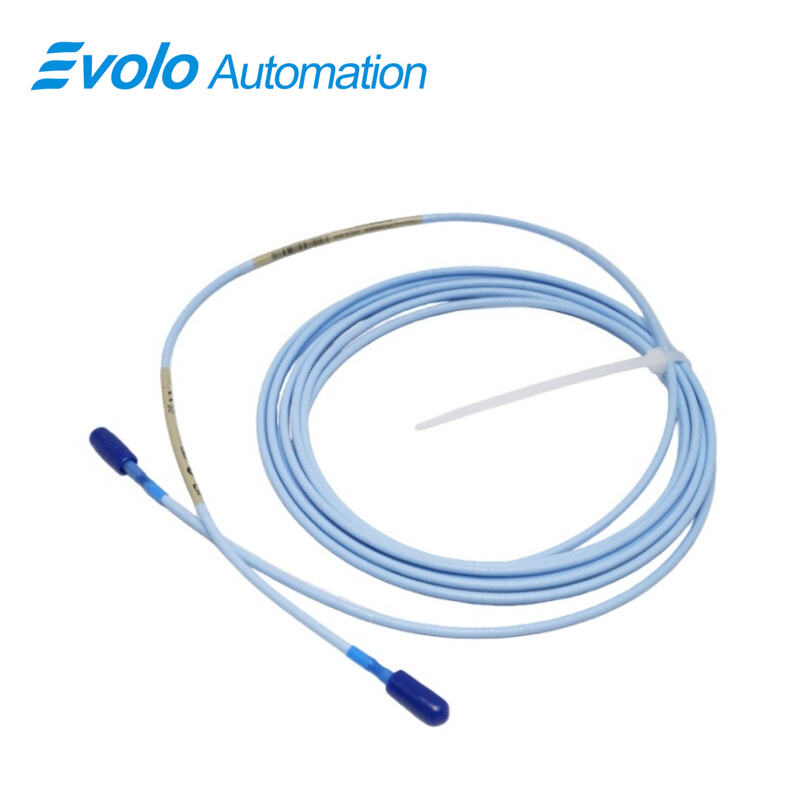

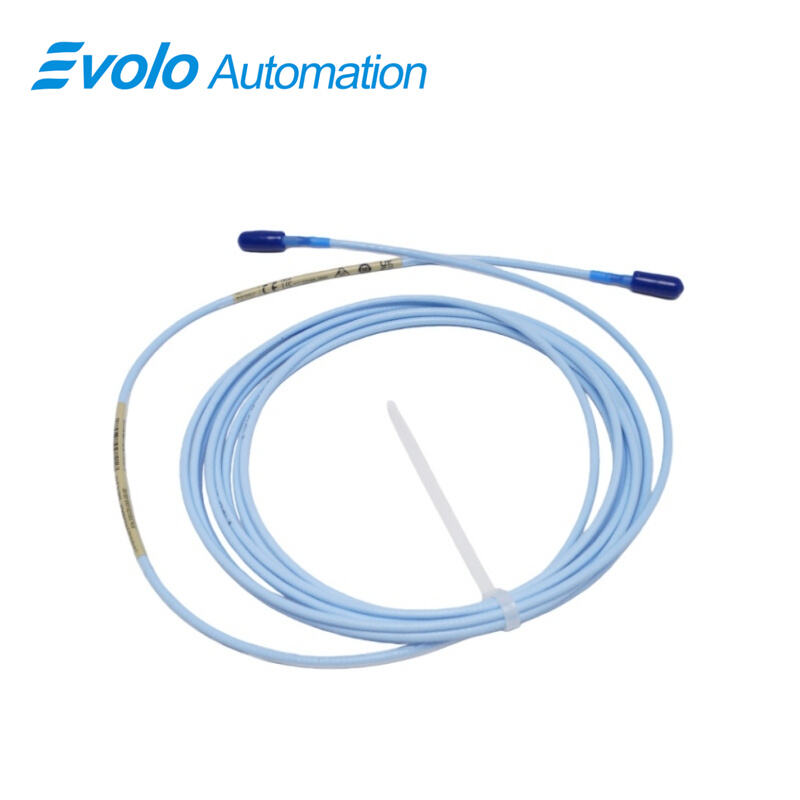

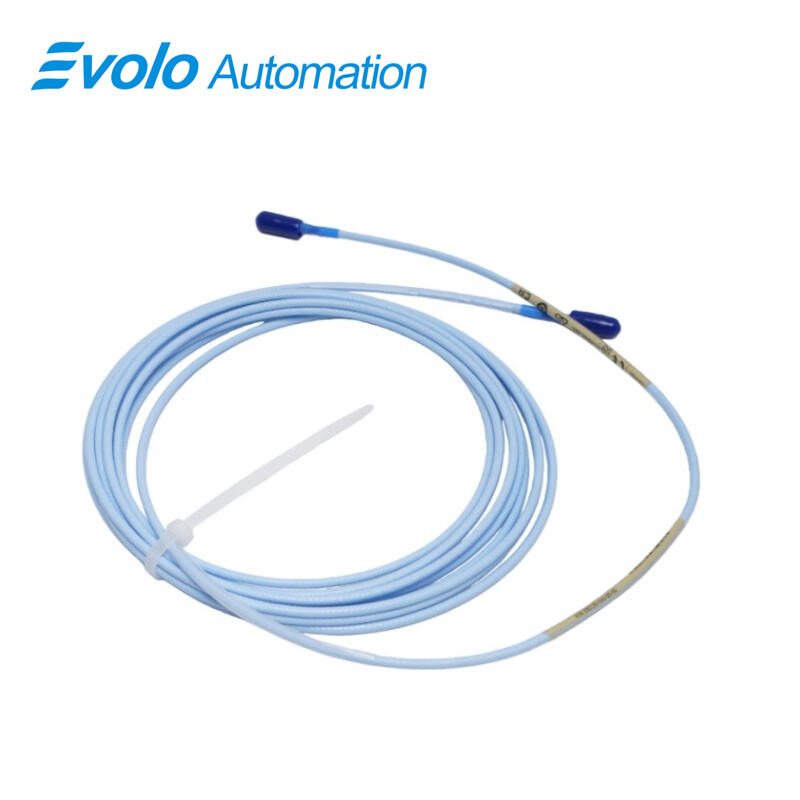

The 330130-045-00-00 3300 XL Standard Extension Cable is a 4.5-meter (14.8 ft) triaxial FEP-insulated cable designed for use with 3300 XL 8 mm proximity transducers. The 330130-045-00-00 3300 XL cable delivers precise signal transmission with 50 Ω output resistance, less than 2 mV/V supply sensitivity, and typical capacitance of 69.9 pF/m (21.3 pF/ft). It supports field wiring from 0.2 to 1.5 mm² (16–24 AWG) and maintains linear range performance of 2 mm (80 mils). The 330130-045-00-00 3300 XL cable enables accurate vibration and position measurement, Keyphasor reference, and speed detection, compatible with 3300 XL 8 mm probes up to 305 meters (1000 ft) of field wiring, and a minimum target size of 15.2 mm (0.6 in) diameter.
Applications
Connect 3300 XL Proximity Probes to Monitoring Systems
The 330130-045-00-00 3300 XL cable links 3300 XL 8 mm probes to Proximitor sensors, ensuring accurate vibration and position signals for fluid-film bearing machines.
Extend Probe Wiring for Remote Installation
The 330130-045-00-00 3300 XL cable provides 4.5-meter extension, allowing probes to be installed in hard-to-reach locations while maintaining linear range of 2 mm (80 mils) and output resistance of 50 Ω.
Transmit Keyphasor and Speed Signals
With typical capacitance of 69.9 pF/m and low supply sensitivity (<2 mV/V), the 330130-045-00-00 3300 XL cable transmits high-fidelity Keyphasor signals for shaft speed and phase monitoring.
Support Long-Distance Wiring
The 330130-045-00-00 3300 XL cable maintains accurate signal output for up to 305 meters (1000 ft) of field wiring, enabling flexible placement of 3300 XL 8 mm probes in industrial machinery.
Specifications
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Frequency Response: |
(0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring |
|
Minimum Target Size: |
15.2 mm (0.6 in) diameter (flat target) |
Competitive Advantage
Deliver Precise Signal Transmission
The 330130-045-00-00 3300 XL cable ensures consistent 50 Ω output and less than 2 mV/V supply sensitivity, preserving signal quality from the probe tip to monitoring equipment.
Support Easy Installation
With field wiring from 0.2 to 1.5 mm² (16–24 AWG) and standard triaxial connectors, the 330130-045-00-00 3300 XL cable can be routed quickly in tight industrial spaces.
Enable Long-Distance Monitoring
The 330130-045-00-00 3300 XL cable allows 3300 XL 8 mm probes to connect over 305 meters (1000 ft) without degrading vibration or position signal accuracy.
