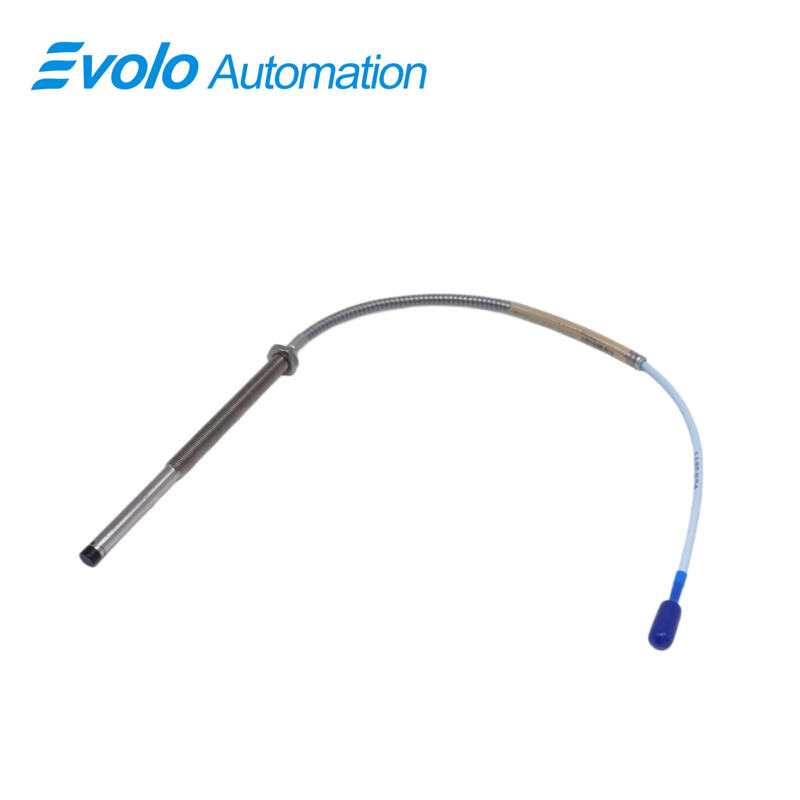

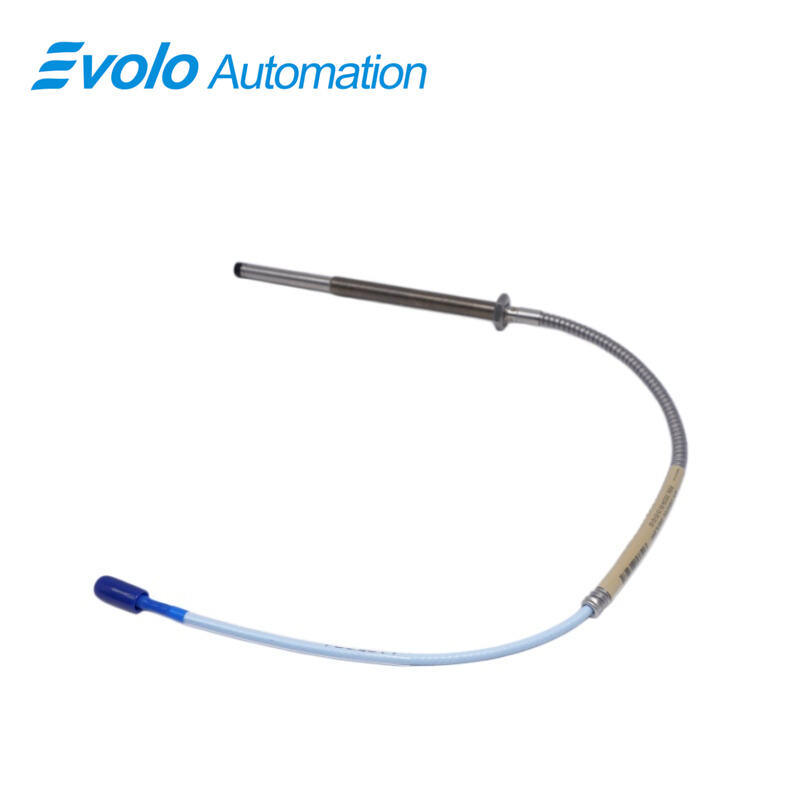

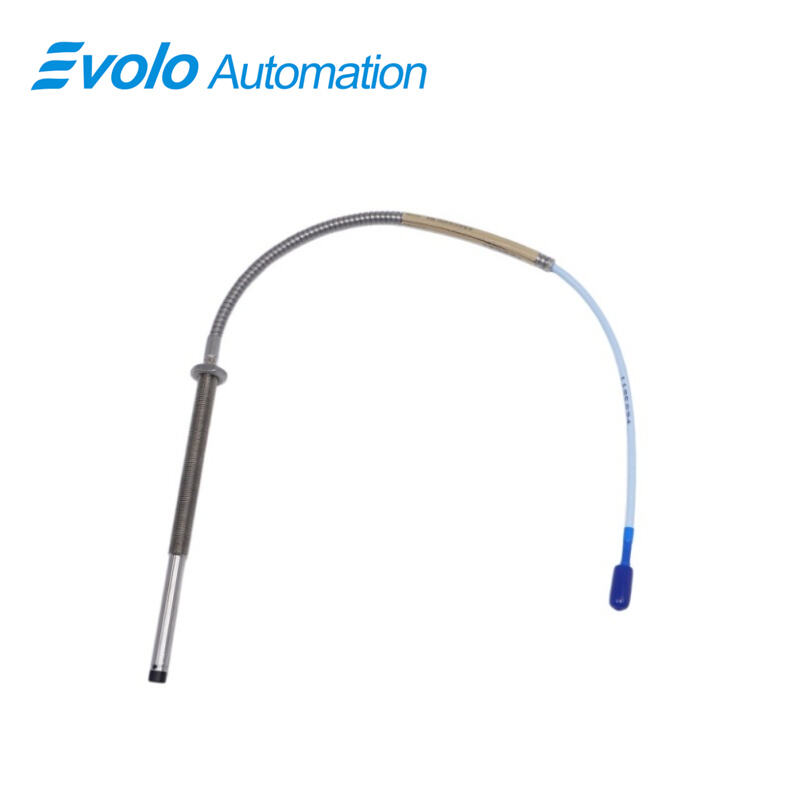

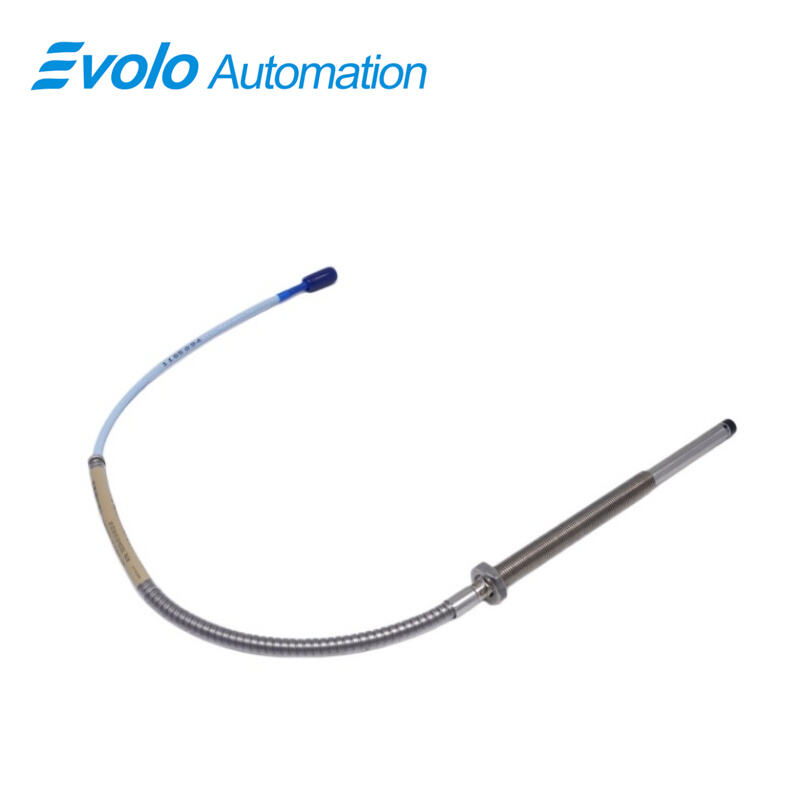

330104-05-15-05-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-05-15-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-05-15-05-02-00 3300 XL 8 mm Proximity Probes provide precise distance measurement between the probe tip and conductive surfaces for both static (position) and dynamic (vibration) monitoring. With 50 mm unthreaded length, 150 mm overall case, 0.5 meter cable, M10x1 thread, and 15 mm maximum thread engagement, the 330104-05-15-05-02-00 3300 XL 8 mm Proximity Probes maintain a 2 mm linear range and 50 Ω output resistance. Miniature coaxial ClickLoc connectors and 69.9 pF/m extension cables support 0.2–1.5 mm² (16–24 AWG) field wiring. Operating from -52°C to +177°C and supply sensitivity under 2 mV per volt, the 330104-05-15-05-02-00 3300 XL 8 mm Proximity Probes are ideal for fluid-film bearing position measurement, vibration detection, Keyphasor reference, and speed monitoring in automation systems. Patented TipLoc and CableLoc designs ensure secure probe attachment, and optional FluidLoc cables prevent oil ingress in rotating machinery.

Applications

Shaft Position Monitoring on Fluid-Film Bearings
The 330104-05-15-05-02-00 3300 XL 8 mm Proximity Probes detect shaft displacement using a 2 mm linear range. With 50 mm unthreaded length and 150 mm case, the probes can be installed precisely to track bearing alignment in automation systems.

Dynamic Vibration Detection
Equipped with 0.5 meter cable, M10x1 thread, and 50 Ω output resistance, the 330104-05-15-05-02-00 3300 XL 8 mm Proximity Probes measure vibration patterns of rotating machinery and provide signals for Keyphasor reference and speed monitoring.

Speed Reference and Keyphasor Signal Generation
The miniature coaxial ClickLoc connector and 69.9 pF/m extension cables enable the 330104-05-15-05-02-00 3300 XL 8 mm Proximity Probes to deliver precise Keyphasor and speed reference outputs for industrial automation control.

Specifications

Competitive Advantage

Voltage Output Directly Linked to Probe Distance
The 330104-05-15-05-02-00 3300 XL 8 mm Proximity Probes generate voltage proportional to the 2 mm linear range, enabling accurate monitoring of both position and vibration without extra signal processing.

Enhanced Mechanical Security
With 50 mm unthreaded length, 150 mm case, M10x1 threading, and 15 mm max engagement, the 330104-05-15-05-02-00 3300 XL 8 mm Proximity Probes use TipLoc and CableLoc designs to handle pull forces up to 330 N in heavy-duty machinery.

High and Low Temperature Operation
Operating from -52°C to +177°C, the 330104-05-15-05-02-00 3300 XL 8 mm Proximity Probes maintain measurement reliability in extreme industrial temperature conditions.

Accurate Signal Under Supply Variations
Output voltage fluctuation remains below 2 mV per volt of input, and with 50 Ω resistance plus 69.9 pF/m cable capacitance, the 330104-05-15-05-02-00 3300 XL 8 mm Proximity Probes provide stable readings in automated control and vibration monitoring systems.

Flexible Field Wiring
Supporting 0.2–1.5 mm² (16–24 AWG) field wiring with a 0.5 meter cable, the 330104-05-15-05-02-00 3300 XL 8 mm Proximity Probes can be installed efficiently in complex industrial setups.
