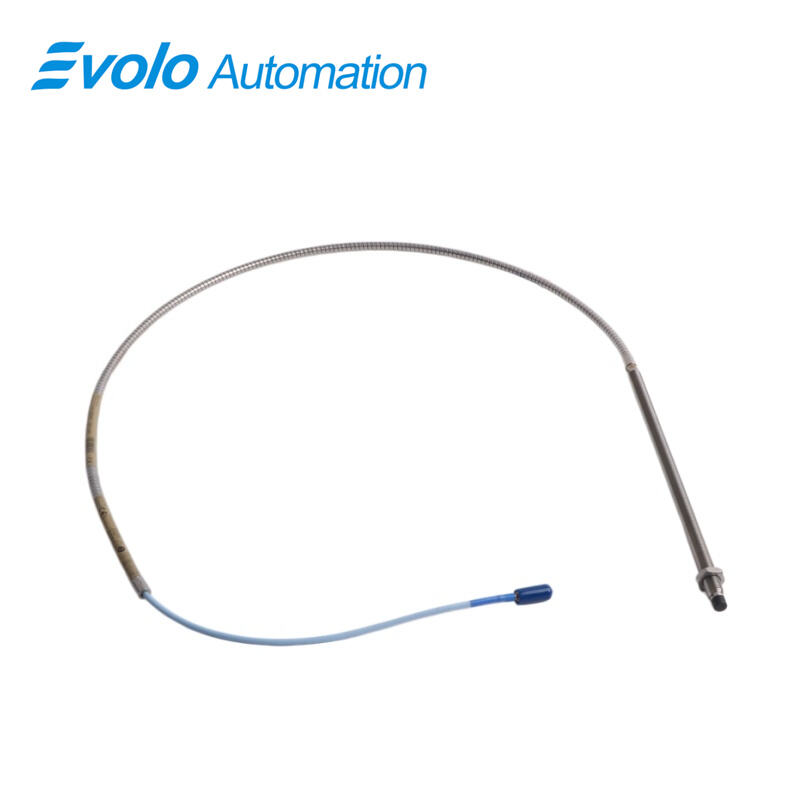

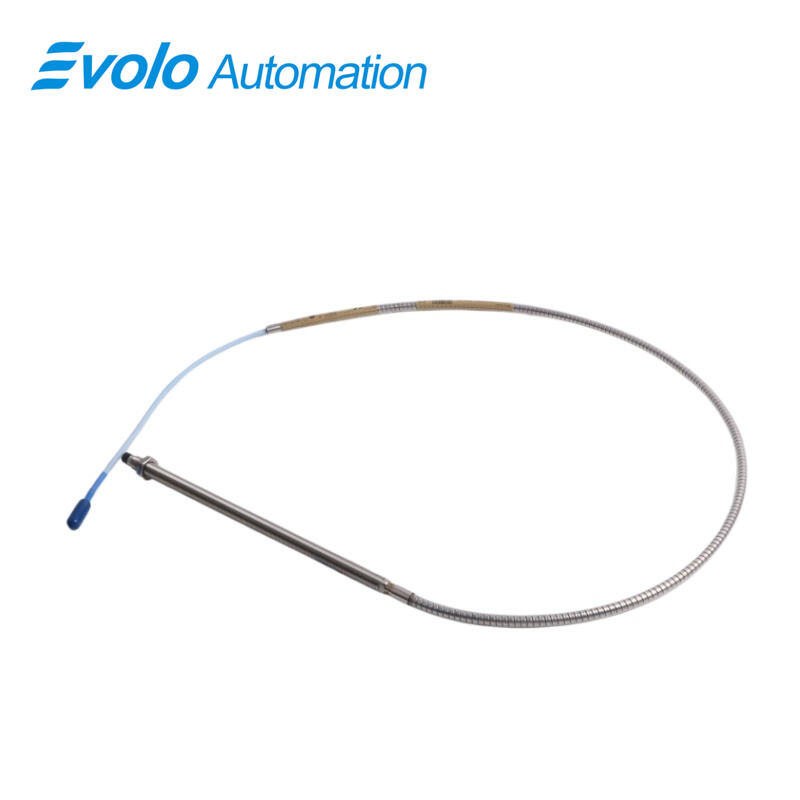

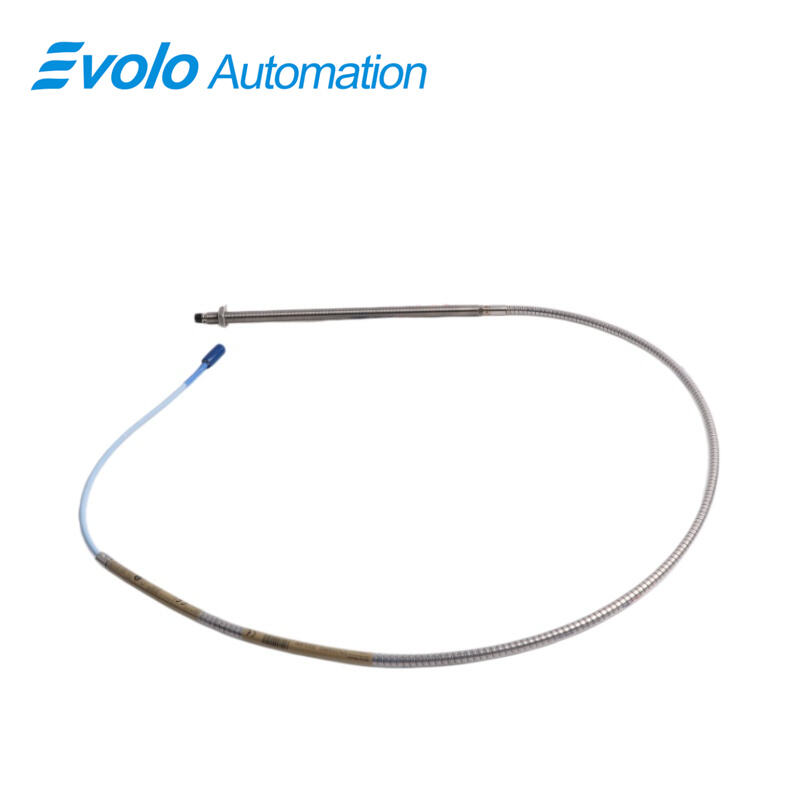

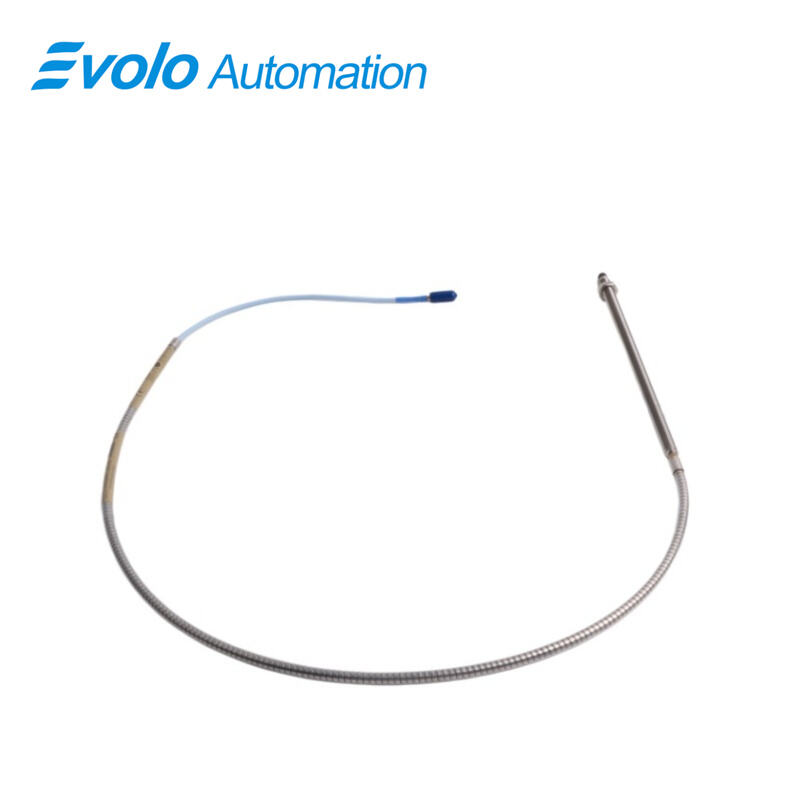

330104-00-22-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-22-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-22-10-02-05 3300 XL 8 mm Proximity Probe measures precise distances between the probe tip and conductive surfaces, enabling automated shaft position and vibration monitoring. With an overall case length of 220 mm, total length of 1.0 meter, and M10x1 probe thread, the 330104-00-22-10-02-05 provides a 2 mm linear range and 50 Ω output resistance. Its miniature coaxial ClickLoc connector and standard cable allow integration with Proximitor sensors in automated machinery. Operating from -52°C to +177°C, the 330104-00-22-10-02-05 maintains less than 2 mV output change per volt input variation. Extension cable capacitance is 69.9 pF/m, and field wiring accepts 0.2–1.5 mm², supporting real-time position and vibration data collection. Patented TipLoc and CableLoc designs secure the probe tip and cable with 330 N pull strength. Optional FluidLoc cables prevent fluid leaks, and CSA, ATEX, and IECEx approvals enable deployment in industrial automation environments. The 330104-00-22-10-02-05 3300 XL 8 mm Proximity Probe is designed for vibration analysis, shaft position measurement, and Keyphasor speed monitoring in automated systems.

Applications

Monitor Shaft Position in Automated Machinery
The 330104-00-22-10-02-05 measures shaft displacement with a 2 mm linear range and 50 Ω output resistance, enabling real-time position control in fluid-film bearing systems.

Perform Vibration Analysis on Rotating Equipment
With less than 2 mV output change per volt input, the 330104-00-22-10-02-05 captures dynamic vibration signals from turbines, pumps, and compressors for automated fault detection.

Generate Keyphasor Signals for Speed Measurement
The 330104-00-22-10-02-05 provides accurate Keyphasor output via its miniature coaxial ClickLoc connector and 1.0-meter cable, supporting automated rotational speed monitoring.

Operate in High Temperature Environments
Operating from -52°C to +177°C, the 330104-00-22-10-02-05 delivers consistent output for automated control systems in high-temperature industrial conditions.

Integrate into Automated Sensor Networks
With field wiring of 0.2–1.5 mm² and extension cable capacitance of 69.9 pF/m, the 330104-00-22-10-02-05 can be installed quickly in complex automation layouts.

Specifications

Competitive Advantage

Direct Voltage Output for Automated Control Systems
The 330104-00-22-10-02-05 outputs a voltage directly proportional to probe-to-surface distance, allowing control systems to measure positions within 2 mm with 50 Ω resistance for precise digital processing.

Robust Probe and Cable Attachment
Patented TipLoc and CableLoc designs on the 330104-00-22-10-02-05 provide 330 N pull strength, ensuring secure cable and probe connection in automated machinery.

Certified for Hazardous Environments
With CSA, ATEX, and IECEx approvals, the 330104-00-22-10-02-05 can be deployed in industrial automation zones requiring certified components.

Compact Design for Tight Mounting Spaces
At 220 mm overall length with M10x1 thread, the 330104-00-22-10-02-05 fits into confined machine layouts while delivering precise vibration and shaft position measurements.
