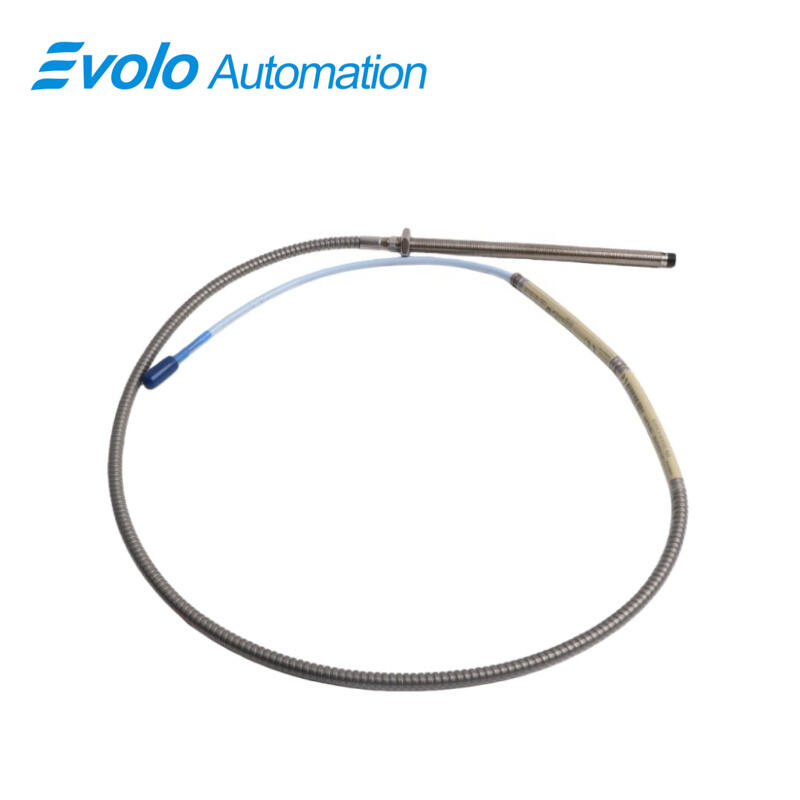

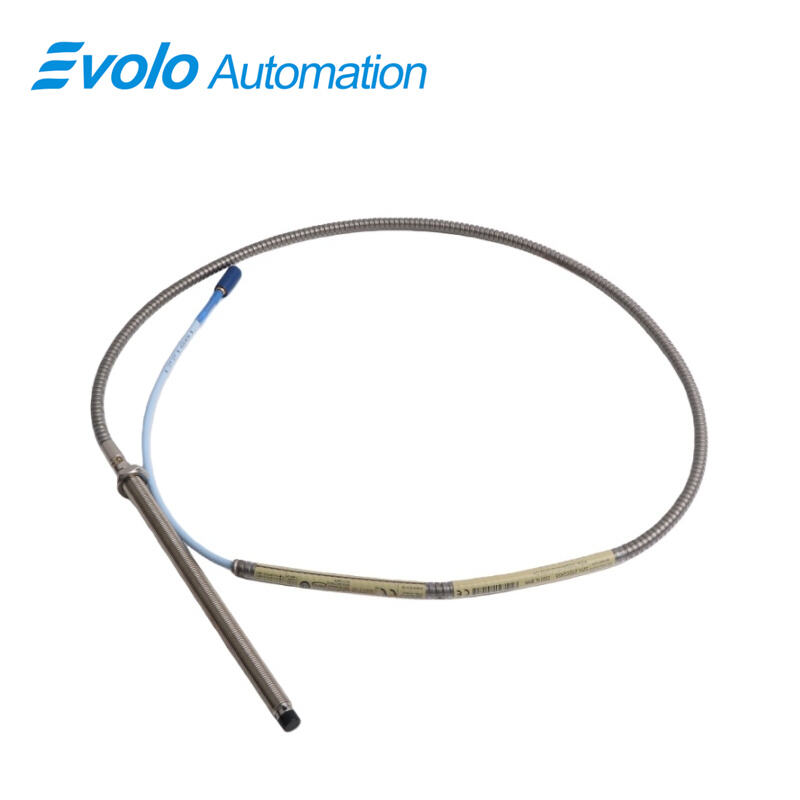

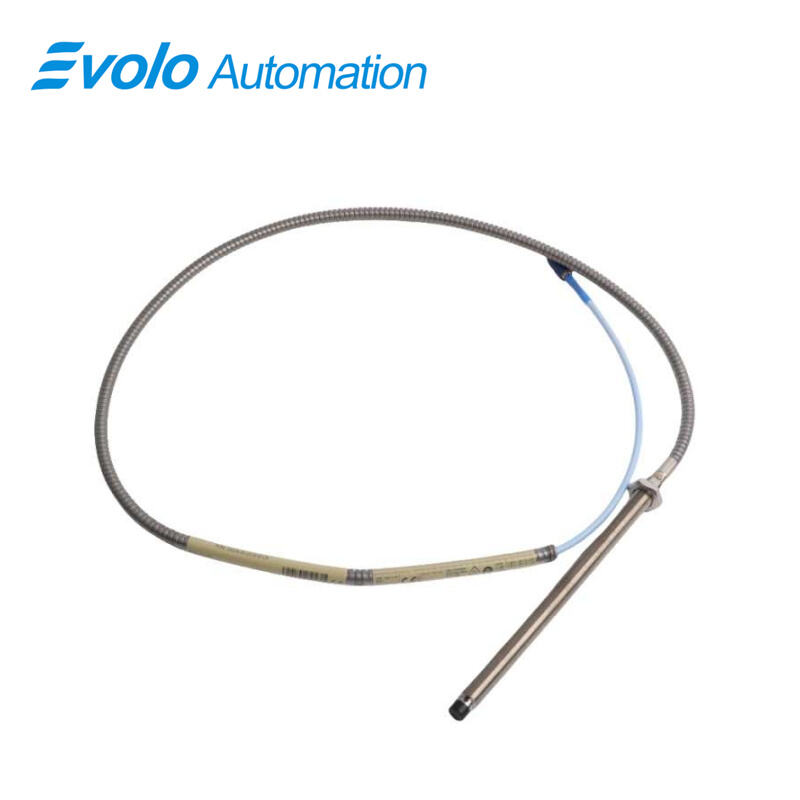

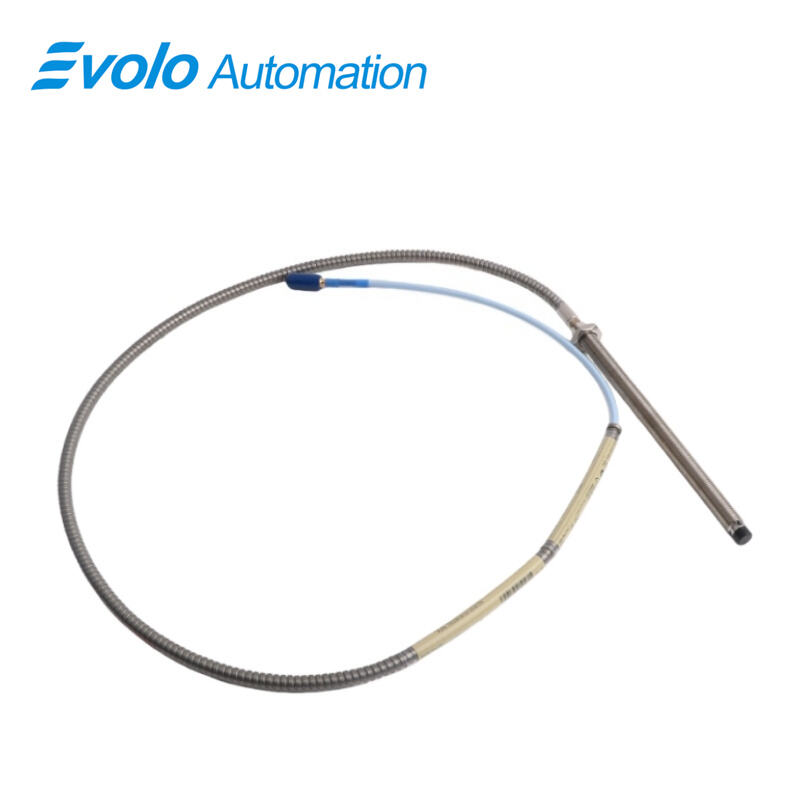

330104-00-16-10-02-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-16-10-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-16-10-02-CN 3300 XL 8 mm Proximity Probe delivers an output voltage proportional to the distance between the probe tip and the conductive surface, supporting both static position and dynamic vibration measurements in automated systems. The probe features a 2 mm linear range, 50 Ω output resistance, and standard 1-meter length, making it suitable for integration into PLCs and DCS platforms. With a miniature coaxial ClickLoc connector and field wiring of 0.2 to 1.5 mm², the 330104-00-16-10-02-CN 3300 XL 8 mm Proximity Probe enables rapid installation and secure signal transmission. Operating temperatures from –52°C to +177°C and extension cable capacitance of 69.9 pF/m support continuous monitoring in harsh industrial environments. This probe is CSA, ATEX, and IECEx approved, allowing deployment in automated plants requiring certification compliance. The 330104-00-16-10-02-CN 3300 XL 8 mm Proximity Probe also benefits from a robust M10x1 threaded case and patented TipLoc and CableLoc designs, providing strong probe-to-cable attachment and optional FluidLoc protection to prevent oil ingress. Backward compatibility with other 3300 XL series components ensures flexibility for automated system upgrades, shaft alignment measurements, vibration analysis, and speed detection without recalibration of the system.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330104-00-16-10-02-CN 3300 XL 8 mm Proximity Probe measures dynamic vibration on journal and thrust bearings, using its 2 mm linear range and high sensitivity (<2 mV change per volt supply) to detect shaft movement in real-time.

Position Tracking in Rotating Machinery
With output voltage proportional to shaft position, the 330104-00-16-10-02-CN 3300 XL 8 mm Proximity Probe supports automated position measurement for rotor alignment and shaft displacement in turbines and pumps.

Keyphasor Reference for Speed Measurement
The 330104-00-16-10-02-CN 3300 XL 8 mm Proximity Probe provides precise pulse signals for Keyphasor systems, enabling rotational speed detection and synchronization in automated control systems.

Extended Cable Integration in Automation Systems
Equipped with a 1.0-meter standard or extended FluidLoc cable, the 330104-00-16-10-02-CN 3300 XL 8 mm Proximity Probe integrates with PLCs, DCS, or remote monitoring platforms for automated signal acquisition.

Specifications

Competitive Advantage

High Temperature and Harsh Environment Capability
The 330104-00-16-10-02-CN 3300 XL 8 mm Proximity Probe operates between –52°C and +177°C, allowing deployment in high-heat and industrial chemical environments without signal degradation.

Robust Mechanical Attachment
With M10x1 threaded case, patented TipLoc molding, and CableLoc design (330 N pull strength), the 330104-00-16-10-02-CN 3300 XL 8 mm Proximity Probe ensures secure probe-to-cable connection, preventing accidental detachment during automated operation.

Compliance and Interchangeability
CSA, ATEX, and IECEx approvals, combined with backward compatibility with other 3300 XL series probes, allow automated systems to upgrade or replace components without recalibration.

Precise Signal Transmission
With 50 Ω output resistance and low extension cable capacitance (69.9 pF/m), the 330104-00-16-10-02-CN 3300 XL 8 mm Proximity Probe delivers accurate voltage signals for automated vibration and position measurement systems.
