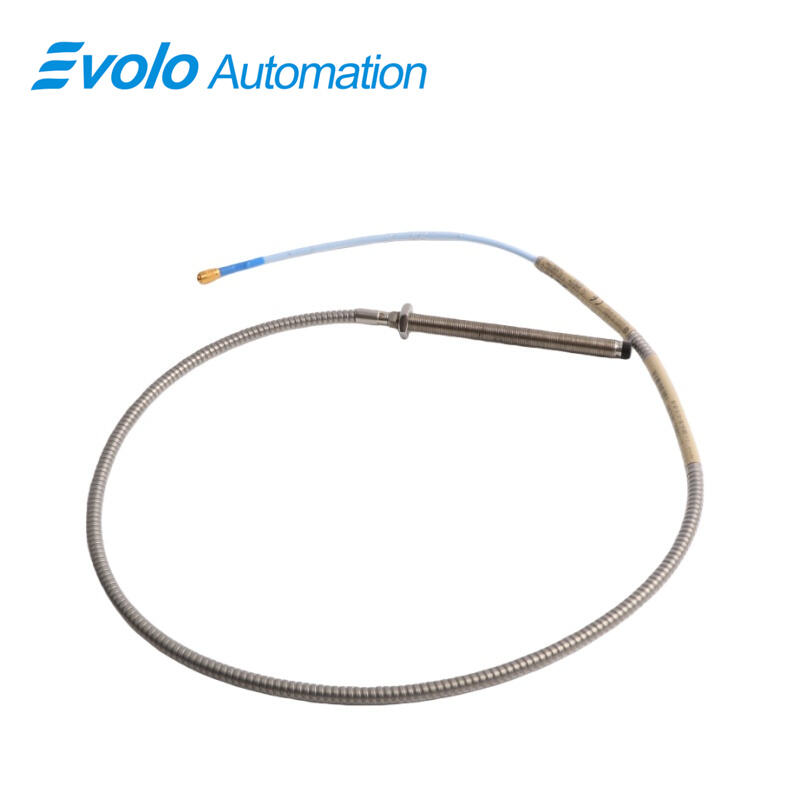

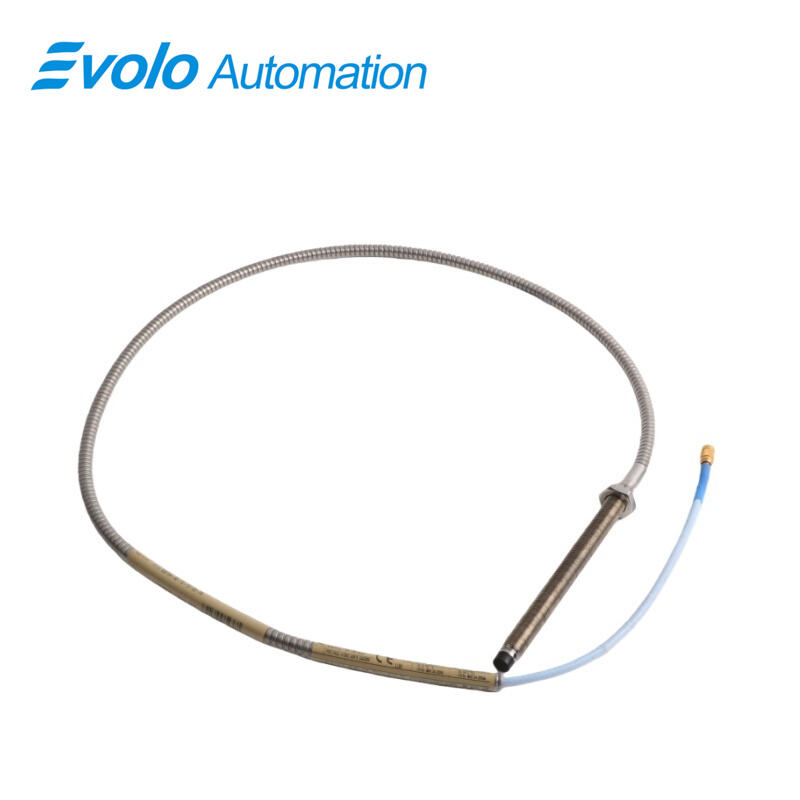

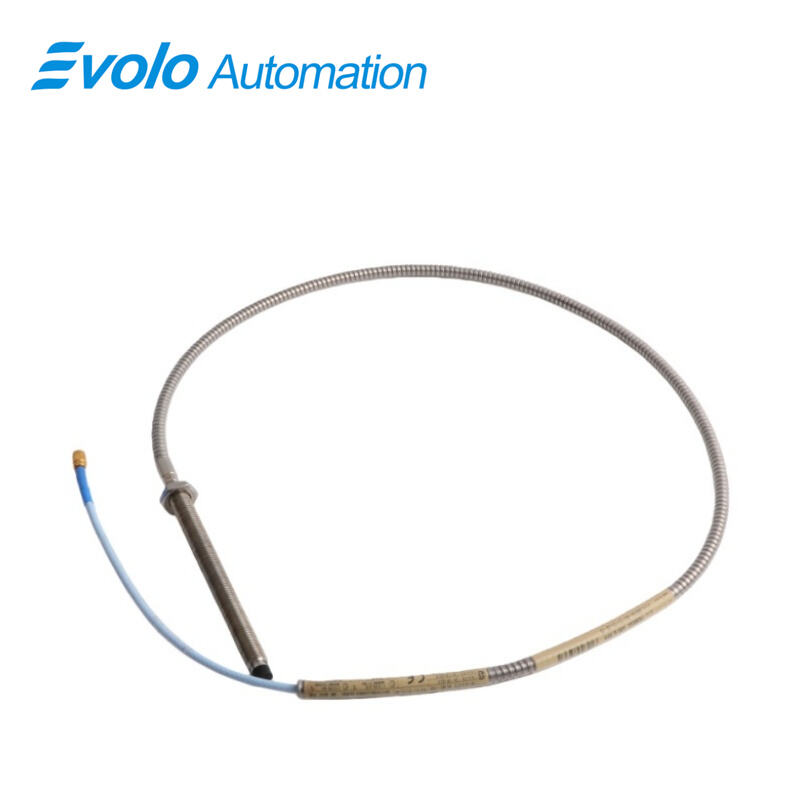

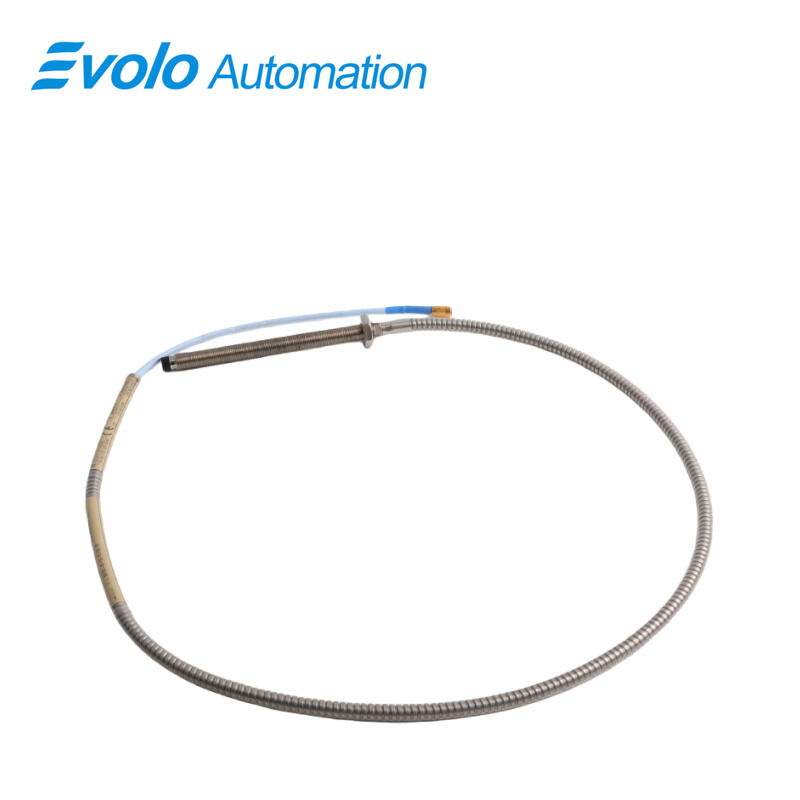

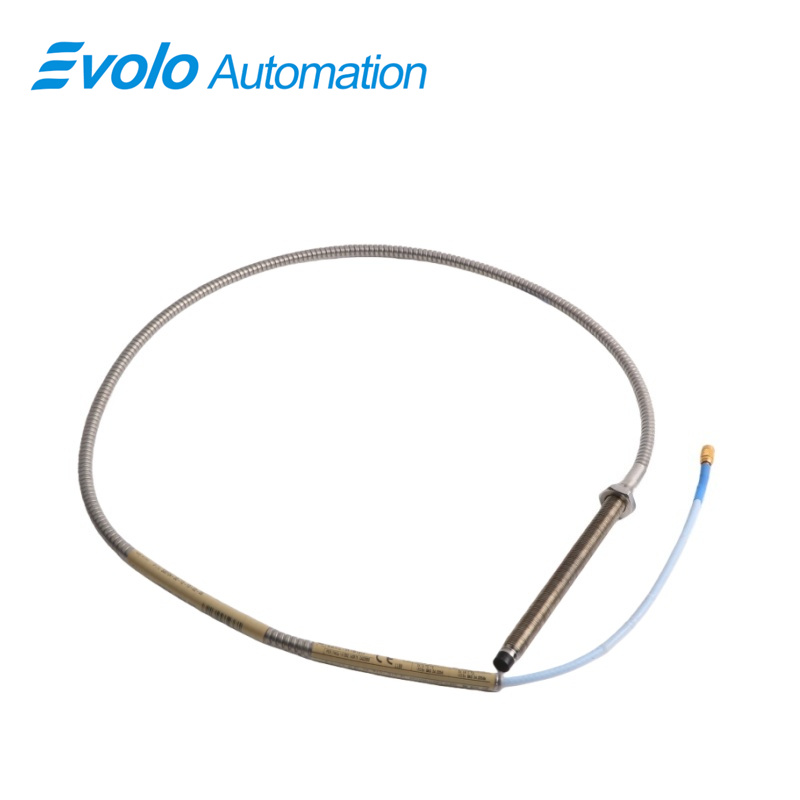

330104-00-12-10-02-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-12-10-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-12-10-02-CN 3300 XL 8 mm Proximity Probe converts the distance between the probe tip and a conductive surface into a proportional voltage signal for automated monitoring of position, vibration, and speed in rotating machinery. The 330104-00-12-10-02-CN features an M10×1 threaded case with 0 mm unthreaded length, 120 mm overall case length, and 15 mm maximum thread engagement, enabling precise installation near bearings. Its 1.0-meter miniature coaxial ClickLoc cable transmits signals with 50 Ω output resistance and 69.9 pF/m capacitance. The 330104-00-12-10-02-CN operates across –52°C to +177°C, providing a 2 mm linear range and supply sensitivity below 2 mV per volt for consistent automation signals. This probe integrates seamlessly with Keyphasor speed references, radial vibration detection, and axial shaft displacement measurement, making the 330104-00-12-10-02-CN ideal for automated fluid-film bearing systems. Optional CSA, ATEX, and IECEx approvals allow the 330104-00-12-10-02-CN to be deployed in industrial environments requiring certified probes.

Applications

Measure Axial Shaft Position in Turbines

The 330104-00-12-10-02-CN 3300 XL 8 mm Proximity Probe is installed near thrust bearings to capture precise axial shaft displacement. Its 2 mm linear range and 50 Ω output resistance provide accurate voltage signals. The 1.0-meter ClickLoc cable of the 330104-00-12-10-02-CN ensures reliable signal transfer to automation controllers for real-time shaft alignment monitoring.

Detect Radial Vibration in Pumps

Mounted beside journal bearings, the 330104-00-12-10-02-CN measures radial vibration caused by imbalance or wear. The probe’s 69.9 pF/m cable capacitance and M10×1 threaded case allow secure installation and accurate transmission of vibration data to PLCs and data acquisition systems.

Generate Keyphasor Speed Reference

The 330104-00-12-10-02-CN delivers electrical pulses as the shaft rotates, providing Keyphasor speed feedback for compressors, turbines, and motors. Supply sensitivity under 2 mV/V allows consistent speed reference output to automation and control systems.

Specifications

Competitive Advantage

Easy Mounting in Confined Spaces

The 330104-00-12-10-02-CN has a 120 mm case length and 0 mm unthreaded section, enabling direct installation in compact bearing housings without modifying the machine structure.

Operate in High-Temperature Environments

The 330104-00-12-10-02-CN operates from –52°C to +177°C, allowing installation near hot bearings. Automation systems can continuously measure position and vibration without relocating sensors.

Deliver Consistent Electrical Signals

The 330104-00-12-10-02-CN combines 50 Ω output resistance, 69.9 pF/m cable capacitance, and low supply sensitivity (<2 mV/V) to provide repeatable voltage signals. Control systems receive reliable data for automated shaft monitoring, vibration analysis, and speed measurement.
