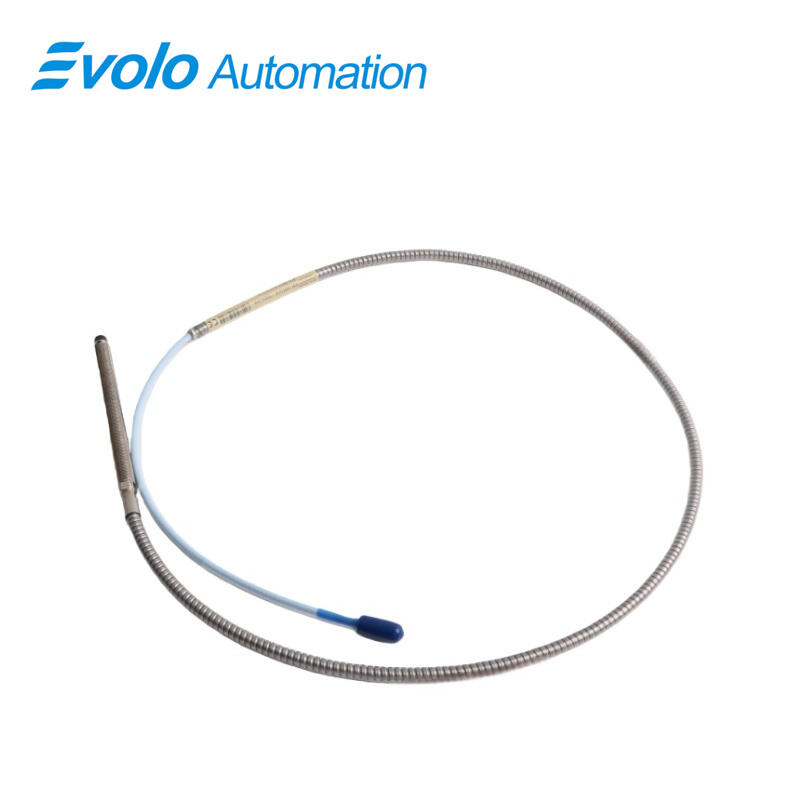

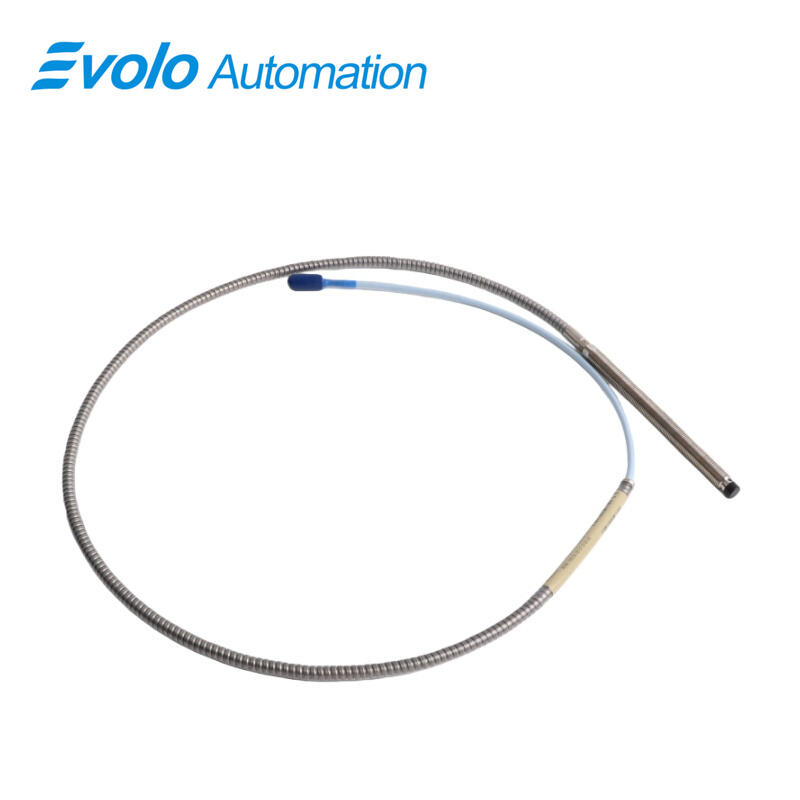

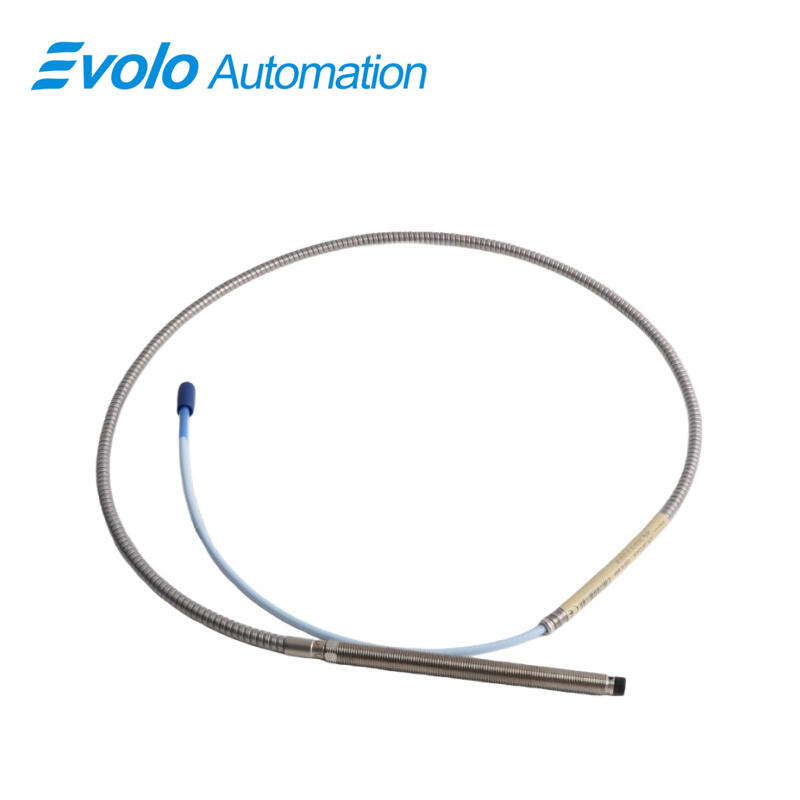

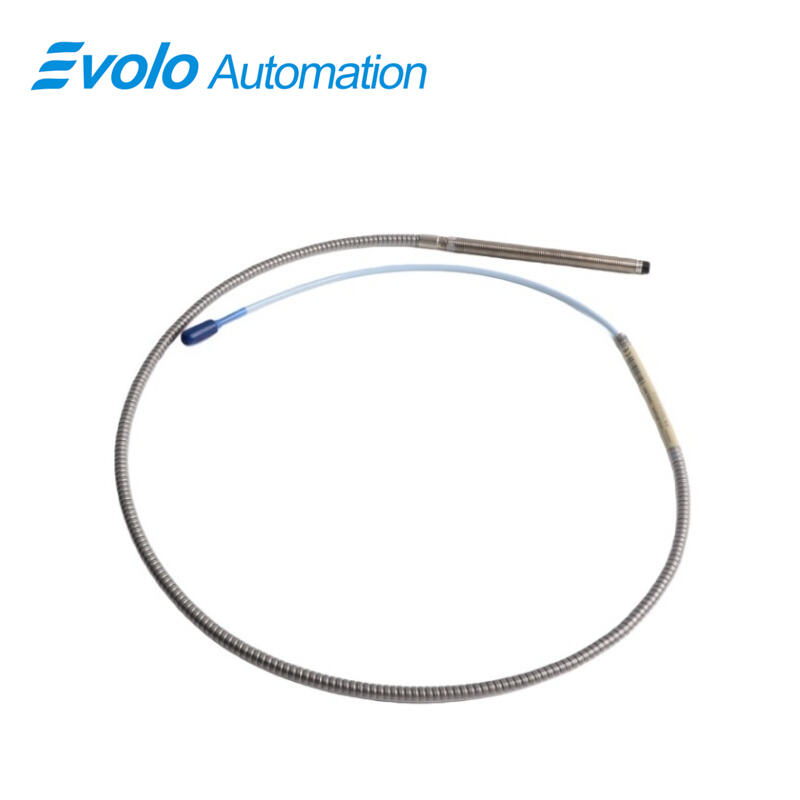

330104-00-12-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-12-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-12-10-02-00 3300 XL 8 mm Proximity Probe is an eddy current sensor for automated shaft position and vibration measurement in rotating machinery. The 330104-00-12-10-02-00 converts the distance between the probe tip and a conductive surface into a proportional voltage signal, enabling automation systems to monitor real-time shaft movement and vibration.

The 330104-00-12-10-02-00 features an M10×1 threaded probe body with 0 mm unthreaded section and maximum thread engagement of 15 mm, allowing precise mounting near bearings. Its overall case length of 120 mm and 1.0-meter standard cable with miniature coaxial ClickLoc connector allows the 330104-00-12-10-02-00 to transmit clean signals to monitoring modules in compact machinery.

Operating from –52°C to +177°C, the 330104-00-12-10-02-00 provides a 2 mm linear range, 50 Ω output resistance, supply sensitivity below 2 mV per volt, and typical cable capacitance of 69.9 pF/m. These parameters allow the 330104-00-12-10-02-00 to deliver repeatable voltage signals for automated shaft position tracking, vibration analysis, and Keyphasor speed reference input in industrial automation systems.

Applications

Measure Axial Shaft Position in Turbines

The 330104-00-12-10-02-00 3300 XL 8 mm Proximity Probe is installed near thrust bearings to measure axial shaft displacement. The 2 mm linear range of the 330104-00-12-10-02-00 allows automation systems to detect precise movements. Its 50 Ω output resistance ensures accurate voltage signals, and the 1.0-meter ClickLoc cable delivers consistent readings to control modules for automated shaft alignment.

Capture Radial Vibration in Pumps

Mounted adjacent to journal bearings, the 330104-00-12-10-02-00 monitors radial vibration caused by imbalance or wear. The 69.9 pF/m cable capacitance of the 330104-00-12-10-02-00 enables precise signal transmission to vibration analyzers. The M10×1 threaded body with 15 mm thread engagement allows stable positioning for reliable monitoring in automated systems.

Provide Keyphasor Speed Reference

The 330104-00-12-10-02-00 paired with a rotating target produces speed pulses for compressors, turbines, and motors. Supply sensitivity below 2 mV per volt ensures the 330104-00-12-10-02-00 delivers repeatable electrical signals to PLCs and speed reference modules for automated control.

Specifications

Competitive Advantage

Install in Confined Machinery

The 120 mm overall case length and 0 mm unthreaded section allow the 330104-00-12-10-02-00 to fit compact bearing housings. Automation engineers can mount the 330104-00-12-10-02-00 directly without modifying the machine.

Operate in High-Temperature Bearings

The 330104-00-12-10-02-00 withstands temperatures up to +177°C, enabling installation near hot bearing surfaces. This allows automated measurement of shaft position and vibration without relocating sensors.

Deliver Predictable Electrical Signals

The 330104-00-12-10-02-00 combines 50 Ω output resistance, 69.9 pF/m cable capacitance, and low supply sensitivity (<2 mV/V) to produce repeatable voltage signals. Automation systems can rely on the 330104-00-12-10-02-00 for accurate position, vibration, and Keyphasor speed feedback.
