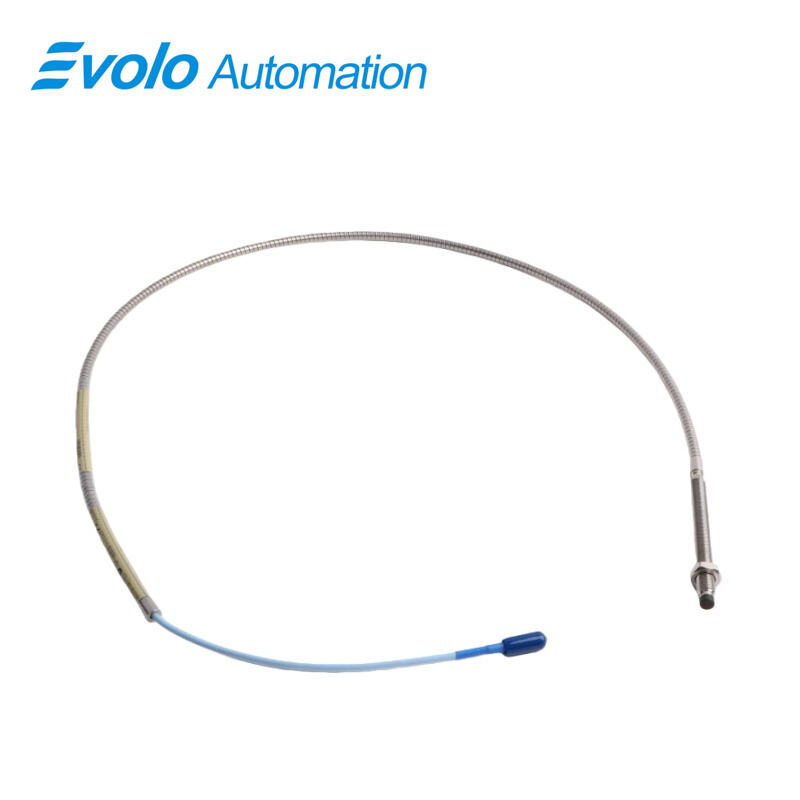

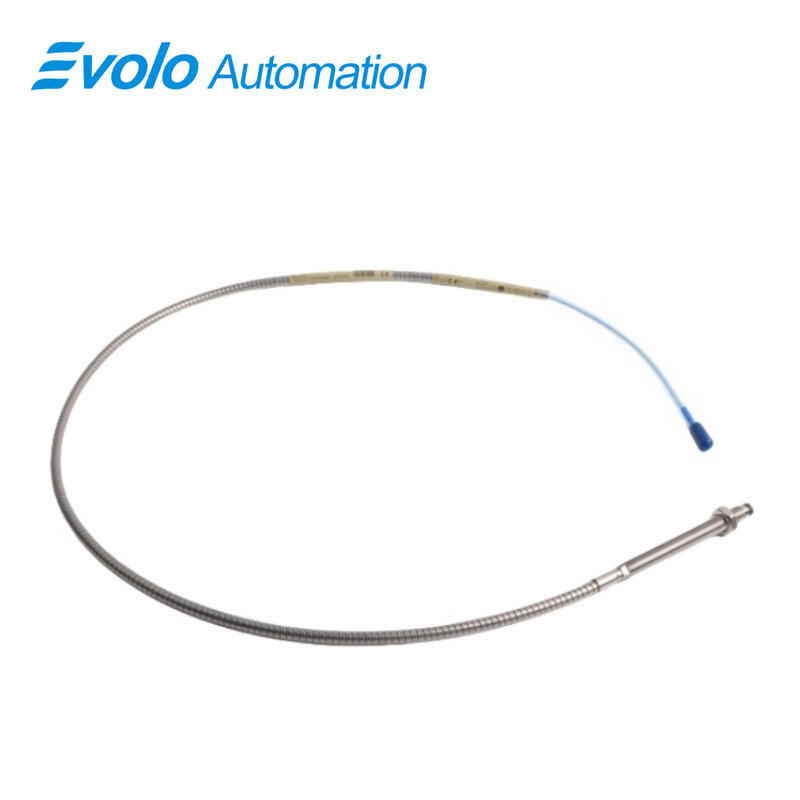

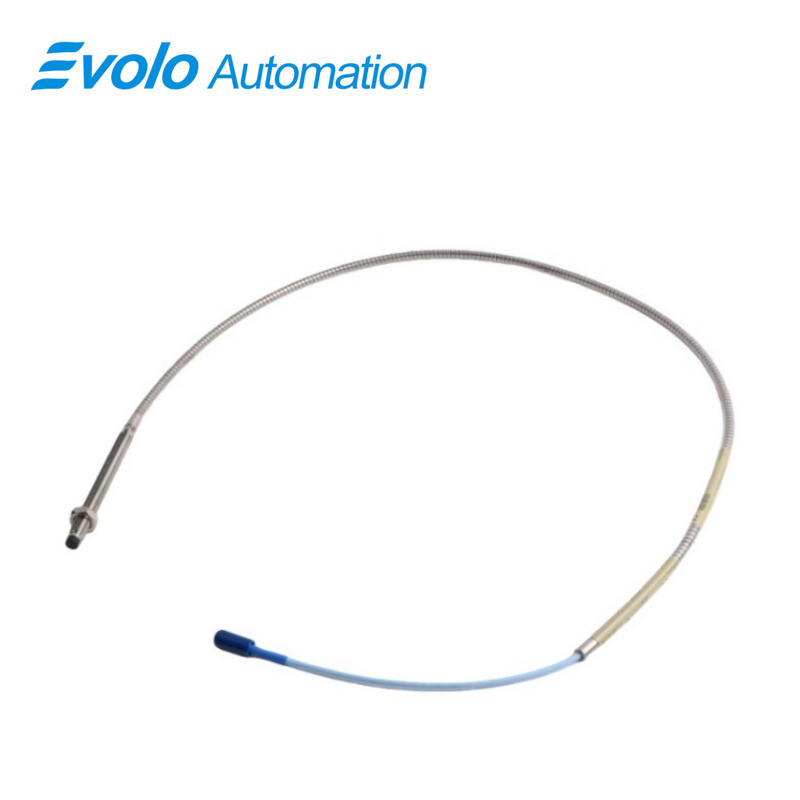

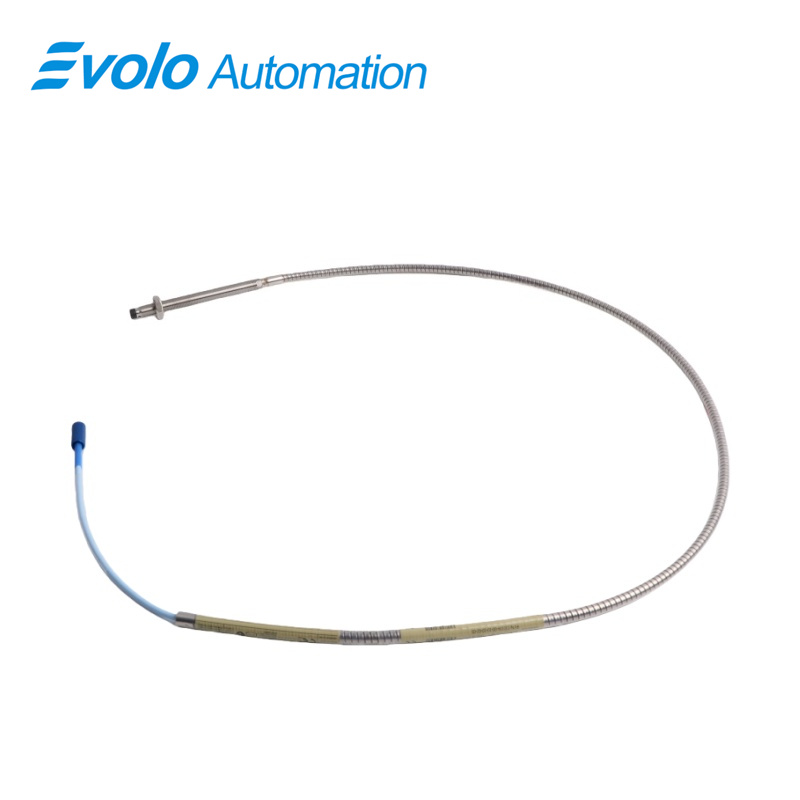

330104-00-10-10-01-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-10-10-01-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-10-10-01-CN 3300 XL 8 mm Proximity Probe is an eddy current sensor designed for automated shaft position and vibration measurement in rotating machinery. The 330104-00-10-10-01-CN generates an output voltage proportional to the distance between the probe tip and a conductive surface, enabling automation systems to capture real-time shaft movement and vibration data.

The 330104-00-10-10-01-CN features an M10×1 threaded probe body with zero unthreaded length and a maximum thread engagement of 15 mm, supporting precise probe mounting near bearings. With an overall case length of 100 mm and a 1.0-meter standard cable, the 330104-00-10-10-01-CN fits compact machine layouts while ensuring secure signal transfer through its miniature coaxial ClickLoc connector with connector protector. CSA, ATEX, and IECEx approvals allow the 330104-00-10-10-01-CN to operate safely in hazardous areas.

Operating from –52°C to +177°C, the 330104-00-10-10-01-CN provides a 2 mm linear range, 50 Ω output resistance, supply sensitivity below 2 mV/V, and typical cable capacitance of 69.9 pF/m. These parameters enable predictable signal behavior for automated monitoring modules, supporting shaft position tracking, vibration measurement, and speed reference input in industrial automation systems.

Applications

Measure Axial Shaft Movement in Compact Turbines

The 330104-00-10-10-01-CN is installed near thrust bearings to measure axial shaft displacement. The 2 mm linear range allows automation systems to detect shaft movement and trigger alarms when it exceeds defined limits.

Capture Radial Vibration in Small Footprint Machines

Mounted near journal bearings, the 330104-00-10-10-01-CN detects radial shaft vibration caused by imbalance or wear. Its 50 Ω output resistance and controlled 69.9 pF/m cable capacitance allow clean transmission of vibration waveforms to monitoring modules.

Provide Speed Reference for Rotating Equipment

When paired with a reference target, the 330104-00-10-10-01-CN generates speed-related signals for compressors, pumps, and generators. Low supply sensitivity below 2 mV/V enables consistent speed signal output despite input voltage variations.

Specifications

Competitive Advantage

Allow Installation in Compact Machinery

The 100 mm case length, zero unthreaded length, and M10×1 thread allow the 330104-00-10-10-01-CN to be installed in confined bearing housings without interfering with nearby components.

Operate in High-Temperature Bearing Zones

With an operating range up to +177°C, the 330104-00-10-10-01-CN can be positioned directly in hot bearing housings, providing continuous measurement data without relocating the probe.

Deliver Predictable Electrical Signals

The 50 Ω output resistance, supply sensitivity below 2 mV per volt, and defined cable capacitance allow the 330104-00-10-10-01-CN to provide consistent signals for automated shaft position, vibration analysis, and speed reference input.
