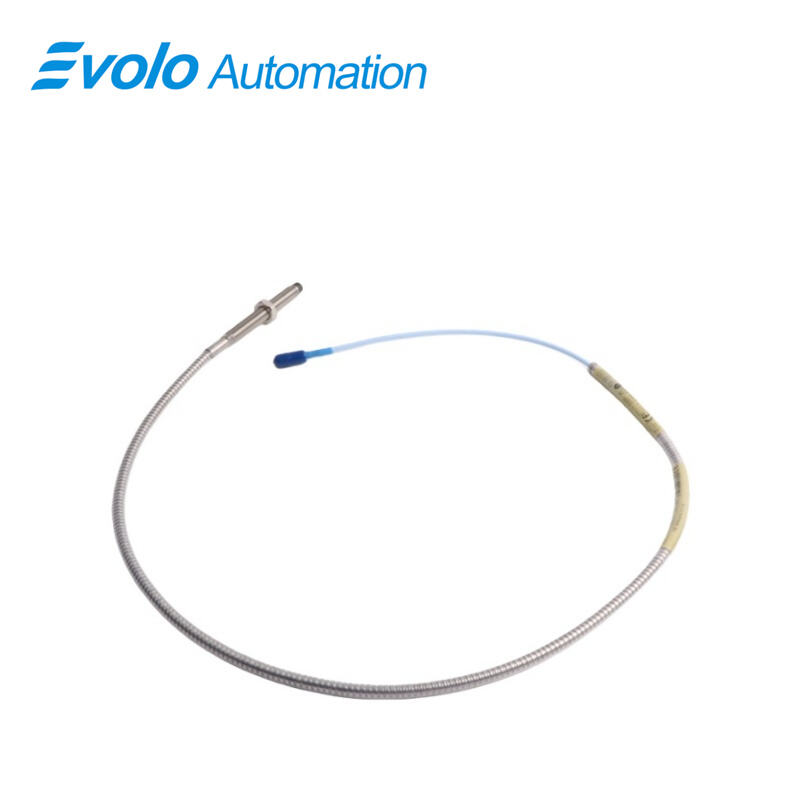

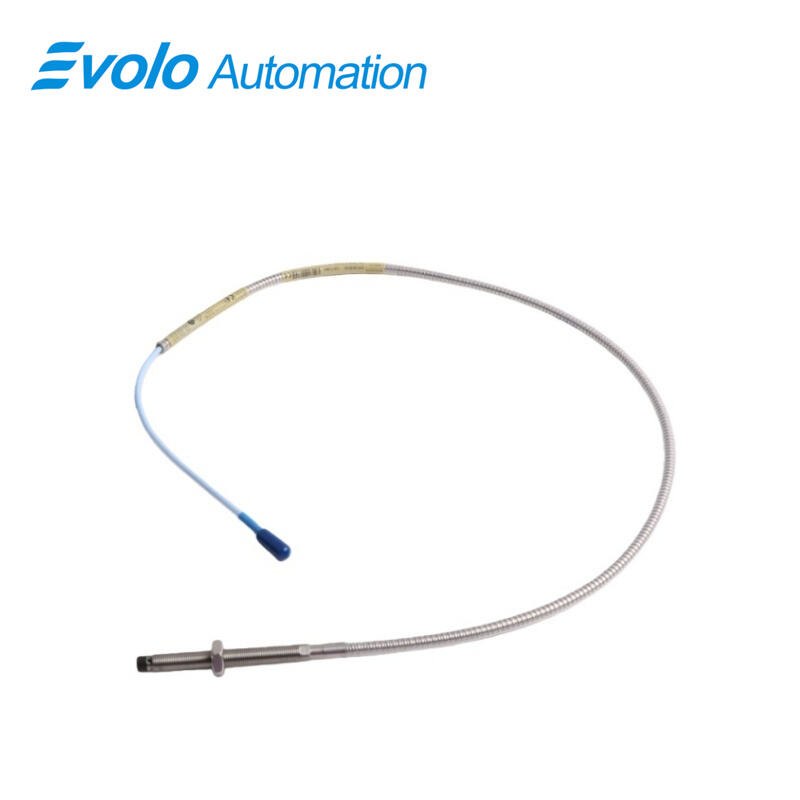

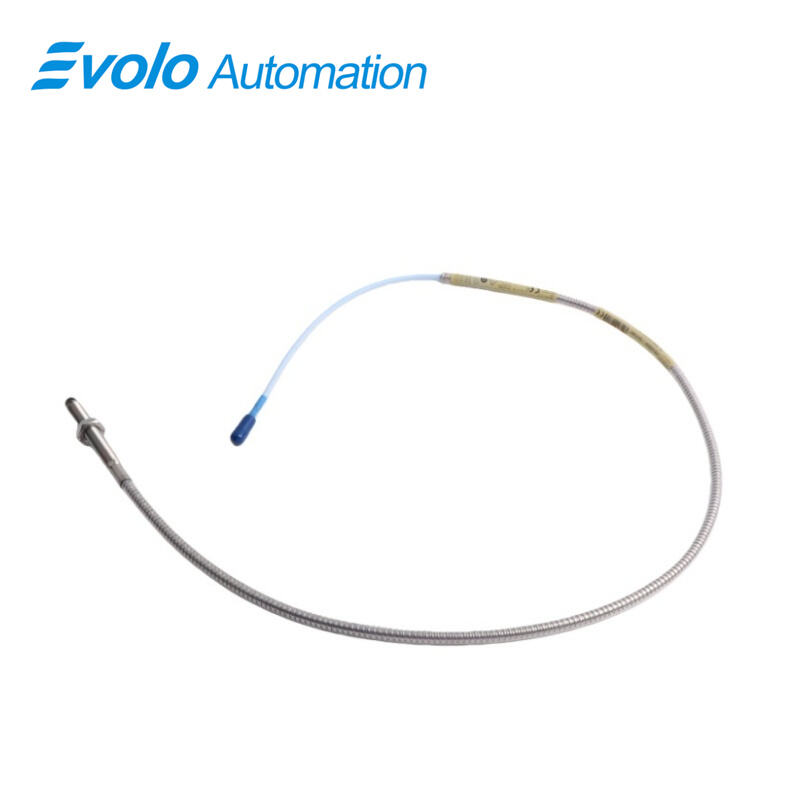

330104-00-08-10-02-CN 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-08-10-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-08-10-02-CN 3300 XL 8 mm Proximity Probe delivers an output voltage proportional to the distance between the probe tip and conductive surfaces, supporting both static position and dynamic vibration measurements. With a 2 mm linear range, 50 Ω output resistance, and less than 2 mV supply sensitivity per volt, the 330104-00-08-10-02-CN 3300 XL 8 mm Proximity Probe ensures precise monitoring in automated machinery. Its M10x1 threaded case, maximum 15 mm thread engagement, and miniature coaxial ClickLoc connector enable quick integration with extension cables up to 1.0 meter. The 330104-00-08-10-02-CN 3300 XL 8 mm Proximity Probe operates in extreme temperatures from -52°C to +177°C and includes CSA, ATEX, IECEx approvals, making it suitable for hazardous automation zones. The probe’s TipLoc molded tip and CableLoc design provide 330 N pull strength, while optional FluidLoc cables prevent oil ingress. Frequent deployment of 330104-00-08-10-02-CN 3300 XL 8 mm Proximity Probe in rotor monitoring, speed measurement, and Keyphasor applications demonstrates its reliability in automated process monitoring and vibration analysis.

Applications

Monitor Rotor Vibration with High Precision
Use the 330104-00-08-10-02-CN 3300 XL 8 mm Proximity Probe to track shaft vibration in fluid-film bearing machines. The 2 mm linear range and 50 Ω output resistance of the 330104-00-08-10-02-CN 3300 XL 8 mm Proximity Probe allow automated systems to detect minor vibration changes in real time, preventing machine downtime.

Measure Shaft Position for Automation Control
The 330104-00-08-10-02-CN 3300 XL 8 mm Proximity Probe provides direct proportional output voltage for shaft displacement, with supply sensitivity under 2 mV/V. Integrate the 330104-00-08-10-02-CN 3300 XL into automated control loops for precise positioning of pumps, turbines, and rotating equipment.

Generate Keyphasor Signals
Deploy the 330104-00-08-10-02-CN 3300 XL 8 mm Proximity Probe as a Keyphasor reference to produce speed and timing signals. The M10x1 probe thread and ClickLoc connector ensure reliable installation in automated monitoring and data acquisition systems.

Enable Automated Fault Detection
The 330104-00-08-10-02-CN 3300 XL 8 mm Proximity Probe outputs accurate dynamic measurements for vibration and position, feeding predictive maintenance algorithms. Use the extension cable capacitance of 69.9 pF/m to integrate multiple probes into automated diagnostics.

Specifications

Competitive Advantage

Accurate Measurement Under Varying Input
The 330104-00-08-10-02-CN 3300 XL 8 mm Proximity Probe maintains output voltage with less than 2 mV change per volt, ensuring automated systems receive consistent and reliable data across variable supply conditions.

Quick and Reliable Installation
With 1.0-meter standard cable and ClickLoc connector, the 330104-00-08-10-02-CN 3300 XL 8 mm Proximity Probe installs easily into automated setups without custom calibration, minimizing downtime during system upgrades.

High-Temperature and Hazard Operation
The 330104-00-08-10-02-CN 3300 XL 8 mm Proximity Probe supports -52°C to +177°C, and CSA, ATEX, IECEx approvals allow automated systems to operate in extreme industrial environments safely.
