330102-00-20-05-01-05 3300 XL 8 mm Proximity Probe , China 330102-00-20-05-01-05 3300 XL 8 mm Proximity Probe Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-20-05-01-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Unthreaded Length Option(Minimum unthreaded length):	0.0 in
Overall Case Length Option(Minimum case length):	2.0 in
Total Length Option:	0.5 meter (1.6 feet)
Connector and Cable-Type Option:	Miniature coaxial ClickLoc connector with connector protector, standard cable
Agency Approval Option:	CSA, ATEX, IECEx Approvals
Probe Case Thread:	3/8-24 UNF thread
Maximum Length of Thread Engagement:	0.563 in
Dimension:	1.5x1.2x120cm
Weight:	0.15kg

Description

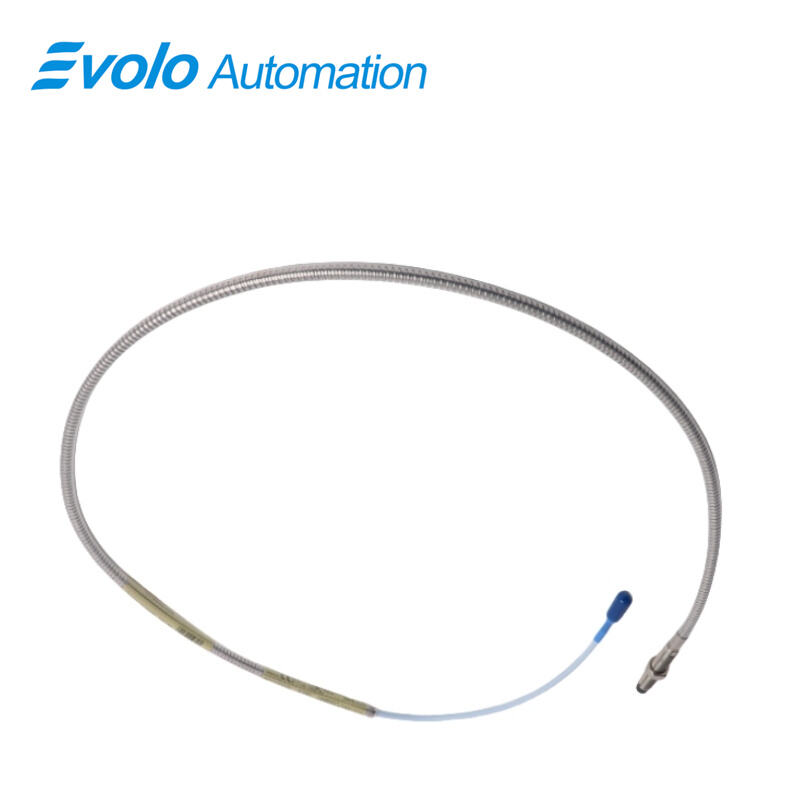

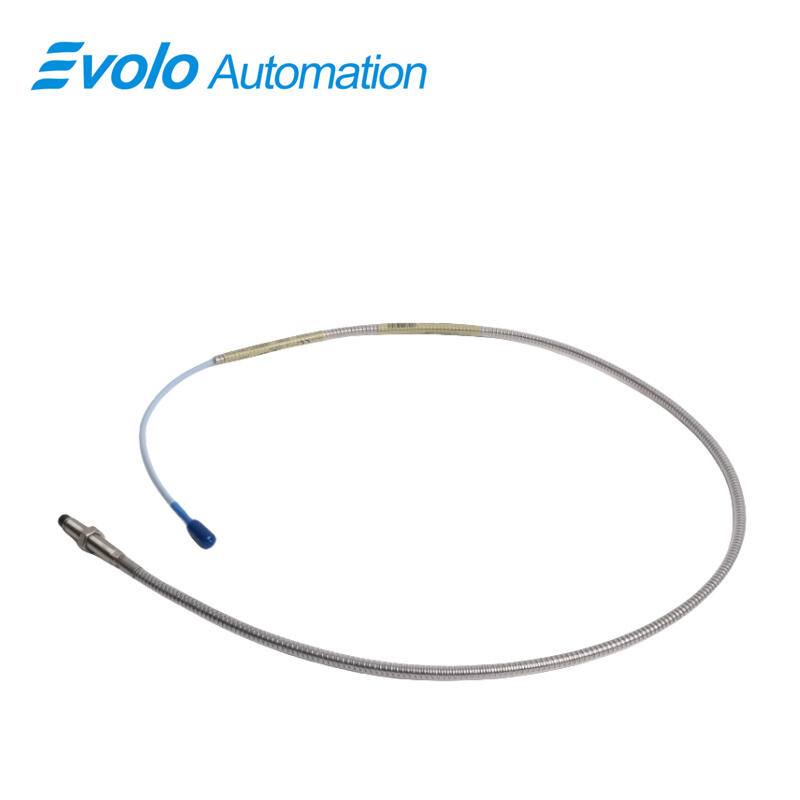

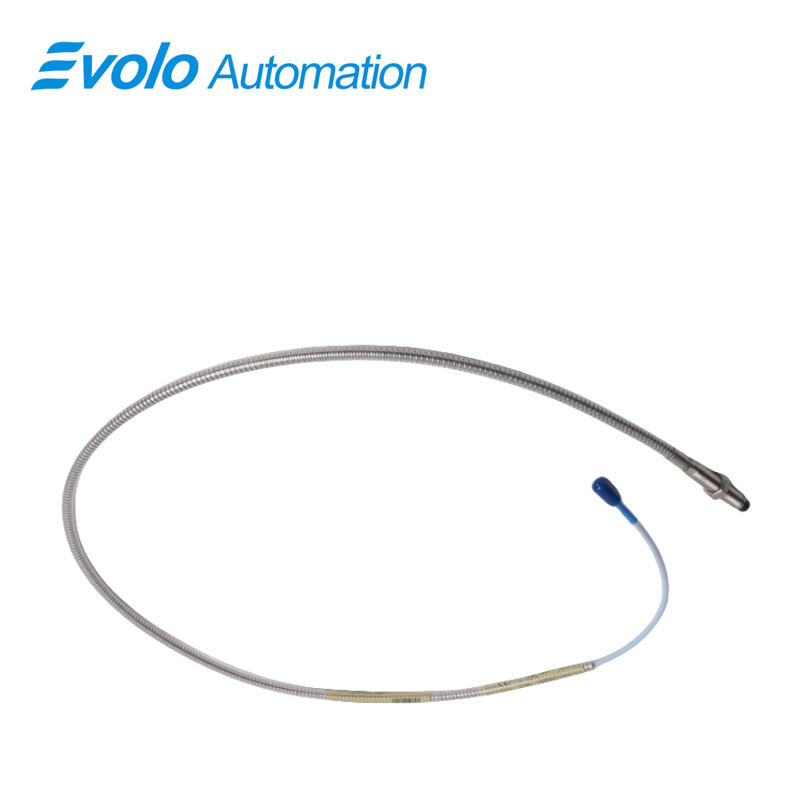

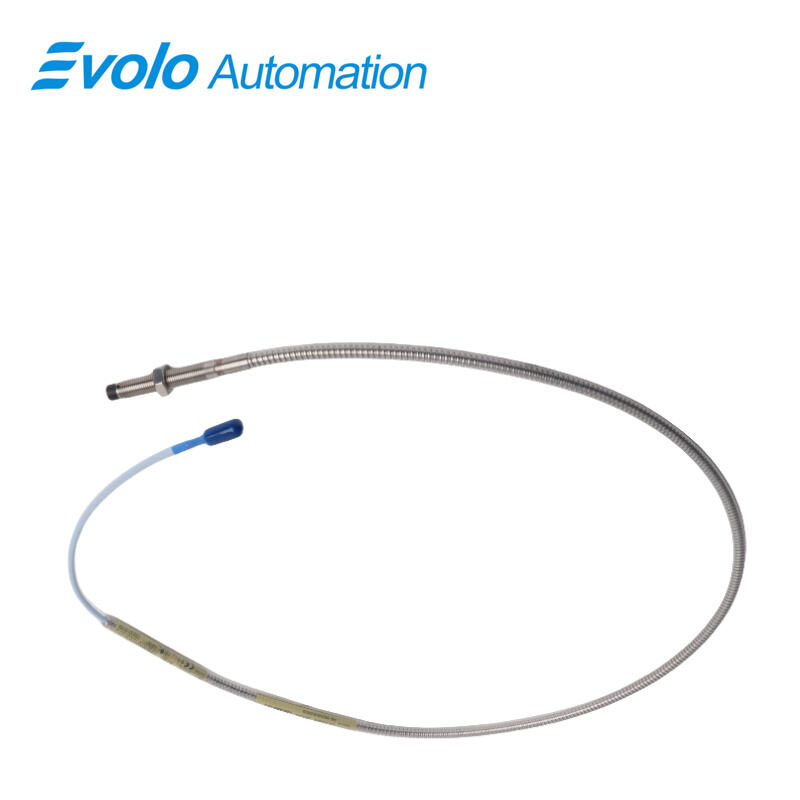

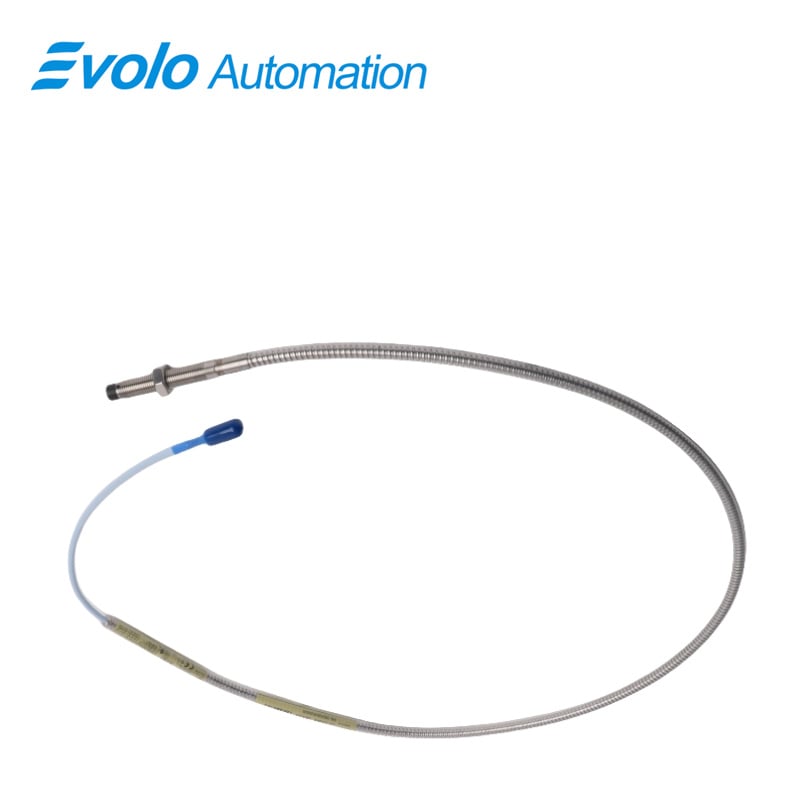

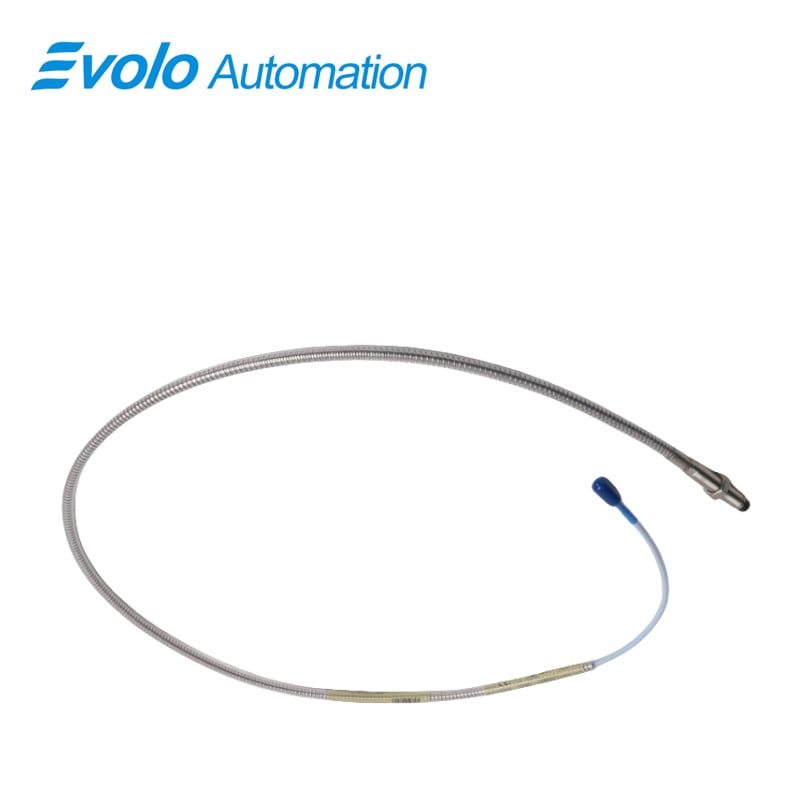

The 330102-00-20-05-01-05 3300 XL 8 mm Proximity Probe is an advanced eddy current transducer designed for precision automation, vibration monitoring, and predictive maintenance systems. It delivers an output voltage that varies directly with the distance between the probe tip and a conductive surface, enabling highly accurate static (position) and dynamic (vibration) measurements in industrial machinery. With an overall case length of 2.0 inches and a total cable length of 0.5 meter (1.6 feet), this probe is ideal for installations requiring compact design and space-efficient integration.

Equipped with a Miniature coaxial ClickLoc connector with connector protector and standard cable, the probe ensures robust signal integrity in standard industrial environments. It operates reliably across a temperature range of -52°C to +177°C (-62°F to +350°F), with less than 2 mV variation per volt input change and an output resistance of 50 Ω. The 3/8-24 UNF threaded case and a maximum thread engagement of 0.563 inches provide secure, repeatable installation. The probe also features TipLoc and CableLoc patented designs, providing 330 N (75 lbf) pull strength to resist vibration-induced disconnections. Certified under CSA, ATEX, and IECEx standards, it is suitable for deployment in hazardous environments while remaining fully API 670 compliant for mechanical configuration, linear range, accuracy, and temperature stability. The system supports backward compatibility with other 3300 series probes, extension cables, and Proximitor sensors, simplifying maintenance and system upgrades.

Applications

Application 1: Small Motor Shaft Vibration Monitoring

Enables precise shaft vibration detection in compact industrial motors. Monitors movements within the 2 mm linear range, allowing early identification of bearing wear and misalignment, reducing unplanned downtime by 10–15%.

Application 2: Pump Axial and Radial Position Tracking

Measures axial and radial shaft displacement in pumps and compressors, supporting predictive maintenance and minimizing mechanical failures through accurate 50 Ω output signal monitoring.

Application 3: Keyphasor Speed and Phase Measurement

Generates Keyphasor signals for rotational speed detection and phase synchronization, aiding automated process control and improving machine efficiency by up to 8%.

Application 4: Industrial Gearbox Analysis

Monitors vibration and displacement in gearboxes, helping detect imbalance, misalignment, and early mechanical degradation. Enables preventive intervention, reducing repair costs by 12%.

Application 5: General Machine Position Sensing

Applicable to moderate-temperature industrial machinery with standard cabling requirements. Provides reliable position sensing without needing optional FluidLoc cabling, maintaining high measurement accuracy.

Specifications

Operating and Storage Temperature:	-52°C to +177°C (-62°F to +350°F)
Supply Sensitivity:	Less than 2 mV change in output voltage per volt change in input voltage
Output Resistance:	50 Ω
Extension Cable Capacitance:	69.9 pF/m (21.3 pF/ft) typical
Field Wiring:	0.2 to 1.5 mm2 (16 to 24 AWG)
Linear Range:	2 mm (80 mils)

Competitive Advantage

Competitive Advantage 1: Hazardous Environment Certification

CSA, ATEX, and IECEx approvals allow safe operation in explosive or flammable industrial environments, enhancing overall safety and compliance.

Competitive Advantage 2: Extreme Temperature Operation

Maintains accurate measurements from -52°C to +177°C, ensuring stable performance in extreme industrial conditions, including high-temperature bearings.

Competitive Advantage 3: High Mechanical Strength

Patented TipLoc and CableLoc designs offer 330 N (75 lbf) pull strength, preventing cable disconnections under high vibration scenarios.

Competitive Advantage 4: Compact Form Factor

A 2.0-inch case length and protected connector allow installation in tight, constrained spaces, optimizing system design flexibility.

Competitive Advantage 5: Component Interchangeability

Fully compatible with other 3300 series probes, extension cables, and Proximitor sensors, reducing spare inventory complexity and minimizing maintenance downtime.
