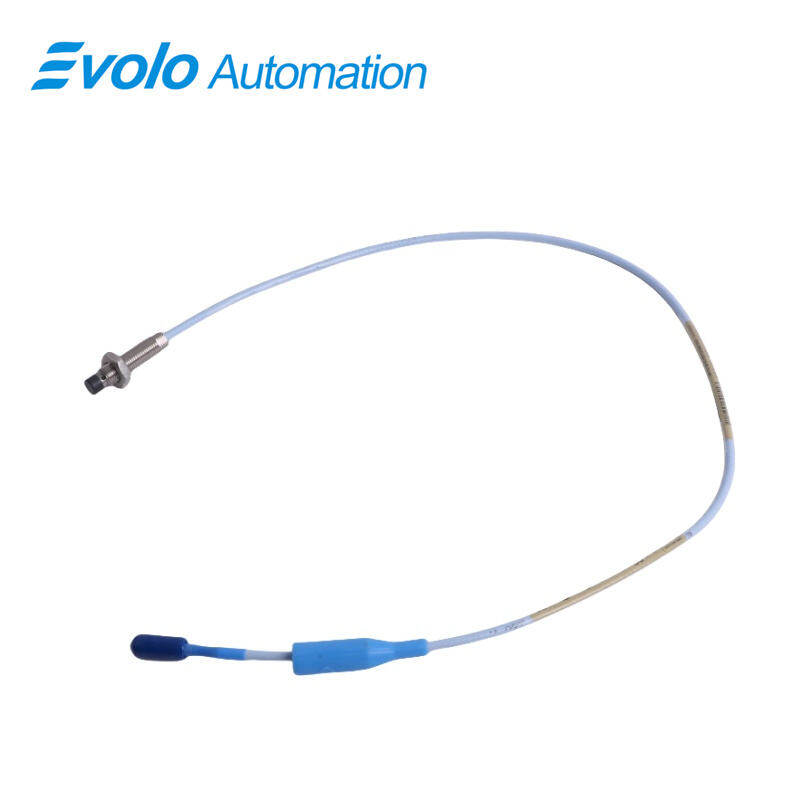

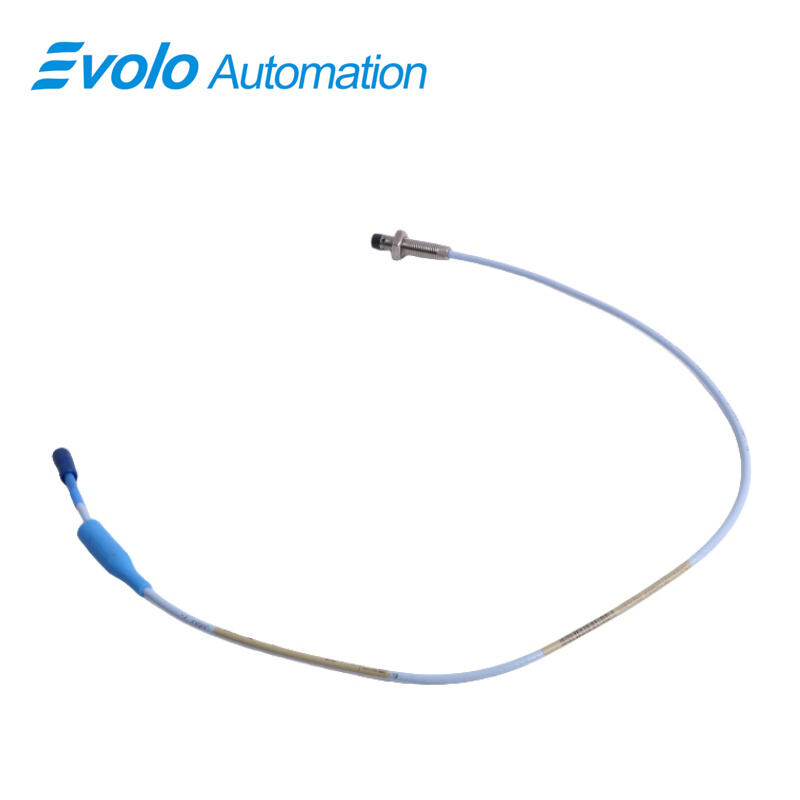

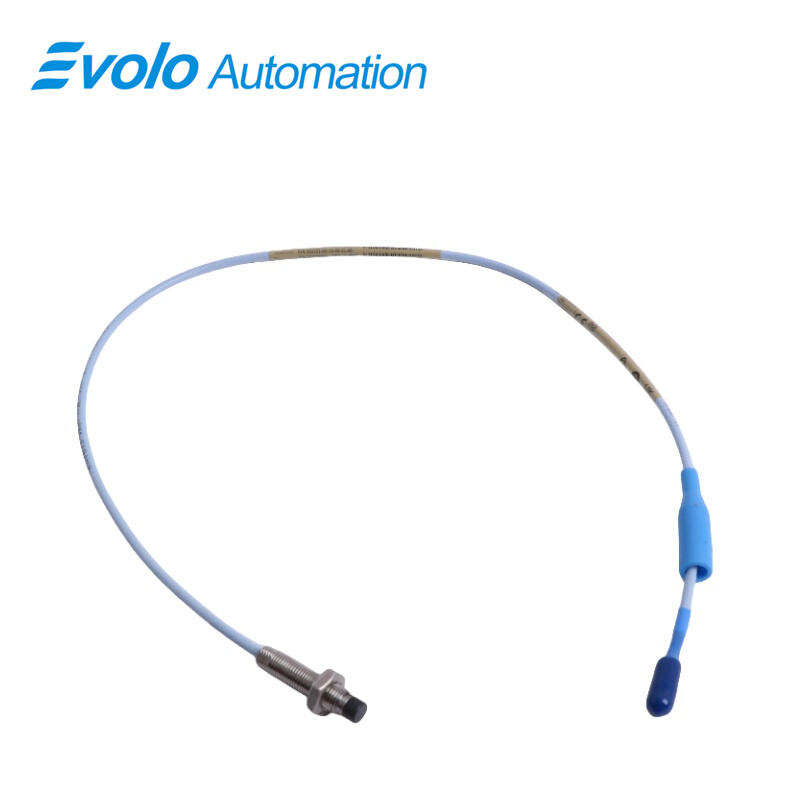

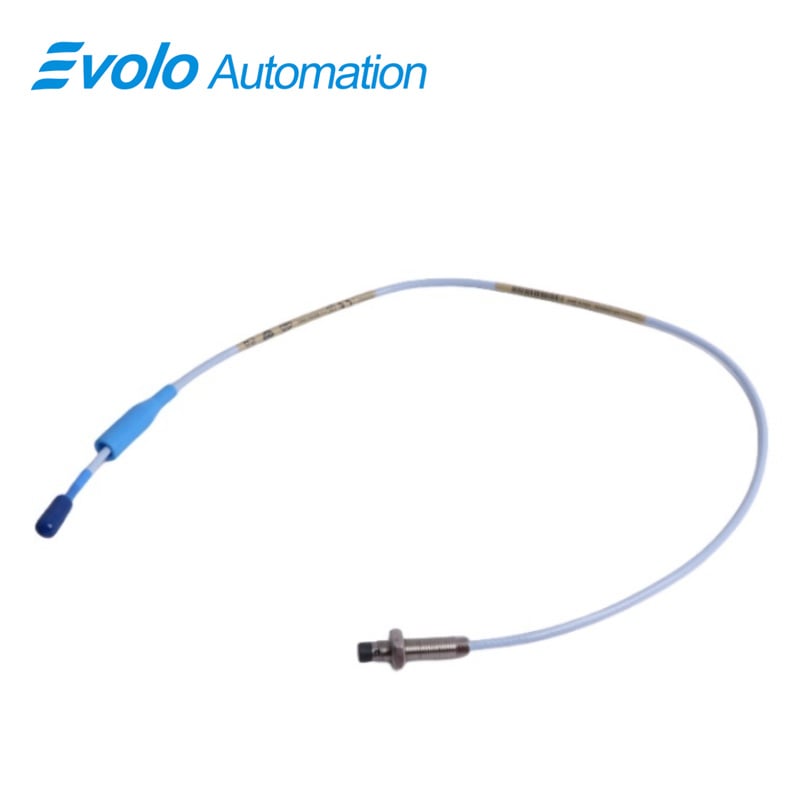

330101-00-15-20-12-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-15-20-12-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-15-20-12-05 3300 XL 8 mm Proximity Probe is a high-performance eddy current transducer designed for industrial automation, predictive maintenance, and machinery condition monitoring. With a linear range of 2 mm (80 mils), it delivers a precise output voltage directly proportional to the distance between the probe tip and the conductive target, allowing accurate measurement of both static shaft position and dynamic vibration. The probe features an overall case length of 1.5 inches, a 2.0-meter FluidLoc extension cable, and a Miniature coaxial ClickLoc connector, providing robust signal integrity in demanding industrial environments.

This 8 mm XL probe operates reliably in temperatures ranging from -52°C to +177°C (-62°F to +350°F), has a supply sensitivity below 2 mV per volt, 50 Ω output resistance, and 69.9 pF/m cable capacitance, ensuring accurate measurements in high-vibration and extreme-temperature applications. Its 3/8-24 UNF threaded probe case with a maximum engagement of 0.563 inches allows secure mounting. Patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength, enhancing mechanical reliability, while the optional FluidLoc cable prevents fluid ingress, maintaining measurement stability in lubricated machinery. Fully CSA, ATEX, and IECEx certified, the probe is API 670 compliant and backward-compatible with other 3300 series components, supporting modular and scalable automation systems.

Applications

Application 1: Turbine Vibration Monitoring

Monitors turbine shaft vibration in fluid-film bearings with high precision, detecting amplitude changes of less than 10 µm to prevent catastrophic failure.

Application 2: Pump Rotor Position Measurement

Measures static and dynamic rotor position in centrifugal and reciprocating pumps, improving alignment accuracy and reducing wear on bearings and seals.

Application 3: Compressor Speed and Phase Control

Provides Keyphasor reference signals for compressors, enabling real-time speed, phase, and timing measurements for optimized control and predictive maintenance.

Application 4: Industrial Gearbox Condition Monitoring

Monitors gear displacement and vibration in high-speed gearboxes, detecting early-stage misalignment or imbalance, reducing maintenance downtime by up to 30%.

Application 5: Oil-Lubricated Machinery Monitoring

The optional FluidLoc cable prevents oil leakage into the probe or surrounding equipment, maintaining consistent signal accuracy in continuous operation of lubricated systems.

Specifications

Competitive Advantage

Competitive Advantage 1: Hazardous Area Compliance

Certified to CSA, ATEX, and IECEx standards, allowing safe operation in explosive or hazardous industrial environments.

Competitive Advantage 2: Extreme Temperature Operation

Operates from -52°C to +177°C, supporting both cryogenic and high-temperature industrial automation applications.

Competitive Advantage 3: High Mechanical Reliability

Patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength, ensuring the probe and cable remain securely attached under high vibration.

Competitive Advantage 4: Modular and Interchangeable Design

Fully API 670 compliant and backward-compatible with all 3300 series probes and Proximitor sensors, enabling flexible system upgrades without recalibration.

Competitive Advantage 5: Fluid-Resistant Option

The optional FluidLoc cable prevents oil or fluid ingress, maintaining measurement reliability and protecting internal electronics in harsh lubricated environments.
